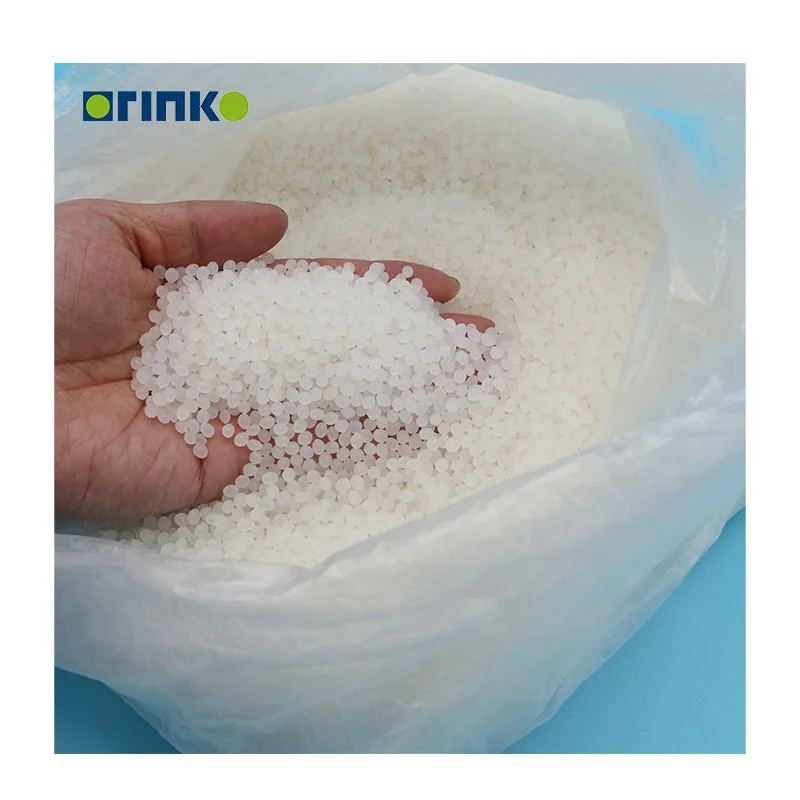

ORINKO биоразлагаемые переработанные ПЭТГ гранулы пла гранулы для 3d нити
2,52 $ - 4,98 $

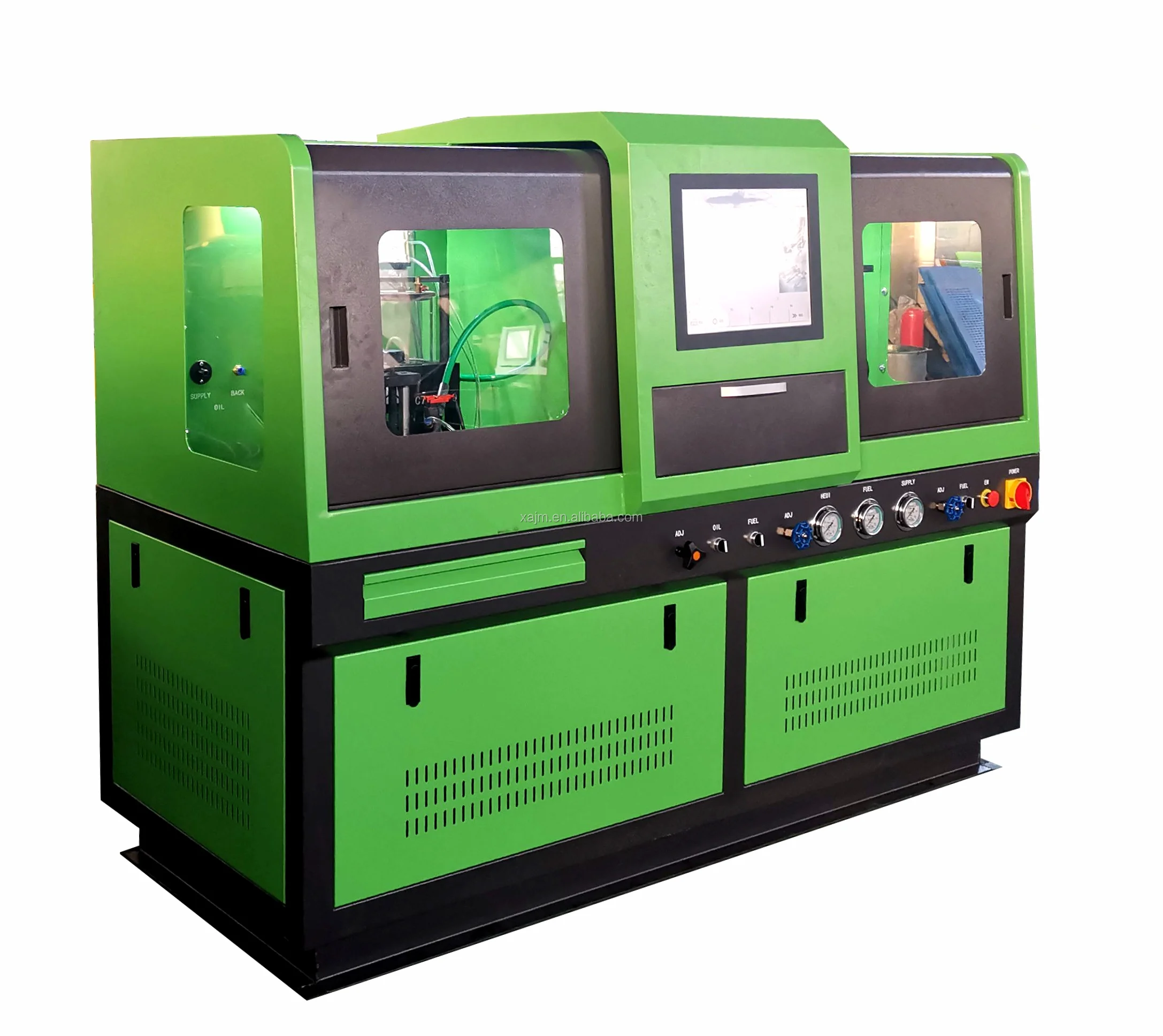

Испытательный стенд для инжектора и насоса Common rail CR966 с коробкой EUI EUP
- Категория: >>>
- Поставщик: Taian Xinan Precision Machinery Co. Ltd.
Сохранить в закладки 62496979690:
Описание и отзывы
Характеристики
Product Description
Product Application
1. Full-automatic operation procedure, save the time to set up the data.
2. Germany flow sensor: flow range 0.008-2L/min, test precision 0.5%.
3. Bosch common rail system (external connection DRV to Bosch rail with DRV) is used.
4.Rail pressure is controlled accurately by DRV and ZME valve.
5. Original Bosch CP3 common rail pump is equipped.
6. Industrial computer with windows system.
7 Rich database:640 types of data.
8. Self-protection under following status:overheat, oil-mist, overpressure, low oil level
9. Remote control is convenient for software upgrading and after-sale service.
10. Frequency converter is used to change the rotation speed.
11. Iron fuel tank with industrial air-conditioner inside .
12.support Multi-language
40±2℃
Main Features
1.Injector test: measure the injected fuel quantity & return volume under full-loaded,idling, pre-injection and Emission status.
2. Check the sealing performance of the injector.
3. Check the solenoid valve.
4. Clean the injector and pump before testing.
5. Clean the ZME separately.
6. Testing injectors in one setup.
7.User can add and edit the data by themselves.
8.Save and print the testing results & customer information.
9.Support software upgrading.
Detailed Images
CR966 Common Rail Injector,HEUI, EUI/EUP CAMBOX test bench Application
This CR966 new developed machine from NANTAI .
It‘s configure is the highest in the market .
The operating is very convenient .
No need to disassemble the HEUI injector stand and EUI/EUP CAMBOX .
CR966 Common Rail Injector, HEUI , EUI/EUP CAMBOX test bench Technical Parameters
1.Motor power: 7.5KW, 11KW
2. Electronic power: 3 PHASE 380V or 3 PHASE 220V, 220V 1 Phase
3. Motor speed: 0-4000RPM
4. Presure adjustment: 0-2000bar
5. Flow testing range: 0-600ml/1000times
6.Flow measurement accuracy:0.1ml
7. Temperature range: 40+-2
8. Cooling system: fan or forced cooling
CR966 Common Rail Injector , HEUI , EUI/EUP CAMBOX Test Bench Function
1. Common rail injector testing of BOSCH DENSO DELPHI SIEMENS and PIEZO, the common rail injector testing can also testing by
glass tube .
2. HEUI Injector testing of CAT C7/C9/C-9, CAT3126
3. EUI/EUP CAMBOX testing of Detroit ,CUMMINS, VOLVO, CATERPILLAR, DELPHI ,SCANIA, AUDI ect.CR966 Common Rail Injector,HEUI, EUI/EUP CAMBOX test bench Application
It‘s configure is the highest in the market .
The operating is very convenient .
No need to disassemble the HEUI injector stand and EUI/EUP CAMBOX .
CR966 Common Rail Injector, HEUI , EUI/EUP CAMBOX test bench Technical Parameters
1.Motor power: 7.5KW, 11KW
2. Electronic power: 3 PHASE 380V or 3 PHASE 220V, 220V 1 Phase
3. Motor speed: 0-4000RPM
4. Presure adjustment: 0-2000bar
5. Flow testing range: 0-600ml/1000times
6.Flow measurement accuracy:0.1ml
7. Temperature range: 40+-2
8. Cooling system: fan or forced cooling
CR966 Common Rail Injector , HEUI , EUI/EUP CAMBOX Test Bench Function
1. Common rail injector testing of BOSCH DENSO DELPHI SIEMENS and PIEZO, the common rail injector testing can also testing by
glass tube .
2. HEUI Injector testing of CAT C7/C9/C-9, CAT3126
3. EUI/EUP CAMBOX testing of Detroit ,CUMMINS, VOLVO, CATERPILLAR, DELPHI ,SCANIA, AUDI ect.
This CR966 new developed machine from NANTAI .
It‘s configure is the highest in the market .
The operating is very convenient .
No need to disassemble the HEUI injector stand and EUI/EUP CAMBOX .
CR966 Common Rail Injector, HEUI , EUI/EUP CAMBOX test bench Technical Parameters
1.Motor power: 7.5KW, 11KW
2. Electronic power: 3 PHASE 380V or 3 PHASE 220V, 220V 1 Phase
3. Motor speed: 0-4000RPM
4. Presure adjustment: 0-2000bar
5. Flow testing range: 0-600ml/1000times
6.Flow measurement accuracy:0.1ml
7. Temperature range: 40+-2
8. Cooling system: fan or forced cooling
CR966 Common Rail Injector , HEUI , EUI/EUP CAMBOX Test Bench Function
1. Common rail injector testing of BOSCH DENSO DELPHI SIEMENS and PIEZO, the common rail injector testing can also testing by
glass tube .
2. HEUI Injector testing of CAT C7/C9/C-9, CAT3126
3. EUI/EUP CAMBOX testing of Detroit ,CUMMINS, VOLVO, CATERPILLAR, DELPHI ,SCANIA, AUDI ect.CR966 Common Rail Injector,HEUI, EUI/EUP CAMBOX test bench Application
It‘s configure is the highest in the market .
The operating is very convenient .
No need to disassemble the HEUI injector stand and EUI/EUP CAMBOX .
CR966 Common Rail Injector, HEUI , EUI/EUP CAMBOX test bench Technical Parameters
1.Motor power: 7.5KW, 11KW
2. Electronic power: 3 PHASE 380V or 3 PHASE 220V, 220V 1 Phase
3. Motor speed: 0-4000RPM
4. Presure adjustment: 0-2000bar
5. Flow testing range: 0-600ml/1000times
6.Flow measurement accuracy:0.1ml
7. Temperature range: 40+-2
8. Cooling system: fan or forced cooling
CR966 Common Rail Injector , HEUI , EUI/EUP CAMBOX Test Bench Function
1. Common rail injector testing of BOSCH DENSO DELPHI SIEMENS and PIEZO, the common rail injector testing can also testing by
glass tube .
2. HEUI Injector testing of CAT C7/C9/C-9, CAT3126
3. EUI/EUP CAMBOX testing of Detroit ,CUMMINS, VOLVO, CATERPILLAR, DELPHI ,SCANIA, AUDI ect.
Contact Details
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Похожие товары

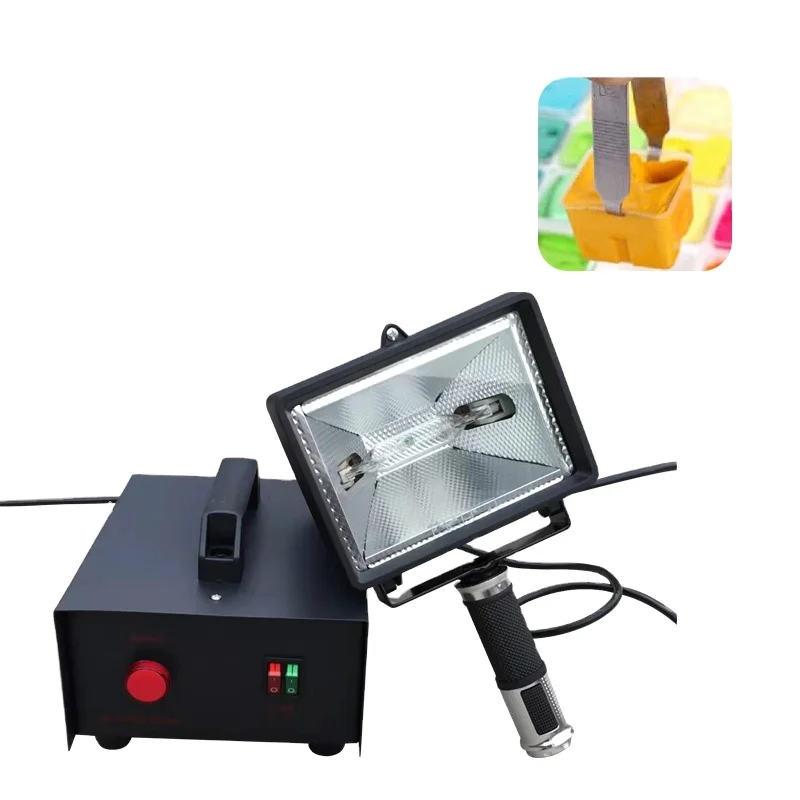

Скорость отверждения УФ-лампы 175/250/500/1000 Вт

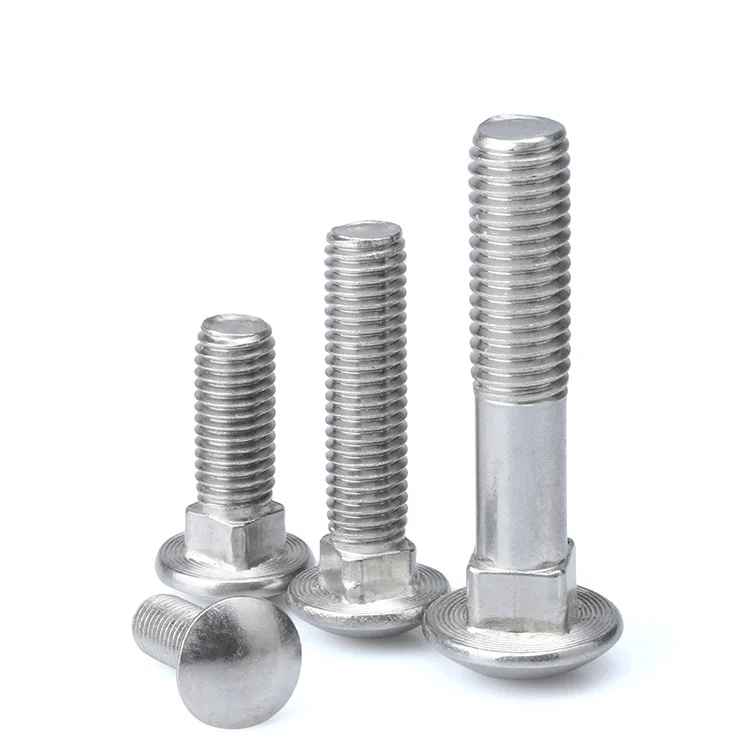

Производство Китай, оптовая цена, высокое качество, 304 нержавеющая сталь, гриб, круглая головка, квадратный шейный болт каретки
0,10 $ - 0,35 $

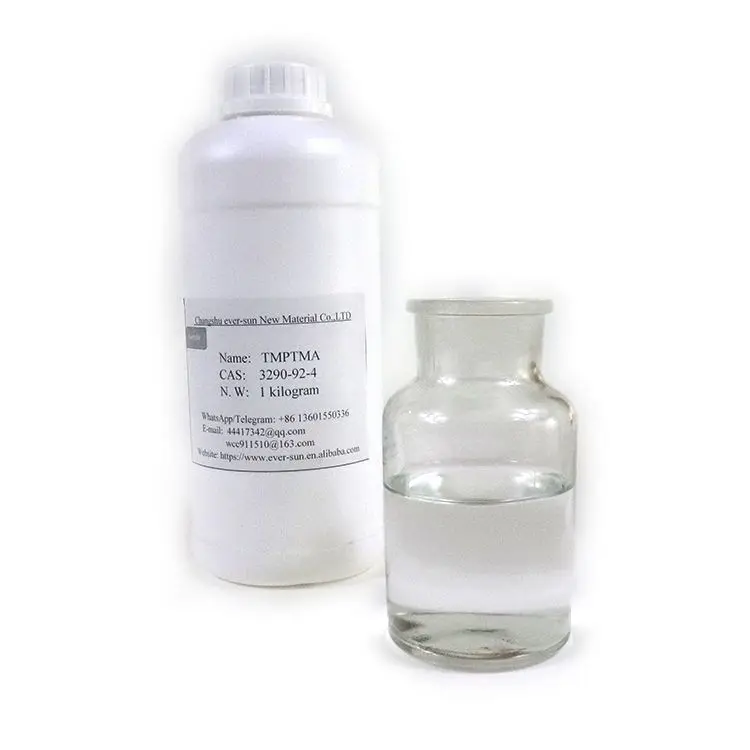

Сшивающий агент TMPTMA CAS 3290-92-4 УФ мономер по лучшей цене Триметилолпропан
4,00 $ - 8,00 $

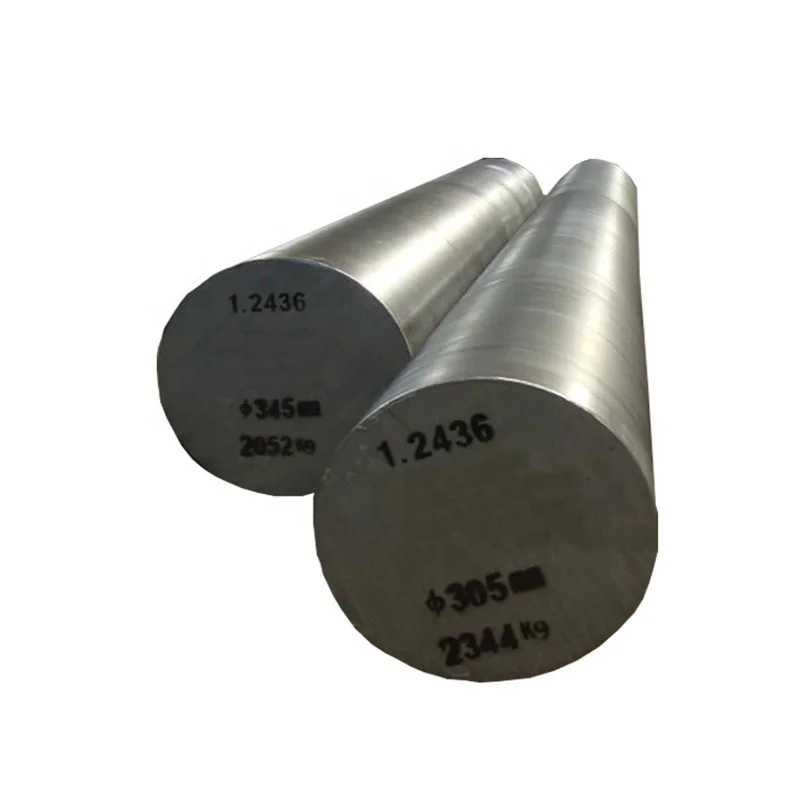

Кованый инструмент стальной стержень sk7 sk3 материал сталь sk3 инструмент стальной круглый стержень
2 320,00 $ - 2 350,00 $

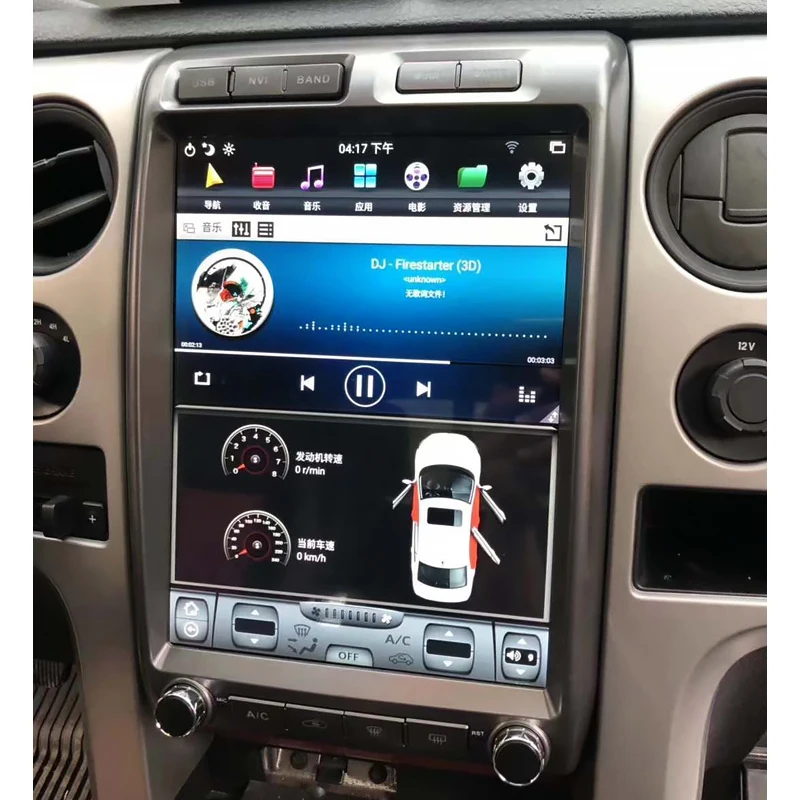

Canonic FORD F150 2009-2012 Android 11 вертикальный экран Тесла Стиль Автомобильный мультимедийный Dvd-плеер для Стерео Авторадио Wifi
480,00 $ - 518,00 $
Cul сертификатом изоляцией из сшитого полиэтилена RHH/RHW-2 одиночный проводник медный проводник 10awg 12awg PV кабель 2000V

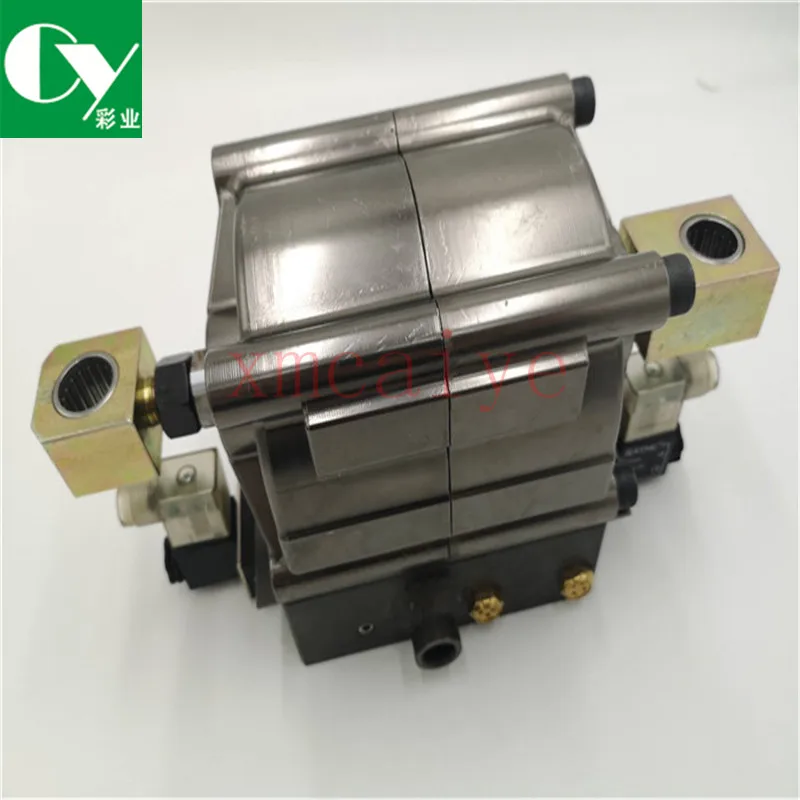

Пневматический цилиндр C2.184.1051 для печатных машин Speedmaster 102/SM102
