Product Description

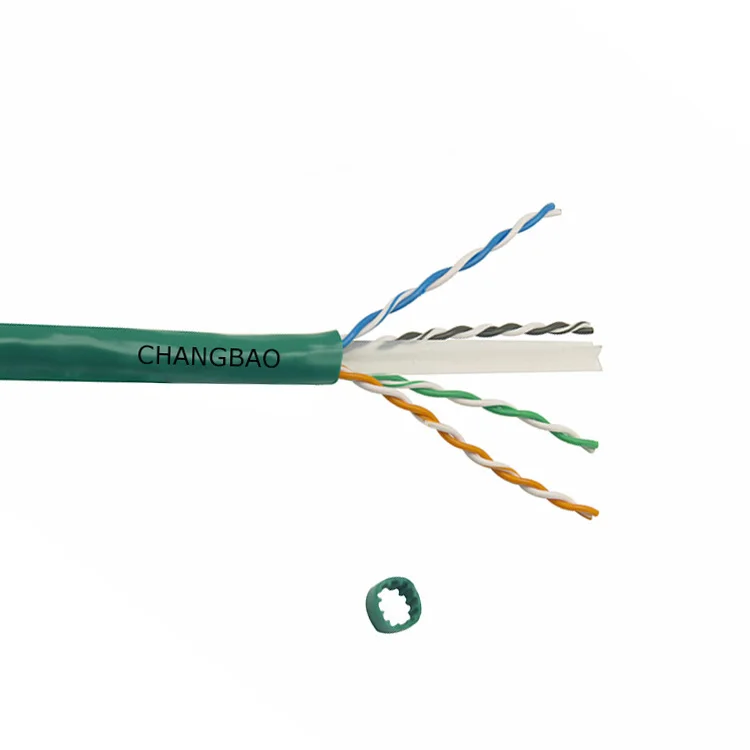

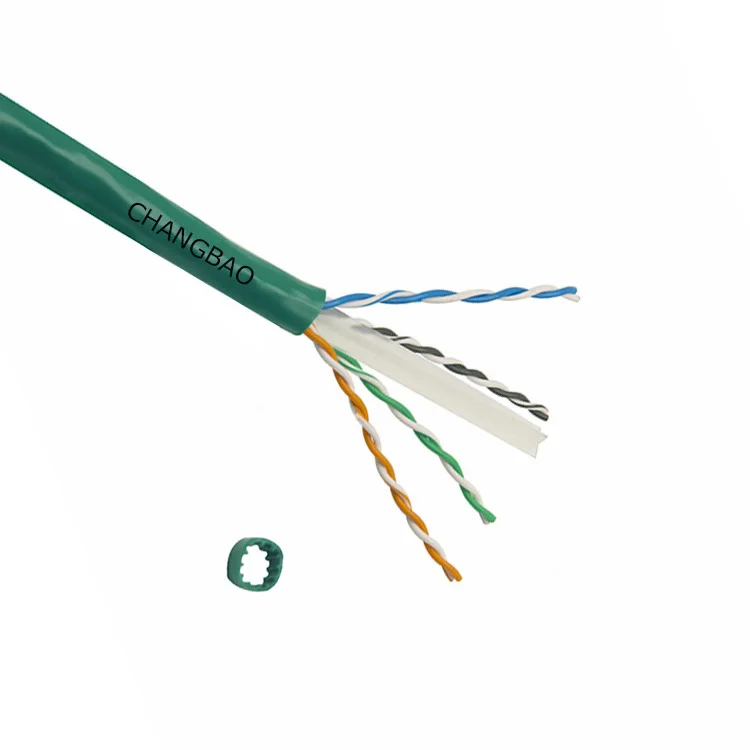

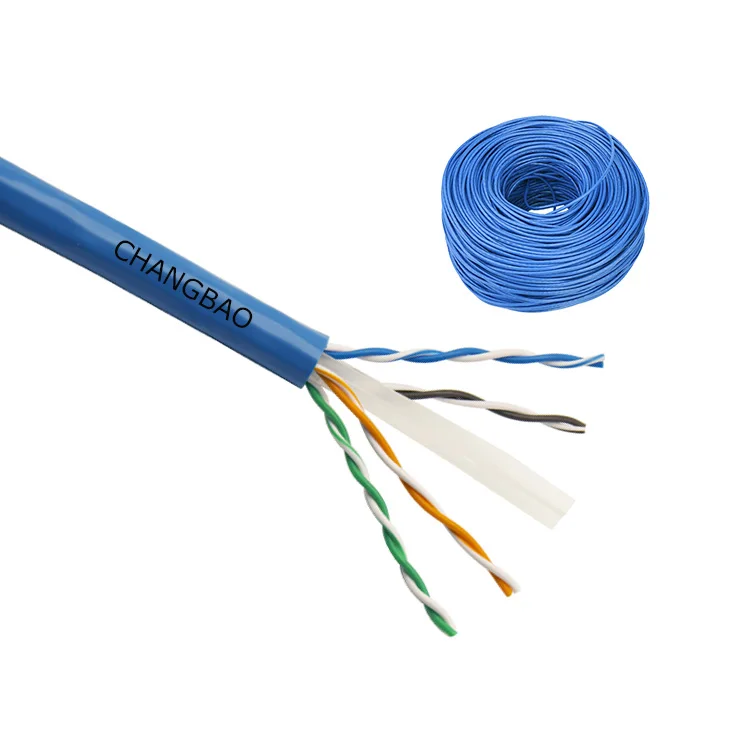

CHANGBAO plenum rated cat6a UTP lan networking ethernet cable

* Cat6A UTP Unshielded Twisted Pair Cable
* Pass FLUKE Test High Performance Computer Networking Cable
* Suitable for Fast, Gigabit, and 10-Gigabit Ethernet
* Digital Communication Applications of up to 750MHz Bandwidth
* Exceeds ANSI/TIA-568-C.2 , ISO/IEC 11801 Standards
* ETL Listed, CMX / CM / CMG / CMR / CMP Rated PVC or LSZH Jacket Use Indoors

Cross Section

Construction Characteristics

Conductor	Material	Solid Bare Copper
		Size	23AWG X 4P
		Construction	1/0.585±0.005mm
Insulation	Material	HDPE
		Diameter	1.02±0.01mm
		Colors	Blue-White/Blue
				Orange-White/Orange
				Green-White/Green
				Brown-White/Brown
Filler	Filler	PVC
Jacket	Material	PVC
		Diameter	7.60±0.10mm
		Colors	Per request
		Rip Cord	Nylon

Electrical & Physical Characters

Rating					75℃ 30V
Conductor Resistance					Max 68.5ohm/km at 20℃
Dielectric Strength					Min AC1.5KV
Spark Test					5.0KV
AC Leakage Current Through overall Jacket					AC 1500V <=10mA
Insulation	Unaged	Tensile Strength	16.5 Mpa
	Unaged			Elongation	500%
		Aged	Tensile Strength	14.2 Mpa(100℃ 168h)
		Aged		Elongation	250%(100℃ 168h)
Jacket	Unaged	Tensile Strength	13.8 Mpa
	Unaged			Elongation	150%
		Aged	Tensile Strength	11.7 Mpa(100℃ 168h)
		Aged		Elongation	80%(100℃ 168h)
Cold Bend Test					-20℃ 4hours No Cracking
DC Resistance Unbalance					Max 5%
Pair-to-Ground Capacitance Unbalance					Max 3300pF/km
Characteristic Impedance					1~500MHZ 100±15OHM
Propagation Delay					500MHZ Max 536ns/100m
Delay Skew					1~500MHZ Max 40ns/100m

>>>Click Here To Get Price From Us Now

Company Introduction

CHANG BAO TECHNOLOGY CO., LTD,established in 2001, is a professional manufacturer engaged in the research, development, production, sale of Communication cables, Speaker & Audio cables, Security & Alarm cables, Telephone cables, Control & Automation cables, series of Composite cables and Electronic wires, etc.
We are located in Shunde Foshan city with convenient transportation access. Selling well in cities around China, our products are also sold to more than 60 countries or regions around the world like America, Europe, the Middle East, Africa, Asia, etc. We are an ODM and OEM manufacturer of many well-known foreign integrated wiring brands. We have obtained ISO 9001, ISO 14001, ETL, CE certificates; all products are RoHS and REACH compliant.
We warmly welcome customers from at home and abroad to cooperate with us for a common success.
