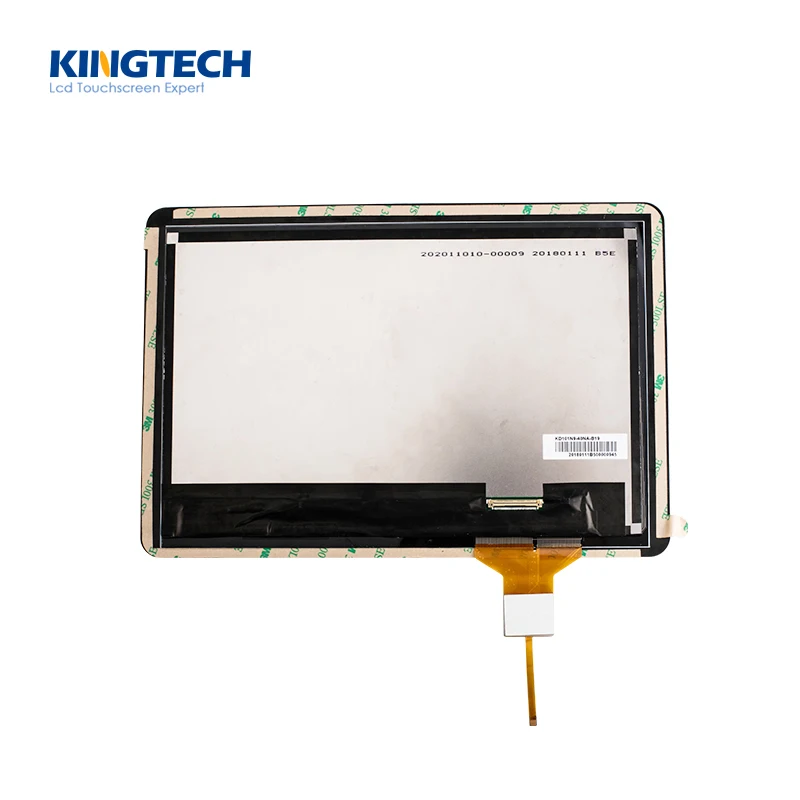

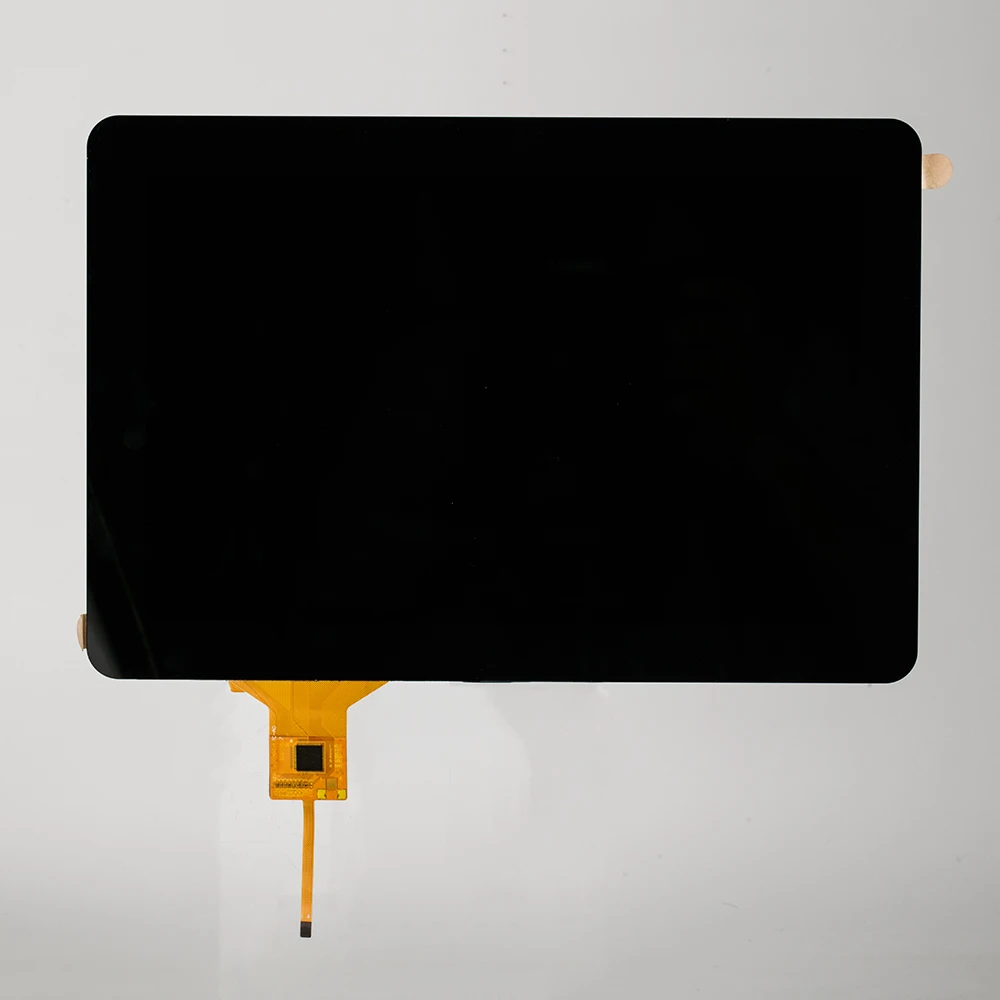

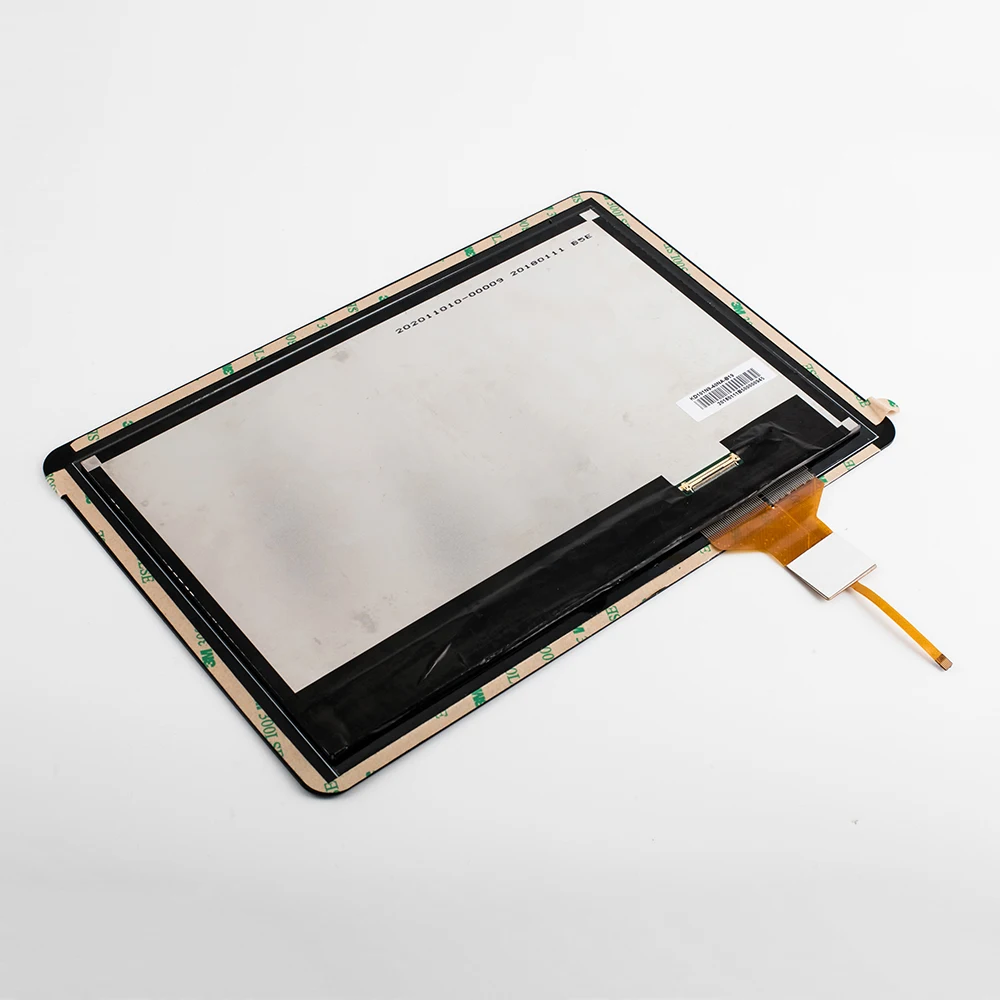

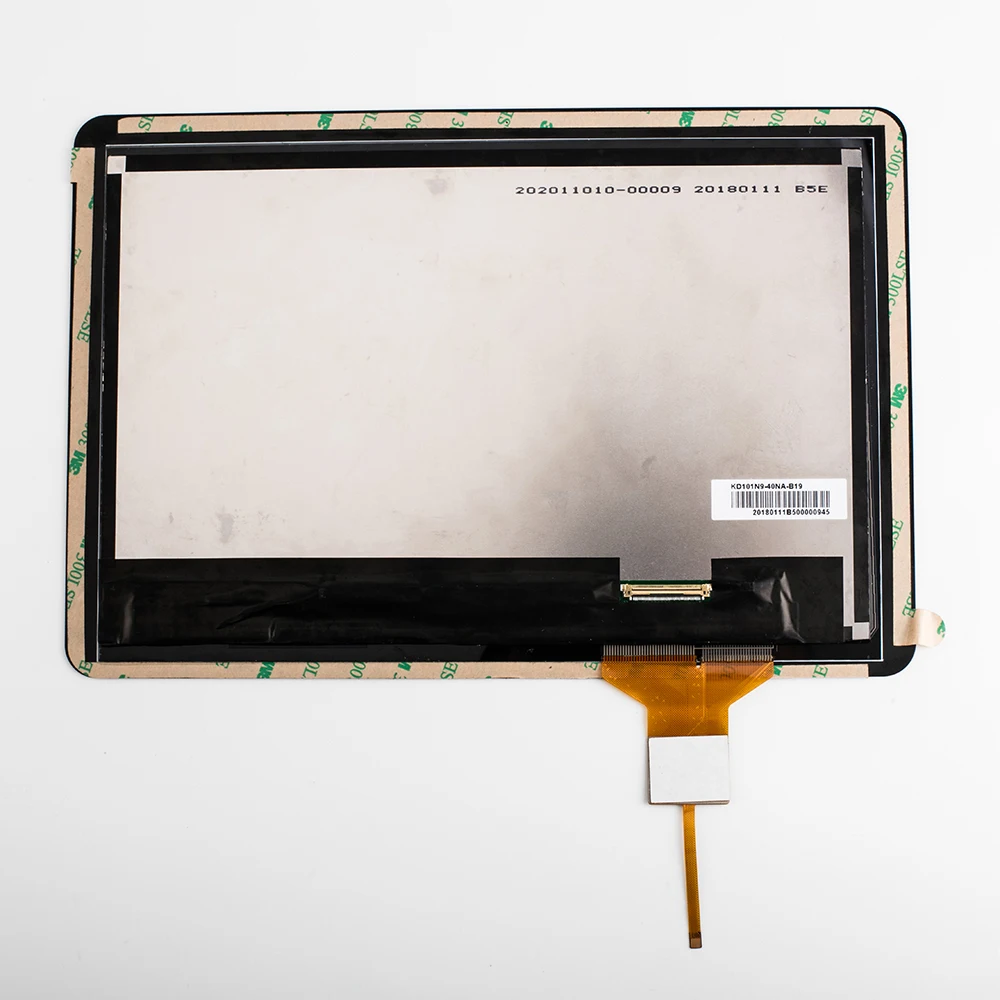

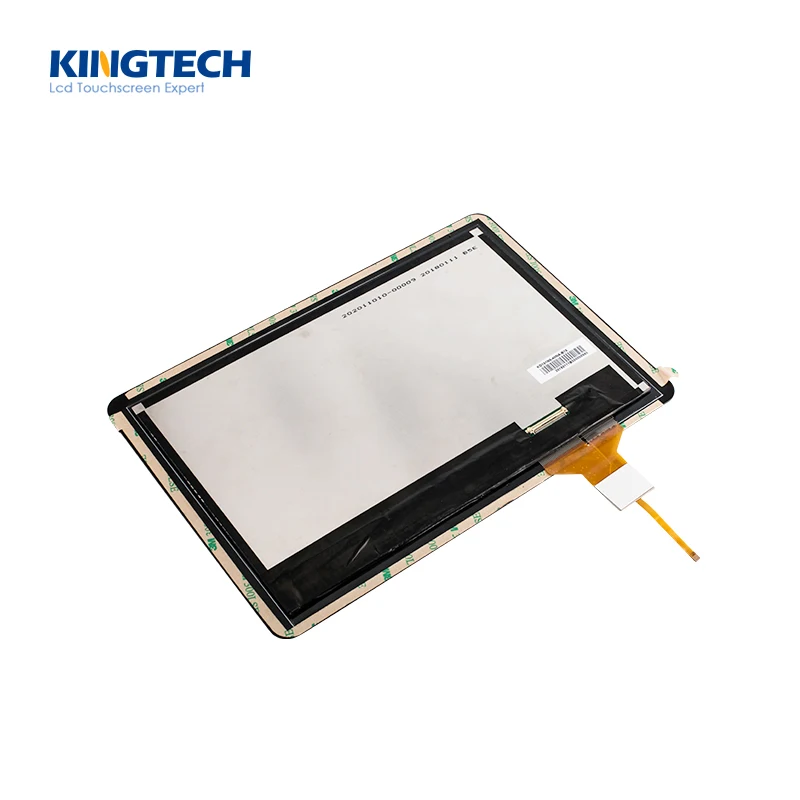

Kingtech 1000 Nits 1280x800 10 1 lvds высокая яркость ЖК панель сенсорный дисплей промышленный ЖК дисплей
- Категория: >>>
- Поставщик: Shenzhen Elsun Technology Co. Ltd.
Сохранить в закладки 62501395952:
Описание и отзывы
Характеристики
Product Description
Key Mechanical Data
Main Parameters | ||
Item | kingtech 10.1 inch 1000 NITS ips1280*800 display | |
Resolution | 1280(RGB0x800 | |
Outline Dimension | 229.46(W)*149.10(H)*2.8(T) | |
Active Area(mm) | 216.96*135.60 | |
Interface | 8-BIT LVDS Interface | |
Viewing Angle | wide viewing angle / ips | |
LED life | 50000h | |
Warranty | 12 months | |
Display Mode | Normally Black | |
Technology Type | Transmissive | |
Pixel Pitch (mm) | 0.1695(W)*0.1695(H) | |
Pixel Configuration | RGB vertical stripe | |
FPC type | ZIF | |
Operating Temperature | -20℃ to +70℃ | |
Storage Temperature | -30℃ to +80℃ | |
Response time | 25ms | |
Color Depth | 16.7M | |
Brightness | 1000 nits | |
More Customized Products
Other product products, please click below Model No to review product details
Size and Feature | Model No | Resolution | Outline(mm) | Brightness | Viewing angle | Storage Temp |
1.39" round Amoled | 454*454 | 38.83*38.21*0.68 | 450 | All | -30~70 | |
2.4" ips lcd | 240*320 | 60.4*42.72*2.21 | 200 | All | -30~80 | |
2.47'' round LCD | 480*480 | 69.19*71.74*2.45 | 350 | All | -30~80 | |
2.8" ips LCD | 240*320 | 50.0*69.2*2.5 | 400 | All | -30~80 | |
3.34'' round LCD | 320*320 | 66.20*69.30*2.66 | 600 | 12 O'Clock | -30~80 | |
3.4'' round LCD | 800*800 | 99.0*96.6*3.98 | 350 | All | -30~80 | |
3.5" 320x240 LCD | 320*240 | 76.90*63.90*3.27 | 290 | 12 O'Clock | -30~80 | |
3.5" Transflective LCD | 480*640 | 63*85*2.9 | 300 | All | -30~80 | |
3.5" IPS LCD | 320*480 | 84.18*53.76*3.30 | 230 | All | -30~80 | |
4.3" 800 nits LCD | 480*272 | 105.4*67.15*2.95 | 800 | 12 O'clock | -30~80 | |
4.3" 280 nits LCD | 480*272 | 105.5*67.2*4.15 | 280 | 12 O'Clock | -30~80 | |
4.3" 500 nits IPS LCD | 480*800 | 104.75*61.46*2.20 | 500 | All | -30~80 | |
4.3" 300 nits IPS LCD | 480*800 | 105.8*63.3*3.6 | 300 | All | -30~80 | |
4.82'' IPS LCD | 480*1120 | 122.12*51.26*1.9 | 280 | All | -40~60 | |
5.0" 500 nits LCD | 800*480 | 120.7*75.8*2.9 | 500 | 12 O'Clock | -30~80 | |
7"800x480 300nis lcd | 800*480 | 164.9*100*5.7 | 300 | 12 O'clock | -30~80 | |
7"800X480 400nis lcd | 800*480 | 164.9*100*5.7 | 400 | 12 O'Clock | -30~80 | |
7"1280X800 IPS LCD | 1280*800 | 161.0*107.0*3.35 | 400 | All | -30~80 |
Company Profile
Kingtech has been specializing in TFT LCD display and touch screen since 2003. More than 90% of our business is custom made display modules for projects such as industrial devices, medical and smart home applications.Our mission is to provide customer one-stop solution. With LCD display and touch screen as our product center, great trust is built with our customers.
Our Advantages
Our Facrory
Our Lab and Test Equipment
Certifications
Our Exhibition and Our Team
Our Exhibition
Our Team
Packaging and Trasporting
FAQ
1.How do you guarantee the quality?
We pass ISO900, ISO14001 and TS16949 certificates.Strict quality control Inspection is done in FOG==>LCM==>LCM+ RTP/CTP==> production online inspection ==>Q.C inspection==>aging test 4 hours with load in 60 ℃ special room (as option)==>OQC
2.Do you have any MOQ limit?
No, small quantity order is also welcome!
3.How can you guarantee stable supply?
1)We have very good source. We always check and choose the most stable supply LCD panel in the beginning.
2)When EOL happens, usually we will get notification from original manufacturer 3-6 months in advance. We prepare another LCD brand solution as replacement for you or recommend you to do last buy if your annual quantity is small or even tool up a new LCD panel if your annual quantity is big.
2)When EOL happens, usually we will get notification from original manufacturer 3-6 months in advance. We prepare another LCD brand solution as replacement for you or recommend you to do last buy if your annual quantity is small or even tool up a new LCD panel if your annual quantity is big.
4.Why are Kingtech’s products higher in price?
1)Most of our projects are industrial applications, not consumer.
2)The material we are using are all A grade from formal channels,with strong anti-shock capacity, anti-high-temperature capacity, high reliability and very low rate of reject.
3)Every single piece display will be inspected carfully for more than 5 times. Reliability test will be done for all new projects.
2)The material we are using are all A grade from formal channels,with strong anti-shock capacity, anti-high-temperature capacity, high reliability and very low rate of reject.
3)Every single piece display will be inspected carfully for more than 5 times. Reliability test will be done for all new projects.
Похожие товары

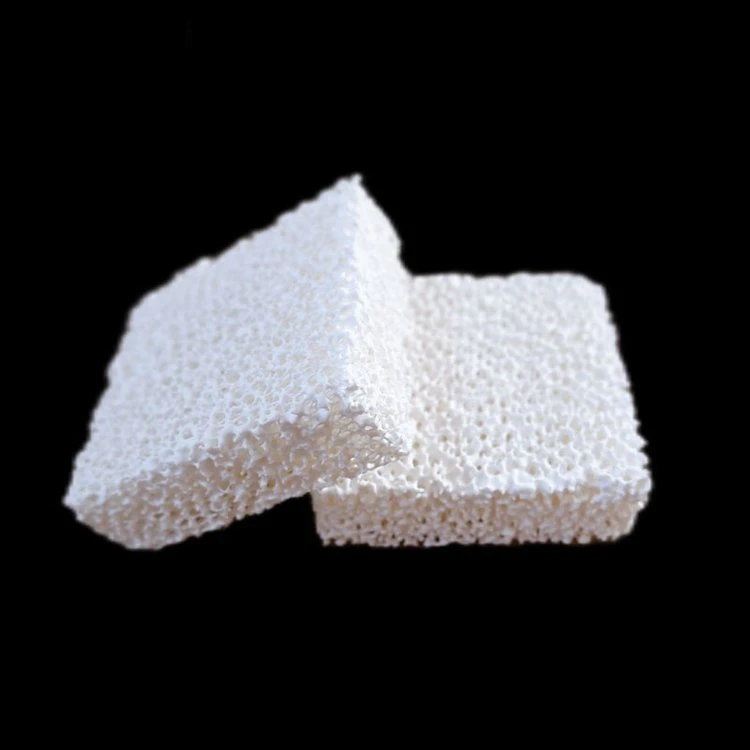

Литейный глиноземный пористый керамический вспененный фильтр 10-100ppi глиноземный керамический вспененный фильтр для алюминиевого литья

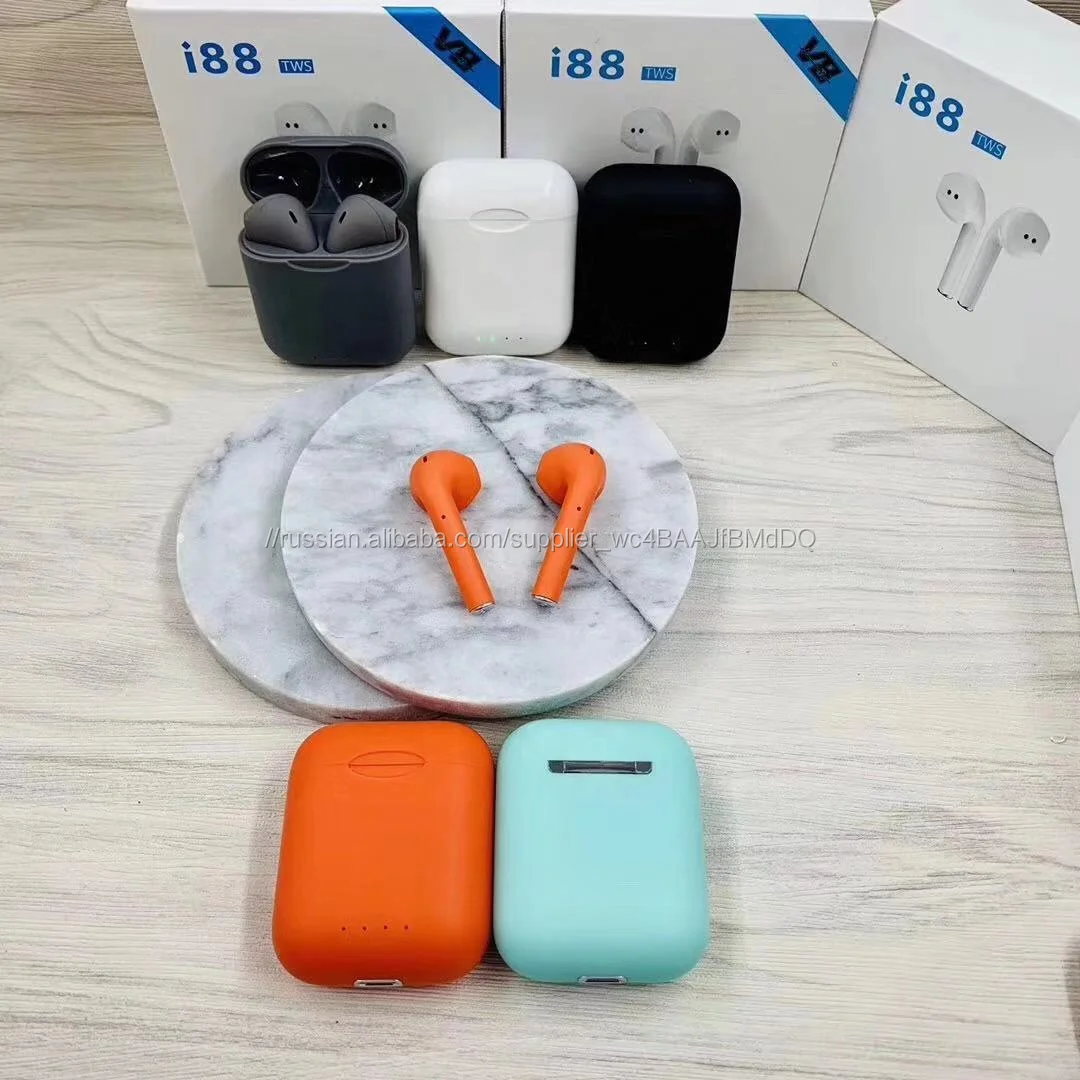

2019 лучшие продажи earpode мобильный телефон оригинальные вкладыши bluetooth беспроводные наушники

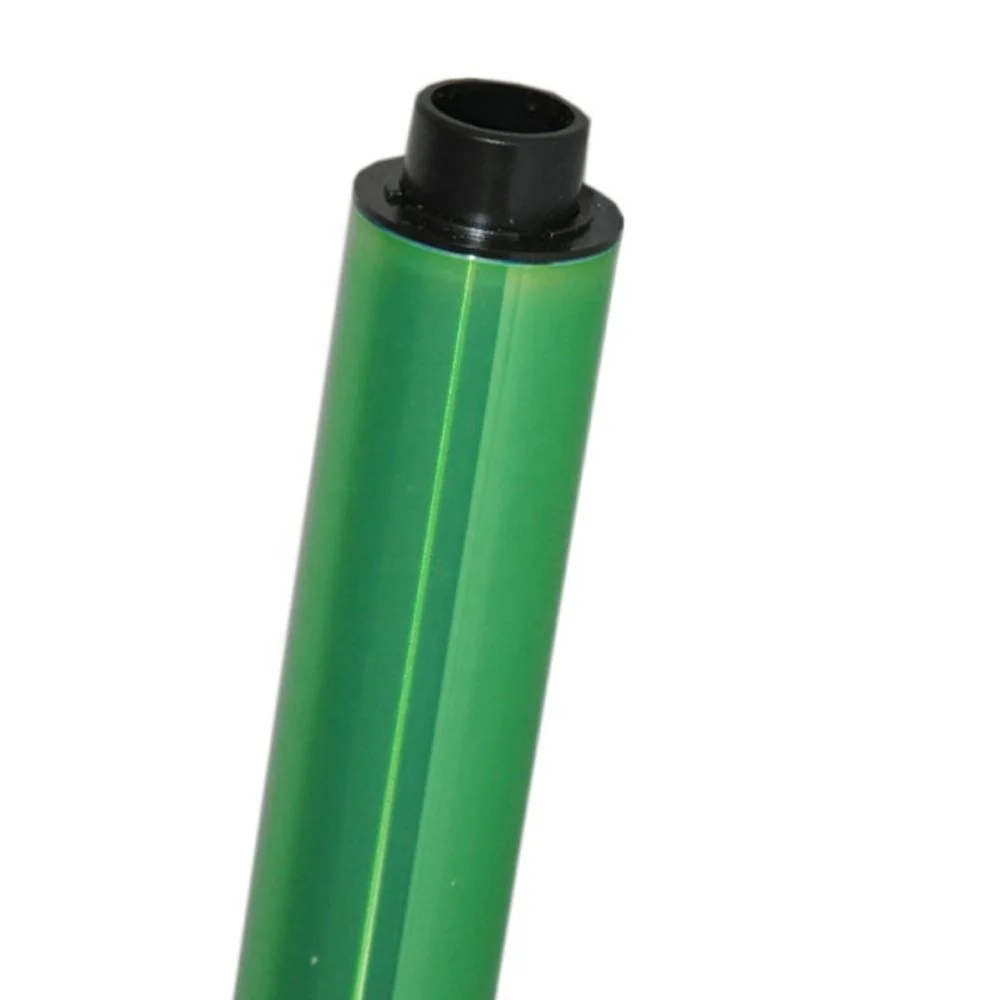

Фотобарабан для HP 1600/2600/2605/2700/3000/3600/4700/4730/5200 (для струйного принтера 214A ) Q6000A/Q6470A/Q5950A/Q6460A части барабанчик

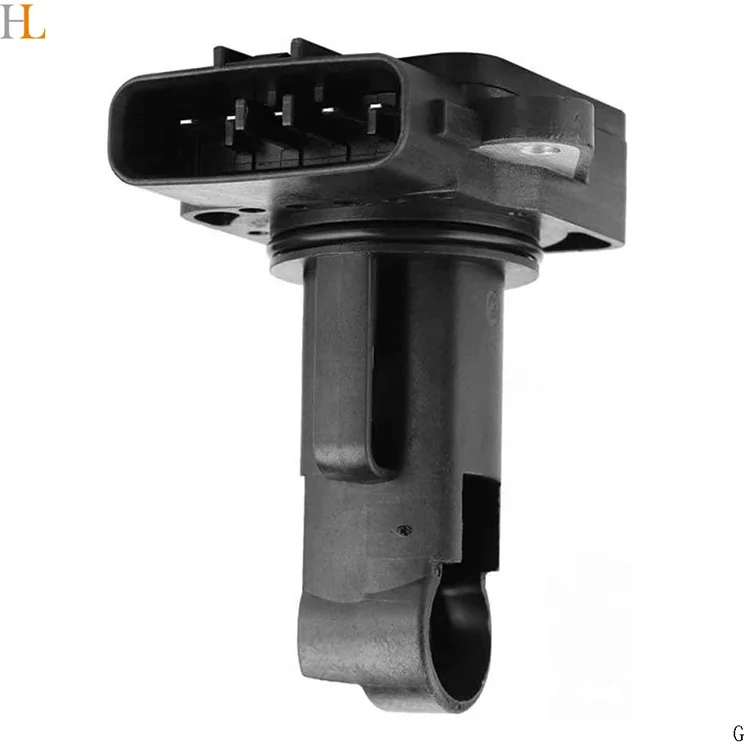

Датчик массового расхода воздуха HL Ruian 2220430010 метр MAF 22204-30010 для Toyota Lexus
13,00 $ - 16,00 $

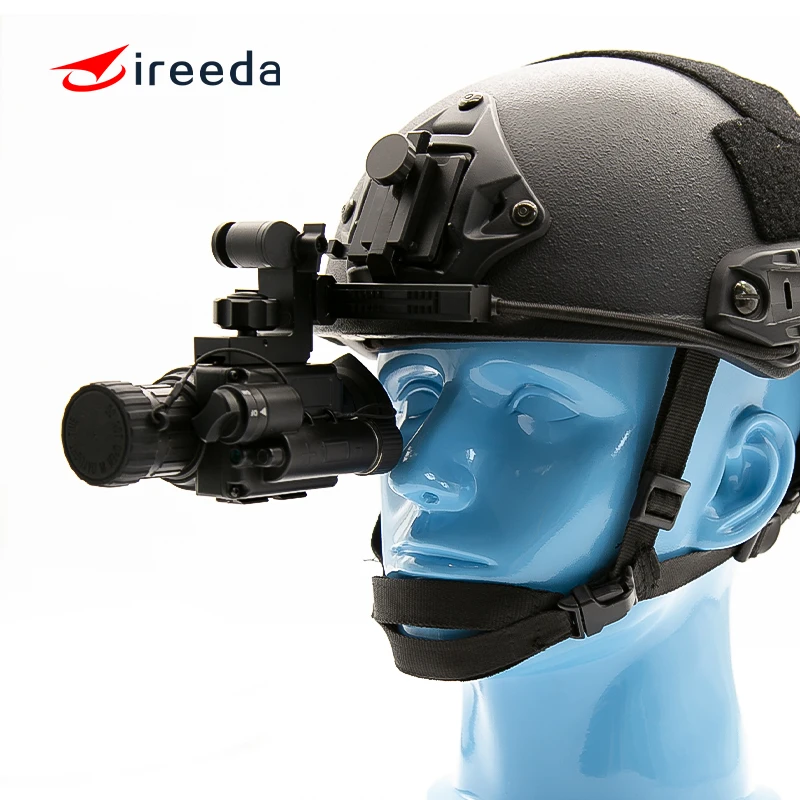

Pvs 14 Шлем ночного видения телескоп gen 3 2 камера тепловой цифровой Монокуляр ночного видения
1 900,00 $ - 2 250,00 $

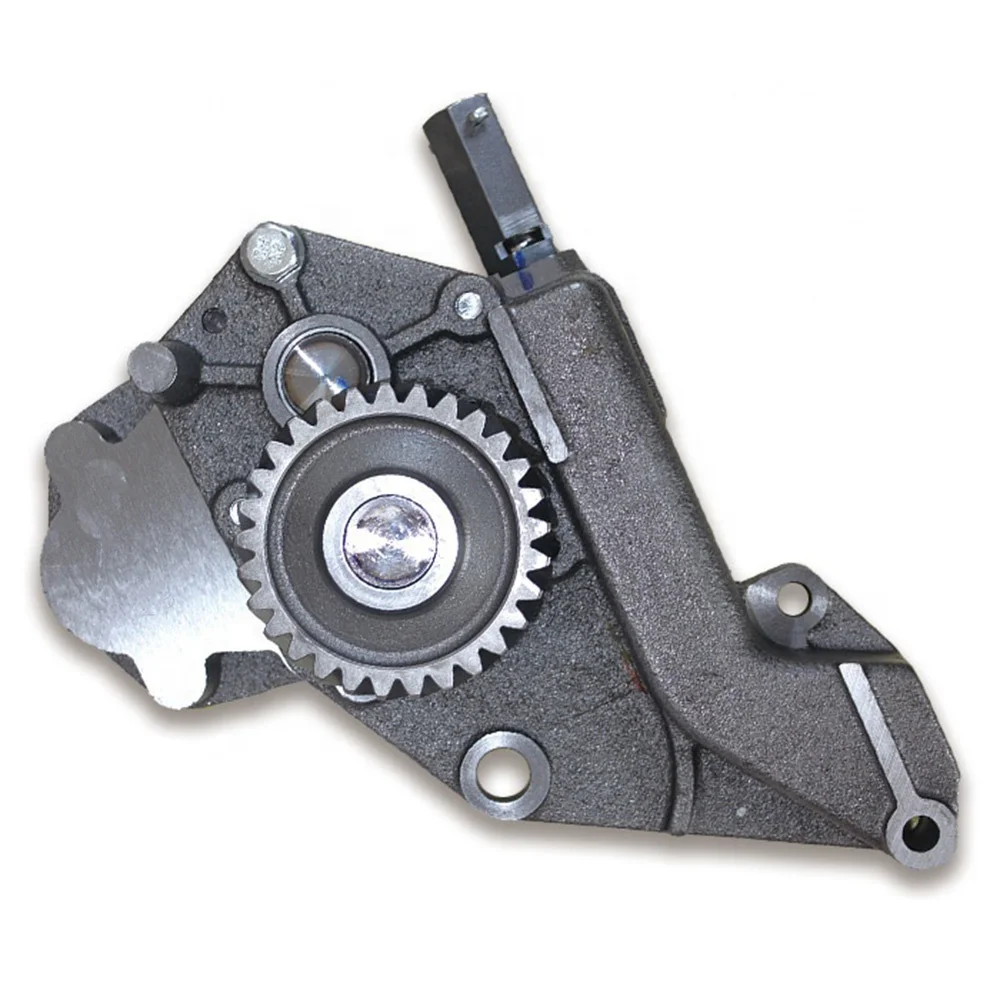

61800071010 китайский производитель, оригинальные запасные части для грузовика SINOTRUK, масляный насос для дизельного двигателя для грузовика Howo
