Новый модем ZISA OP155 AC 802.11ac gpon

Description

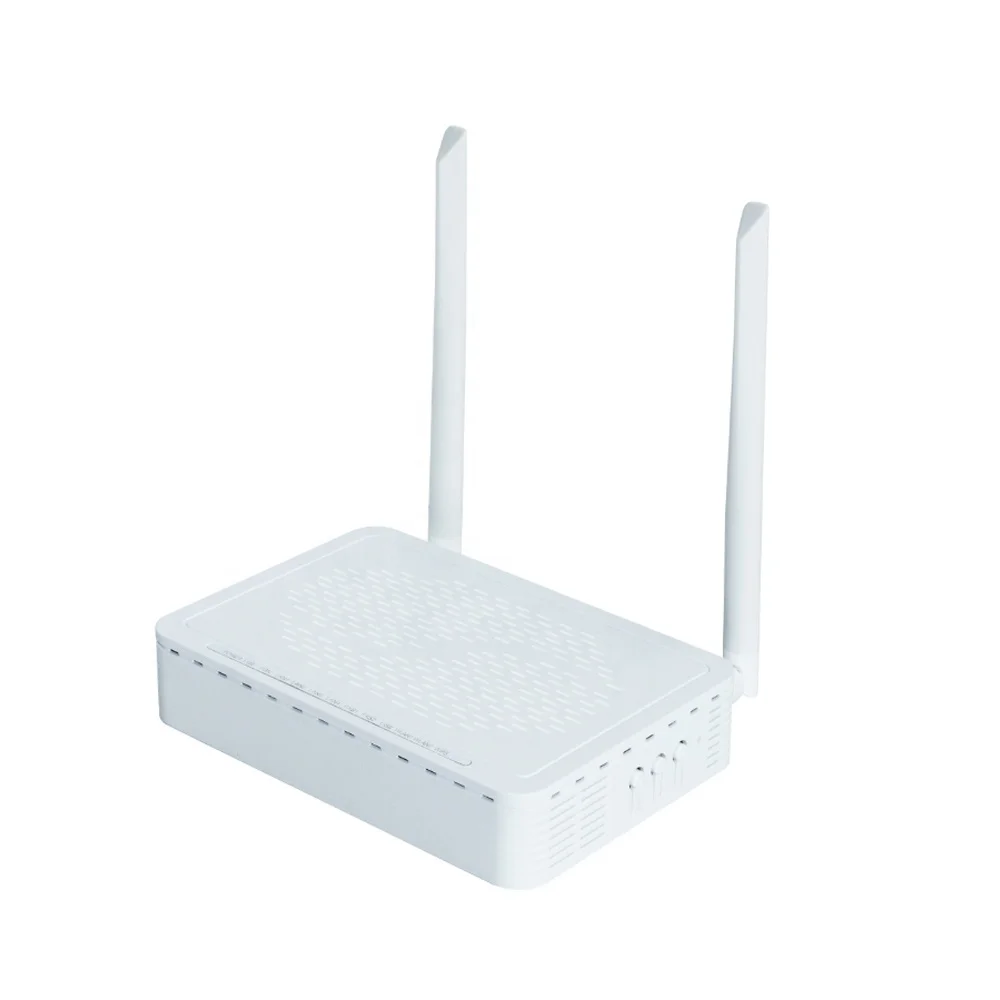

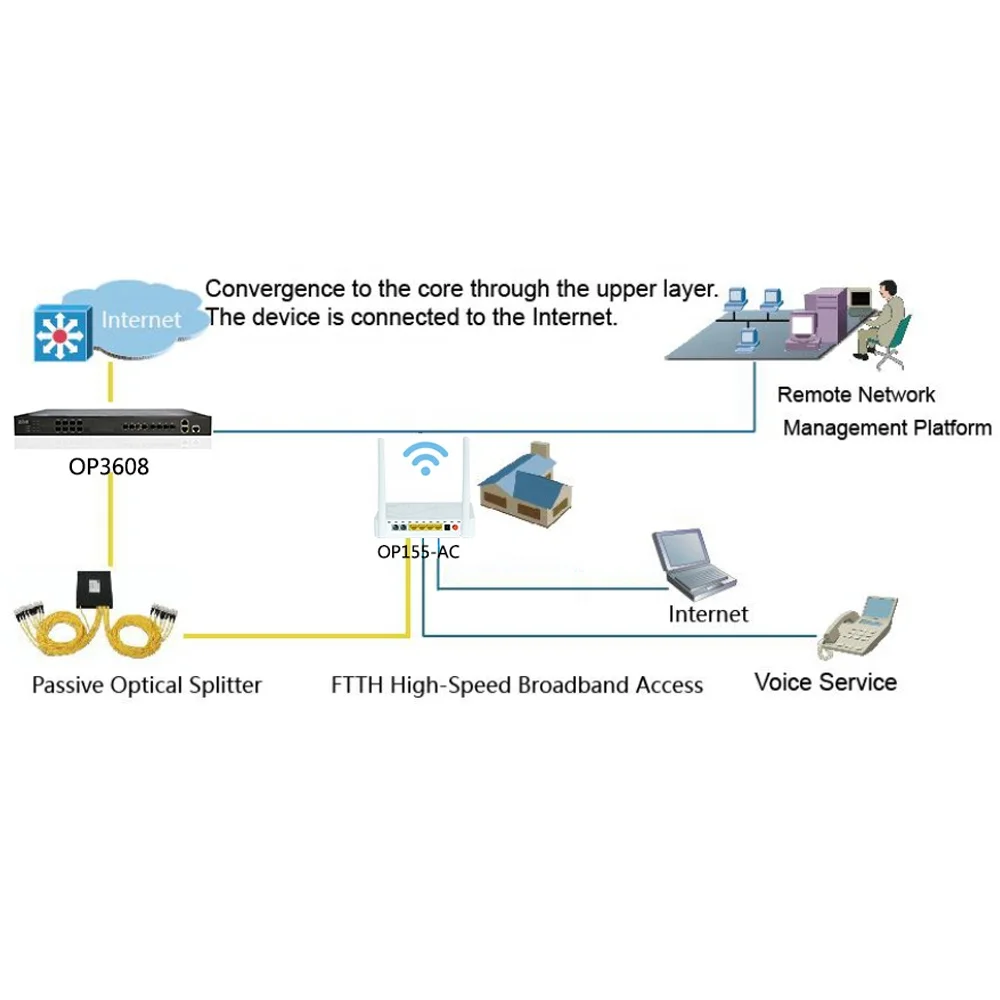

OP155-AC is a GPON-technology based gateway ONU designed for home and SOHO (small office and home office) users. It is designed with one optical interface which is compliant with ITU-T 984.X and ITU-T G.988 standards. The fiber access provides high-speed data channel and meets FTTH needs, which can provide adequate bandwidth support for a variety of emerging network services. Moreover, two POTS interface, four 10/100/1000M self-adaption Ethernet interfaces, duel band Wi-Fi (2.4G Hz and 5.8G Hz) interface are designed as well. It allows simultaneous use of multiple users as well as supports high-quality voice, data and high-definition video services, and further provides ideal terminal solution and future service support capabilities of FTTH deployment.

Features

Meet FTTH requirements and provide high-speed Internet access and voice services;

Compliant with ITU-T G984.X and ITU-T G.988 Standards and compatible with mainstream OLT in the industry;

Support DBA (Dynamic Bandwidth Assignment);

Support uplink and downlink bidirectional FEC (Forward Error Correction);

Support powerful and perfect QoS function, which makes it meet the needs of different business;

The downlink rate reaches 2.488Gbps and the uplink rate reaches 1.244Gbps;

10M/100M/1000M rate, full/half duplex self adaption;

Support IGMP Snooping and controllable multicast;

Support power off alarm and data encryption;

Support one channel of SIP protocol based voice service;

High-integrated chip is adopted--a single chip integrates PON and gateway modules, which is efficient and energy saving;

       Support Bridge or Router Mode or mixed working mode. Under Router mode, static configuration of multiple working modes such as IP address, DHCP and PPPoE is supported;

High-speed forwarding can be realized by NAT function, which enables multiple users to share 1 public IP address to realize internet access;

Support DHCP server function, which facilitates users to configure the network;

Linux-based operating system ensures stable and smooth operation;

Support TR069 protocol and be with comprehensive and detailed network management, as well as the web interface which is easy and simple to operate;

Perfect firewall function, MAC address-based black and white list filtering, uplink and downlink based three-layer filtering rules creates a safer network for users;

Concise and clear indicator light status enables quick and accurate fault location;

Small size and light weight makes it easy for upgrade and reconstruction of the old network.

Table Indicator Lights & Description

Interface & Button Description

Voice Port 2          Voice Port 1          Ethernet Port 4

 Ethernet Port 3   Ethernet Port 2      Ethernet Port 1

 External Power Interface        Power Switch

 Indicator Light On/Off
