Высококачественные фитинги для труб латунный Скользящий замок 1/8 дюйма компрессионный тройник с внутренней резьбой
- Категория: >>>
- Поставщик: Xiamen Will Plastic Co. Ltd.
Сохранить в закладки 62503073144:
Описание и отзывы
Характеристики
Product Description

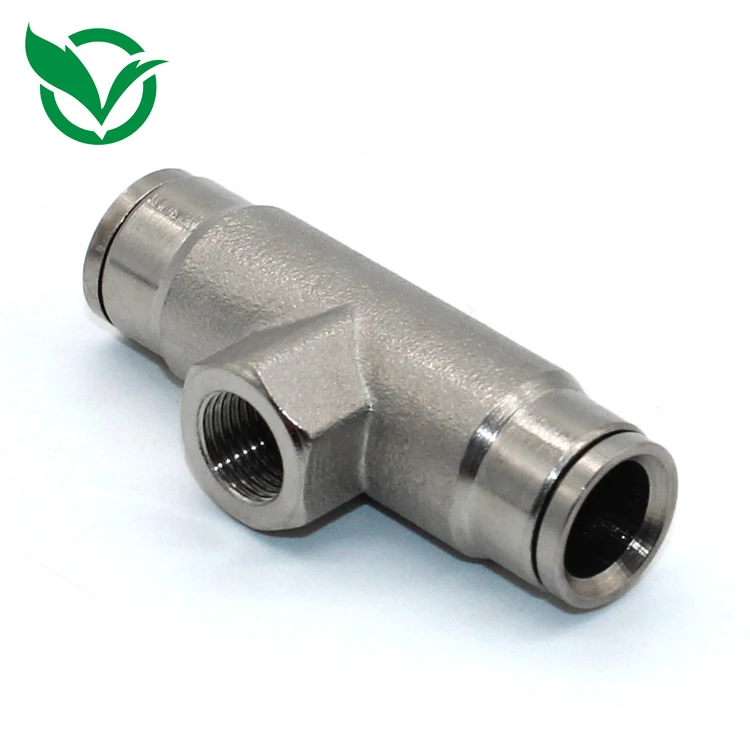

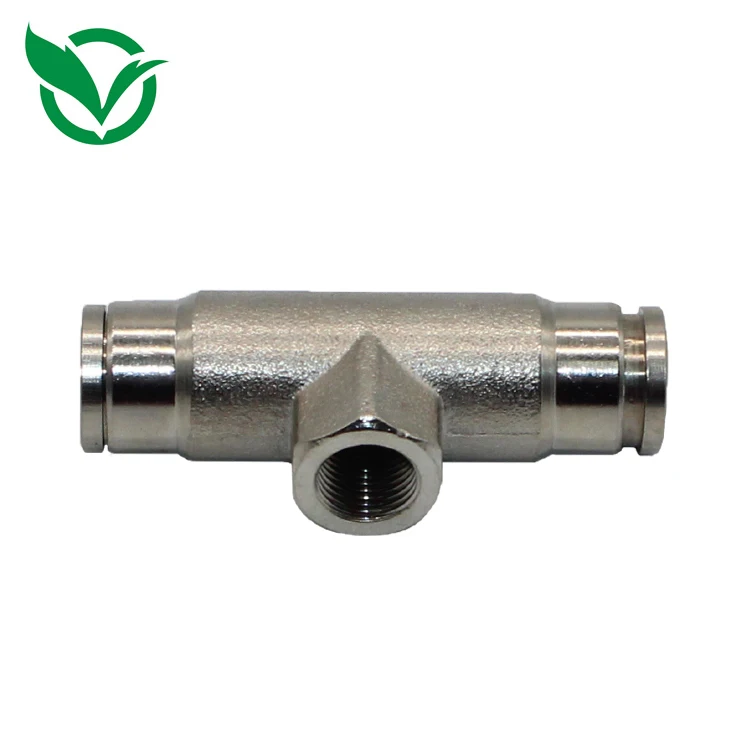

Product Name | Quick Coupling Slip Lock Female Tee For 1/8" |
Model NO. | 1562 |
Application | Cooling, Misting, Humidification, etc. |
Working Pressure | 0-80 bar |
Thread Size | 1/8" Female |
Port Size | 9.52mm (3/8") |
Material | Brass with nickel plating |
Package | 600 pcs/ctn |
Usage | Misting Cooling System |
Details Images
- This orbit slip-lock misting coupling works with both low and high pressure misting systems.
- The slip-lock fitting works with 3/8 inch mist tubing and assembles in just minutes for quick installation and repair.
- This misting coupling is an ideal mist part for customizing or making repairs to your residential misting system.
- Also used in cooling fan, park, greenhouse, cooling, outdoor, industrial.
- Also used in cooling fan, park, greenhouse, cooling, outdoor, industrial.
Our Advantages
1. Established in 2003, ISO9001 certificated, 17 years of experience.
2. 10 years of golden supplier on Alibaba.
3. 100% factory price!
4. Exported to over 50 countries.
5. Small order welcome, free samples available.
2. 10 years of golden supplier on Alibaba.
3. 100% factory price!
4. Exported to over 50 countries.
5. Small order welcome, free samples available.
FAQ
1.Is there any maintenance required?
The only maintenance required for a properly designed misting system is a periodic cleaning of the nozzles and an annual check-up for the pump. This check-up may include adding or changing of the oil and tightening or replacing of fan belts (only on the pulley driven pump models), and changing of the filter cartridge. Misting fan systems require very little maintenance. We do recommend some preventative care and cleaning for the nozzles.
2.What should I do if misting nozzles plug up?
Cleaning Nozzles - Replace or clear obstructed or clogged nozzles. Nozzles may be cleared by scraping the stainless steel end with flat surface of a knife or screwdriver. To remove nozzle, turn in counter-clockwise direction. Nozzles may be routinely cleaned by soaking in solution of LIME AWAY or CLR overnight. Rinse thoroughly after soaking. Replace nozzle by turning in clockwise direction until snug.
3.Can you help me with my project?
Yes, of course. Let us help you to design the right misting system for you. Send to us an email with description, drawings,
pictures of the area you want to cool/mist and we'll send you a quote for free.
4.Which system is the best choice for me?
Low-Pressure Misting Systems
The systems operate between 40 and 100 psi of water pressure. The variance in pressure is because they operate on your household water pressure and not a pump. Normally built with PVC or poly plastic tubing and are connected to a water hose. Typically found on outdoor patios and the misting will get you wet but cool if you are standing nearby.
Mid-Pressure Misting Systems
The systems operates between 100 and 250 psi of water pressure. A Mid-Pressure Pump is utilized to increase the pressure of the water flow. It is perfectly suited for backyard and patio misting.
High Pressure Misting Systems
The systems operate between 800 and 1200 psi (pounds per square inch) of water pressure. The systems will work very effectively in both low and high levels of humidity. Even when the humidity exceeds 90%, the effects of the system will be felt with the rapid drop in temperature and make you feel cool and more comfortable. High Pressure Systems create the most BTU's, because the systems produce smaller MIST and creating more cooling evaporation. As the micron water droplets flash evaporate they pick up heat from the air, which significantly drops the temperature between 25 and 35 degrees Fahrenheit, without making you wet.
5.How much water does a misting system actually use?
This will vary depending on the size of the system and the number of nozzles to be used.
6. I live in a humid climate. Will a system work for me?
Yes. The evaporative cooling concept will work any time you are able to achieve evaporation. The more complete the evaporation,
the more effective the system will work. For areas with humidity above 80%, temperature reductions will be as high as 10 degrees.
For humidity levels between 40% and 80%, temperature reductions will be as high as 20 degrees. Below 40% humidity, the temperature reductions may be as much as 35 degrees.
The only maintenance required for a properly designed misting system is a periodic cleaning of the nozzles and an annual check-up for the pump. This check-up may include adding or changing of the oil and tightening or replacing of fan belts (only on the pulley driven pump models), and changing of the filter cartridge. Misting fan systems require very little maintenance. We do recommend some preventative care and cleaning for the nozzles.
2.What should I do if misting nozzles plug up?
Cleaning Nozzles - Replace or clear obstructed or clogged nozzles. Nozzles may be cleared by scraping the stainless steel end with flat surface of a knife or screwdriver. To remove nozzle, turn in counter-clockwise direction. Nozzles may be routinely cleaned by soaking in solution of LIME AWAY or CLR overnight. Rinse thoroughly after soaking. Replace nozzle by turning in clockwise direction until snug.
3.Can you help me with my project?
Yes, of course. Let us help you to design the right misting system for you. Send to us an email with description, drawings,
pictures of the area you want to cool/mist and we'll send you a quote for free.
4.Which system is the best choice for me?
Low-Pressure Misting Systems
The systems operate between 40 and 100 psi of water pressure. The variance in pressure is because they operate on your household water pressure and not a pump. Normally built with PVC or poly plastic tubing and are connected to a water hose. Typically found on outdoor patios and the misting will get you wet but cool if you are standing nearby.
Mid-Pressure Misting Systems
The systems operates between 100 and 250 psi of water pressure. A Mid-Pressure Pump is utilized to increase the pressure of the water flow. It is perfectly suited for backyard and patio misting.
High Pressure Misting Systems
The systems operate between 800 and 1200 psi (pounds per square inch) of water pressure. The systems will work very effectively in both low and high levels of humidity. Even when the humidity exceeds 90%, the effects of the system will be felt with the rapid drop in temperature and make you feel cool and more comfortable. High Pressure Systems create the most BTU's, because the systems produce smaller MIST and creating more cooling evaporation. As the micron water droplets flash evaporate they pick up heat from the air, which significantly drops the temperature between 25 and 35 degrees Fahrenheit, without making you wet.
5.How much water does a misting system actually use?
This will vary depending on the size of the system and the number of nozzles to be used.
6. I live in a humid climate. Will a system work for me?
Yes. The evaporative cooling concept will work any time you are able to achieve evaporation. The more complete the evaporation,
the more effective the system will work. For areas with humidity above 80%, temperature reductions will be as high as 10 degrees.
For humidity levels between 40% and 80%, temperature reductions will be as high as 20 degrees. Below 40% humidity, the temperature reductions may be as much as 35 degrees.
——————————————————————————————————————————————————
1.What's the payment terms?
T/T and L/C. western union, trade assurance etc .
2. What’s your delivery time?
7-30 days after 30% deposit by T/T.
3. What's the fog nozzle quality warranty?
6 month after shipment.
4. Can I have a free sample?
Yes, you should pay the air freight only.
T/T and L/C. western union, trade assurance etc .
2. What’s your delivery time?
7-30 days after 30% deposit by T/T.
3. What's the fog nozzle quality warranty?
6 month after shipment.
4. Can I have a free sample?
Yes, you should pay the air freight only.
Installation Instructions
