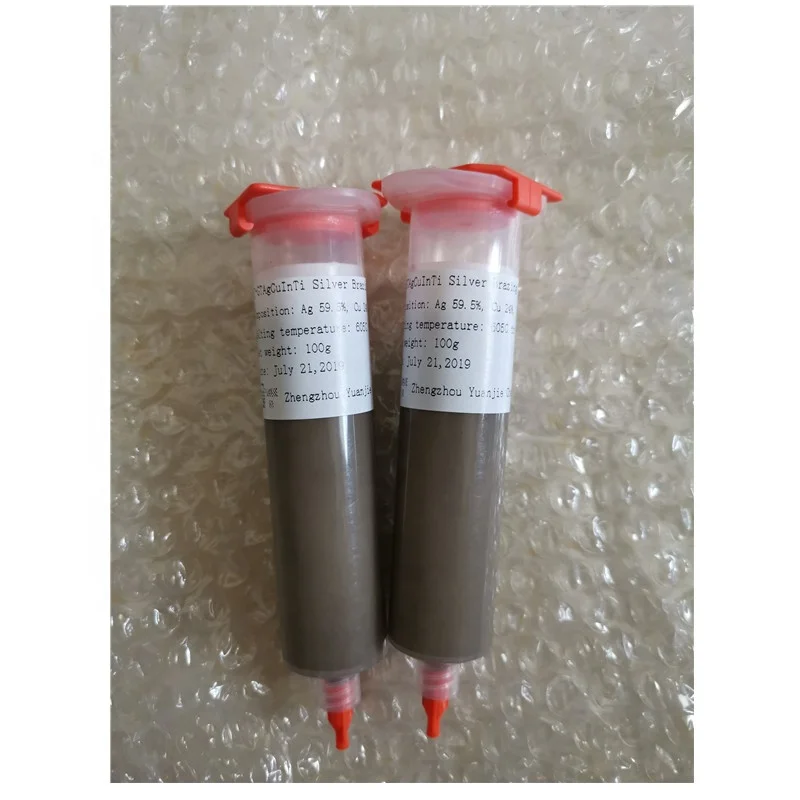

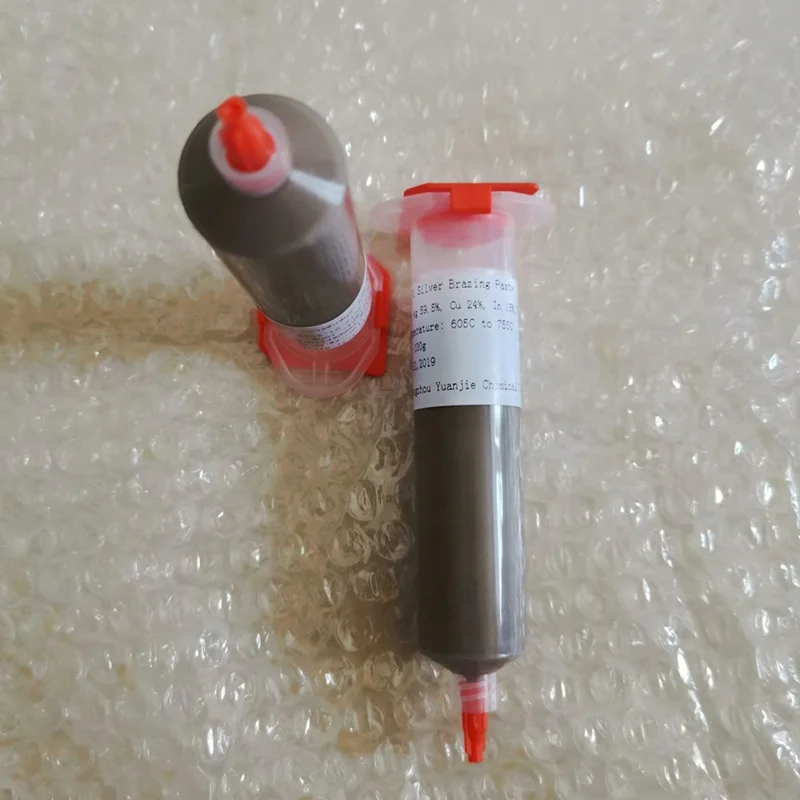

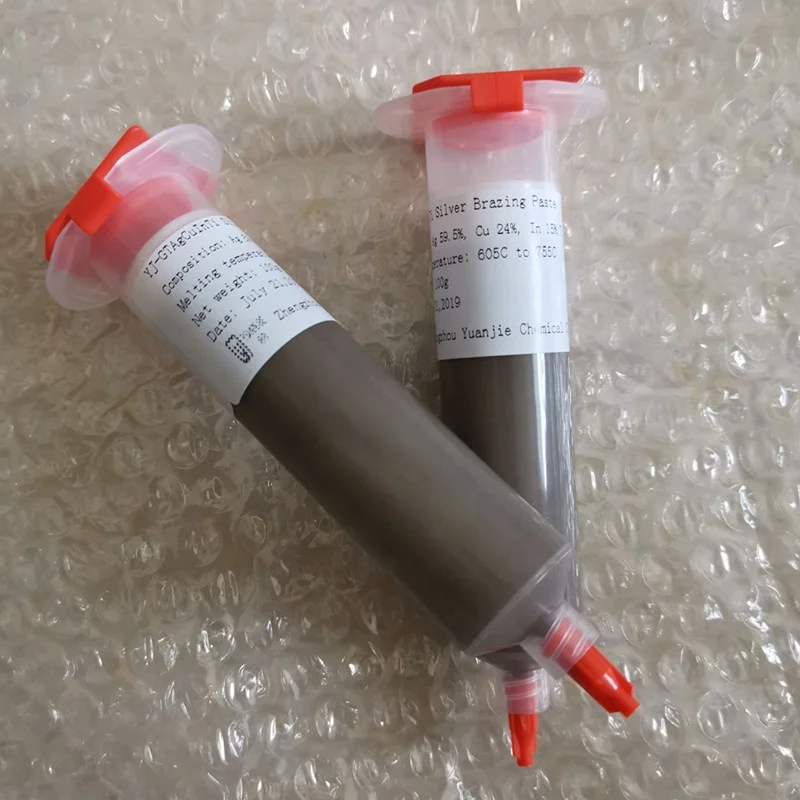

Brazing Alloy Ag Cu Diamond For Tools Pcd High Temperature Soldering Vacuum Solder Paste

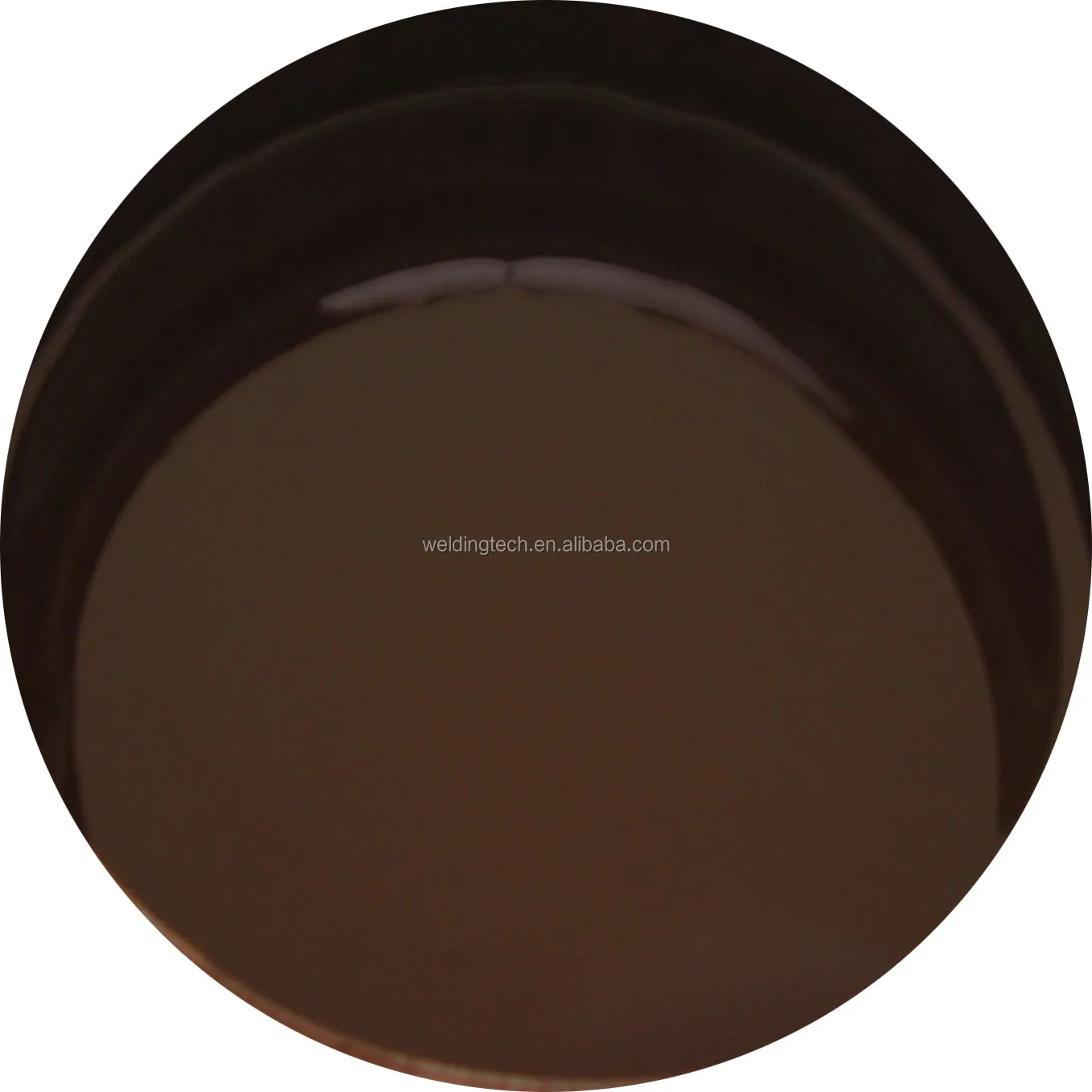

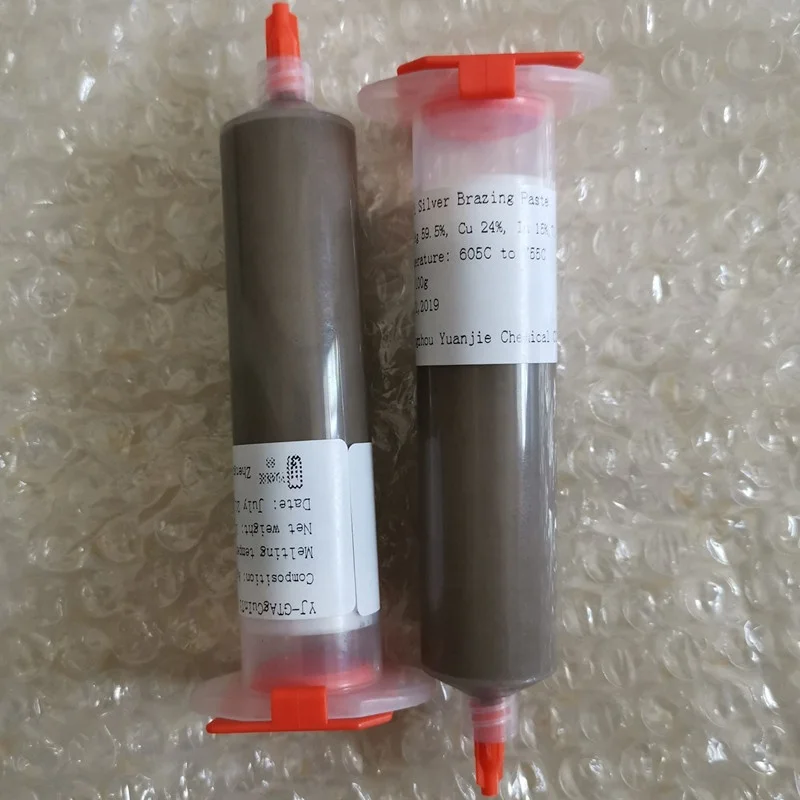

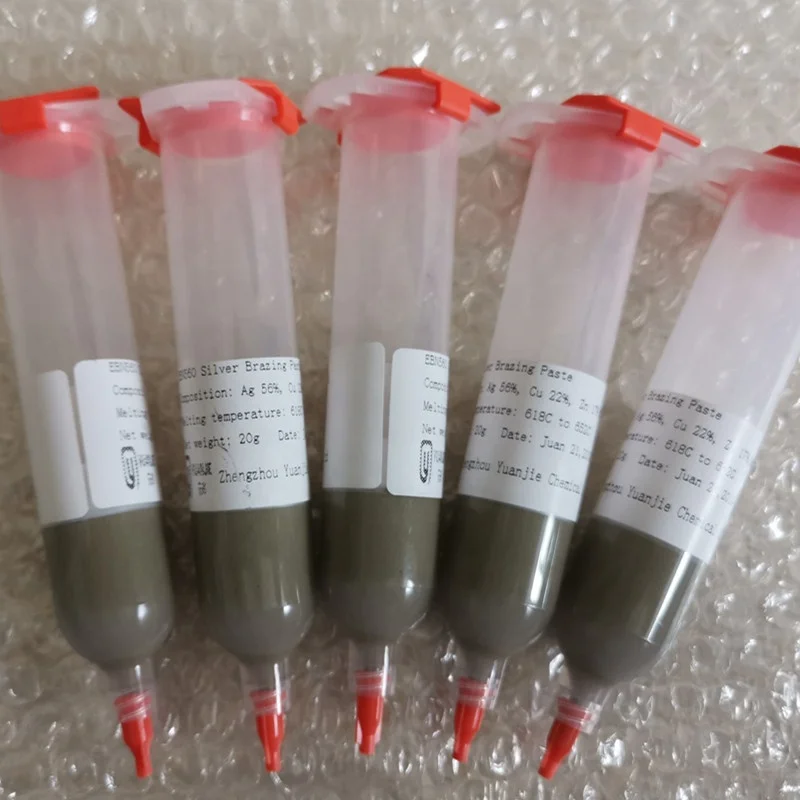

Description of the silver brazing paste.
Brazing alloy paste is a brazing material consists of brazing alloy powder with binders mixed carrier. The alloy powder has a complete spherical shape, uniform particle size and low oxygen content. The mixture of well formulated Binder and the powder is a uniform and stable paste without lodgment and caking. It can provide high efficiency, low waste, and automotive application for the brazing process. In addition, brazing alloy paste can be customized with the particle size, viscosity, strength, and drying life.
There are four main kinds of brazing alloy paste according to different utilities, namely, silver brazing alloy paste,copper brazing alloy paste,aluminum brazing alloy paste and nickel brazing alloy paste. To select the most appropriate brazing paste, many factors have to be taken into account, such as: materials to be joined, heating method, type of atmosphere, etc. We can also customize product for our customer.
Silver alloy brazing paste is used for brazing copper alloy, stainless steel and steel alloy.
What is the usage of the silver brazing paste?
Brazing paste is suitable for welding between non-ferrous metals and ferrous metals such as copper and copper alloys, aluminium and aluminium alloys, steel and stainless steel, diamond and alloy cutting tools.
Copper pipes, valves, condensers and evaporators have been widely used in refrigerators, air conditioners, refrigerators and other products for welding; aluminium heat sinks and aluminium pipes, expansion valves, water tanks for automobile air conditioning; various diamond saw blades, tools, knife moulds; electric heating pipes, bathroom water heating, temperature control appliances, stainless steel utensils, electrical machinery and appliances, glasses, lighting, furniture; transformers and heating systems. Welding between copper and aluminium.
Main type of our silver brazing paste?
| Brazing paste type | AWS | Ag | Cu | Zn | Others | Melting temperature℃ | Brazing temperature ℃ | Specification |
| EBN560 | BAg-7 | 56 | 22 | 17 | 5 Sn | 618-652 | 652-760 | Cadmium-free silver solder at the lowest melting temperature has excellent fluidity and wettability, and is used for brazing of food equipment that matches the color of base metal. |
| EBN720 | BAg-8 | 72 | 28 | 779 | 779-899 | Suitable for brazing in furnace under protective atmosphere, usually for joining copper or copper alloys | ||
| EBN495 | BAg-22 | 49 | 16 | 23 | 4.5Ni 7.5Mn | 680-699 | 699-830 | Low temperature solder, good fluidity, especially suitable for brazing cemented carbide tools |
| EBN505 | BAg-24 | 50 | 20 | 28 | 2Ni | 660-707 | 707-843 | It is used to connect carbide cutters in 300-series stainless steel (mainly food processing equipment and medical equipment) and cutting tools. Nickel in solder is helpful to retard interfacial corrosion |
| EBN380 | BAg-34 | 38 | 22 | 28 | 2Sn | 649-721 | 721-843 | Good liquidity, ideal substitutes for BAg-2 and BAg-2a |
| EBN452 | BAg-36 | 45 | 27 | 35 | 3Sn | 646-677 | 677-813 | Low temperature solder, good fluidity. Used to connect ferrous and non-ferrous metal joints |
| EBN255 | BAg-37 | 25 | 40 | 33 | 2Sn | 688-779 | 779-885 | Economic brazing filler metal for brazing of steel, copper and brass; |
| The above ingredients are commonly used, standard materials and ingredients. Our company can produce and process according to customer's needs or any ingredient ratio provided by customers. Implementation criteria: YS/T93-2002 | ||||||||
PACKING of our silver brazing paste:
Normal packaging:
Other packing can be customized according to customer's requirement
| Product | Dimension | Packing |
| Brazing Alloy Rod | 500 mm | 1 kg/bag, 20 kg/box,10 kg/bag |
| Brazing Alloy Rod | 1000 mm | 5 kg/bag, 30 kg/box |
| Brazing Alloy Wire | Roll | 5 kg/roll, 10 kg/roll, 20 kg/roll |
| Brazing Alloy Sheet/Strip | All kinds | 1 kg/bag, 10 kg/box, 20 kg/box |
| Brazing Alloy Ring | All kinds | 1 kg/bag, 10 kg/box, 30 kg/box |
| Brazing Alloy Powder | 5 kg/bag, 10 kg/box, 30 kg/barrel | |
| Brazing Alloy Paste | 1 kg/can, 10 kg/barrel, 30 kg/barrel | |
| Brazing Flux Powder | 500 g/can, 500 g/bag, 20 kg/box | |
| Brazing Flux Paste | 1 kg/can, 1 kg/bag, 40kg/box | |
| Brazing Flux Paste-Auto | 1 kg/can, 1.5 kg/can, 9kg/box | |
| Brazing Flux-liqui/gas | 3 liter/barrel, 3.5 kg/barrel, 12kg/box, 200 liter/barrel |
Service of our silver brazing paste:
1.Customized products
2. Free sample
3. Brazing technology communication
Похожие товары
Бессвинцовая Оловянная паста низкотемпературная паяльная Bga Sn42/bi58
18,99 $ - 25,00 $

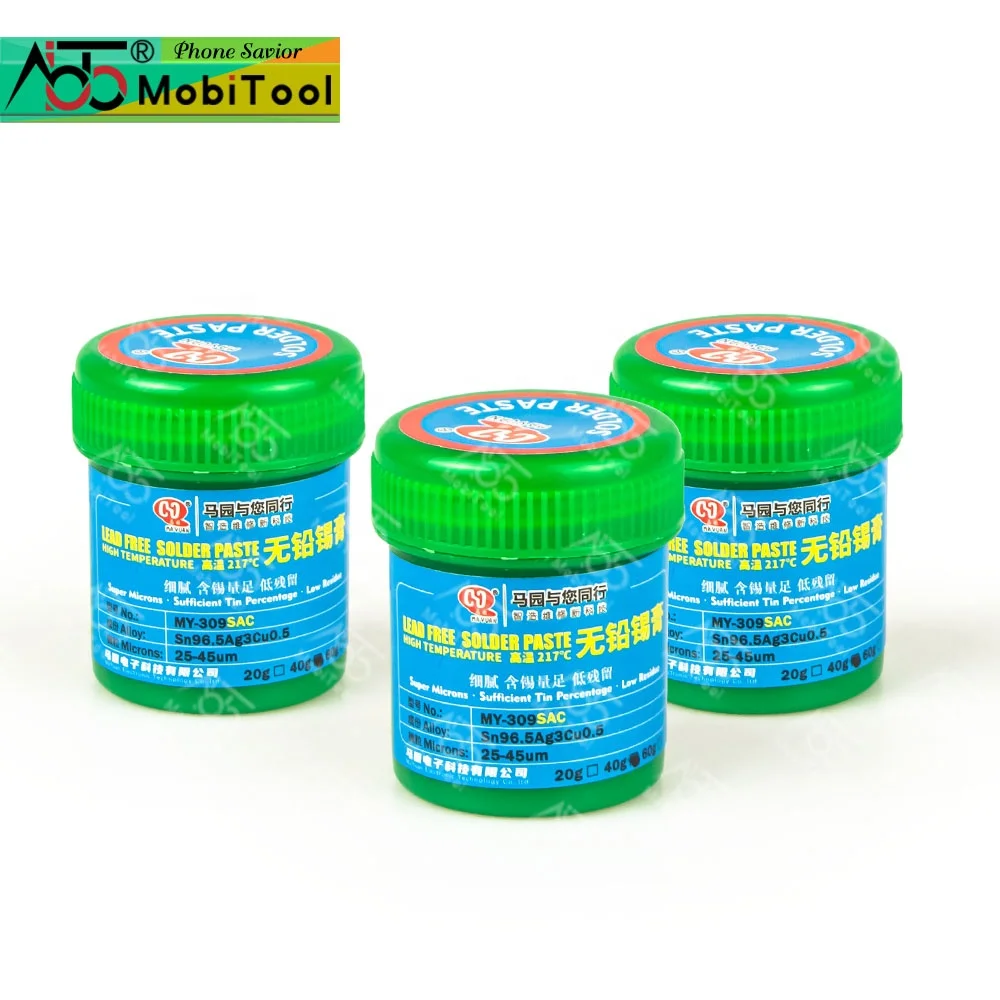

MY-309SAC высокой расплава 217 дипломированных без свинца серебро паяльного олова паста для мобильного телефона материнская плата

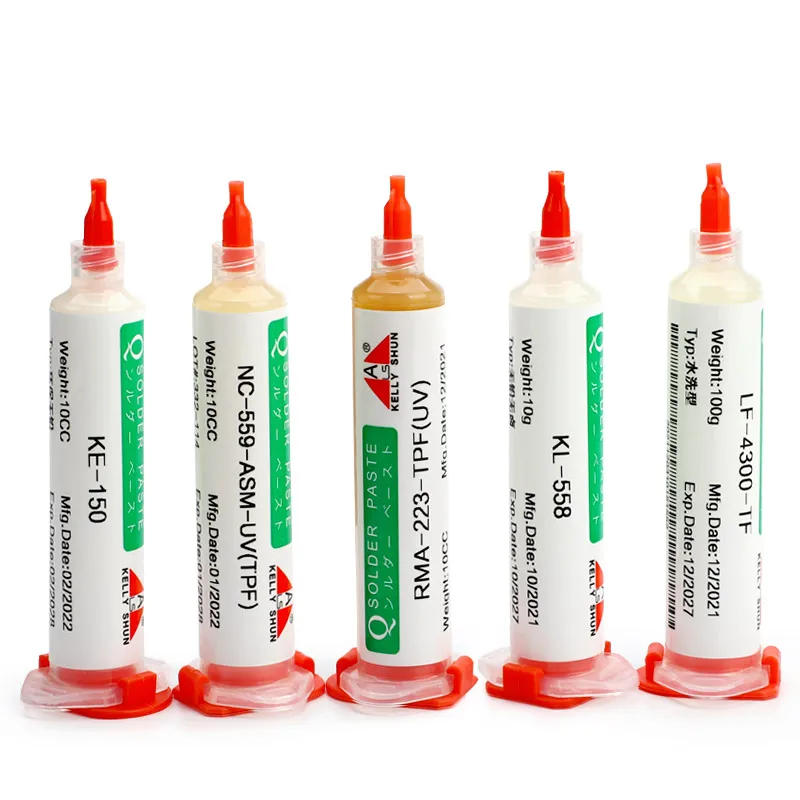

Паяльная паста PCB SMD флюс экологически чистый бессвинцовый галогенный для ремонта телефонов BGA RF 10
2,50 $ - 3,30 $

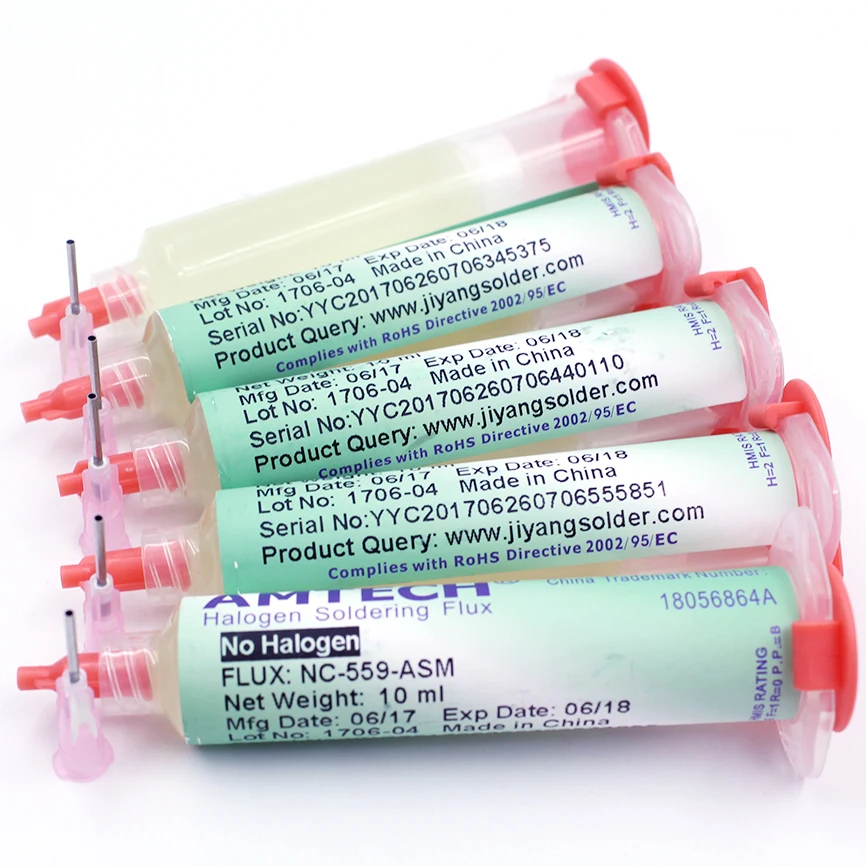

100% Оригинальный NC-559-ASM BGA PCB без очистки паяльная паста сварочная усовершенствованная Масляная смазка 10 куб. См паяльные инструменты для
1,50 $ - 1,80 $
Экзотермический сварочный порошок флюс смешанный для производства сварочного электрода 45
1,00 $ - 5,00 $
B-Flux паста как при использовании Braze Tech

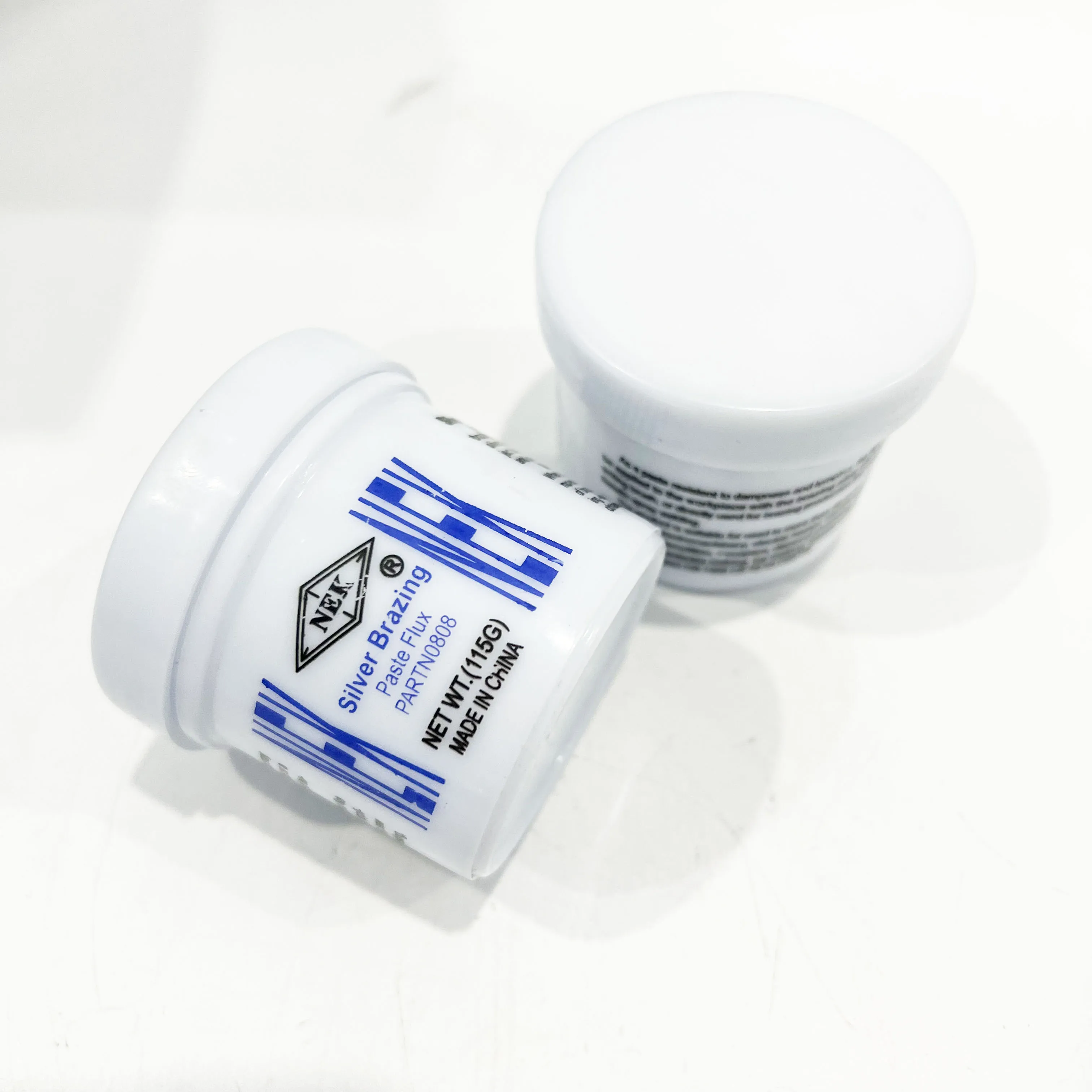

POKKA сделано в Китае 115 г серебряная паста для пайки сварочный флюс порошок
