Product Description
Fuchuan High speed bunching buncher machine copper wire buncher wire bunching machine double twist bunching machine
Fuchuan High speed bunching machine copper wire 630 buncher 800 Cantilever Single twister pair twister Lan cable Tandem line
Fuchuan New Type High speed annealed wire bunching machine 630 buncher jacket making machine welcome for your cooperation
Fuchuan New Type High speed buncher machine wire cable pay off buncher wires cables enamel wire coating machine
Double Twisting Copper Wire Bunching Buncher Machine Single Twister China High Quality Buncher Extruder Anealing Tinning Buncher Machine
1+6+12 Conductors Wire Bunching Machine For Bunching 19 Pcs Wires Energy Saving Multiple bunching machine wire buncher
China Fuchuan BEST Above 7 pcs Alloy Wire Bunching Machine with Touch Screen Operation wire bunching buncher machine
FC-1000B large wire high speed bunching machine and double twist bunching machine buncher machine
Wire bunching stranding machine twisting machine cabling machine wire making machine
Blue Single Shaft Wire Take Up Machine 630mm For Bunched Copper Wire bunching machine buncher strander
FUCHUAN Silver Jacketed Wire Buncher Machine / Enamelled Wire Twister Machine
B type high speed twisting machine and double twist machine
1+6+12 Conductors Wire Bunching Machine For Bunching 19 Pcs Wires Energy Saving Multiple bunching machine wire buncher
China Fuchuan BEST Above 7 pcs Alloy Wire Bunching Machine with Touch Screen Operation wire bunching buncher machine
FC-1000B large wire high speed bunching machine and double twist bunching machine buncher machine
Wire bunching stranding machine twisting machine cabling machine wire making machine
Blue Single Shaft Wire Take Up Machine 630mm For Bunched Copper Wire bunching machine buncher strander
FUCHUAN Silver Jacketed Wire Buncher Machine / Enamelled Wire Twister Machine
B type high speed twisting machine and double twist machine

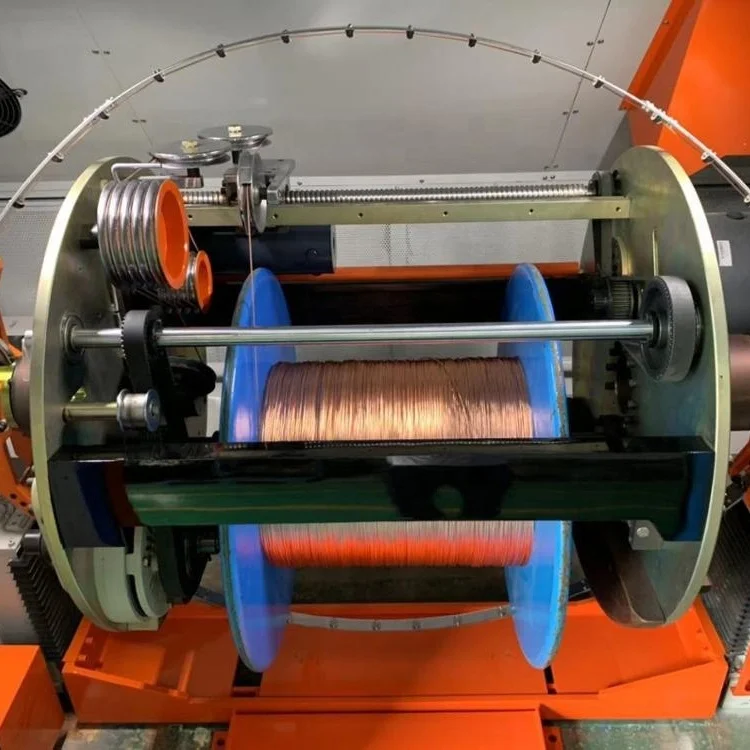

Fuchuan New Type High speed buncher machine wire cable pay off buncher wires cables enamel wire coating machine
1. Characters:
With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, the machine is driven by synchronization strap. Only need to change the capstan wheel to change the pitch, easy to operate.
Fuchuan New Type High speed buncher machine wire cable pay off buncher wires cables enamel wire coating machine
2. Usage:
It is applied to the twisting of above 7 pcs of bare copper wires, tinned wires, silver jacketed wires and enamelled wires and double twisting for core wires.
With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, the machine is driven by synchronization strap. Only need to change the capstan wheel to change the pitch, easy to operate.
Fuchuan New Type High speed buncher machine wire cable pay off buncher wires cables enamel wire coating machine
2. Usage:
It is applied to the twisting of above 7 pcs of bare copper wires, tinned wires, silver jacketed wires and enamelled wires and double twisting for core wires.
Fuchuan New Type High speed buncher machine wire cable pay off buncher wires cables enamel wire coating machine
3. Parameters:
3. Parameters:
| Equipment model | FC-500B | FC-650B | FC-650B-2 | FC-800B | |||||||
| Twisting usage | Apply for the twisting of above seven pcs of bare copper wires,tinned wires,silver jacketed wires and enameled wires),double twisting for core wires. | ||||||||||
| Single wire diaφ(mm) | 0.08-0.45 | 0.15-1.04 | 0.37-1.7 | 0.37-1.7 | |||||||
| Stranding section area | 0.05-2.5 | 0.35-6.0 | 1.0-16 | 1.0-16 | |||||||
| Core wire single wire diaφ(mm) | 0.5-1.5 | 0.5-3.0 | 1.0-4.0 | 1.0-4.0 | |||||||
| Core wire stranding outer dia(mm) | 1.0-3.0 | 1.0-6.0 | 2.0-8.0 | 2.0-8.0 | |||||||
| Pitch(mm) | 6.3-52.3 | 11.6-100 | 20-160 | 23-147 | |||||||
| Direction of lay | Optional for right or left | ||||||||||
| Take up bobbin(mm) | Dia500 | Dia630 | Dia630 | Dia800 | |||||||
| Max rotating speed | 3000rpm(6000TPM) | 2000rpm(4000TPM) | 1600rpm(3200TPM) | 1600rpm(3200TPM) | |||||||
| Main motor power | 5.5kw | 7.5kw | 11kw | 15kw | |||||||
| Inverter power | 5.5kw | 7.5kw | 11kw | 15kw | |||||||
| Tension control method | Magnetic powder clutch+PLC+touchscreen,ensure the constant tension from empty to full bobbin | ||||||||||
| Magnetic powder clutch | 1.2kgf | 5kgf | 10kgf | 10kgf | |||||||
| Protection | 1.wire inside and outside is broken,automatically brake/stop 2.The preset length is arrived | ||||||||||
| Brake mode | Electromagnetic brake | ||||||||||
| Traversing method | Rolling wire with ring drive units,winding pitch and breadth are adjustable | ||||||||||
| Operation mode | Touchscreen operation | ||||||||||
| Dimension(mm) | 2680L*1250W*1500H | 3300L*1550W*1800H | 3400L*1600W*1800H | 4600L*2000W*2000H | |||||||
Fuchuan New Type High speed buncher machine wire cable pay off buncher wires cables enamel wire coating machine
Quick Details:
Apply for the bunching of aerospace, medical instrument, cellphone,notebook PC and ultra fine conductor(above seven pcs of alloy wires, tinned wires, silver jacketed wires and enamelled wires).
Good quality copper wire making machine 630 bunching machine buncher 1000
Characteristics:
1.1 High production speed, constant tension from empty to full bobbin, especially for high quality stranding wire.
1.2. Use shaft to calculate meters, less than 0.01% error for a certain wire&cable.
1.3. With FC-180 active back-twist pay-off machine to achieve bunching instead of twisting.
1.4. Especially for twisting small cross-section area.
1.5. Use synchronous belt drive,
1.6. Change guide wheel to change lay distance, easy to operate.
| cable machinery manufacturers |
SpecifIcations:
| Equipment Models | FC-200B-6 | FC-250B | FC-300B | FC-400B | |
| Twisting Usage | Apply for the bunching of aerospace, medical instrument, cellphone,notebook PC and ultra fine conductor(above seven pcs of alloy wires, tinned wires, silver jacketed wires and enamelled wires). | ||||
| Single Wire Dia(mm) | 0.016~0.08 | 0.03~0.18 | 0.05~0.28 | 0.05~0.32 | |
| Stranding Section Area(mm²) | 0.0014~0.035 | 0.0049~0.3 | 0.0137~0.45 | 0.0137~1.0 | |
| Pitch(mm) | 0.8~4.0(14 classes) | 0.8~10.8(24classes) | 1.6~21.6(24classes) | 3.1~33.3(24classes) | |
| Direction of Lay | Free to right or left | ||||
Take-up Bobbin(mm) Outer dia*bore*outer width | 200*31*135 | 300*30*185 | 250*30*185 300*30*185 | 300*30*185 400*56*300 | |
| Max Rotating Speed(rpm) | 5000rpm(10000tpm) | 4000rpm(8000tpm) | 3500rpm(7000tpm) | 3500rpm(7000tpm) | |
| Main Motor Power | 2.2KW | 3.7KW | 3.7KW | 3.7KW | |
| Inverter Power | 2.2KW | 3.7KW | 3.7KW | 3.7KW | |
| Tension Control | Touch screen+ PLC+ magnetic powder clutch, ensure the constant tension from empty to full bobbin | ||||
| Magnetic Powder Clutch | 0.05kgf | 0.3kgf | 0.6kgf | 0.6kgf | |
| Protection | automatically brake/stop 1)wire inside and outside is broken 2)the preset length is arrived | ||||
| Brake Mode | Electromagnetic brake | ||||
| Traversing Method | Rolling wire with ring drive units, winding pitch and breadth are adjustable | ||||
| Operation Mode | Touch Screen Operation | ||||
| Dimension L*W*H | 2000*960*1100 | 2300*1100*1330 | 2300*1100*1330 | 2850*1150*1350 | |
Model FC-1000B large wire high speed bunching machine and double twist bunching machine
1.1 Japanese Technology, product in China
1.2 Apply for the twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires ,enameled wires, and double twisting for core wires.
Fuchuan High speed bunching machine buncher of copper wire cable shield machine Single twister cable shielding machine
Characteristics:
2.1 Latest developed machine.
2.2 This machine replace the traditional model 400 tube bunching machine with the high productivity(it is 4.5times than tube machine for the 1+6 conductors normal bunching),
2.3 low power, small floor place ,low noise and other merits.
Specification:
Equipment models | FC-1000B |
Twisting usage | Apply for the twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires ,enameled wires, and double twisting for core wires. |
Single wire dia(mm) | φ0.30-φ1.7 |
Stranding section area(mm²) | 6.0-35.0 |
Core wire single wire dia | φ2.0-φ5.0 |
Core wire stranding outer dia | φ4.0-φ10 |
Pitch(mm) | 35-200(12zones) |
Direction of lay | Optional for right or left |
Take up bobbin Outer dia*bore*outer width | φ1000*φ80*750 |
Max rotating speed | 1000(2000twist) |
Main motor power | 18.5KW |
Inverter power | 18.5KW |
Tension control method | Touch screen+ PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin |
Magnetic powder clutch | 20kgf |
Protection | Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived. |
Brake mode | Electromagnetic brake |
Traversing method | Rolling ring drive units, winding pitch and breadth are adjustable |
Operation mode | Touch screen operation |
Dimension(mm) | 4000L*2200W*2100H |
Model FC-1600B large wire high speed bunching machine and double twist bunching machine
The technology of this machine is brought from Japan and put in production in JiangSu
Merits: It is the latest developed machine. This machine replace the traditional model 400 tube bunching machine with the high productivity(it is 4.5times than tube machine for the 1+6 conductors normal bunching),low power, small floor place ,low noise and other merits.
Equipment models | FC-1600B |
Twisting usage | It is applied to the twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires ,enameled wires, and double twisting for core wires. |
Single wire dia(mm) | φ0.50-φ2.52 |
Stranding section area(mm²) | 16.0-95 |
Core wire single wire dia | φ3.0-φ10.0 |
Core wire stranding outer dia | φ8.0-φ20.0 |
Pitch(mm) | 80-350(12zones) |
Direction of lay | Optional for right or left |
Take up bobbin Outer dia*bore*outer width | φ1600*φ80*1180 |
Max rotating speed | 600(1200twist) |
Main motor power | 30KW |
Inverter power | 30KW |
Tension control method | Touch screen+ PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin |
Magnetic powder clutch | 40kgf |
Protection | Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived. |
Brake mode | Electromagnetic brake |
Traversing method | Rolling ring drive units, winding pitch and breadth are adjustable |
Operation mode | Touch screen operation |
Dimension(mm) | 5000L*3000w*3000H |
Fuchuan New Type High speed buncher machine wire cable pay off buncher wires cables enamel wire coating machine
Company Information
4. Machine Show

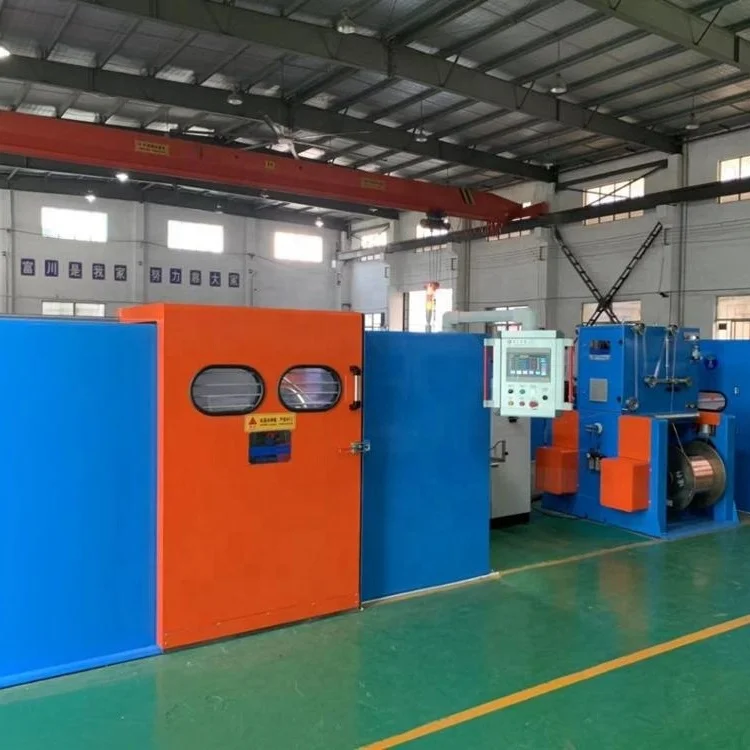

5. Cornor of Workshop
