Оптоволоконное модемное оборудование Optictimes FTTH Однопортовый оптический сетевой блок 1 порт GPON EPON ONU WIFI
- Категория: >>>
- Поставщик: Hangzhou Runzhou Fiber Technologies Co. Ltd.
Сохранить в закладки 62512862964:
Описание и отзывы
Характеристики
Products Description
Specification
1.1 Product Description
G/EPON 1GE Safe ONU is support Dual mode(EPON and GPON), It can also be applied to a wide temperature environment, and also has
apowerful firewall function.
G/EPON 1GE ONU meets telecom operators FTTO (office), FTTD (Desk), FTTH(Home) broadband speed, SOHO broadband access, video
surveillance and other requirements and design a GPON/EPON Gigabit Ethernet products. The box is based on the mature Gigabit
GPON/EPON technology, highly reliable and easy to maintain, with guaranteed QOS for different service. And it is fully compliant
with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
apowerful firewall function.
G/EPON 1GE ONU meets telecom operators FTTO (office), FTTD (Desk), FTTH(Home) broadband speed, SOHO broadband access, video
surveillance and other requirements and design a GPON/EPON Gigabit Ethernet products. The box is based on the mature Gigabit
GPON/EPON technology, highly reliable and easy to maintain, with guaranteed QOS for different service. And it is fully compliant
with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
1.2 Product categories
Product model | Product specification | Chipset | SDRAM Memory |
RX8101S | 1 G/EPON+1GE | ZTE | 32MB |
1.3 Technical parameters
Technical item | 1GE |
PON interface | 1 G/EPON port(EPON PX20+ and GPON Class B+) Wavelength:Tx1310nm,Rx 1490nm SC/UPC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
LAN interface | 1 x 10/100/1000Mbps auto adaptive Ethernet interfaces.10/100/1000M Full/Half, RJ45 connector |
LED | 3, For Status of REG,SYS,LINK/ACT |
Operating condition | Temperature: -30℃~+70℃ Humidity: 10%~90%(non-condensing) |
Storing condition | Temperature : -30℃~+70℃ Humidity :10%~90%(non-condensing) |
Power supply | DC 12V/0.5A(option) |
Power consumption | ≤4W |
Dimension | 82mm×82mm×25mm(L×W×H) |
Net weight | 85g |
1.4 Software Key Feature
Software Key Feature | Function | |

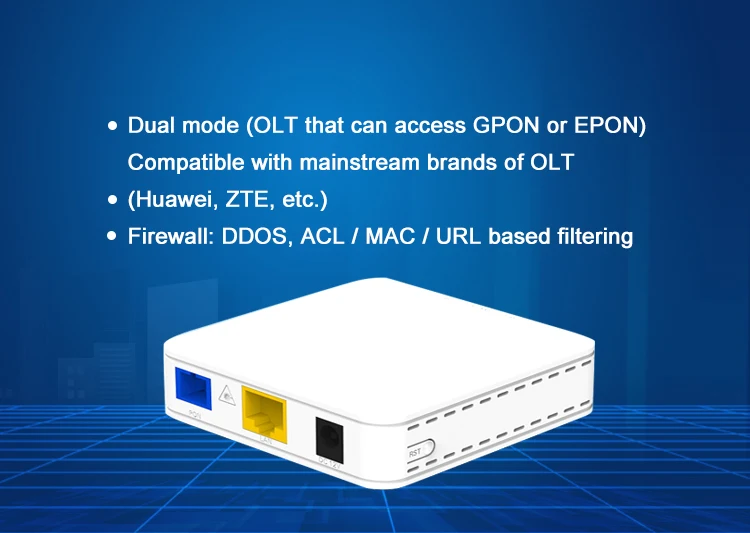

EPON/GPON mode | Dual mode , Can access EPON/GPON OLTs. | |
Software mode | Bridging mode and Routing mode. | |
Abnormal protection | Detecting Rogue ONU, Hardware Dying Gasp. | |
Firewall | DDOS, Filtering Based on ACL/MAC/URL. | |
Layer2 | 802.1D&802.1ad bridge, 802.1p Cos, 802.1Q VLAN. | |
Layer3 | IPv4/IPv6, DHCP Client/Server , PPPoE, NAT , DMZ ,DDNS. | |
Multicast | IGMP v1/v2/v3 , IGMP snooping. | |
Security | Flow & Storm control, Loop Detection. | |
O&M | WEB/TELNET/OAM/OMCI/TR069. | |

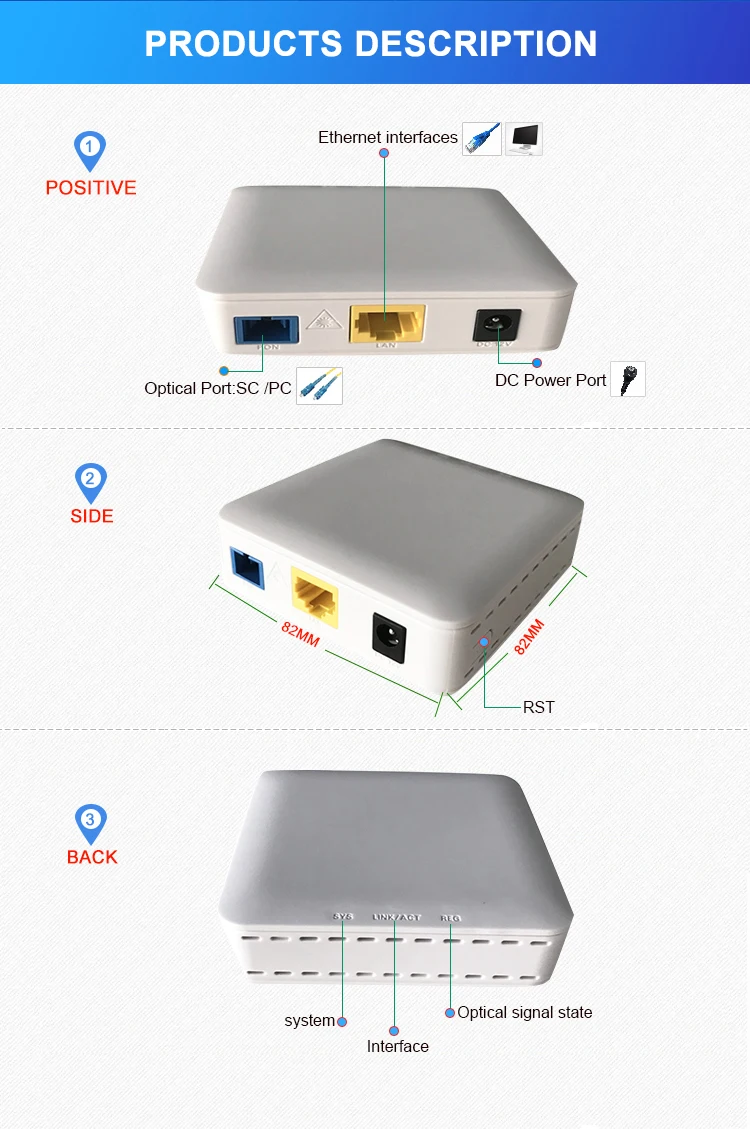

1.5 Interface description
Port Type | Function |
PON | Connect PON port with internet by SC/UPC type, single mode optical fiber cable. |
LAN | Connect device with ethernet port by RJ-45 cat5 cable. |
RST | Press down reset button and keep1-5seconds to make the device restart and recover from the factory default settings. |
DC12V | Connect with power adapter. |
More Products
Application

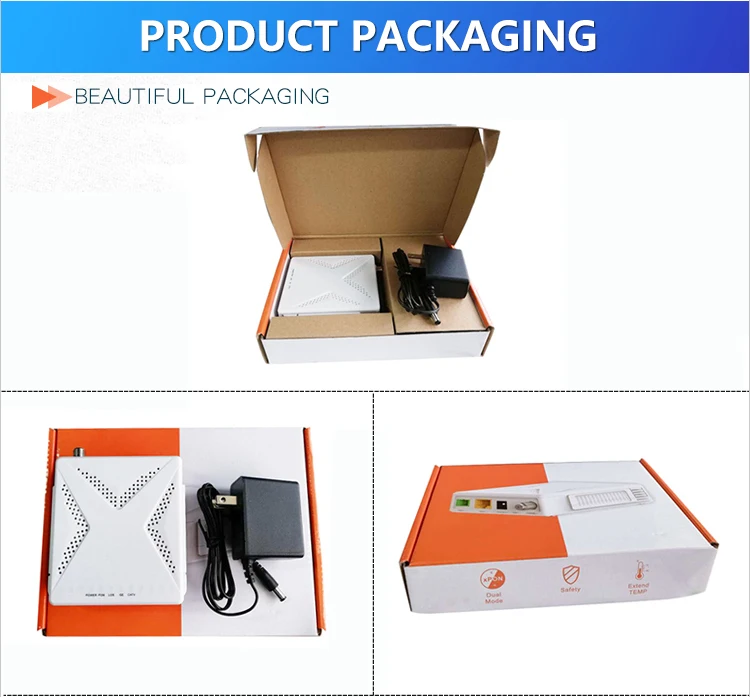

Product packaging
Why Choose Us
1. Are you trading company or manufacturer?
We are the manufacturer with 7 years' history.
2. About the quality?
After price confirmation, you can require for samples to check our quality.
3. Can you accept small order?
We are the manufacturer with 7 years' history.
2. About the quality?
After price confirmation, you can require for samples to check our quality.
3. Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business isalways from small order.
4. What is your delivery time?
Usually about 2~3 working days, it depends on the quantity. Please be assured that we will arrange goods for you as soon as possible after payment.
5. Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
6. What is your payment way?
T/T, L/C, D/A, D/P, Moneygram, Western Union and Paypal.
4. What is your delivery time?
Usually about 2~3 working days, it depends on the quantity. Please be assured that we will arrange goods for you as soon as possible after payment.
5. Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
6. What is your payment way?
T/T, L/C, D/A, D/P, Moneygram, Western Union and Paypal.
