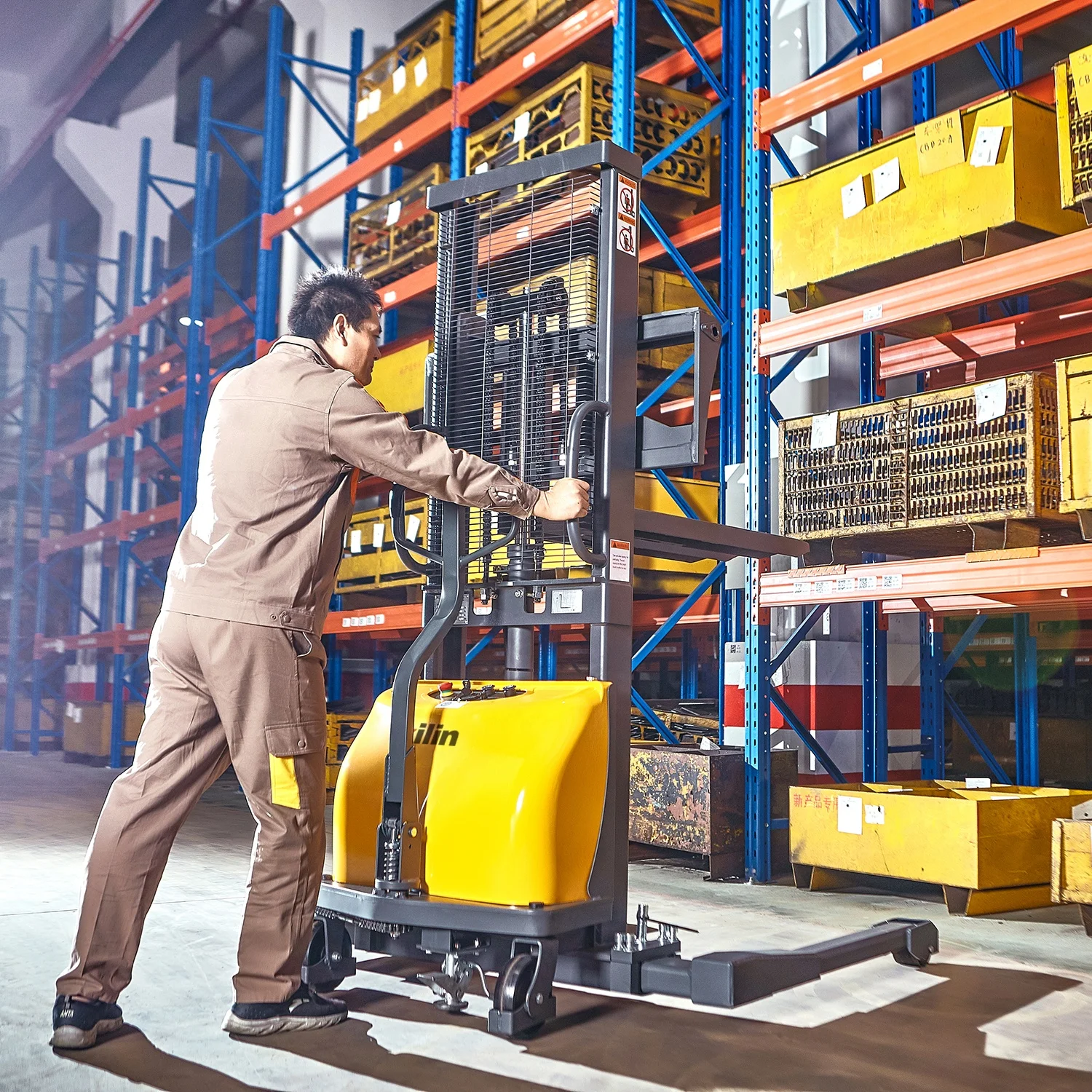

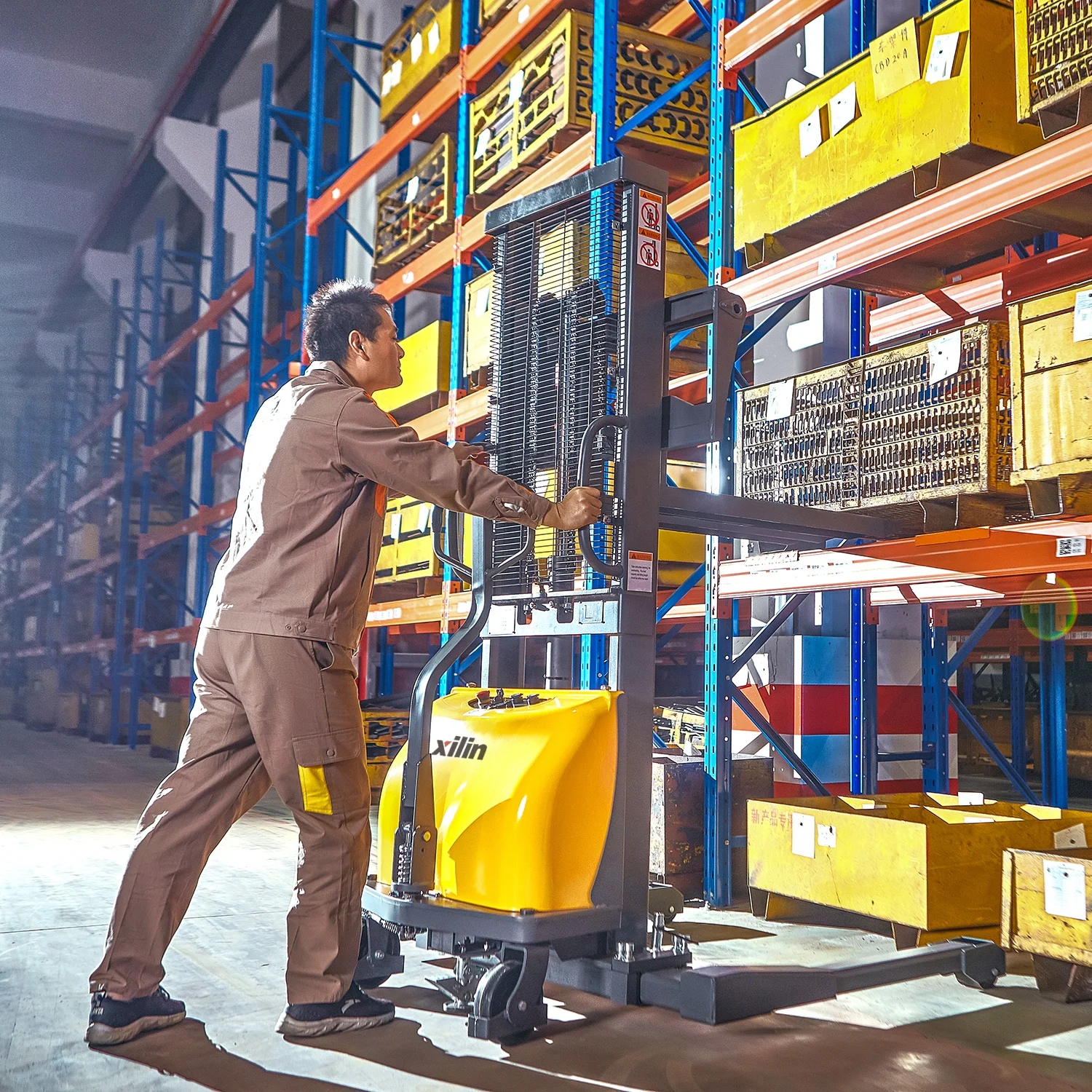

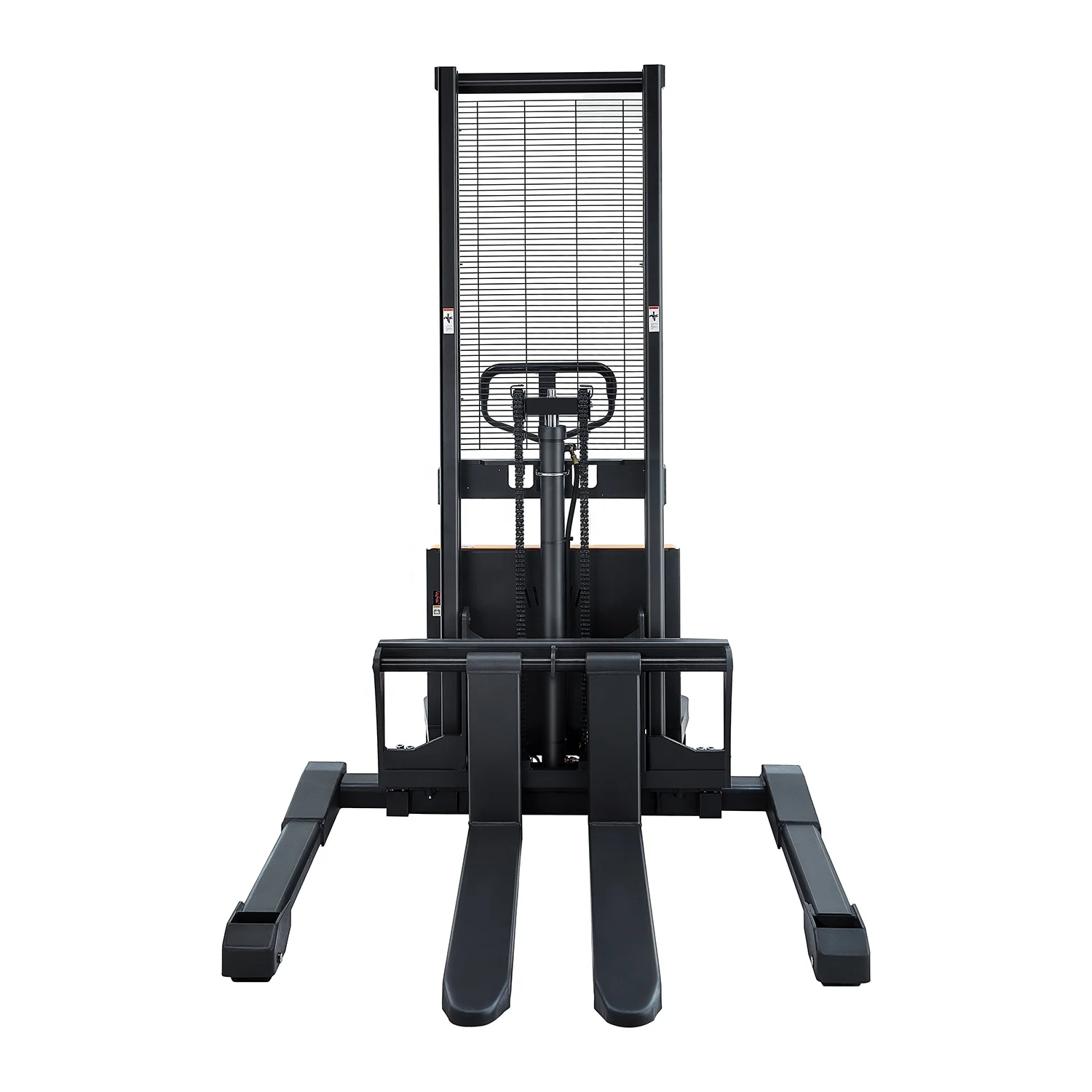

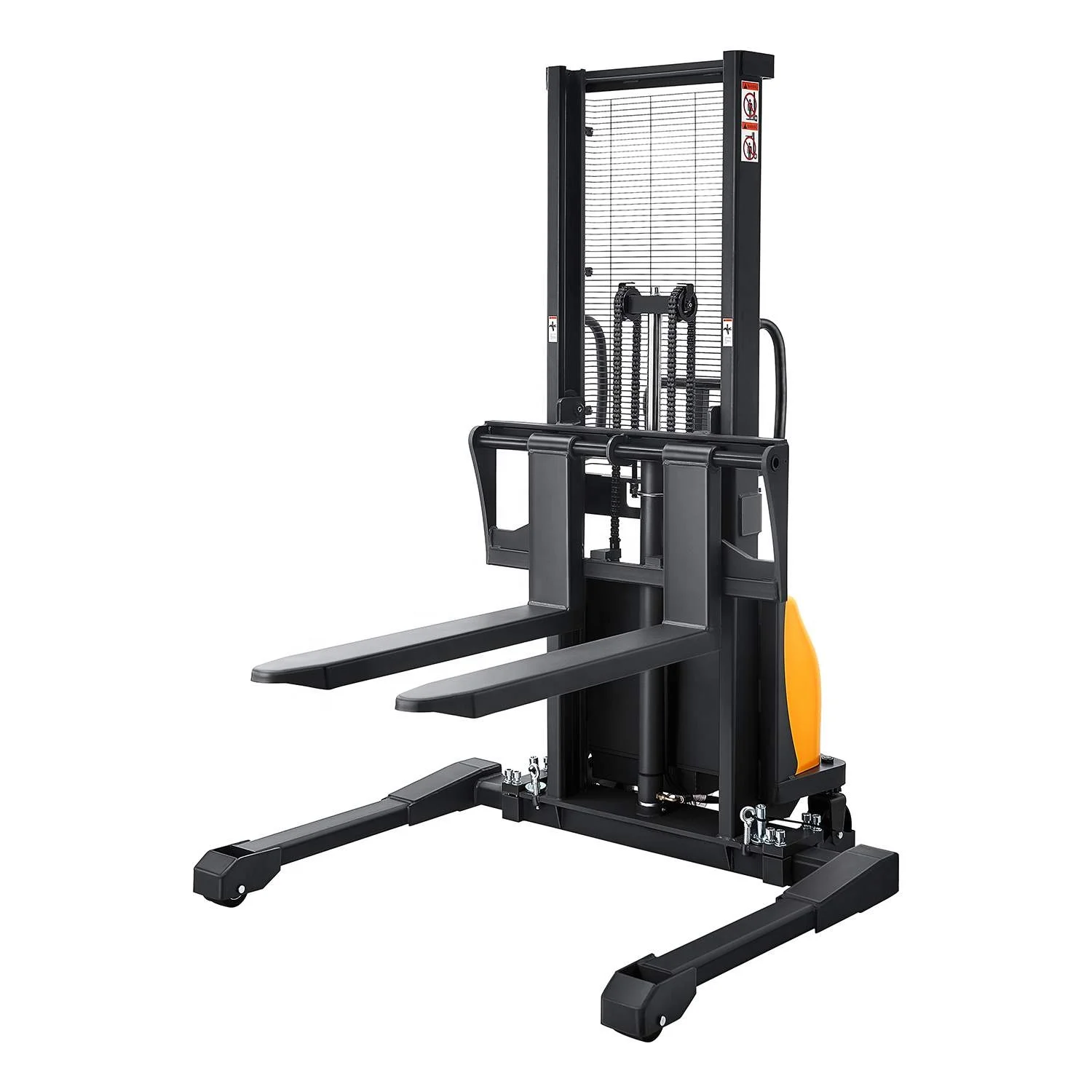

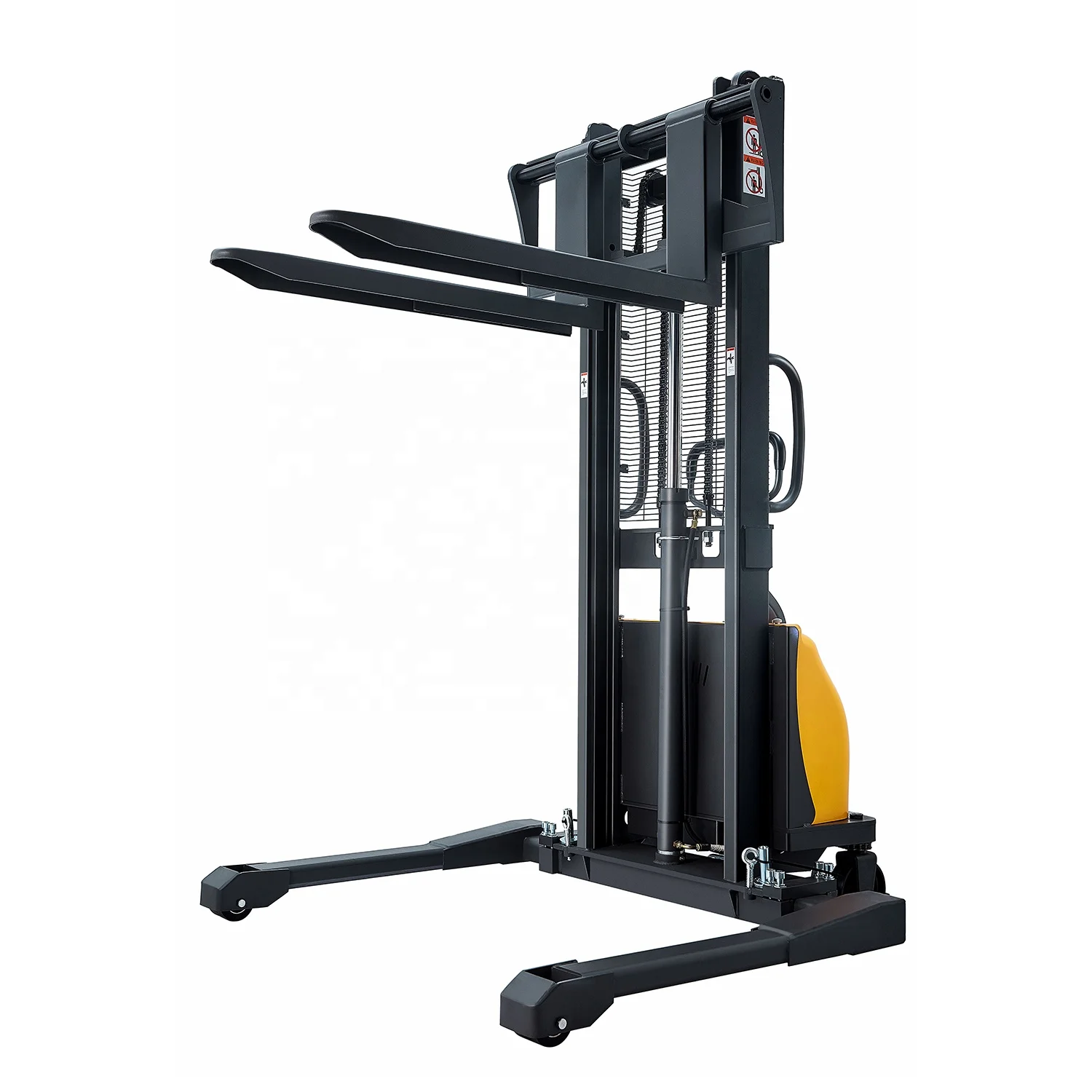

Полуэлектрический штабелеукладчик Xilin 1 6 кг тонна фунта М с регулируемыми вилками
- Категория: >>>
- Поставщик: Ningbo Ruyi Joint Stock Co. Ltd.
Сохранить в закладки 62514633956:
Описание и отзывы
Характеристики
Xilin 1000kgs 1ton 2200lbs 1.6m Semi-electric Straddle Stacker with Adjustable Forks
Model ：CTD10/15B-III | Overall forks | Forged forks | |||||
CTD10B-III | CTD15B-III | CTD10B-III | CTD15B-III | ||||
Capacity | Q（kg） | 1000 | 1500 | 1000 | 1500 | ||
Load centre distance | c（mm） | 500 | 500 | 500 | 500 | ||
Load distance, centre of drive axle to fork | x（mm） | 770 | 770 | 770 | 770 | ||
Fork height, lowered | h13（mm） | 90 | 80 | ||||
Height, mast lowered | h1（mm） | 2145/1895/2145/2395 | 2145/1895/2145/2395 | ||||
Height, mast extended | h4（mm） | 2145/3100/3600/4100 | 2145/3100/3600/4100 | ||||
Max. lift height | h3（mm) | 1600/2500/3000/3500 | 1600/2500/3000/3500 | ||||
Overall length | l1(mm | 1735 | 1835 | 1735 | 1835 | ||
Length to face of forks | l2(mm) | 665 | 765 | 665 | 765 | ||
Overall width | b1(mm | 1132-1532 | 1132-1532 | 1132-1532 | 1132-1532 | ||
Fork dimensions | s/e/l(mm) | 60/142/1070 | 60/142/1070 | 35/100/1070 | 35/100/1070 | ||
Width overall forks | b5(mm) | 295-930 | 295-930 | 200-800 | 200-800 | ||
Aisle width for pallets 800x1200lengthways | Ast(mm | 2267 | 2347 | 2362 | 2442 | ||
Turning radius | Wa(mm) | 1425 | 1505 | 1520 | 1600 | ||
Lifting speed, laden/unladen | m/s | 0.07/0.10 | 0.07/0.10(0.06/0.10) | 0.07/0.10 | 0.07/0.10(0.06/0.10) | ||
Service brake | mechanical | mechanical | mechanical | mechanical | |||
Battery Voltage, normal capacity K5 | V/Ah | 12/120 | 24/120(12/120) | 12/120 | 24/120(12/120) | ||
Truck weight | kg | 405/460/495/545 | 455/525/530/600 | 420/475/490/510 | 470/536/550/580 | ||
Q1: Are you a factory?
A1: Of course. Ningbo Ruyi Joint Stock Co. Ltd., established in 1985, is a national hi-tech enterprise, which owns the unique combination of scientific research, development, production, sale and service.
A1: Of course. Ningbo Ruyi Joint Stock Co. Ltd., established in 1985, is a national hi-tech enterprise, which owns the unique combination of scientific research, development, production, sale and service.
Q2: Can Ruyi provide customized products? OEM products or ODM products?
A2: Yes, Ruyi can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.
Q3: What's the specification of the chargers?
A3: Ruyi have all kinds of the chargers and welcome the customers to custom-made.
Q4: How about the delivery time?
A4: Usually Ruyi producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.
Q5: Do you have agent or representative abroad?
A5: Yes. We have two branches in the US and Russia. We have two warehouses are located in Los Angeles and Chicago with products in stock and ready to ship. We also have Xilin distributors agent in Norway, Thailand, Japan, Vietnam and Malaysia. If you are interesting to be our agent and enjoy more price. Pls contact us then we can discuss more detailed.
Q6: Can we print the LOGO on products?
A6: Yes, the OEM is available with the permission of our customers.
Q7: What is your payment term?
A7: T/T or L/C, if you want any other way, please contact us.
Q8: What can I get from cooperating with Ruyi?
A8: 1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
A2: Yes, Ruyi can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.
Q3: What's the specification of the chargers?
A3: Ruyi have all kinds of the chargers and welcome the customers to custom-made.
Q4: How about the delivery time?
A4: Usually Ruyi producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.
Q5: Do you have agent or representative abroad?
A5: Yes. We have two branches in the US and Russia. We have two warehouses are located in Los Angeles and Chicago with products in stock and ready to ship. We also have Xilin distributors agent in Norway, Thailand, Japan, Vietnam and Malaysia. If you are interesting to be our agent and enjoy more price. Pls contact us then we can discuss more detailed.
Q6: Can we print the LOGO on products?
A6: Yes, the OEM is available with the permission of our customers.
Q7: What is your payment term?
A7: T/T or L/C, if you want any other way, please contact us.
Q8: What can I get from cooperating with Ruyi?
A8: 1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
Похожие товары

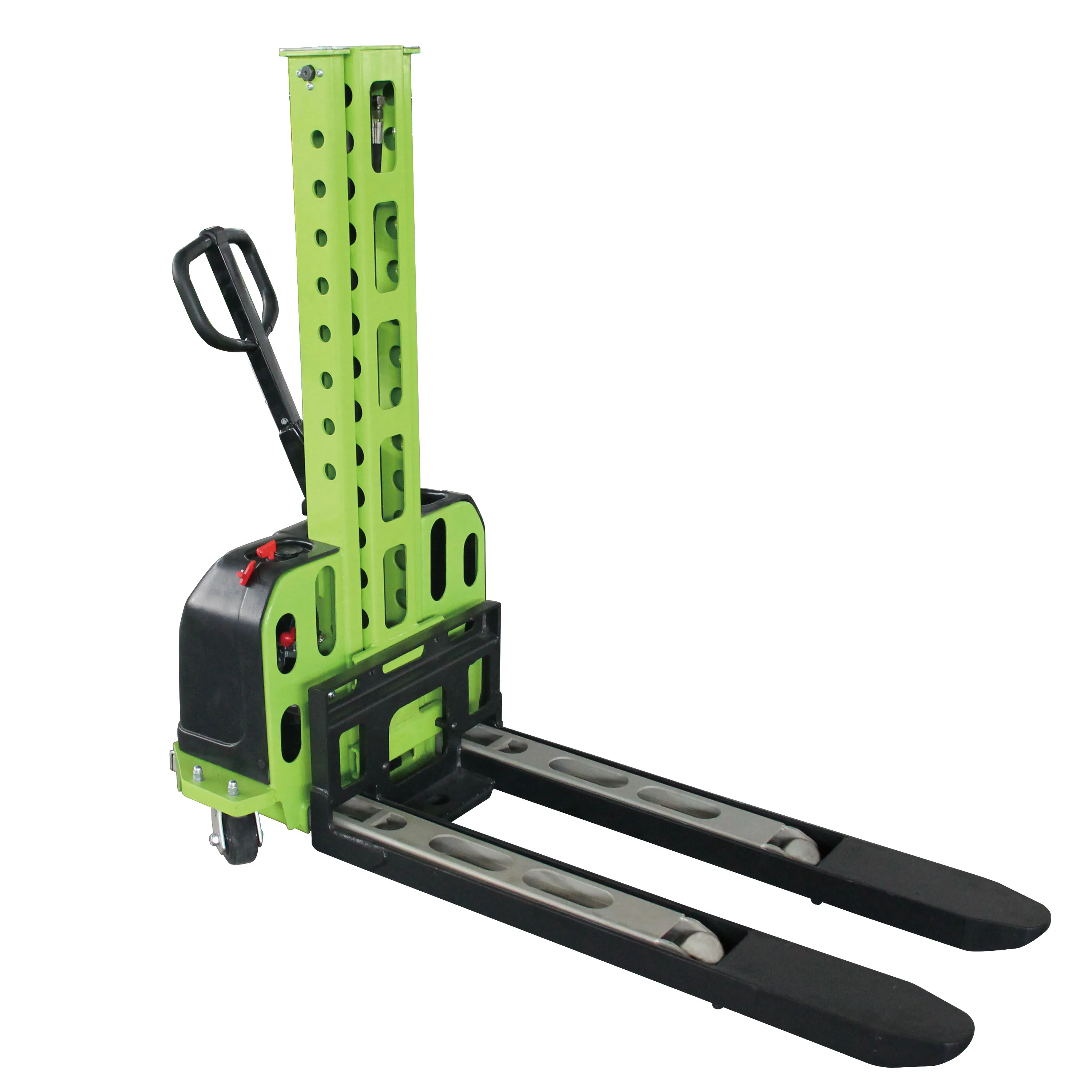

Полу-электрический штабелер Электрический гидравлический подъемник домкрат грузовик полный электрический штабелер

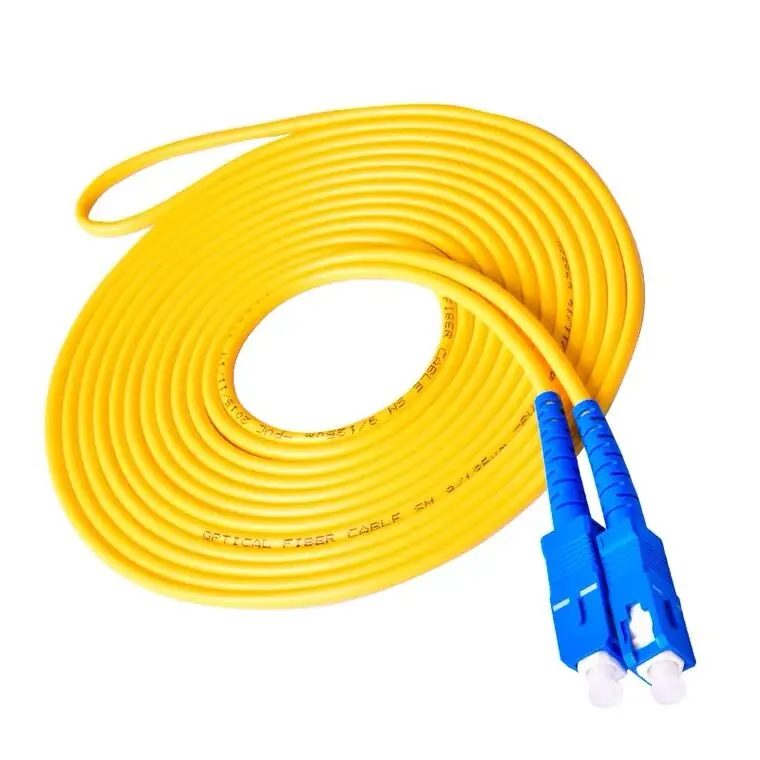

3 м 10 футов SC в SC оптоволоконный патч-корд одномодовый OS1 simplex SM 9/125 желтый LSZH оптоволоконный патч-корд оптоволоконные поставщики
