Светодиодный точечный источник света с УФ лампой

Описание и отзывы

Характеристики

1. Quality UV Led Light Source:

(1) Product Name (UV LED Spot/Line/Area curing system)

(2) Wavelength (nm)

(3) Irradiation head's quantity (1-4 PCS for one system)

(4) Optical intensity (mW/cm2)

(5) Curing area (any size)

(6) Irradiation Head Mode (fan cooling or natural cooling)

(7) Curing time

(8) Your Target price

2. Optional wavelengths:

365,  385, 395, 405, 415 nm

Spectrum bandwidth: +/- 5 nm

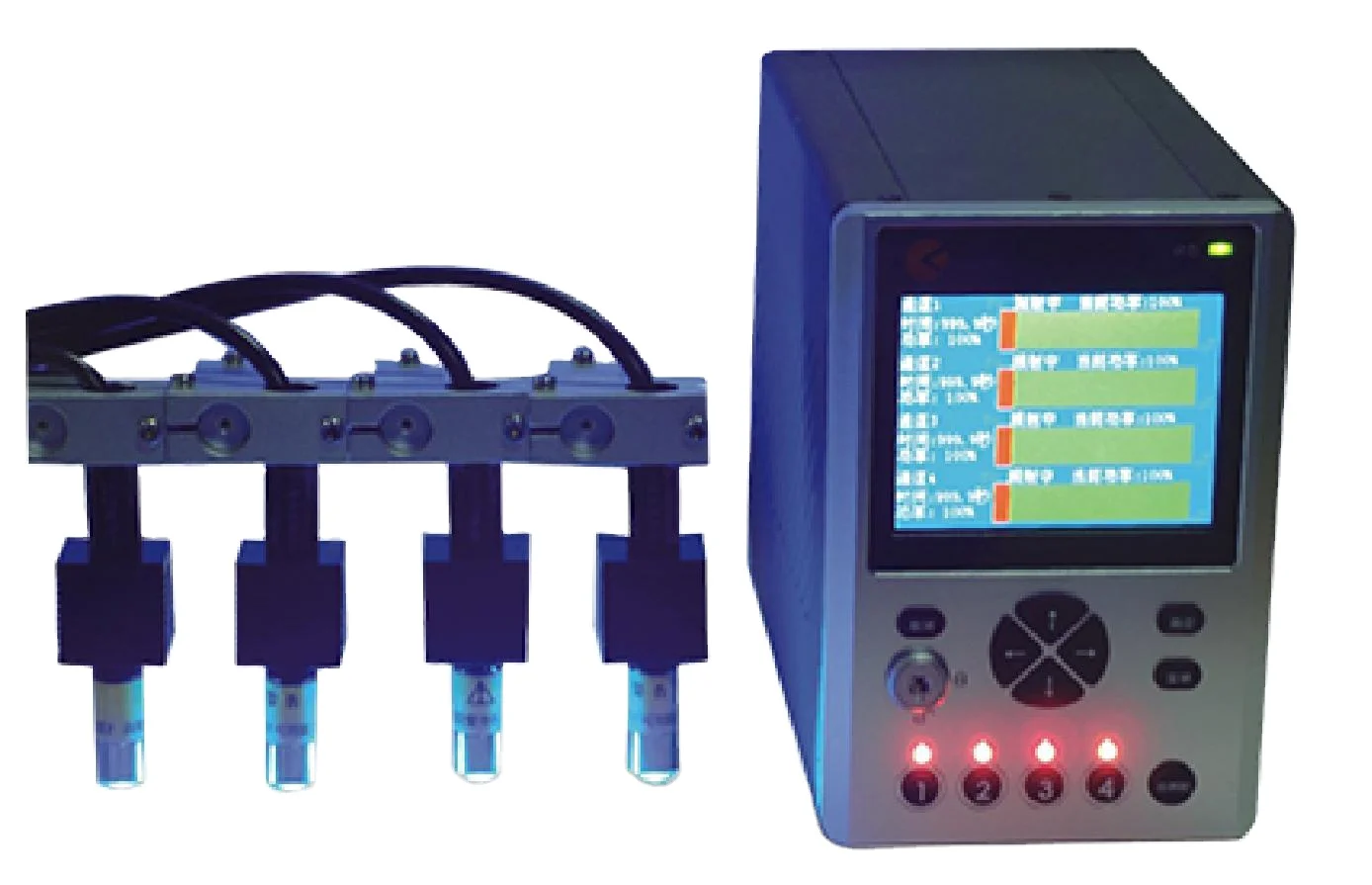

3. Irradiation Heads:

The controller UVEC-4II can control 1 to 4 LED Irradiation Heads.

4. Spot diameter and optical intensity: (By Ushio illuminometer)

If you need higher intensity, we also provide 8W/cm², 10W/cm².

5. Irradiation Head Mode:

(1) Fan cooling: excellent heat dissipation performance

 Dimension: DΦ12, L88mm

 Fan's size: 24*24*24mm

(2) Natural cooling: No vibration, suitable for using in small space or clean room

 Dimension: DΦ12, L49mm

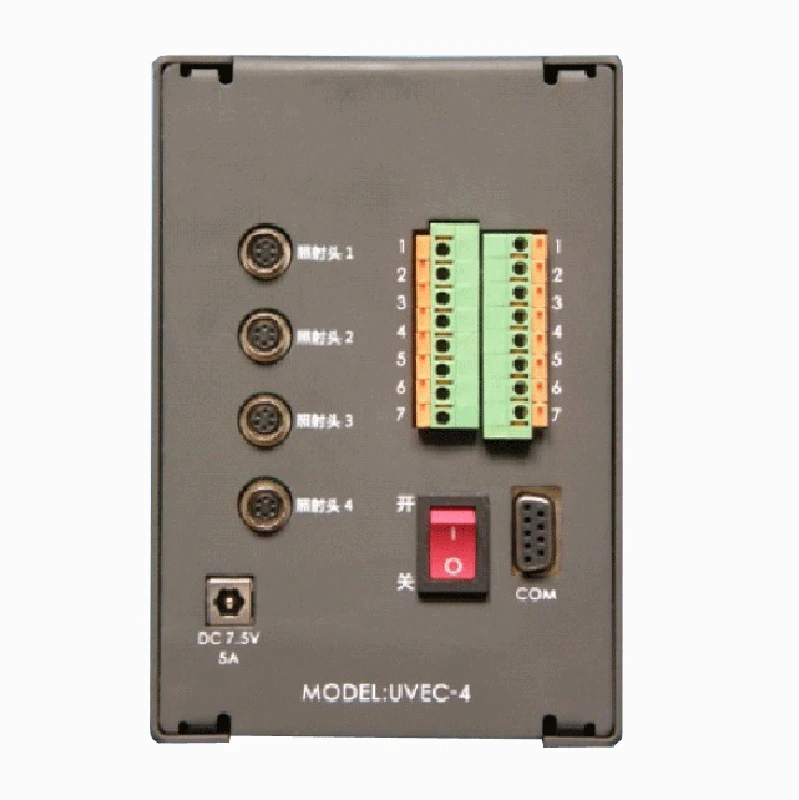

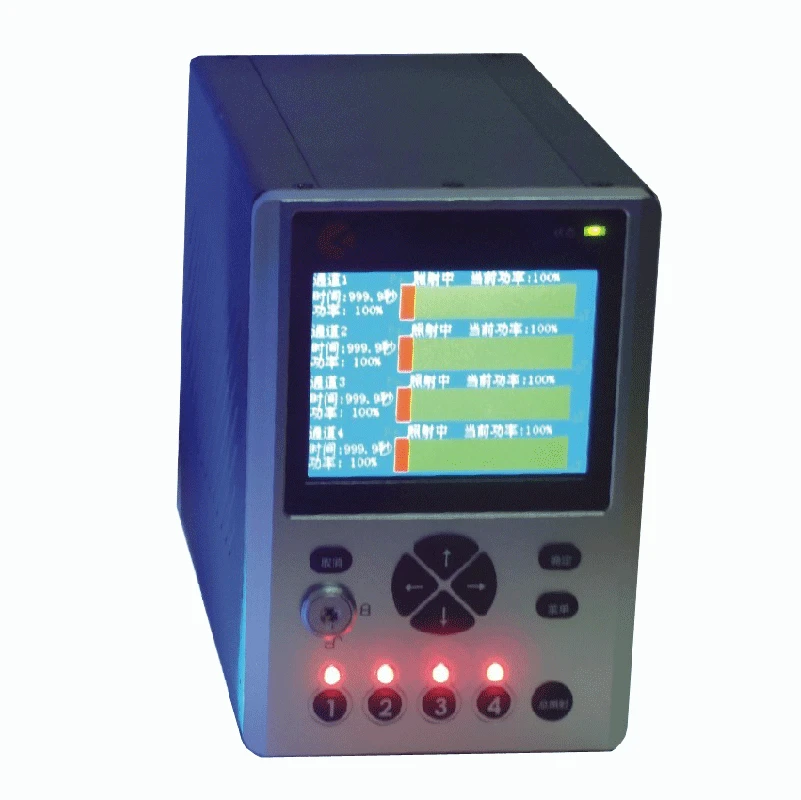

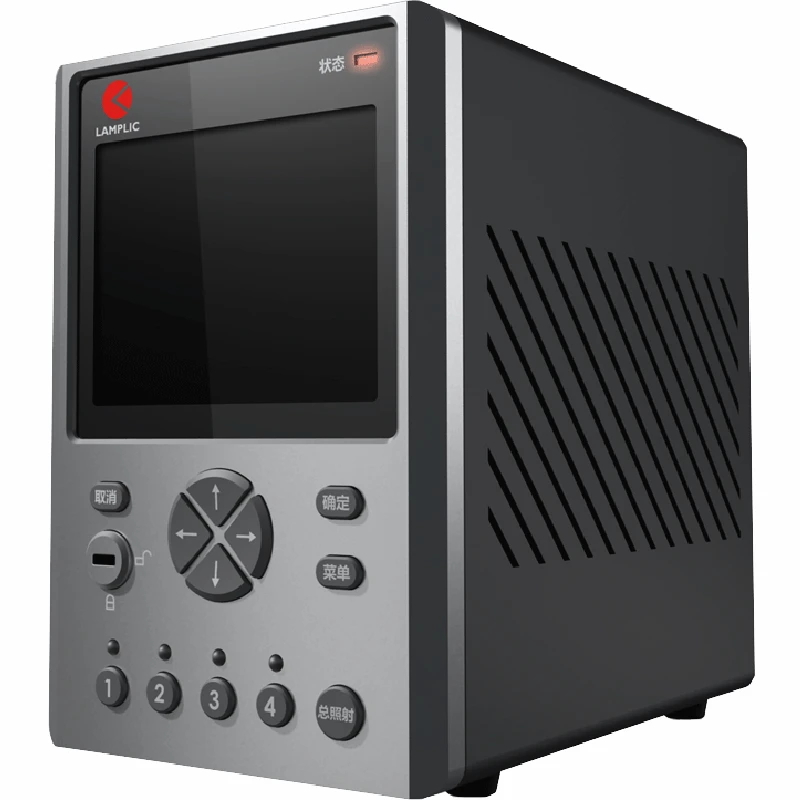

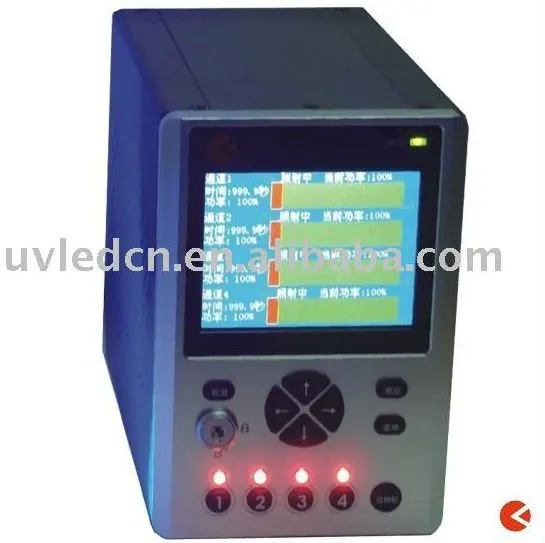

6. Controller

 Product No.: UVEC-4II

Size: 180L*100W*146H(mm)

 Irradiation mode Choice: Constant Power; Step Power; Pendal control.

7. LED UV Curing System's Main Applications:

(1) UV light curing: optical equipment, optical communication products and crafts manufacturing, electronic components, hard drives, and micro-motor manufacturing, manufacturing headphones and watch parts, optical DVD / CD production.

(2) UV detection and analysis instrument: UV analyzers, for bio-genetic engineering, molecular genetics, medical health, biological products, pharmaceutical research, sanitation and epidemic prevention, dyes chemical, petrochemical, textile industry,  public security  and judicial departments, cultural relics archaeological department, and wherever fluorescence analysis test is needed.

(3) UV disinfection: it can be widely applied in various areas of need for water disinfection.

(4) Biological applications: Sterilization, Plant physiology research, Seed quality research

(5) Medicine and Medical Applications: Medical diagnosis and treatment: dental curing, vitiligo treatment, Bio-pharmaceutical applications, In drug production and research.
