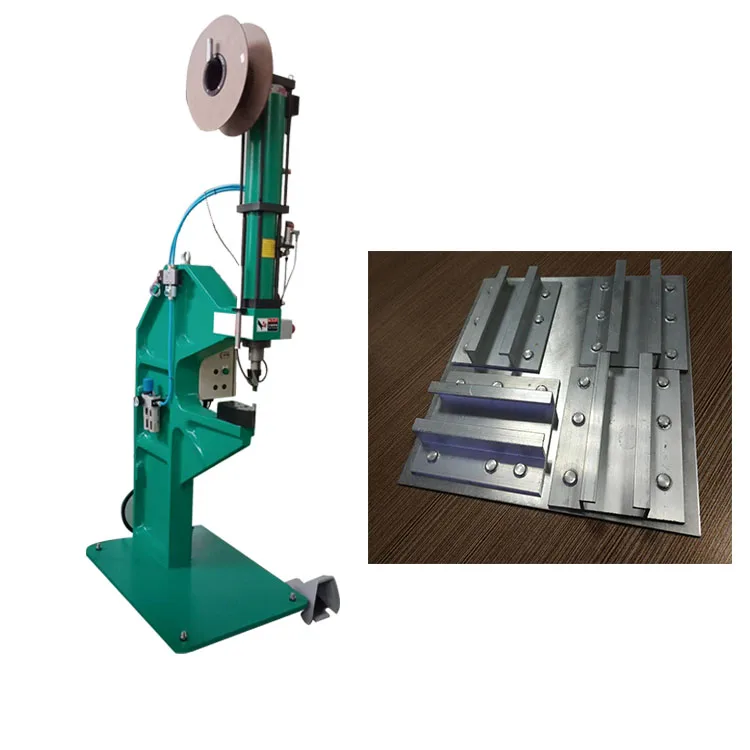

2020 новый процесс подключения без повреждений ручной самопирсинг заклепки система Клининговая машина пневматический гидравлический
- Категория: >>>
- Поставщик: Rsm Machinery Co. Ltd.
Сохранить в закладки 62520782711:
Описание и отзывы
Характеристики
Product Description
Advantages:1.Multilayer and multi-type materials connecting.
2.Up to 14mm aluminum alloy and 8mm steel.
3.High connection strength and fatigue resistance。
4.No pre-drilling is required.
5.Glue can be applied between material plate.
6.High connection strenth and fatigue resistance.
7.Rapid completion process.
8.High accurancy of repeated connection
9.Visual inspection of quality.
10.Meet the demand of full automation.
11.Free of smoke .steam and spark ,low noise.
SPR riveting is a new connection process specially designed for the connection issue of light weight vehicles , With an external force,the SPR rivet can pierce the first layer and middle layer of materials and flow and extend in the base materials, forming a mutually embedded deformed rivet connection process , which is called as SPR connection.
This riveting point has high tensile strength and shear strength ,called as self-piercing riveting point.

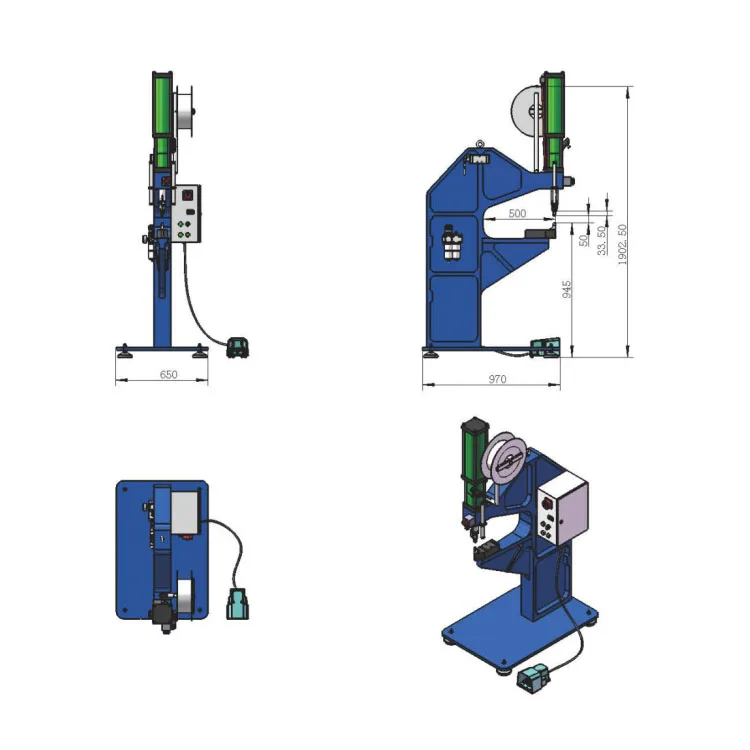

Introduction
Our machine is driven by compressed air, it is with low energy consumption, low noise, non-pollution.
The machine needs to be cleaned, dried by compressed air, the pressure is 3--6bar.
Standard color of our machine is blue, we also can make the color as customer’s requirement.
The machine needs to be cleaned, dried by compressed air, the pressure is 3--6bar.
Standard color of our machine is blue, we also can make the color as customer’s requirement.

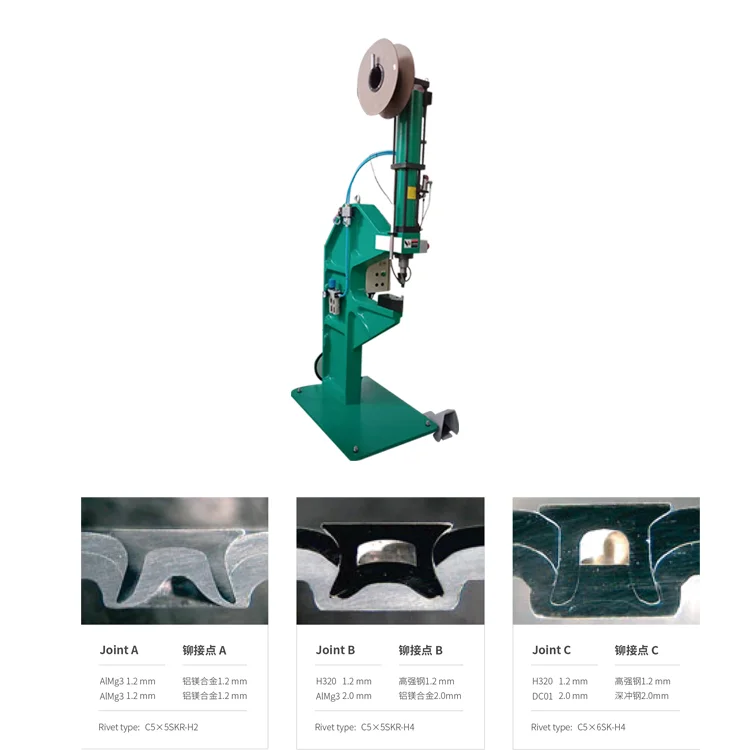

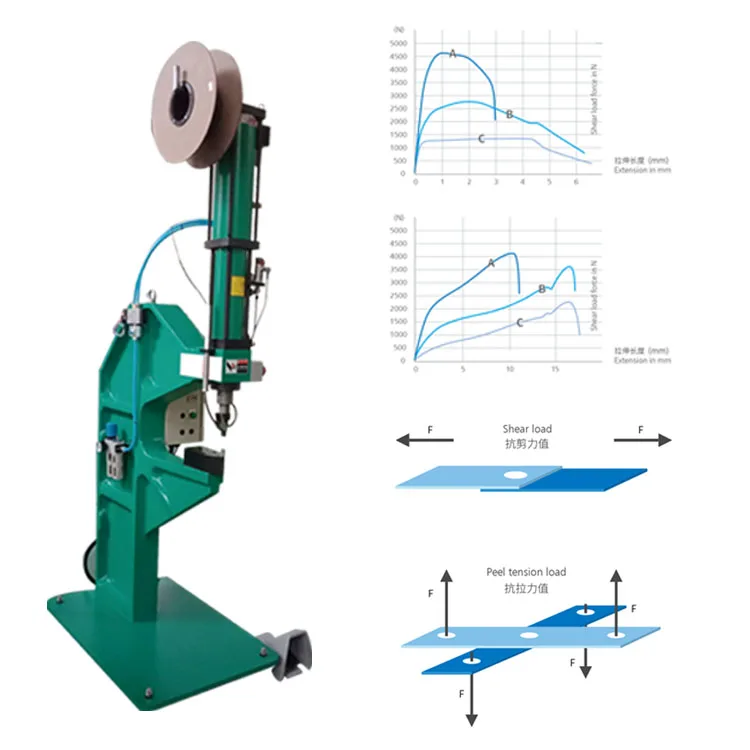

Strength Test of self-piercing connection point.
The process of SPR connection is different with that of welding. It includes positioning,clamping and automatic feeding of rivet. Then the rivet will pierce through the supper material and form deformation in the bottom material, and finish shaping, this is an easy and rapid process.
Applications
Typical application for the SPR rivets
Automotive industry
Auto Self Piercing Rivet System applies to the body,assembly, interior and exterior of vehide.
Auto Self Piercing Rivet System applies to the body,assembly, interior and exterior of vehide.
White Product
Air conditioning and energy engineering
Pierces in large size can by connected by manual or automatic Self-piercing connected system
Robotic Operation System and Hand Tool Connection Complete Connection Technique,such as rivet-free connection and blind riveting.

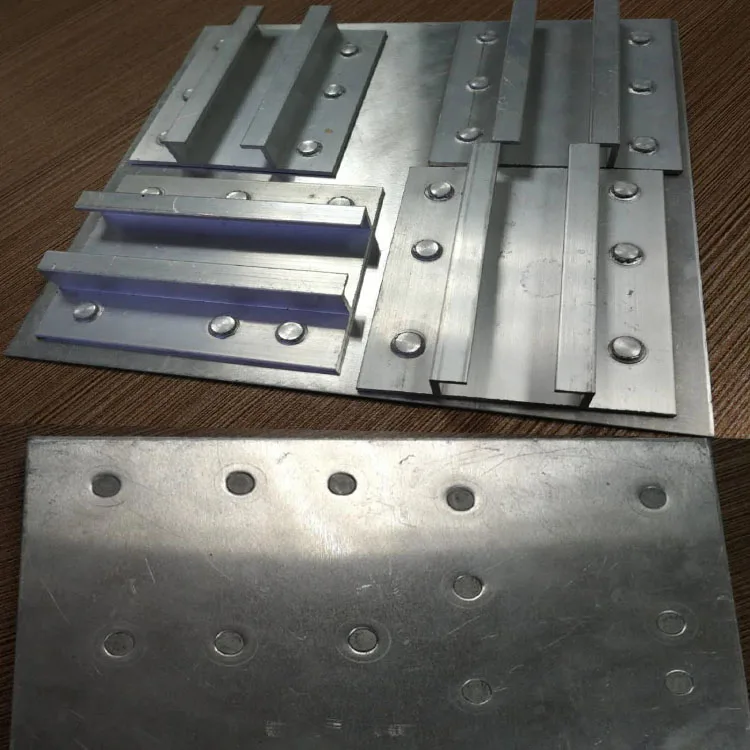

Construction doors and windows
Manual self-piercing rivet system replaces the original point welding and blind riveting. No damage of the galvanized coating on sheet material.High strength and artistic appearance.
Manual self-piercing rivet system replaces the original point welding and blind riveting. No damage of the galvanized coating on sheet material.High strength and artistic appearance.
Air conditioning and energy engineering
Pierces in large size can by connected by manual or automatic Self-piercing connected system
Related Products
Packing&Shipping
Currently there is 2 kinds package of SPR,disk and without disk, most of customers prefer to SPR without disk.
Exhibitions
Exhibitions in Thailand
Exhibitions in Viet Nam
Exhibitions in USA
Company Introduction
RSM MACHINERY CO.LTD is one of the world leaders for innovative products and resource sheet metal joint solution industry.Our mainly products are: Fastener insertion machine,Self-clinching machine,Self-Piercing rivet machine,Fastener elements,Spot welder,etc.
RSM sales net is cover more than 30 countries around the world and had established over 20 distributors. RSM are well-equipped todeliver timely and reliable solutions for customers wherever and whenever required.
CE CERTIFICATE
FAQ
1. Q:What types of riveting?
A:Riveting is divided into fastener insertion, self clinching, self-piercing riveting.
6.What are the advantages of non-rivet connection compared with rivet?
A:Riveting is divided into fastener insertion, self clinching, self-piercing riveting.
2.Q:Why is the strength of self-piercing riveting high?
A:Self-piercing riveting is a type of locking riveting.
A:Self-piercing riveting is a type of locking riveting.
3.Q:What are the factors that determine the equipment height of CEB models?
A:The height is determined by the stroke of the booster cylinder
A:The height is determined by the stroke of the booster cylinder
4.Q: What is the function of the precision pressure reducing valve?
A:Ensure no scratches on the surface of the workpiece when riveting.
A:Ensure no scratches on the surface of the workpiece when riveting.
5.Q:What is the function of the silencer?
A:Reduce noise during machine operation.
6.What are the advantages of non-rivet connection compared with rivet?
A：The cost of rivets is reduced, no drilling is needed, the process of placing rivets is omitted, the operation is easy, and theprofessional requirements are not high.
Похожие товары
Китайская художественная галерея Dali 20 Вт 24 Вт 30 Вт Cob Светодиодная трековая лампа, Трековый прожектор корпус, масштабируемый Трековый светильник Cct комплект для магазина
14,00 $ - 16,20 $

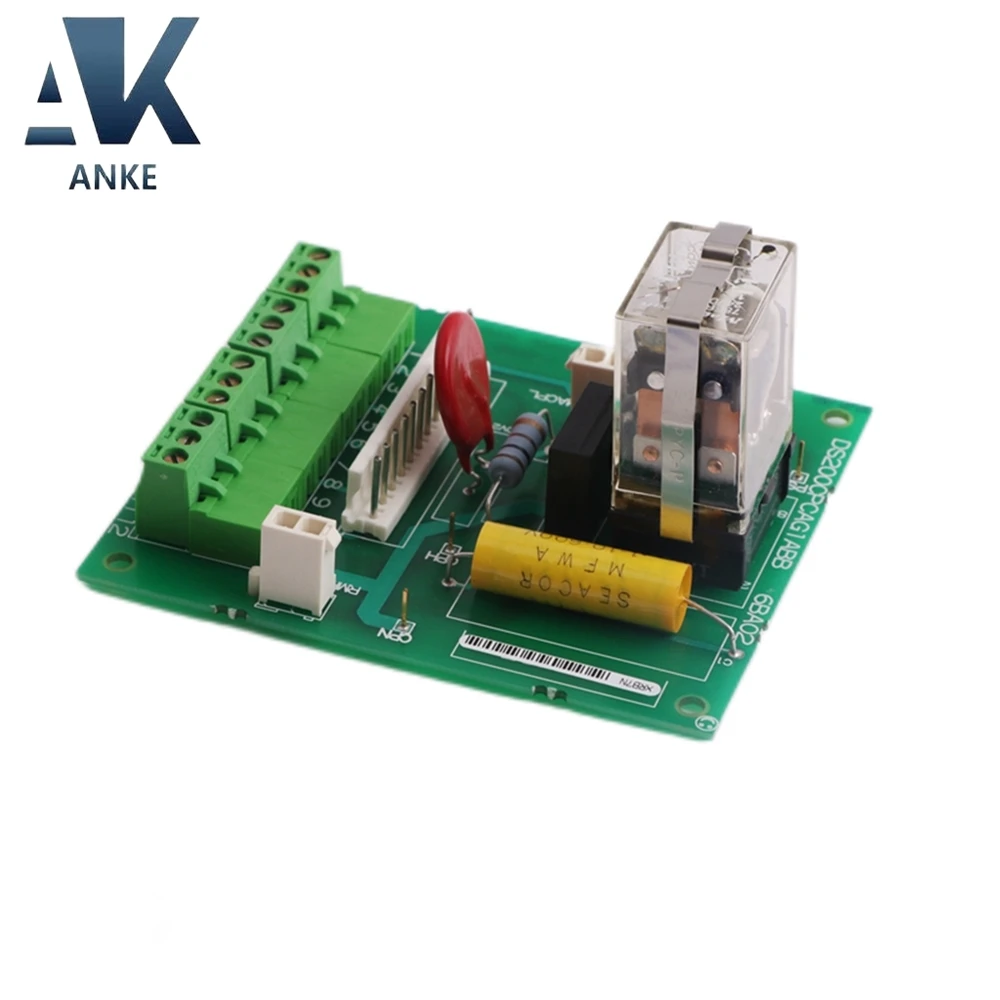

Контактор DS200CPCAG1ABB пилотная карта для общего электрического
