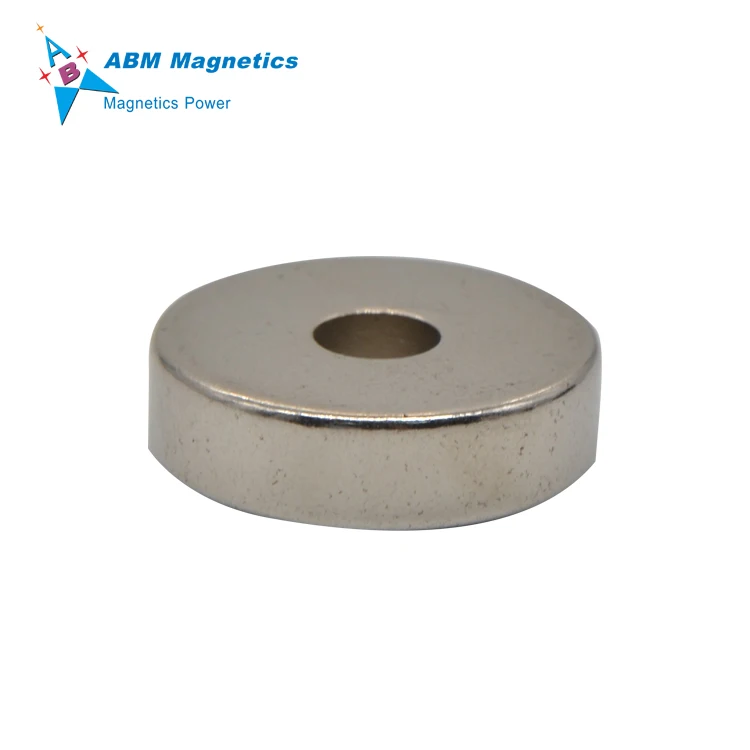

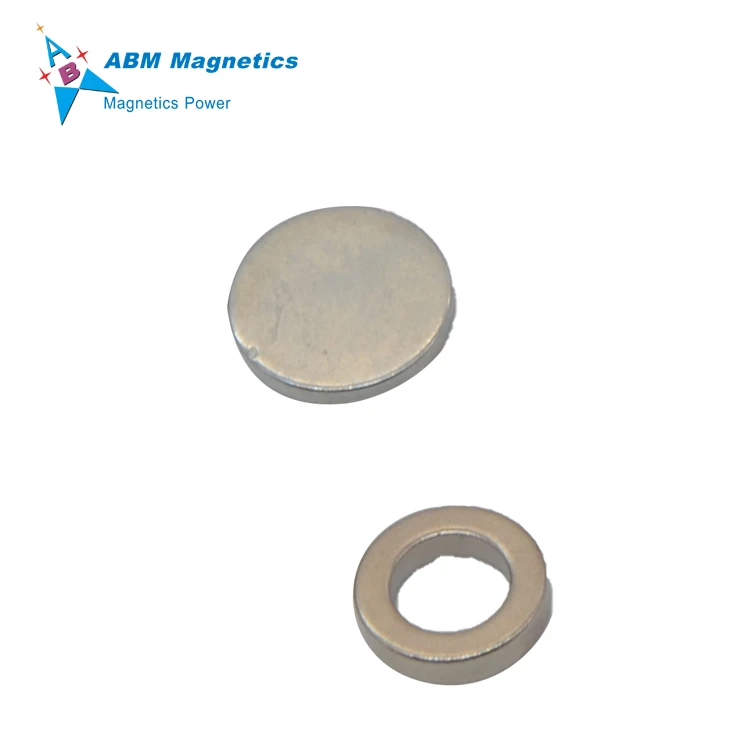

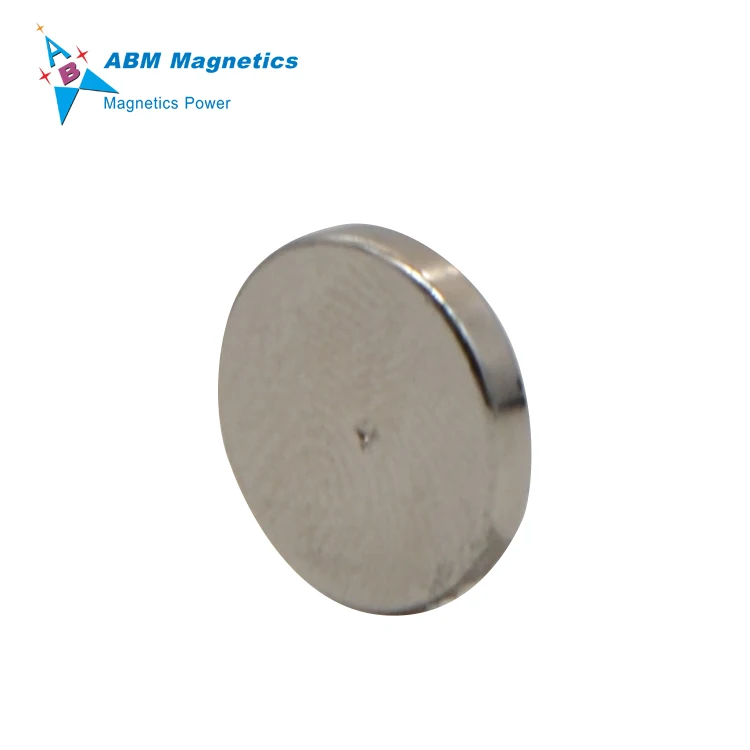

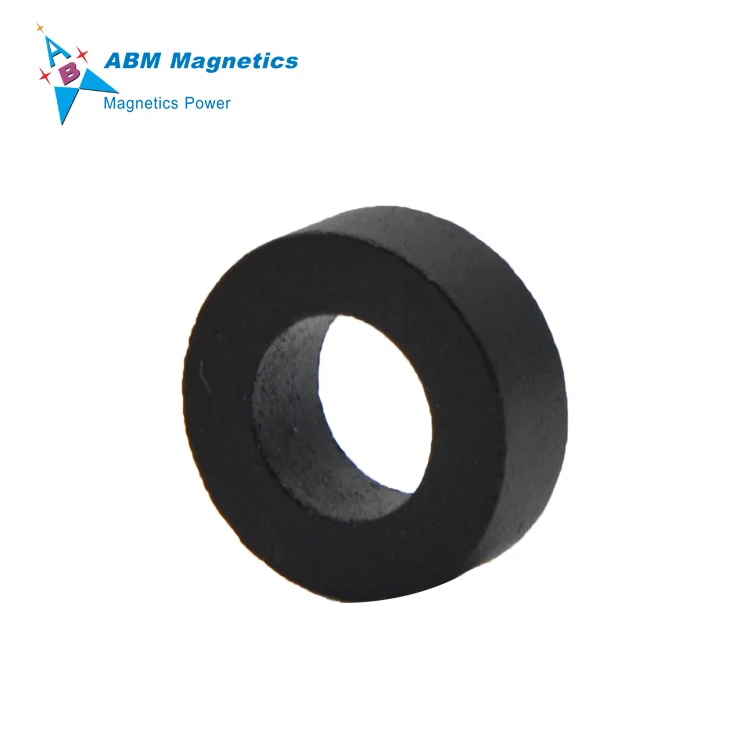

Неодимовый магнит n52 заказной круглый с отверстием для сумки

Неодимовый магнит n52 заказной круглый с отверстием для сумки

Категория: >>>
Поставщик: ABM Magnetics Co. Ltd.

Цена:0,18 $ - 0,98 $*

Количество:

В избранное

Описание и отзывы

Характеристики

\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t

✔Characteristics

Higher magnetic properties Br:11000-14500 Gs, Hci:11000-30000 Oe, BHmax:35-50MGOe
Lower temperature coefficient : maximum working temperature range:80-230 degree C
Higher corrosion resistant after coating Salt spray testing:24-72Hours
Coating Ni,Ni-Cu-Ni,Zn,Ag,Au,epoxy,parylene and other special coating

✔Purchasing guide:
The magnet dimensions(drawing provided if available);
The grade of material and coating;
The working temperature of magnets;
The application of magnets;

Magnet Material	Neodymium Iron Boron (NdFeB, Neo)
Grade	N30-N52, M, H, SH, UH, EH, AH
Shape	Customized Shape
Certification	ROHS, TS16949, QS9000
Tolerance	0.05mm ~ 0.1mm
Maximum Operation Temperature	80 °C - 230°C according to magnet material
Solution	Customized your required material, size, coating, shape, grade, pull force and working temperature
Sample	Freight Collect
Magnetisation Direction	Axial / Diametrical
Specifications	1. Powerful Permanent Magnet 2. High quality & best price 3. High working temperature 4. Good corrosion resistance

\t\t\t\t\t\t\t\t\tCoated & Orientated \t\t\t\t\t\t\t

Higher corrosion resistant after coating

Ni,Ni-Cu-Ni,Zn,Ag,Au,epoxy,parylene and other special coating

Salt spray testing:24-72Hours

Orientation and Magnetizing pattern

Multi-poles on face alone axial,axial and Diameter cross magmetization and other special magnetizing pattern.

\t\t\t\t\t\t\t\t\tGrade of Material \t\t\t\t\t\t\t

Grade N for working temperature 80 degree C and below
Grade M for working temperature 100 degree C and below
Grade H for working temperature 120 degree C and below
Grade SH for working temperature 150 degree C and below
Grade UH for working temperature 180 degree C and below
Grade EH for working temperature 200 degree C and below
Grade AH for working temperature 220 degree C and below

\t\t\t\t\t\t\t\t\tPacking information \t\t\t\t\t\t\t

Magnet will be packed with spacer for easy seprating and protecting.
Magnet will be plastic vacuum encapsulating for protecting.
Final carton size is 36x29x16cm having 8 small white boxes.
Foam separator and galvanized iron box to protect magnet and acting as magnetic shielding.

\t\t\t\t\t\t\t\t\tCertification Shows \t\t\t\t\t\t\t

Providing complete stimulation and testing in order to ensure products' reliabality.

\t\t\t\t\t\t\t\t\tAbout us-ABM \t\t\t\t\t\t\t

>> ABM Magnetics focusing on the NdFeB magnets design and manufacturing over 20 years. We focus on effective quality assurance system to ensure best quality.
>> ABM can supply a variety of different size, shape and grade magnets to customer, such as magnet disc, magnet block, magnet ring, arc magnet, bread magnet, cup magnet, magnet ball, magnet bar, magnetic hook, pot magnet,cylindrical magnet.
>>ABM often attended many exhibitions which forcusing on the Motor, Electric Machinery & Magnetic Materials design and manufacturing. In the exposition scene, many customers are very interesting in our magnets, especially in our design and manufacturing capability.

\t\t\t\t\t\t\t\t\tRatings & Reviews \t\t\t\t\t\t\t

ABM focus on providing best quality magnet to every customer and we also receive lots of 5 stars reviews from customer all over the world.
