Products Description
BST-6000 automatic stretch blow molding machine is one of the newest products for our customer. Its strongest point is energy savings. Adopting high pressure clamping, automatic stretch blow molding machine makes self-adjustment in accordance with the different pressure needed during production, thus ensures the super clamping force. While the high pressure sealing system with automatic adjustment permits that mold sealing is under condition of 100% air tightness before blowing and avoid air energy loss owing to incomplete air tightness. With such effective control over air energy and power, it takes a big part to lower costs and improve efficiency.
Working Process
Auto Preform Unscrambler System.
*Adopts one-way preform-feeding structure and preform-separating by servo motor structure which solve the preform block and abrasion problem.
*There are two photoelectric sensors to control preform-loading motor and preform-separating cylinder that will warn the operator to add the preforms into the hopper when lacks preform instead of stopping the machine.
*There are two photoelectric sensors to control preform-loading motor and preform-separating cylinder that will warn the operator to add the preforms into the hopper when lacks preform instead of stopping the machine.
New Heating System.
*Perfect heating system design decrease power consumption.
*Special oven design helps power saving and easy maintain.
*Each lamp position and temperature can be adjusted.
*Cycle air-cooling system keeps the oven temperature constantly.
*Special oven design helps power saving and easy maintain.
*Each lamp position and temperature can be adjusted.
*Cycle air-cooling system keeps the oven temperature constantly.
Intelligent Human-Machine Interface.
*Human-machine interface control, easy operate and monitor.
*Live production information supervise, auto record production data everyday
*Failure warning and troubleshooting.
*Live production information supervise, auto record production data everyday
*Failure warning and troubleshooting.
Machine Details
Servo System On Main Transmission.
The transmission adopts servomotor for positioning that can orientate the preform-heating base quickly, accurately and steadily when the machine starts and running.

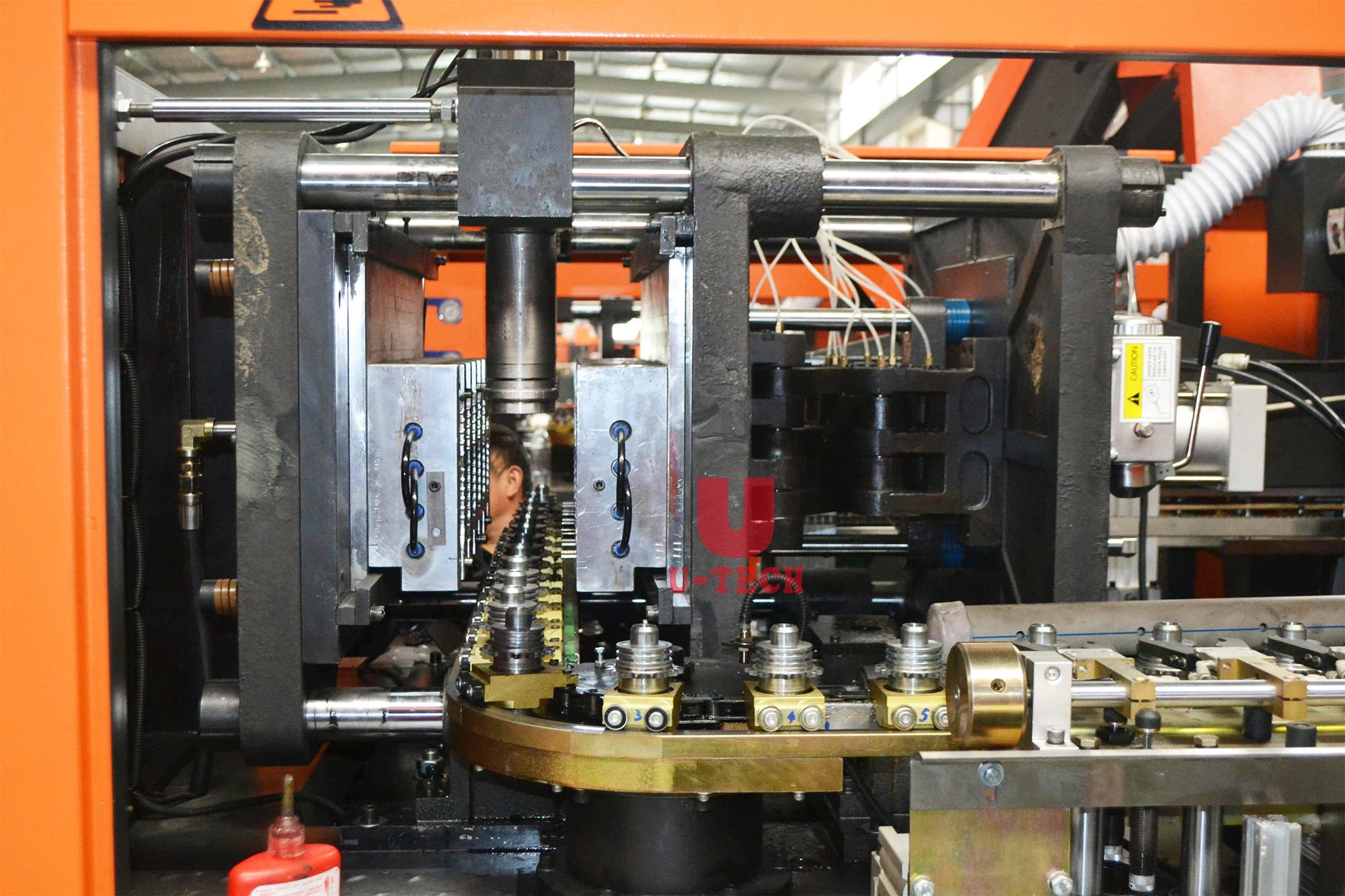

Clamping System & Stretching.
*Adopts servo motor to drive the two cranks to control the clamping system which can shorten the mold-clamping time and improve productivity, and also solve the swelling mold and big joint line problem with the effect of pressurize plate.
* Servo motor using for stretching to ensure the bottle blowing speed faster and more stable bottle quality.
* Servo motor using for stretching to ensure the bottle blowing speed faster and more stable bottle quality.
Easy To Change Bottle Shape.
*Drawer type mold structure design is easy for mold changing. Within one hour can change a mold on the condition of same bottle neck diameter.
Product Paramenters
TYPE | ITEM | UNIT | Technical data |
Container | Product material | / | PET |
Container volume | L | 0.05-2.0 | |
Theoretic output | Psc/hr | 5500 | |
Preform length | MM | 50-200 | |
Max height of bottle | MM | 320 | |
Molding | Preform inner diameter | mm | 15-60 |
Bottle diameter | mm | 35-110 | |
Max mold plate dimension (L × W) | mm | 380 × 460 | |
Max mold thickness | mm | 200 | |
Air compressor | High pressure compressor | M3/Mpa | 1.2/30 × 3set |
Locking force | KN | 170 | |
Mold opening stroke (adjustable) | mm | 200 | |
Low pressure compressor | M3/Mpa | 2.0/10 × 1sets | |
Air dryer | M3/Mpa | 2.0/30 × 1sets | |
Main machine electricity | Power | KW | 30 |
Voltage / frequency | V/Hz | 380/50hz |
Why Choose Us
Certifications
FAQ
Q1:Do you have any reference project?
>> A1:We have reference project in most countries, and you can visit their factories if we get the permission of the customer.
Q2:What's your guarantee or the warranty of the quality if we buy your machines?
>>A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years.
Q3: Do you provide customized service?
>> A3: We will customize the machine according to your needs, materil ,power,filling type,the kinds of the bottles and so on.
Q4:When can I get my machine after I paid?
>> A4:We will deliver the machines on time as the date we agreed both side.
Q5:How can I install my machine when it arrives?
>> A5:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
>> A1:We have reference project in most countries, and you can visit their factories if we get the permission of the customer.
Q2:What's your guarantee or the warranty of the quality if we buy your machines?
>>A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years.
Q3: Do you provide customized service?
>> A3: We will customize the machine according to your needs, materil ,power,filling type,the kinds of the bottles and so on.
Q4:When can I get my machine after I paid?
>> A4:We will deliver the machines on time as the date we agreed both side.
Q5:How can I install my machine when it arrives?
>> A5:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
