Высокое качество резиновые оборудование работает с пластиковой дорожки асфальтоукладчик машина
- Категория: Plastic & Rubber Processing Machinery >>>
- Поставщик: Zhejiang Green Valley Sports Industry Co. Ltd.
Сохранить в закладки 62531193988:
Описание и отзывы
Характеристики
Specification
Product Name | Best Athletic Field Paver Machine Paver Running Track Paver Machinery | ||||
Name | Paving machine | ||||
Model | TPJ-2.5 | TPJ-1.5 | |||
Actual Width | 2500mm | 1400mm | |||
Paving Width | 2500mm | 1500mm | |||
Moving Speed | 0.8-6m/min | 0.8-6m/min | |||
Paving Capability | 500 sq.m./h | 350 sq.m./h | |||
Power | 8KW | 4.05kw | |||
Temperature adjustment for heating board | 90-120 centigrade | 90-120 centigrade | |||
Machine Weight | 800kg | 450kg | |||
Dimension | 2500*1750*700mm | 15500*1600*700mm | |||

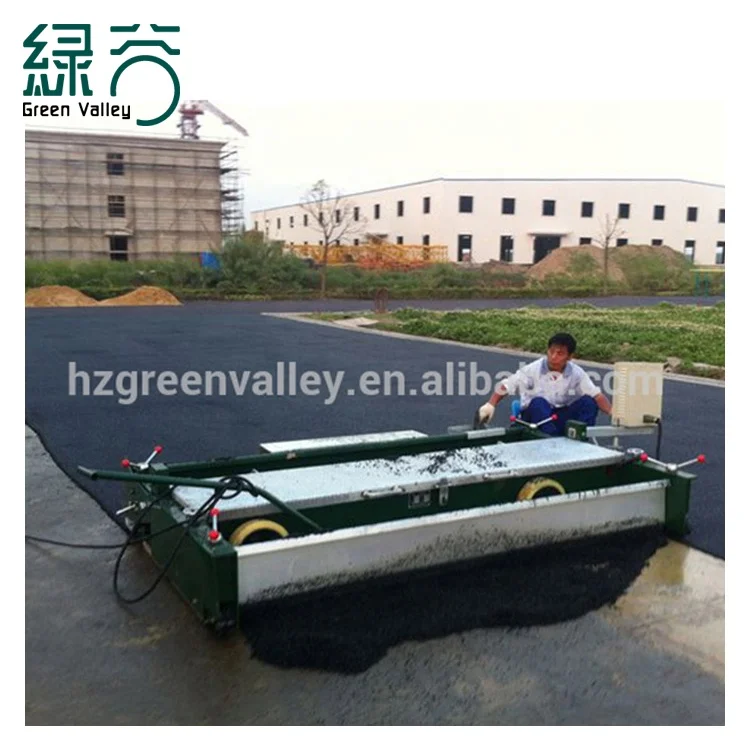

Structure & Function | 1. Used for spreading, paving the bottom layer of plastic stadiums, like running track, rubberized playgrounds, etc. | ||||
2. Framework: with a firm and stable welded H-type structure, and a rust-proof paint layer, it may accommodate any poor condition in the construction site. | |||||

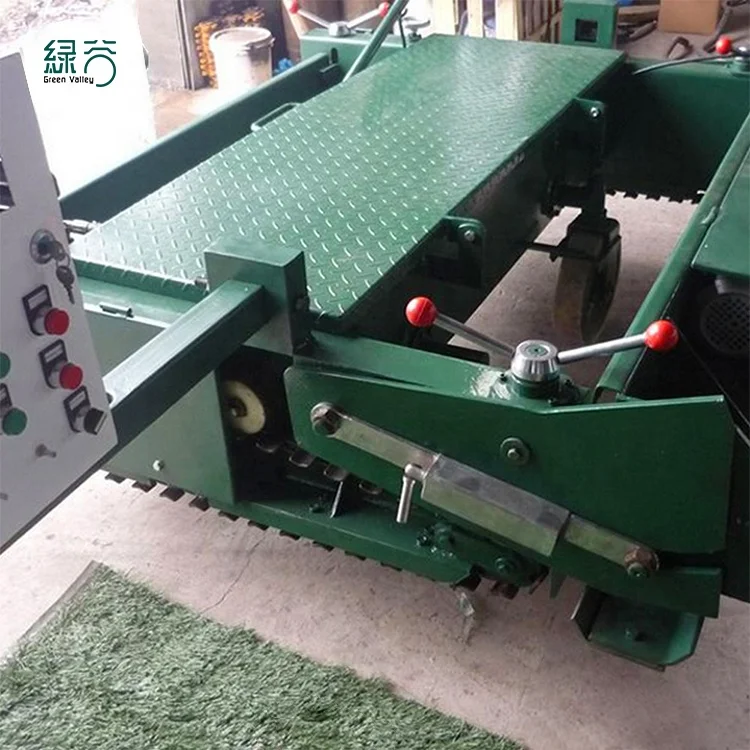

3. Front scratchboard: welded joint structure, the ground clearance is manually adjustable through a screw, which controls the thickness of the floor layer. The width may be adjusted through a limiting board. | |||||
4. Driving device: the main driving system is a motor-driven caterpillar chain, with the speed smoothly controlled by a frequency converter, which is featured as stably and precisely moving ahead or back in motion. It may be equipped with different caterpillar belts for different bottoms. | |||||
5. Walking Mechanism: the spreading machine may be manually moved or relocated through a walking mechanism consisting of an advanced ratchet lever system and lift. | |||||

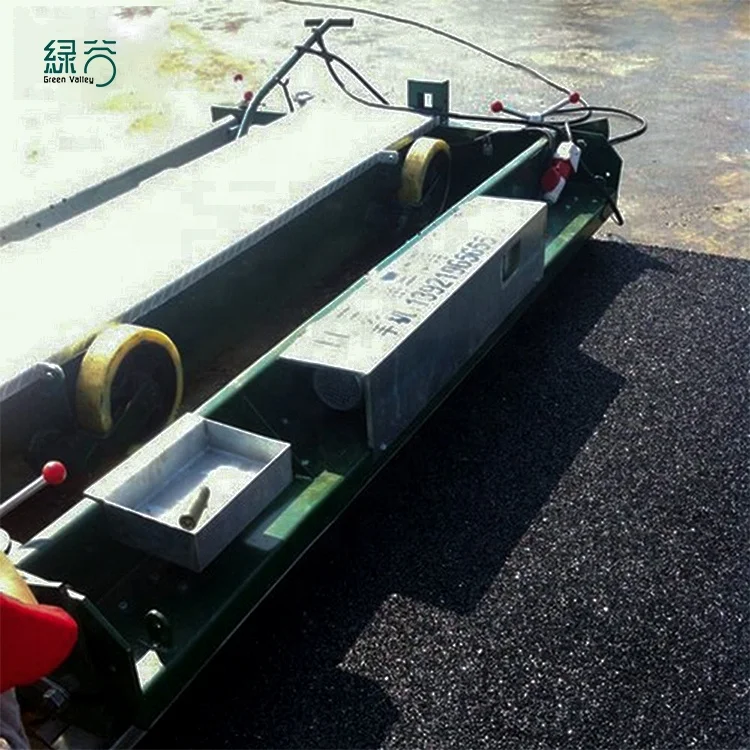

6. Screed: The screed has four functions, viz. the adjustment of height, angle, temperature, and vibration. The plastic cement material is vibrated, compacted and paves while passing through the screen. | |||||
Operation use

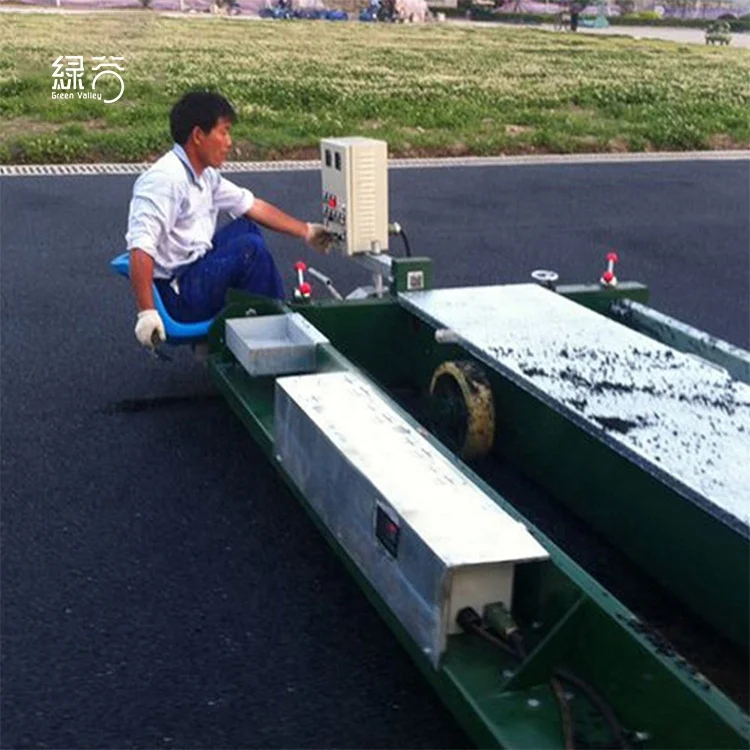

1、install the seat rest
Insert the seat rest into the square hole of the longerons, and fixed it by the pins.
The seat rest can install on the any side of the paving machine.
Insert the seat rest into the square hole of the longerons, and fixed it by the pins.
The seat rest can install on the any side of the paving machine.
2、install the electrical control panel
Warning! Install the electric cabinet is to cut off power supply.
Take out the electrical control panel from the transmission box, and fixed it on the seat rest by pins.
Warning! Install the electric cabinet is to cut off power supply.
Take out the electrical control panel from the transmission box, and fixed it on the seat rest by pins.
3、Operate the machine up and down
Open the power switch, and the power indicator light is light.
According to the prospective thickness of the coating strip, adjust the setting screw to set the height of the screed.
Open the power switch, and the power indicator light is light.
4、adjust the height of the pre-strike-off rail
According to the prospective thickness of the coating strip, Adjust setting screw to set the height of the5、 adjust the screed height and angle
According to the prospective thickness of the coating strip, adjust the setting screw to set the height of the screed.
6、Adjust the temperatures of the screed
Hot surface During operation and for a short time after the heating board can reach a high temperature.Avoid direct contact with the surface.
Hot surface During operation and for a short time after the heating board can reach a high temperature.Avoid direct contact with the surface.
7. movement in paving progress
Warning! Don’t put hands near it when machine operation!
Warning! Don’t put hands near it when machine operation!
8、shaking operation:
Turn on the shaking switch, the screed is shaking.
Turn on the shaking switch, the screed is shaking.
NO. | fault | Possible reasons |
1 | The whole machine can not work | 1、The power not connected 2、The power is lack of phase |
2 | The tracks cannot move | 1、The e-motor can not connects the power 2、The e-motor is broken 3、The transducer is not start 4、potentiometer is broken 5、The tracks was jammed |
3 | The machine body can not raise and down. | 1、Power is not connected 2、The motor in oil tank is not work. 3、gear pump is broken 4、the electrical phase is fault 5、The pressure less than 0.8Mpa 6、electromagnetic directional valve is not working |
4 | The shaking board is not work | 1、Power is not connected 2、The motor is not work. 3、Joint bearing is broken or jammed |
5 | Heating board can not work | 1、Power is not connected 2、Power connection loose 3、Fuse on the heating panel is broken 4、temperature control device is broken |
6 | One side or parts of heating can not work | 1、Power connection loose 2、The heating borad is short circuit |
