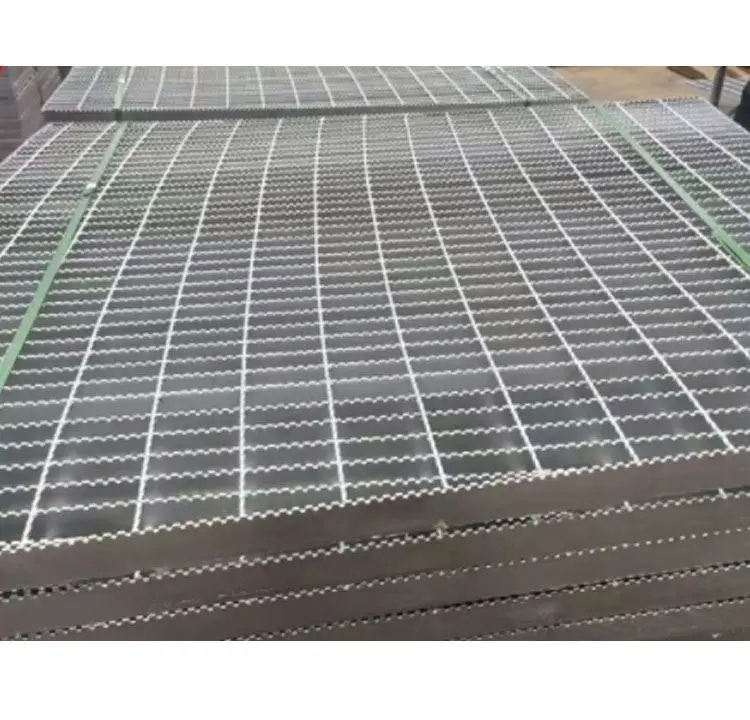

Поставщики строительных материалов, стальная мостовая решетка, зубчатая стальная решетка для подъездной дороги
867,49 ₽ - 1 409,67 ₽
Китайский производитель стальные пластины пальцевые расширения используемые для моста
- Категория: >>>
- Поставщик: Hengshui Jingtong Rubber Co. Ltd.
Сохранить в закладки 62532257585:
Описание и отзывы
Характеристики
Product Description

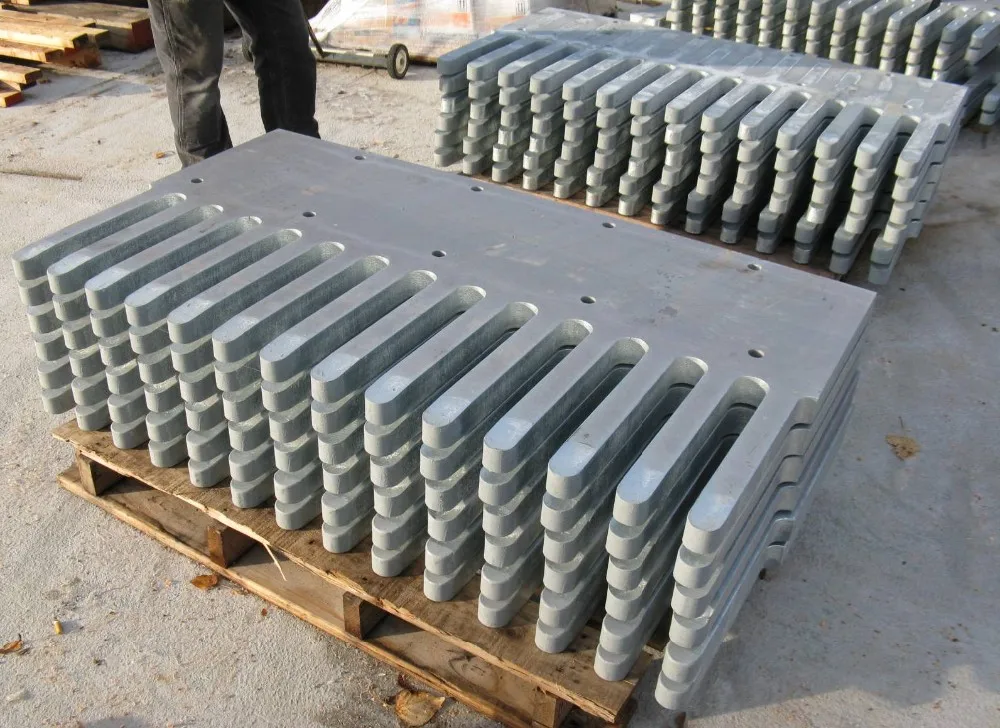

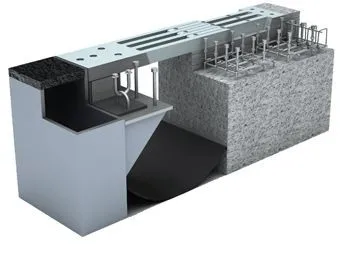

Finger expansion joints are designed to handle movements of 80 mm to 1,200 mm are composed by steel finger plates, CR sheet, anchor bolts and other components. The rubber sheet is placed on the retractable steel, and anchor bolts help to fix the whole structure. The orientation of the fingers is in the direction of vehicle travel, which can reduce noise and improve driver's comfort. There is a drainage channel which allows rainwater to enter the bridge's drainage system, hanging beneath the joint.
Features
* Simple structure & low height.
* Minimize noise and vibration.
* Maximize vehicle's driving smoothness.
* Anti-skidding.
* Be highly water-resistant (Equipped with waterproof device ).
* Low cost & high cost effectiveness.
* Widespread use.
* Easy to install.
Application
Finger expansion joints are suitable for both new bridges and existing bridges. They are also good choices for the large-span bridges and do well in replacing the old ones. Finger expansion joints are widely used among steel box girders, among concrete beams, and between steel box girders and concrete beams. Finger expansion joints also can be used in expressway.
* Simple structure & low height.
* Minimize noise and vibration.
* Maximize vehicle's driving smoothness.
* Anti-skidding.
* Be highly water-resistant (Equipped with waterproof device ).
* Low cost & high cost effectiveness.
* Widespread use.
* Easy to install.
Application
Finger expansion joints are suitable for both new bridges and existing bridges. They are also good choices for the large-span bridges and do well in replacing the old ones. Finger expansion joints are widely used among steel box girders, among concrete beams, and between steel box girders and concrete beams. Finger expansion joints also can be used in expressway.
Types of Expansion Joints

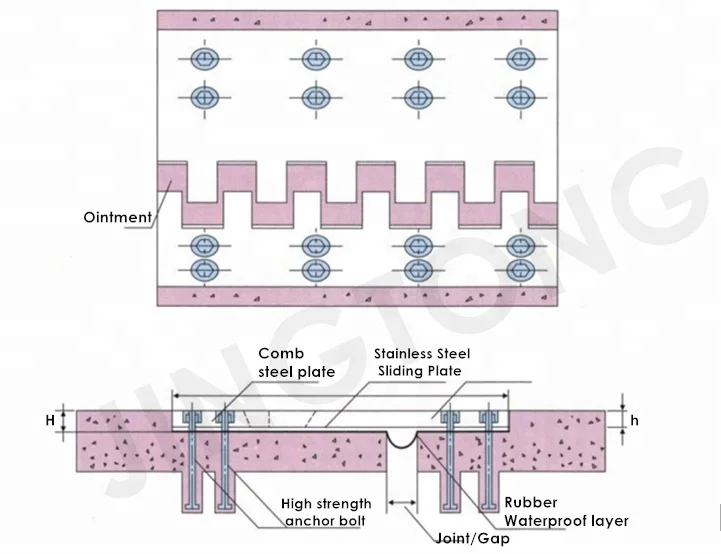

Specification
Item | C mm | h | Achor Bolts | B mm | H mm | Surface layer height |
80 | 80 | 28 | M18×180 | 740 | 33 | 120 |
100 | 100 | 28 | M18×180 | 800 | 33 | 120 |
120 | 120 | 30 | M18×180 | 860 | 35 | 120 |
140 | 140 | 30 | M18×180 | 920 | 35 | 120 |
160 | 160 | 30 | M18×180 | 980 | 35 | 120 |
180 | 180 | 32 | M20×200 | 1080 | 37 | 120 |
200 | 200 | 32 | M20×200 | 1140 | 37 | 150 |
220 | 220 | 32 | M20×200 | 1200 | 37 | 150 |
240 | 240 | 34 | M22×220 | 1260 | 39 | 150 |
260 | 260 | 34 | M22×220 | 1320 | 39 | 150 |
280 | 280 | 34 | M22×220 | 1380 | 39 | 150 |
300 | 300 | 36 | M24×240 | 1480 | 41 | 150 |
320 | 320 | 36 | M24×240 | 1540 | 41 | 150 |
340 | 340 | 38 | M24×240 | 1600 | 43 | 150 |
360 | 360 | 38 | M24×240 | 1660 | 43 | 150 |
Packaging&shopping
Packaging:
Our JingTong Rubber Expansion Joints are packaged in plastic film to ensure cleanliness and protection during transportation.
Each expansion joint is carefully wrapped and neatly placed on pallets for easy loading and transportation.
Each expansion joint is carefully wrapped and neatly placed on pallets for easy loading and transportation.
Shipping:
We offer sea freight services to meet the transportation needs of international customers.
Sea freight is an economical and reliable mode of transportation, especially suitable for long-distance transportation of bulk goods.
Sea freight is an economical and reliable mode of transportation, especially suitable for long-distance transportation of bulk goods.
Our Advantages
Service
1.Customized Solutions: We offer comprehensive customization services to meet your unique engineering requirements.
2.Rapid Response System: Our customer service team is on standby to ensure your questions and needs are addressed promptly.
3.Professional Technical Support: A team of experienced engineers provides you with full technical support and consultation.
Efficient Logistics: We promise fast and accurate logistics services to ensure timely delivery of products.
4.Comprehensive After-Sales Service: Regular maintenance and inspection services are provided, along with long-term supply of spare parts to ensure long-term stable operation of the products.
Product
1.Innovative Technology: Utilizing the latest technology and materials to ensure exceptional product performance.
2.Quality Assurance: Rigorous quality control processes to ensure every product meets the highest standards.
3.Eco-Friendly Materials: Using environmentally friendly materials to reduce environmental impact and promote sustainable development.
4.Durability: Products are designed for long-term use, featuring outstanding durability and reliability.
5.Versatility: Products are suitable for a wide range of engineering environments, demonstrating extensive adaptability.
1.Customized Solutions: We offer comprehensive customization services to meet your unique engineering requirements.
2.Rapid Response System: Our customer service team is on standby to ensure your questions and needs are addressed promptly.
3.Professional Technical Support: A team of experienced engineers provides you with full technical support and consultation.
Efficient Logistics: We promise fast and accurate logistics services to ensure timely delivery of products.
4.Comprehensive After-Sales Service: Regular maintenance and inspection services are provided, along with long-term supply of spare parts to ensure long-term stable operation of the products.
Product
1.Innovative Technology: Utilizing the latest technology and materials to ensure exceptional product performance.
2.Quality Assurance: Rigorous quality control processes to ensure every product meets the highest standards.
3.Eco-Friendly Materials: Using environmentally friendly materials to reduce environmental impact and promote sustainable development.
4.Durability: Products are designed for long-term use, featuring outstanding durability and reliability.
5.Versatility: Products are suitable for a wide range of engineering environments, demonstrating extensive adaptability.
Company Profile

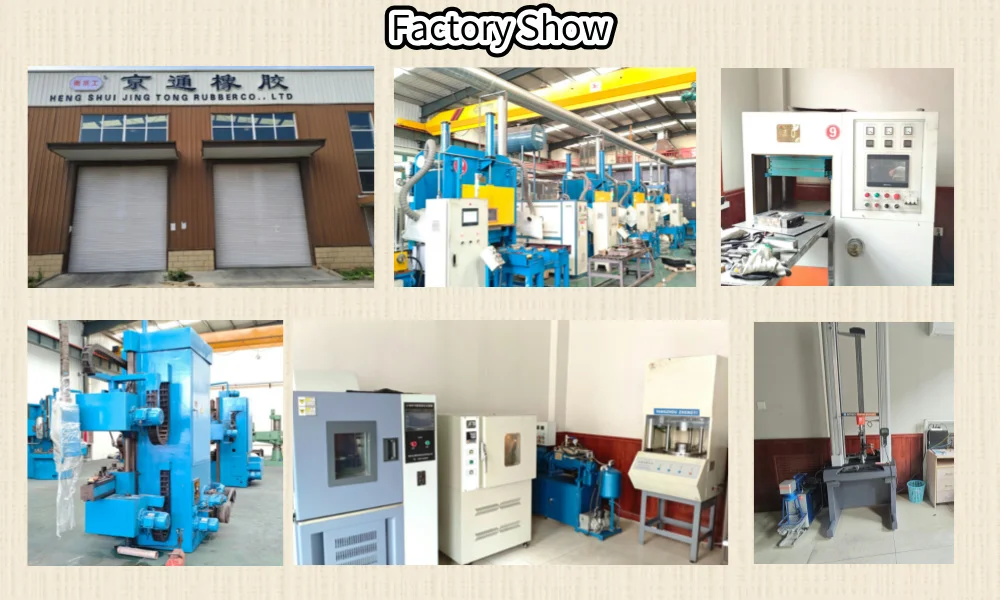

Hengshui Jingtong Engineering Rubber Co., Ltd. is a professional high-tech enterprise engaged in the research, development, production, and sales of engineering rubber products. We are committed to providing comprehensive rubber product solutions for bridge engineering, including well-designed bridge bearings, expansion joints, and rubber water stop bands for waterproofing and sealing. In addition, we manufacture pipeline blocking balloons, offering efficient and safe blocking technology for pipeline maintenance and repair. Our products, known for their excellent quality, reliable performance, and innovative technology, meet the diverse needs of customers both domestically and internationally, providing strong support for various engineering projects. Hengxhui Jingtong Engineering Rubber Co., Ltd. is a trustworthy partner for your engineering rubber product needs.
FAQ
1. who are we?
We are based in Hebei, China, start from 2013,sell to Domestic Market(80.00%),South America(4.00%),Africa(4.00%),Southeast Asia(4.00%),Mid East(4.00%),Oceania(2.00%),Western Europe(1.00%),Eastern Europe(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Bridge Bearing Pad,Expansion Joint,Rubber Inflatable Airbag,Waterstop Belt/Strip,Steel Expansion Joint
4. why should you buy from us not from other suppliers?
1.More than 20 professional senior technical personnel.
2.There are 10 series,over 200 species and more than 2,000 specifications.
3.All products have been authenticated by the Ministry of Communications.
4.Self-research and development,professional.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
We are based in Hebei, China, start from 2013,sell to Domestic Market(80.00%),South America(4.00%),Africa(4.00%),Southeast Asia(4.00%),Mid East(4.00%),Oceania(2.00%),Western Europe(1.00%),Eastern Europe(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Bridge Bearing Pad,Expansion Joint,Rubber Inflatable Airbag,Waterstop Belt/Strip,Steel Expansion Joint
4. why should you buy from us not from other suppliers?
1.More than 20 professional senior technical personnel.
2.There are 10 series,over 200 species and more than 2,000 specifications.
3.All products have been authenticated by the Ministry of Communications.
4.Self-research and development,professional.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
Contact Us
Похожие товары
Анодированный алюминиевый каркасный профиль по заводской цене, экструзионные профили для белой доски из алюминия
759,06 ₽ - 867,49 ₽

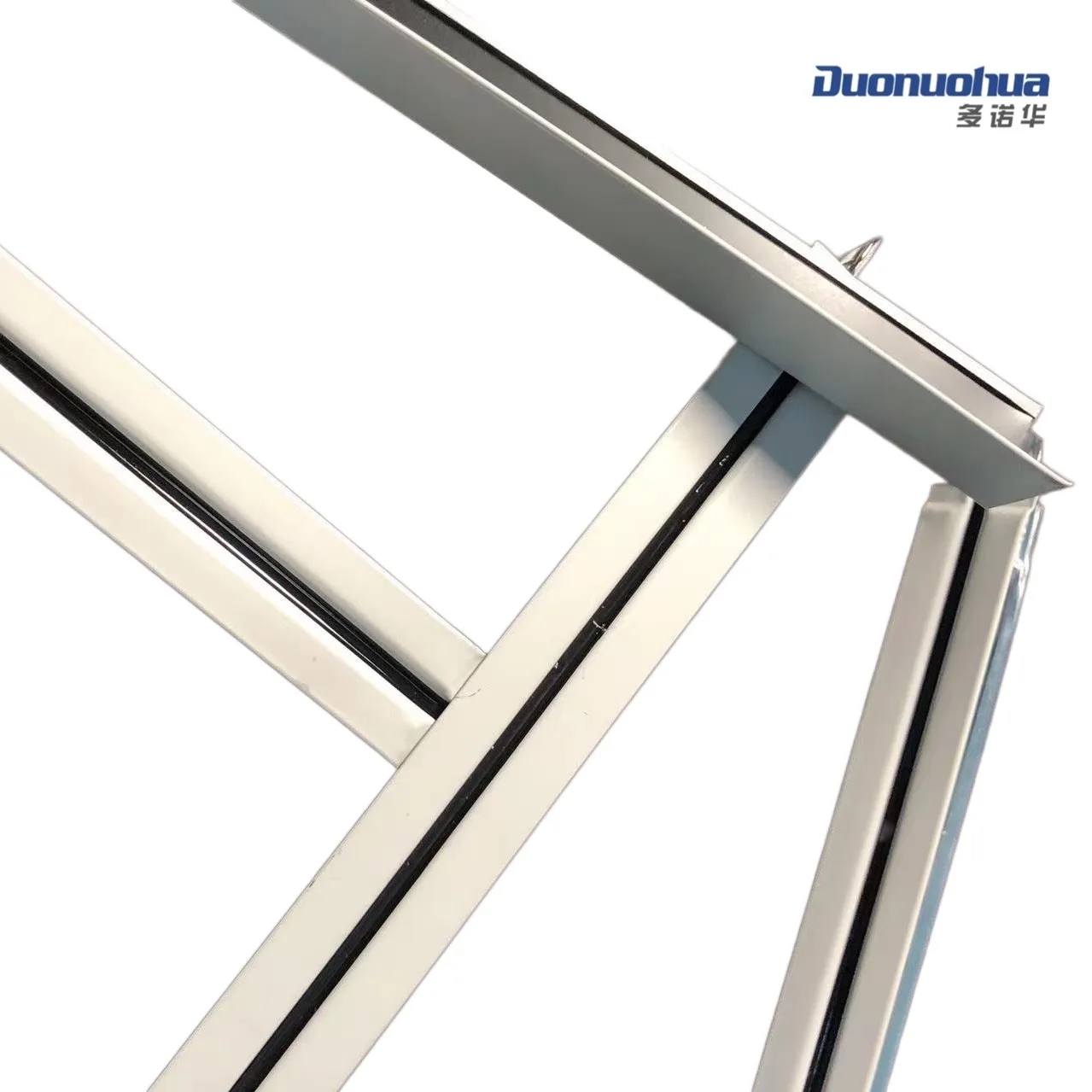

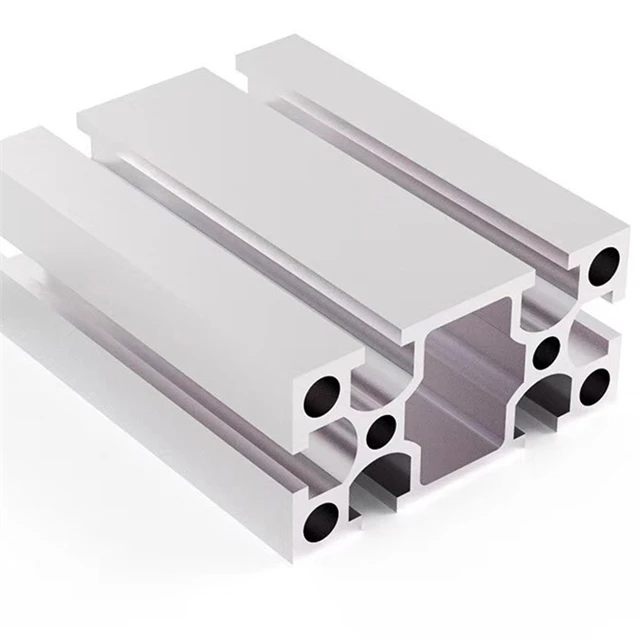

Высококачественный алюминиевый экструзионный промышленный алюминиевый профиль T-Gird подходит для класса 100 чистой комнаты
433,75 ₽ - 607,25 ₽

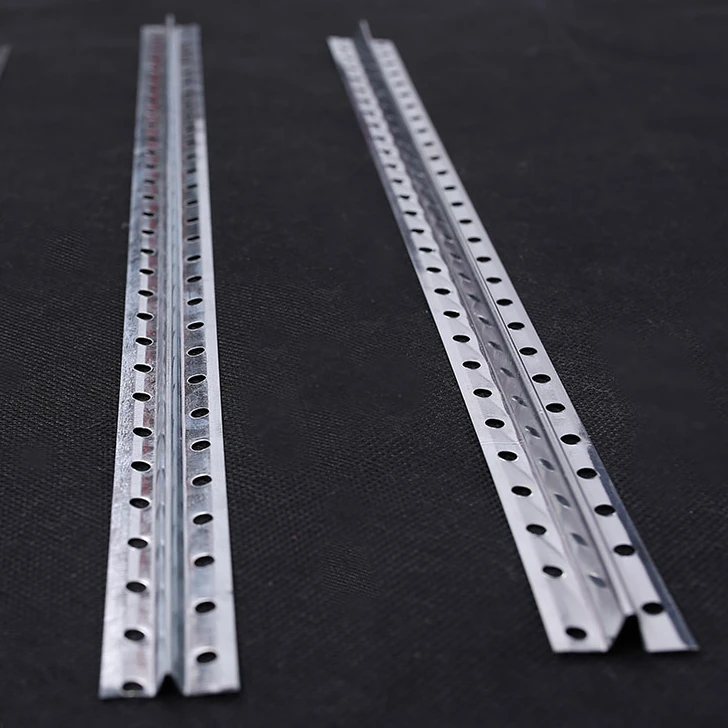

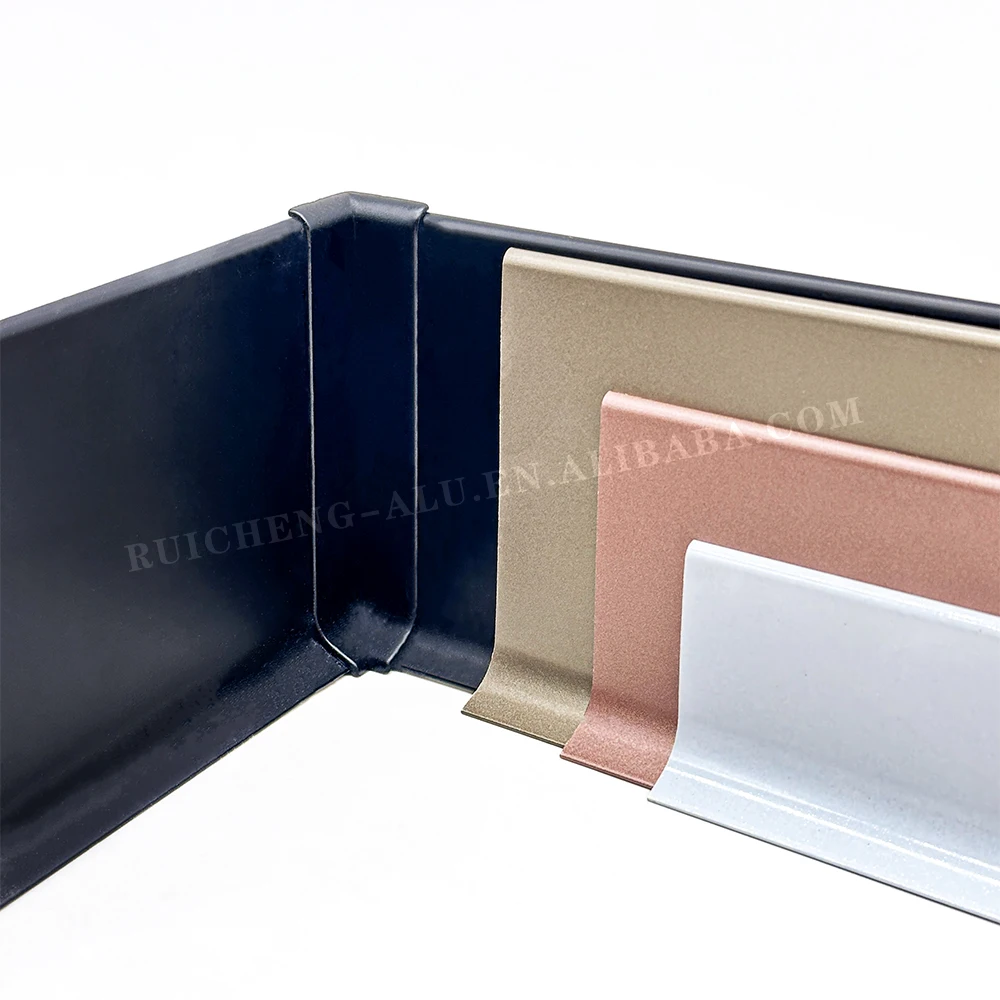

Строительный материал, алюминиевый плинтус, профиль для настенной плитки, декоративный плинтус, экструзия
130,13 ₽ - 195,19 ₽
Лидер продаж, алюминиевый лист 4X8, прочная поддержка, Т-образный алюминиевый профиль, изготовленный в Фошань
422,91 ₽ - 444,59 ₽

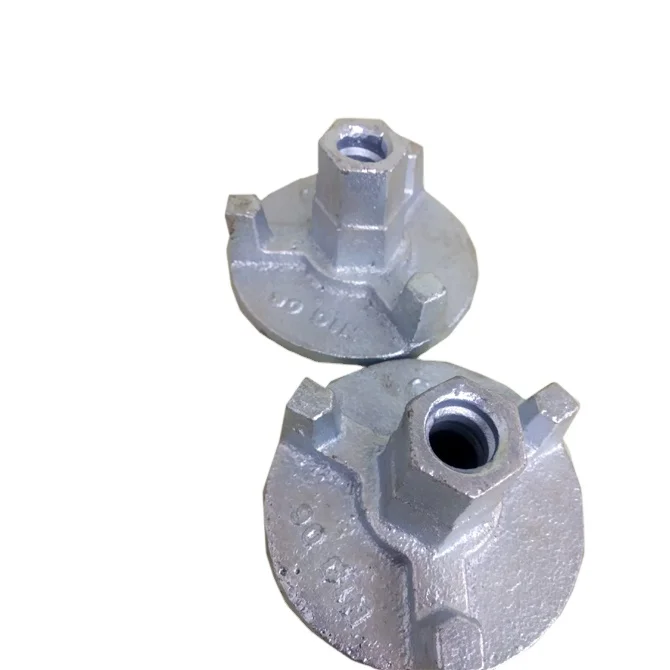

Двухкрытая анкерная гайка для промышленного строительства, оцинкованная стальная опалубка, профиль компании, строительный материал
