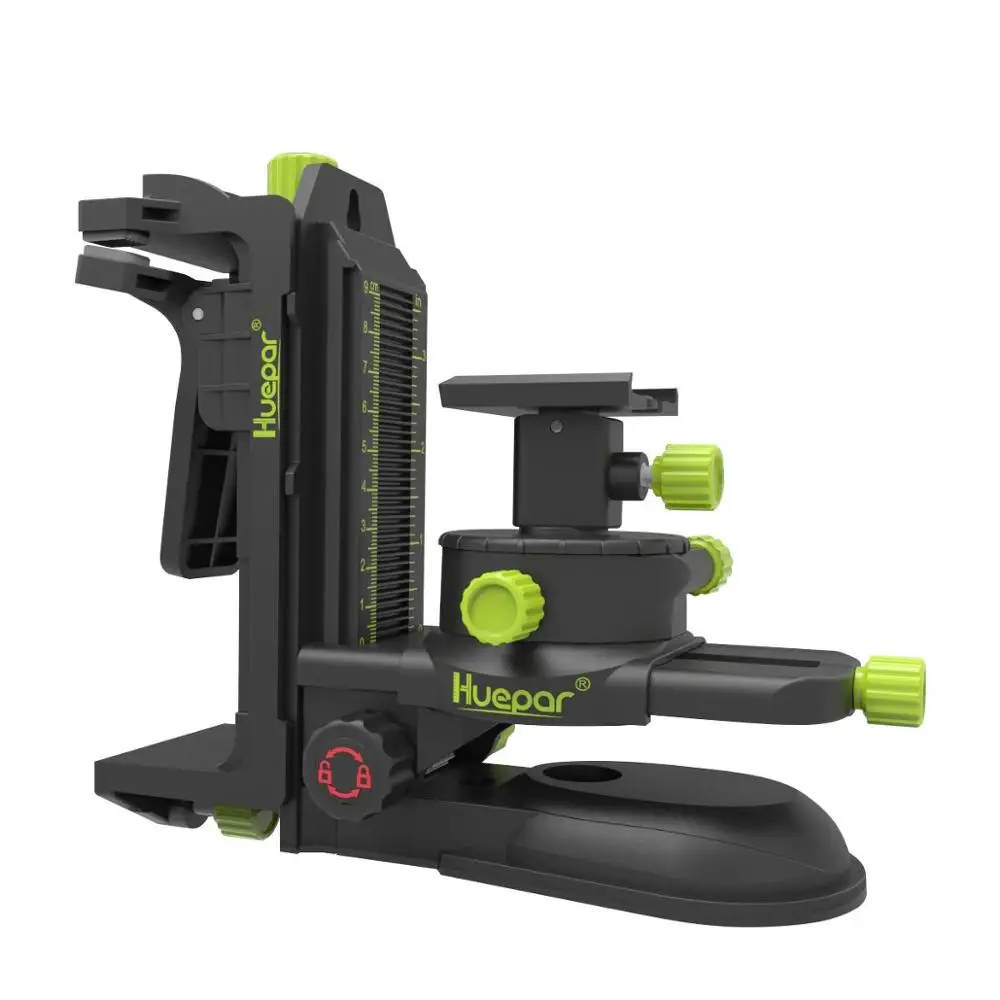

Магнитный вращающийся на 360 градусов базовый 1/4 лазерный уровень Huepar PV10 ada

Магнитный вращающийся на 360 градусов базовый 1/4 лазерный уровень Huepar PV10 ada

Категория: Other Hardware >>>
Поставщик: Zhuhai Levelsure Technology Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

Overseas Warehouse Priority Delivery
-Spain & USA Warehouse

With advanced laser level technology, Levelsure is committed itself to providing solutions for a wide variety of applications of greater accuracy and precision.

Specification of PV10+ Adjustable Base:

Magnetic Pivoting Bracket with Dedicated Window Adapter:	GF360G
* Heigth Adjustment Graduations: cm / inch * Male Thread for Laser Level: 1/4"-20 * Female Thread for Tripod: 1/4"-20 and 5/8"-11 * The length of the male thread to the side of the bracket: 3-8.5cm * Load capacity: 3KG * Net Weight & Size: 458g , 17.5 x 15.5 x 8.5 cm * Adjustment: 360-degree horizontal rotation, X-axis (adjust the horizontal position left and right), Y-axis (adjust the horizontal position front and back), Height adjustment. * The fine-tuning knob of the adapter helps adjusting pitch angle. * The adapter only compitable with: Huepar 901CG/R, 902CG/R, 903CG/R, GF360CG/R, AK360G/R, B02CG/R, B03CG/R, B21CG/R.	1H360°/2V360°
	Laser class	Class 2
	Beam source	Green Beam
	Laser wavelength	520nm
	H/V accuracy	±3mm/10m;±1/9 In. at 33 Ft.
	Self-leveling range	4°±1°
	Self-leveling time	≤3s
	Working distance (Line)	45m、≥60m with detector
	Operating time	>5h(all lasers on)
	Power source	Lithium battery
	IP rating	IP54
	Operating Temp	-10°C to 50°C
	Storage Temp	-20°C to 70°C
	Mount size	1/4'' or 5/8"
Multi-functional Auxiliary Back Clip:
* The opening size of the clip: 1-5cm * The size of the steel sheet: 14 x 5.5cm * Net Weight & Size: 242g , 18.5 x 8 x 5.5 cm * Adjustment: Opening size of clip, adjust the vertical angle of the bracket against the wall in to 90-degree

PV10+ Features:

⭐【Positioning Device for Line and Point Lasers】: The bracket with 1/4"-20 male thread, the maximum depth from the 1/4''-20 thread to the back of the bracket is 8.5cm. It is compatible with most cross line laser levels with 1/4" female thread. If your laser level has a 5/8" female thread, please purchase the conversion screw adapter AD5/8 separately (ASIN: B07TW3765K).

⭐【Multi-directional Fine-tuning Bracket】: There are four fine adjustment knobs on the bracket, help to adjust the left and right position within 3cm, the front and back position within 5.5cm, the height within 9 cm, and the horizontal rotation 360°. An added locking knob enables to fix the working height and avoid sliding up and down. The graduations are marked in inches and centimeters for easy readouts.

⭐【Multiple Installation Methods of the Bracket】: 1/4"-20 and 5/8"-11 female thread makes it possible to be attached to a tripod or laser pole. With the strong magnets, the bracket can be attached to the back clip at any height or other metal surfaces. Slots for screws, nails, raceways or optional straps are designed to make the installation much firmer. Huepar PV10+ Positioning Bracket is ideal for any job site.

⭐【Huepar Dedicated Laser Window Adapter】: A dedicated adapter included helps to hang the laser tool, bringing the laser window closer to the wall. At this time, the bracket can be inverted or flipped sideways. The fine-tuning knob on the adapter is for adjusting pitch angle. Due to the special design of the groove, Huepar adapter is only suitable for certain models: Huepar 901CG/R, 902CG/R

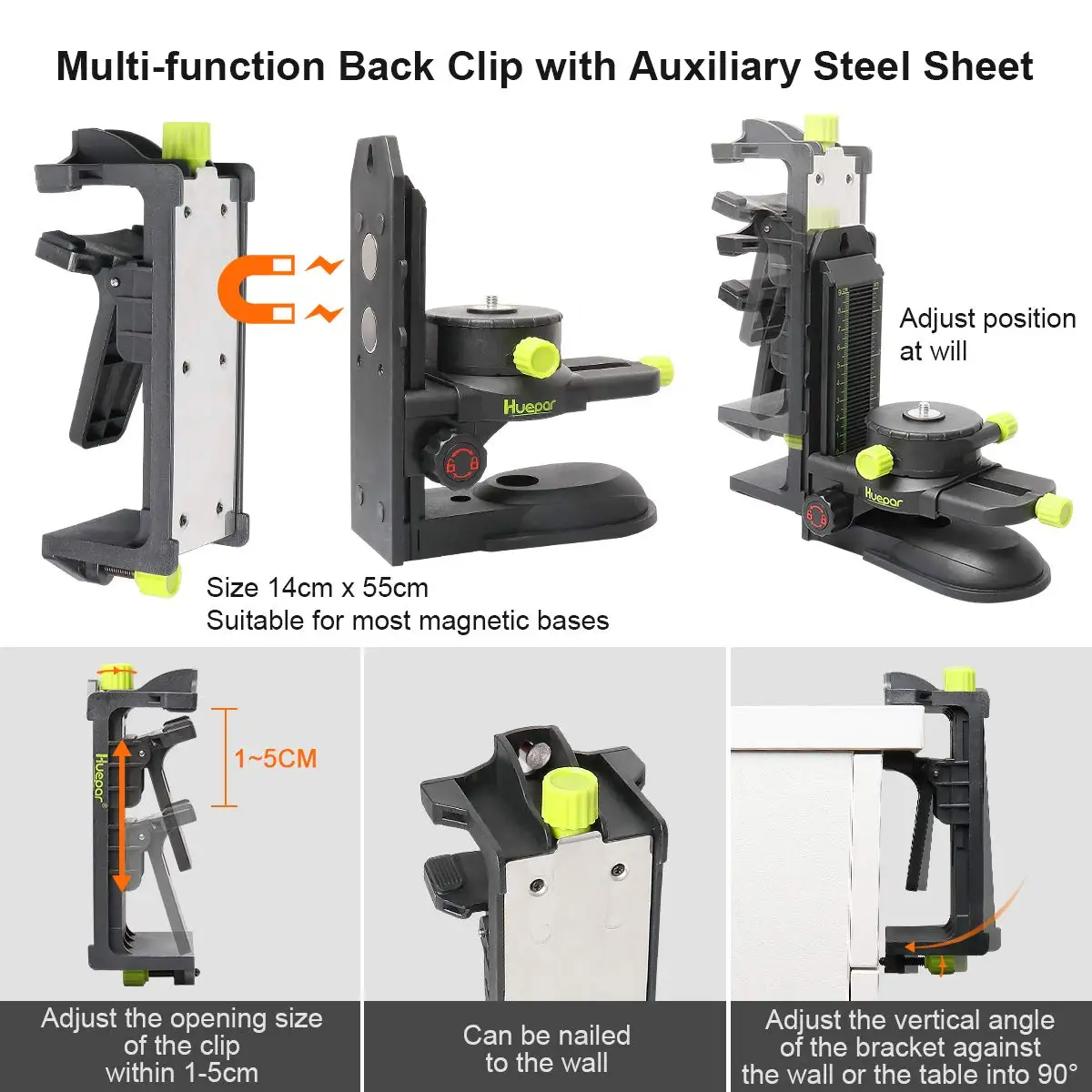

Multi-functional Adjustable Auxiliary Back Clip

* The back clip is compatible with most magnetic bases on the market, increasing the adsorption force of the magnets and stability.
* The opening size of the clip can be adjusted, offers the ability to mount to any object up to 5cm thick.
* The vertical angle against the wall can be adjusted by the fine-tuning knobs as well as the opening size of the clip.
* A nail hole in the clip enables to be fixed firmly on the wall.
* The size of the steel plate of the back clip is 5.5cm (W) x 14cm (L)

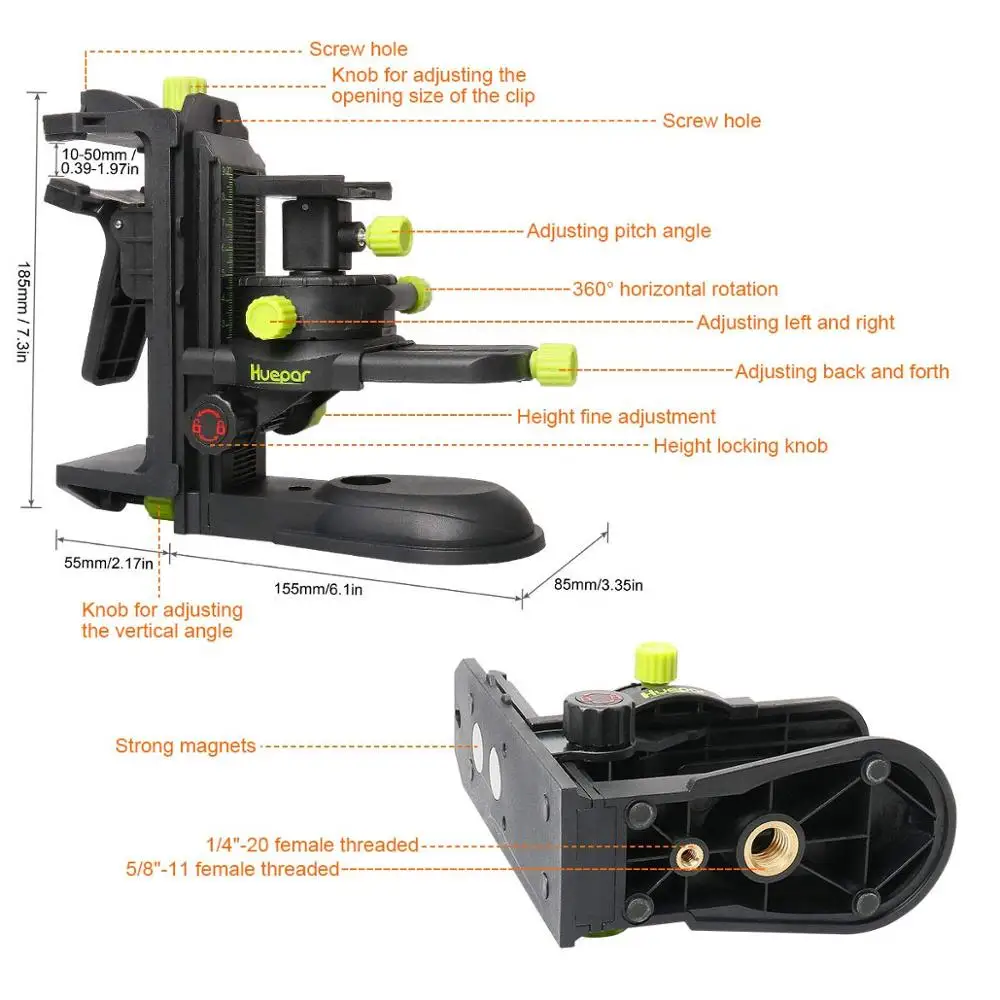

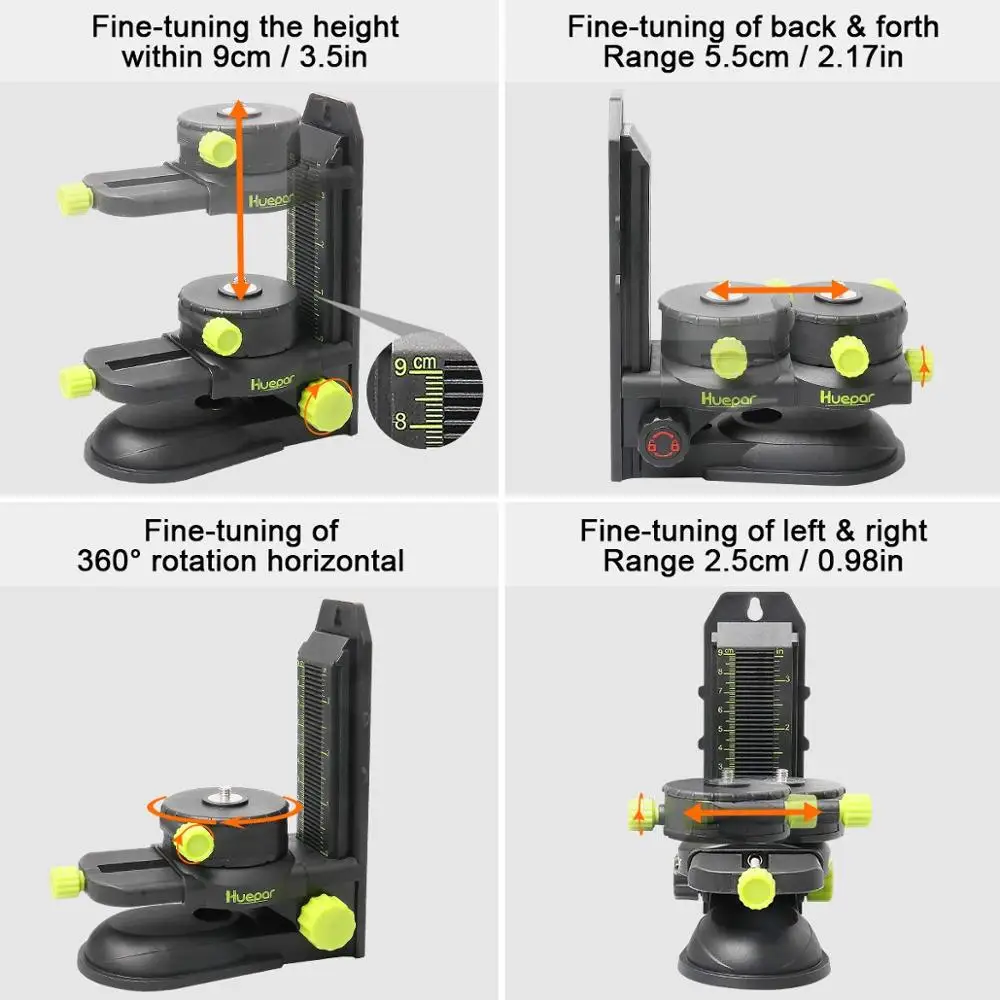

Multidirectional Adjustable Bracket

* Adjust the height within 9 cm. A locking knob enables to fix the working height.
* The graduations are marked in inches and centimeters for easy readouts.
* Adjust the position front and back within 5.5cm to suit for laser tools of different size.
* Make 360° adjustments clockwise or counterclockwise.
* Adjust the horizontal position left and right within 3cm.

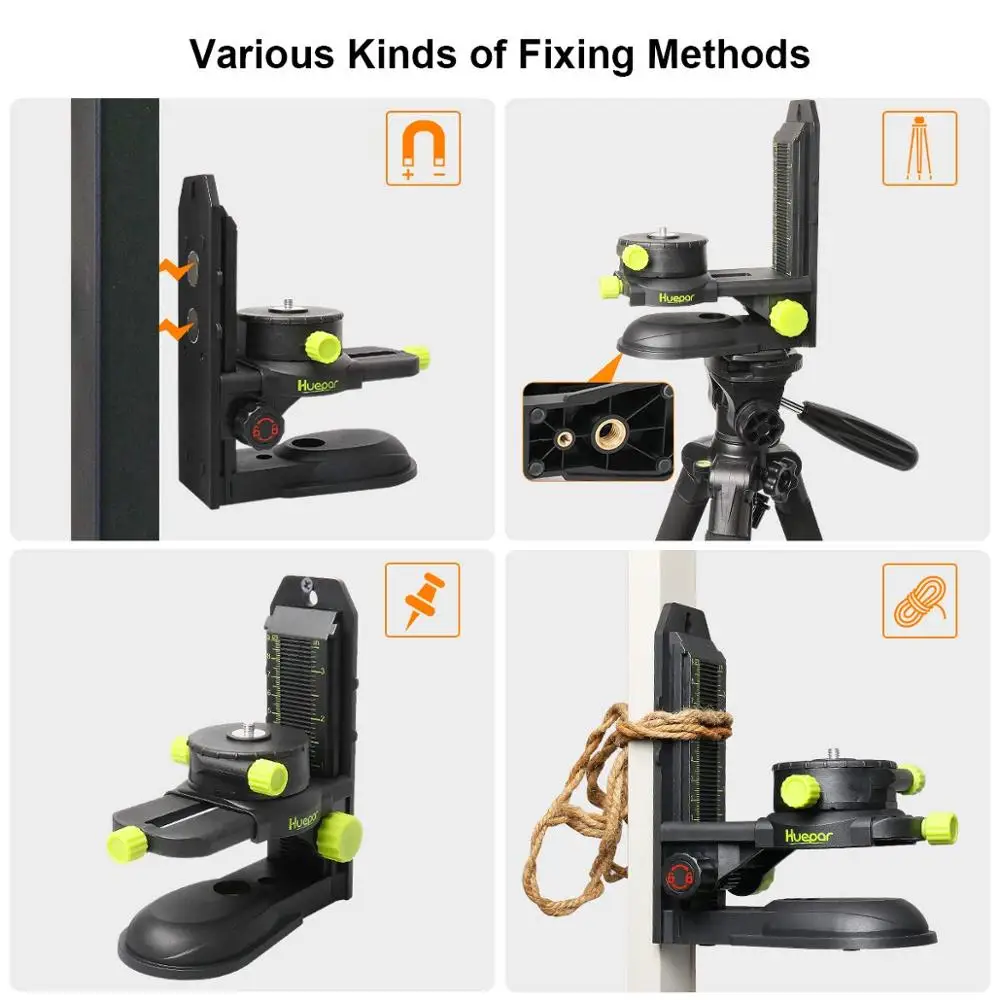

Multiple Installation Methods of the Bracket

* With the strong magnets, the bracket can be attached to the back clip at any height or other metal surfaces.
* 1/4"-20 and 5/8"-11 female thread makes it possible to be attached to a tripod or laser pole.
* Slots for screws, nails, raceways or optional straps are designed to make the installation much firmer.
* The groove design on both sides of the back of the bracket can be fixed to a rope.

Huepar Dedicated Laser Window Adapter

* A dedicated adapter included helps to hang the laser tool, bringing the laser window closer to the wall. At this time, the bracket can be inverted or flipped sideways.
* The fine-tuning knob on the adapter is for adjusting pitch angle.
* Due to the special design of the groove, Huepar adapter is only suitable for certain models:* Huepar 901CG/R, 902CG/R, 903CG/R, GF360CG/R, AK360G/R, B02CG/R, B03CG/R, B21CG/R.

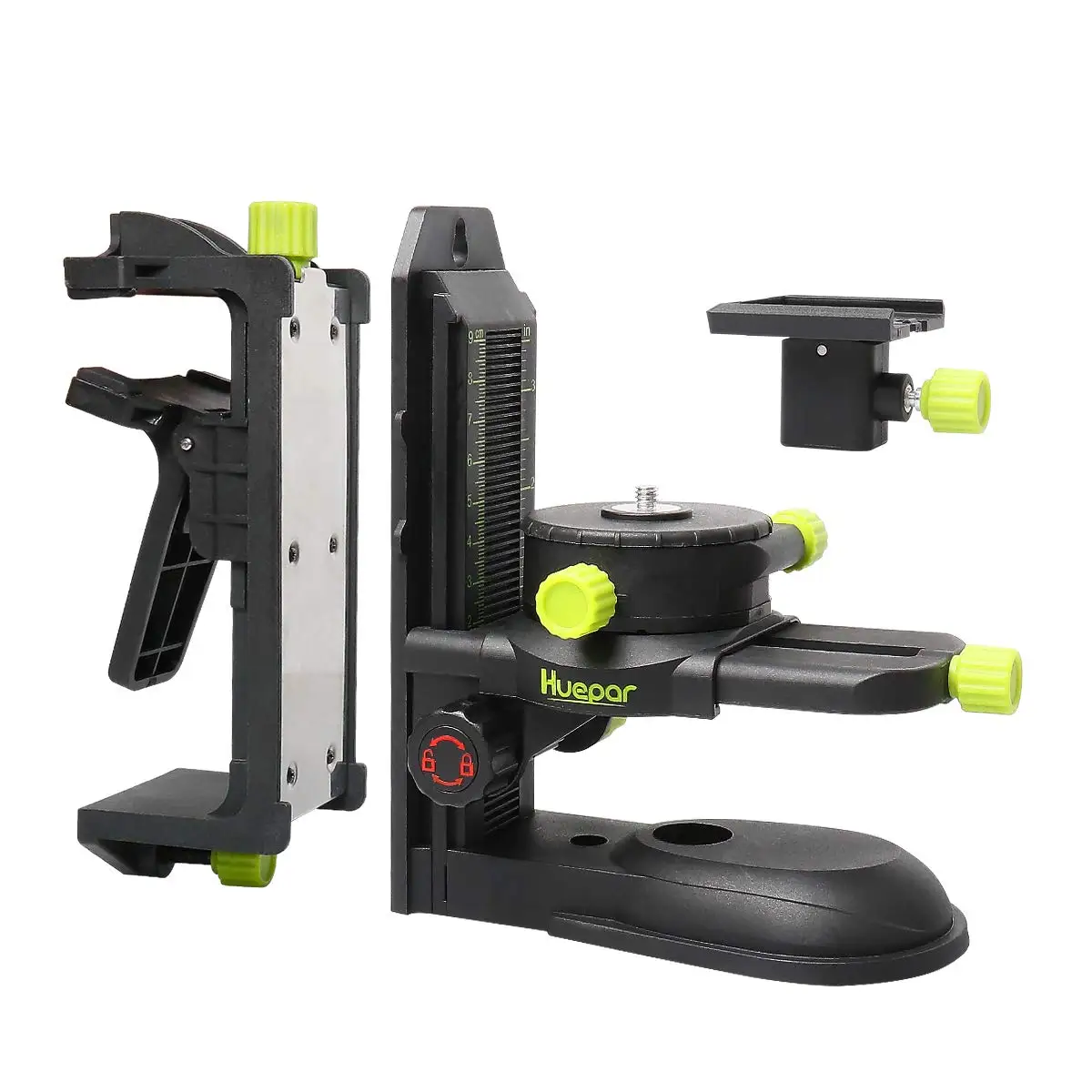

Packing Includes

1 x Magnetic Pivoting Bracket

1 x Multi-functional Auxiliary Back Clip

1 x Huepar Dedicated Laser Window Adapter

1 x Operation Instruction

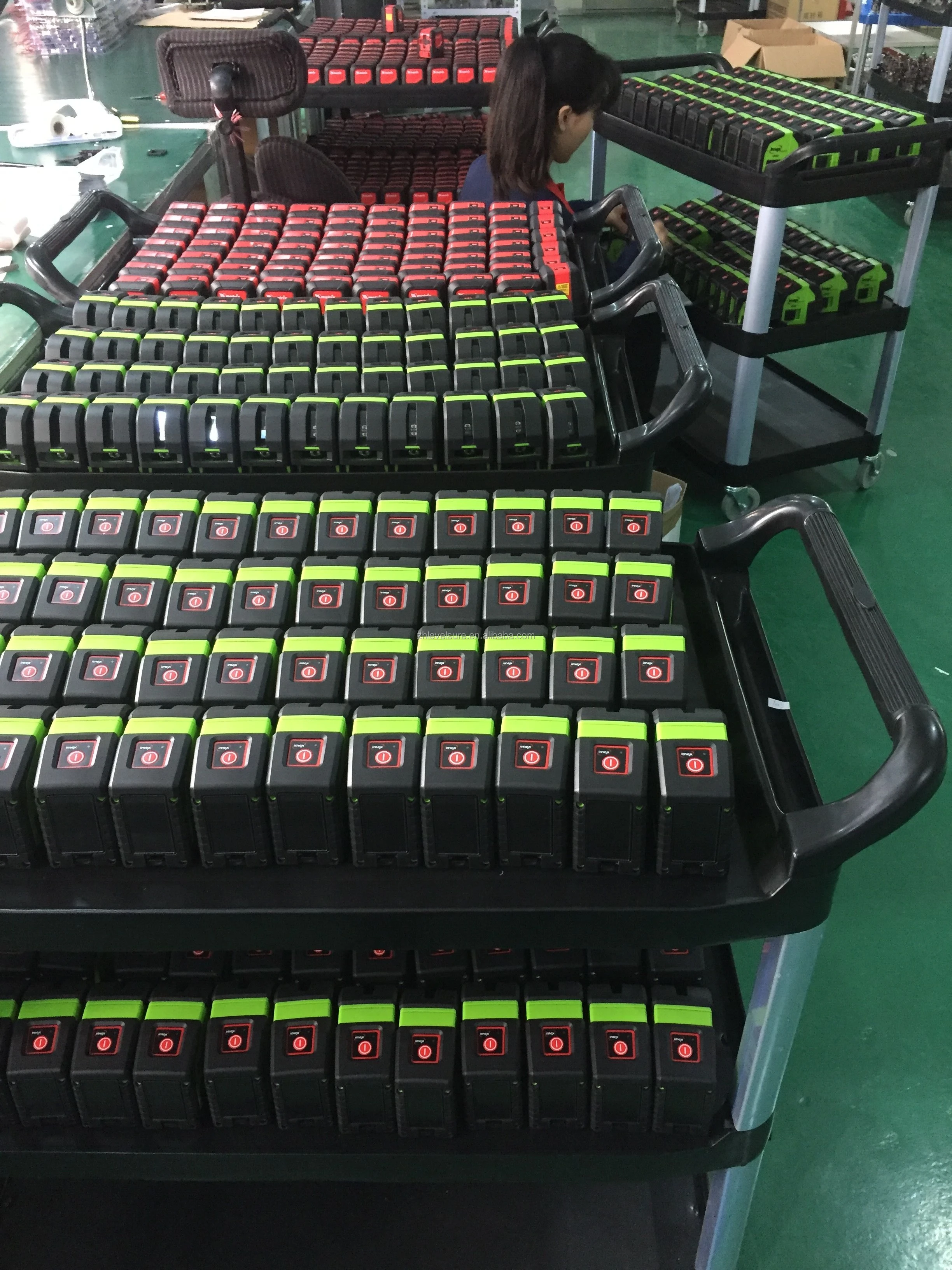

Company Profile

Levelsure,a quality oriented manufacturer for measuring tools that have been dedicating to supply reliable quality&high cost-effective&satisfactory after service to the high-end market.
