API 11E Oil Extraction Walking Beam Balanced Beam Pumper Unit

1. Since 1997, with more than 20 years production experience
2. API Q1, 5CT, 11AX, 6A, 11E and ISO Certificates
3. Strict Quality Control System
4. Prompt Delivery Time

Product Description

1) Product Name: Walking Beam Balanced Beam Pumper unit

2) Standard: API Spec 11E

3) API and ISO certified

4) Type: B,C

API B API B Series.jpg

pumping unit-4.jpg pumping unit-3.jpg

4) Description

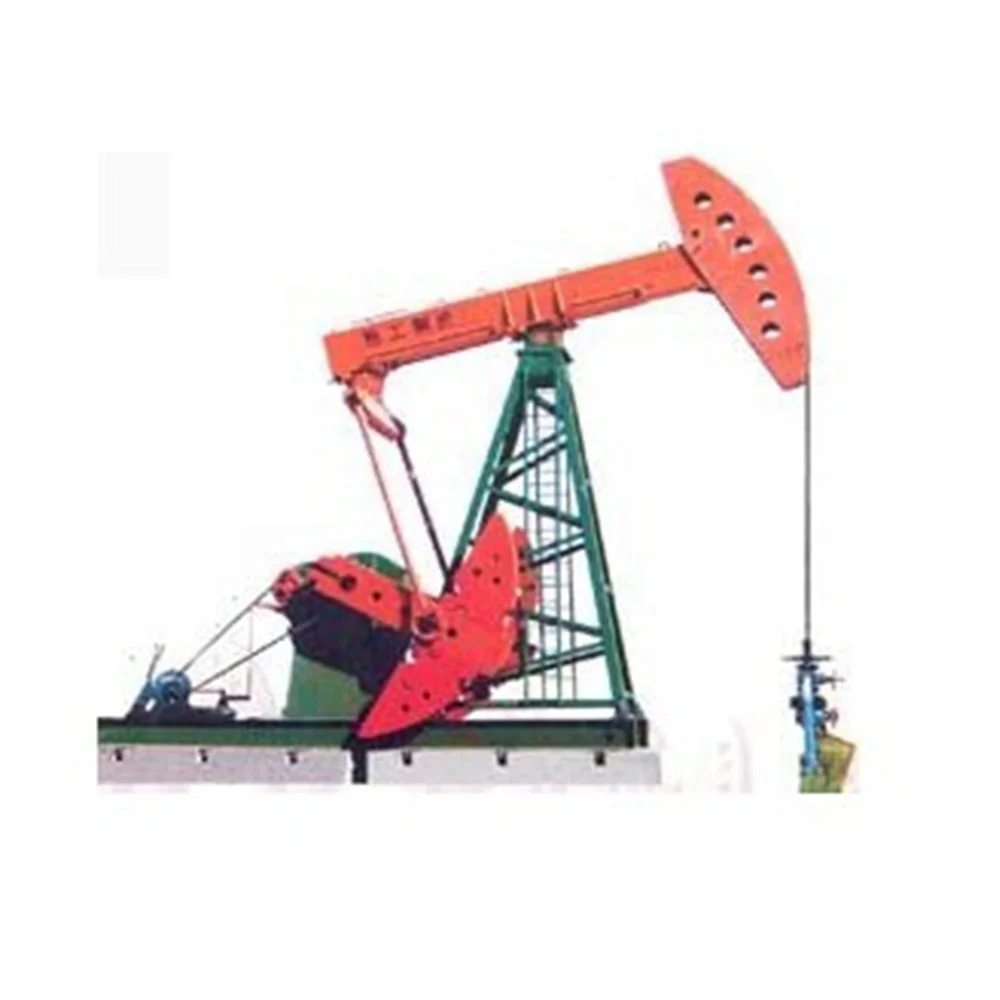

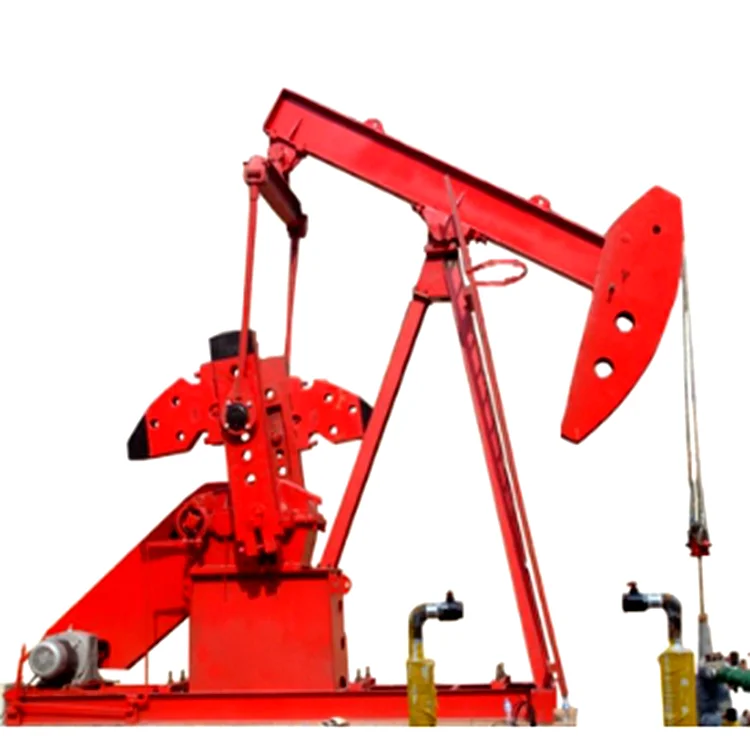

Walking Beam Balanced Beam Pumper is a light-weight conventional beam pumping unit, adopting walking beam as its way of balance.

5) Features of Walking Beam Balanced Beam Pumper

a. Simple structure, easy maintenance and long lifespan.

b. Adopted the involute or biarc herring bone gear in symmetric distribution type to transmit, the reducer operates stably and reliably.

c. The whole machine is light weighted, convenient for installation and transportation.

d. This model is fit for the oil pumping in shallow well with short length of stroke and light loads.

6) Parameter of Walking Beam Balanced Beam Pumper

NO.	Model	Rated Polished Rod Load(lb)	Length of Stroke(in)	Rated Torque of the Reducer(in.lb)
	B-80D-119-64	11,900	64, 54	80,000
	B-80D-76-64	7,600	64, 54	80,000
	B-80D-133-54	13,300	54, 41	80,000
	B-80D-119-54	11,900	54, 41	80,000
	B-80D-76-54	7,600	54, 41	80,000
	B-80D-133-48	13,300	48, 35	80,000
	B-80D-109-48	10,900	48, 35	80,000
	B-57D-109-54	10,900	54, 41	57,000
	B-57D-89-54	8,900	54, 41	57,000
	B-57D-76-54	7,600	54, 41	57,000
	B-57D-109-48	10,900	48, 35	57,000
	B-57D-95-48	9,500	48, 35	57,000
	B-57D-89-48	8,900	48, 35	57,000
	B-57D-89-42	8,900	42, 32	57,000
	B-40D-89-48	8,900	48, 35	40,000
	B-57D-76-42	7,600	42, 32	57,000
	B-40D-76-42	7,600	42, 32	40,000
	B-25D-67-36	6,700	36, 27	25,000
	B-25D-53-30	5,300	30, 23	25,000
	B-16D-53-30	5,300	30, 23	16,000

Company Information

Puyang Zhongshi Group Co., Ltd is a professional manufacturer of various oilfield equipments and cementing accessories since 1997, restructured enterprise of SINOPEC.

We have the certificates of API 5CT, API Q1, API 11E, API 6A, API 11AX, ISO 9001 and ISO 14001, etc..

Our products mainly include:

1. Casing Centralizer

2. Float Collar & Float Shoe

3. Cementing Plug

4. Cementing Head
5. Cement Basket

6. Tubing Pump / Rod Pump
7. Valve Ball & seat

8. Casing / Tubing Pipe and Coupling
9. Stage Collar

10. Pumping Unit
11. Sucker Rod

Our group have more than 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC. Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.
