Химическая маленькая Жевательная Арабская пудра компактная лабораторная сушилка с распылителем и емкостью испарения 1500 мл в час

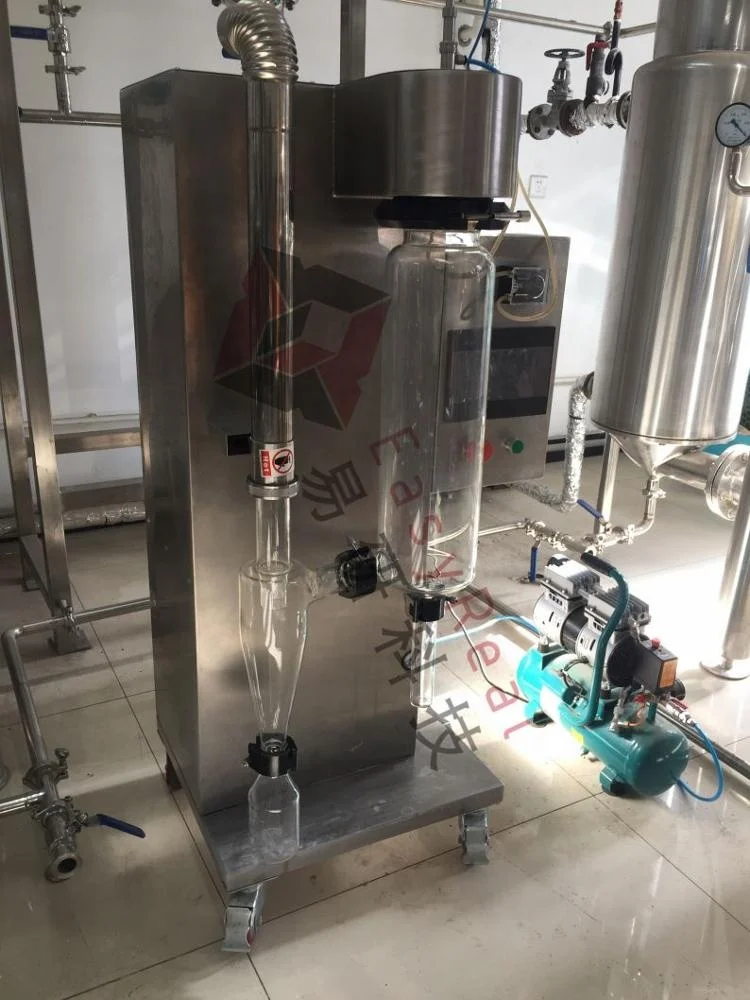

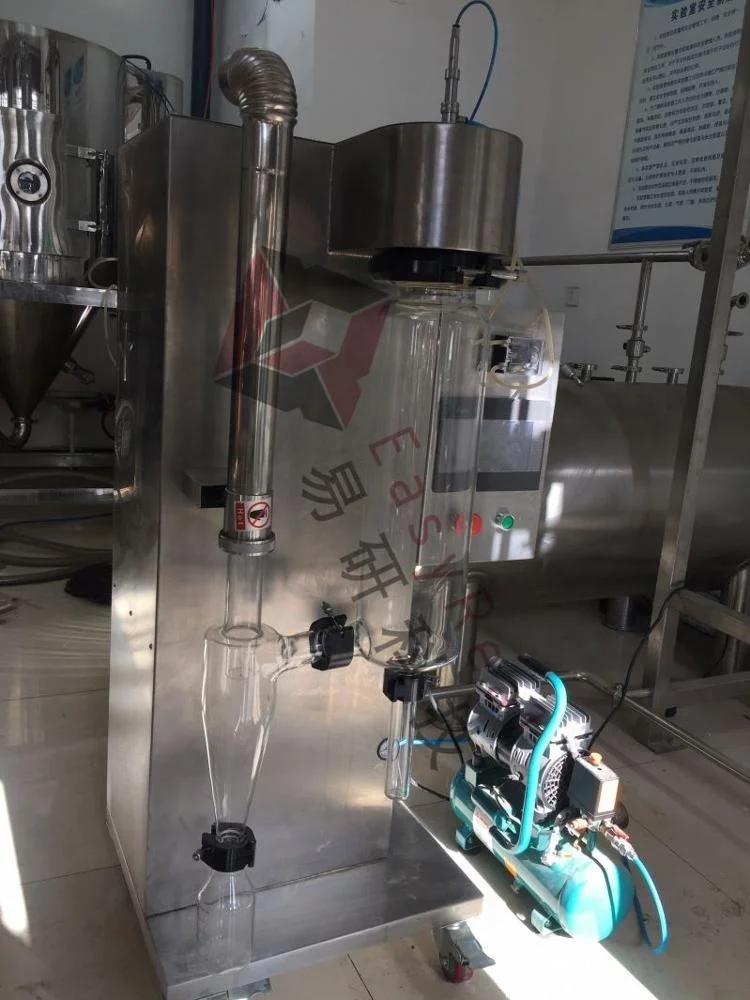

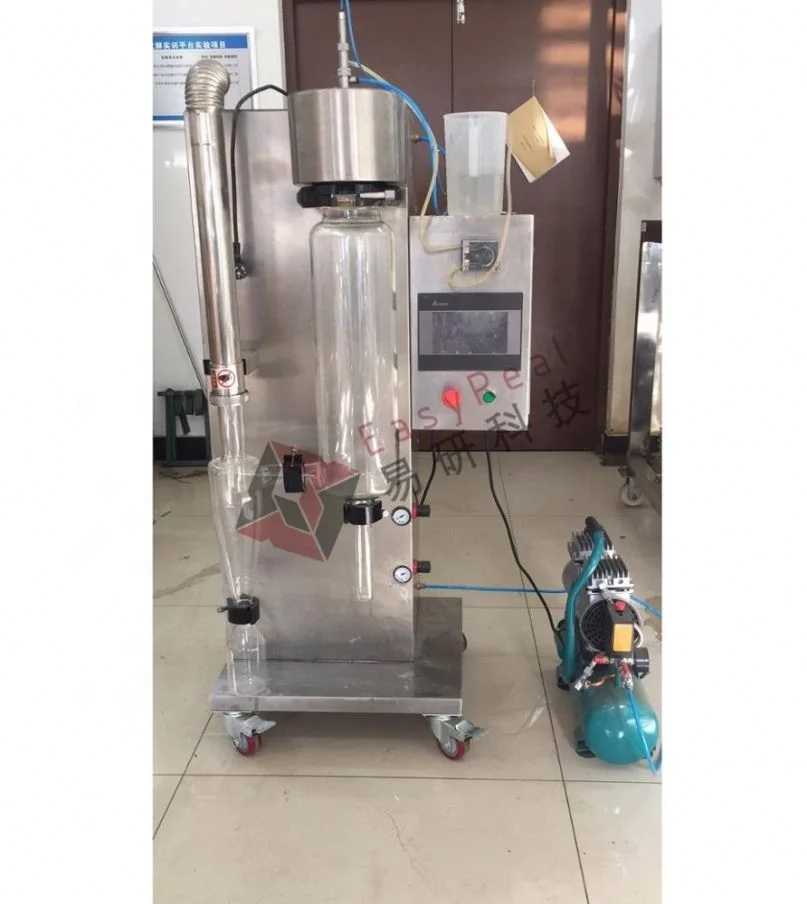

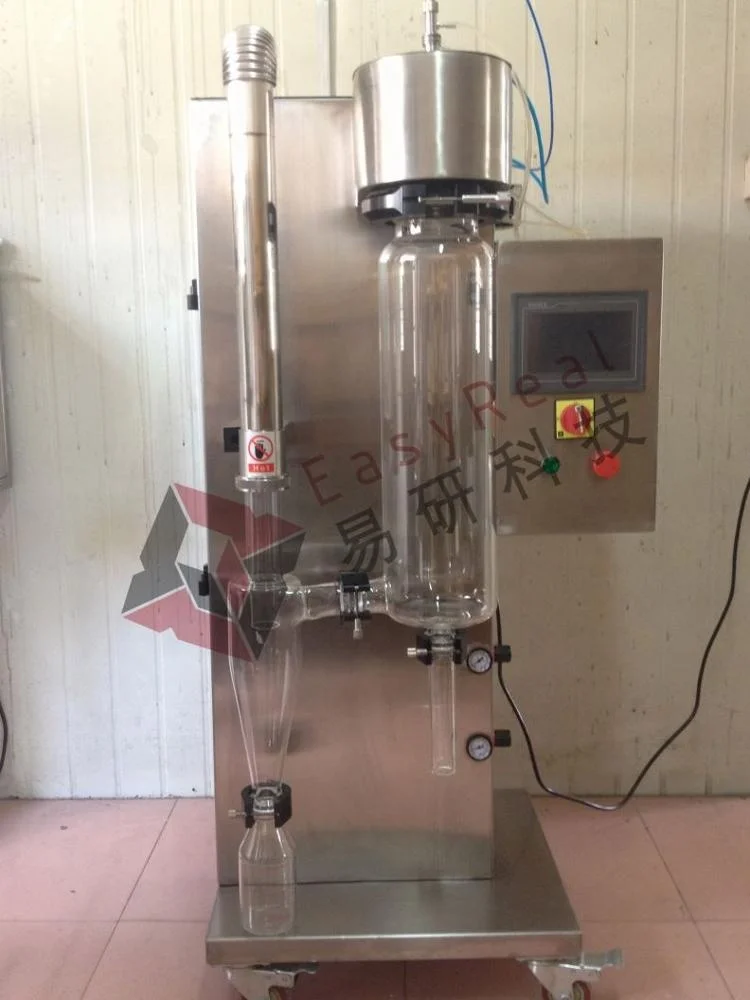

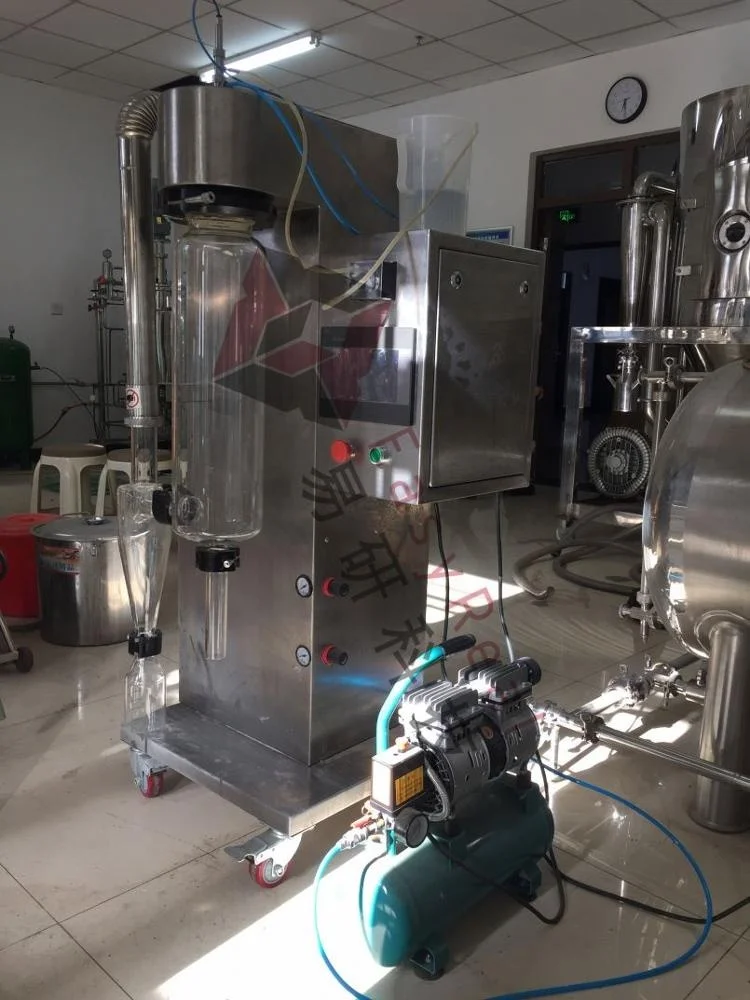

 Chemical small gum arabic powder small scale lab spray drying dryer machine with evaporation capacity 1500 ml per hour

Descripition:

In the laboratory of universities and institutes and enterprises’ R&D department, it is completely simulated the industrial production spray dryer in the laboratory.

The original liquid would be feed by peristaltic pump, and become spray with help of High Speed atomizer, the atomizer would be driven by compressed Air. Peristaltic pump can be adjusted and stable, which can ensure feeding stably and control temperature effectively.

The air would be heated by electricity, until inlet air temperature reach max. 250℃(Adjustable depend on actual need for different product). At this moment, the heater air would enter the spray chamber uniformly. After hot air touch with materials to be dryed, water can be evaported very fast and dryer powder can be collected by glass separator.

Application:

Widely used in is widely used in the fields: beverage, spices, pigments, milk and egg products, plant and vegetable extracts, pharmaceuticals, synthetic thermal material, aromatic, blood products, pottery and superconductor biochemical products, adhesives, dyes and detergents, oxides, etc.

FEATURES:

1.      Main structure is highi-quality SUS 304 and SUS 316L stainless steel.

2.      Independent control system, equipped with touch screen control panel.

3.      Completely simulate the industrial production spray dryer in the laboratory.

4.      The operator can view all processing and all parameters can be adjusted depend on actual need on the touch screen, such as: speed of peristaltic pump, Inlet temperature of air, etc.

5.      Collecting device is made by transparent heat-resistant borosilicate glass It can gurantee the drying process in no contamination and stable environment.

6.      Only need 30ml of original material to complete an experiment.

7.      SUS316L stanless steel fluid nozzle.

8.      Built-in imported air compressor, noise less than 50db.

Technical parameter of standard type:

Suppliers and brands of components of control system:

Core and key electrical components are selected from international first-class brands, such as ABB button from Switzerland, Germany Siemens touch screen and PLC, Ddanmark DANFOSS frequency inverter, France SCHNEIDER low-voltage apparatus.

Supplier Brand
