Product Spec
Specification:
Model number:LLT-M14-15003F1051
Connector Body:Nylon(PA 66)+GF UL94V-0 1/16"
Sealing:Silica Gel
Contact: Brass with gold plated
Mating style: Thread lock
Temperature Rating:minus 40°C~+105°C
Current rating:15A
Voltage rating:300V
Waterproof Rating:IP68
Contact resistance:<=10mΩ
Insulation resistance:1000MΩ at DC500V
Breakdown voltage: 1.5KV/1 minute
Durability(Plug/Unplug):3000 times
Pins range:2 to 8 and 2+2/2+3/2+4 pin.
Cable Range:3.5-7.5mm
Terminal attach wire:Solder
Pin Number | Voltage Rating | Current Rating | Contact Resistance | Insulation Resistance | IP Code | Cable Range | Breakdown Voltage |
2 | 300V | 15A | ≦10mΩ | >=1000MΩ | IP68 | <=7.5mm | 1.5KV/1 minute |
3 | 300V | 15A | ≦10mΩ | >=1000MΩ | IP68 | <=7.5mm | 1.5KV/1 minute |
4 | 300V | 15A | ≦10mΩ | >=1000MΩ | IP68 | <=7.5mm | 1.5KV/1 minute |
5 | 110V | 5A | ≦10mΩ | >=1000MΩ | IP68 | <=7.5mm | 1.5KV/1 minute |
6 | 110V | 5A | ≦10mΩ | >=1000MΩ | IP68 | <=7.5mm | 1.5KV/1 minute |
7 | 110V | 5A | ≦10mΩ | >=1000MΩ | IP68 | <=7.5mm | 1.5KV/1 minute |
8 | 110V | 5A | ≦10mΩ | >=1000MΩ | IP68 | <=7.5mm | 1.5KV/1 minute |
9 | 110V | 5A | ≦10mΩ | >=1000MΩ | IP68 | <=7.5mm | 1.5KV/1 minute |
10 | 110V | 5A | ≦10mΩ | >=1000MΩ | IP68 | <=7.5mm | 1.5KV/1 minute |
3+4 | 110V | 15A+5A | ≦10mΩ | >=1000MΩ | IP68 | <=7.5mm | 1.5KV/1 minute |
2+5 | 110V | 15A+5A | ≦10mΩ | >=1000MΩ | IP68 | <=7.5mm | 1.5KV/1 minute |

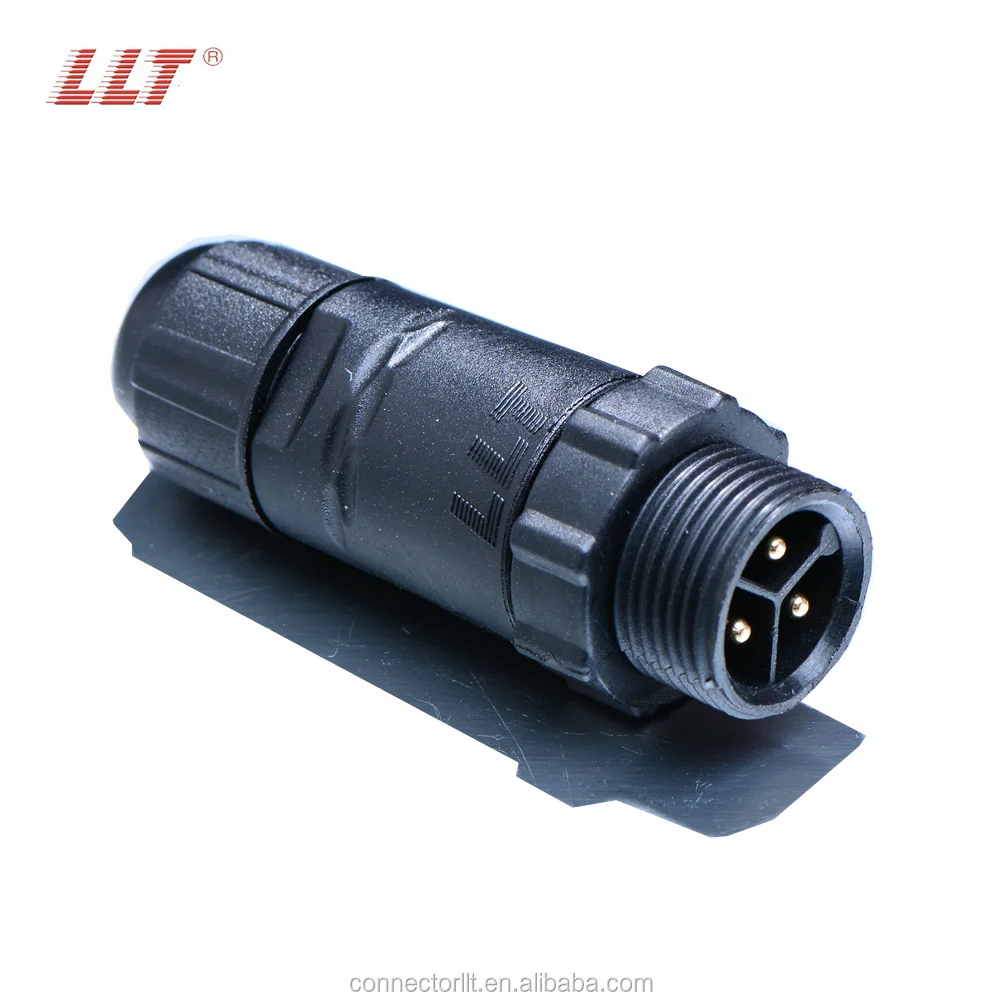

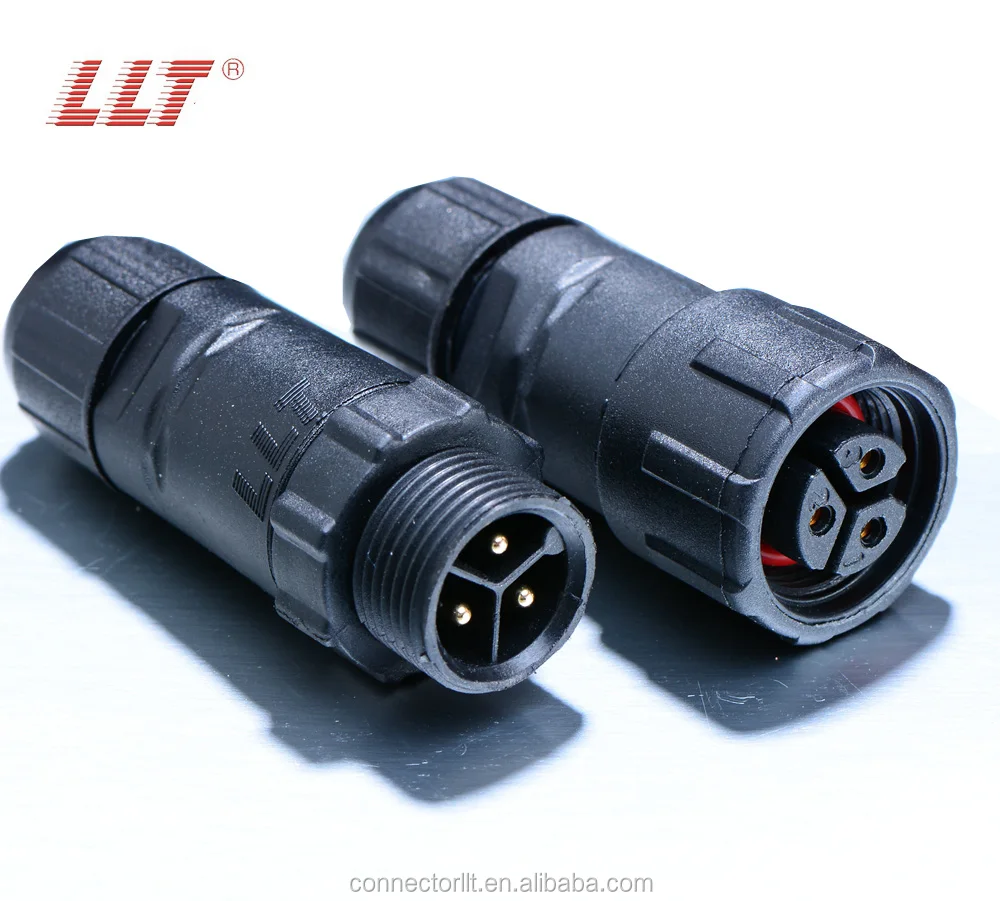

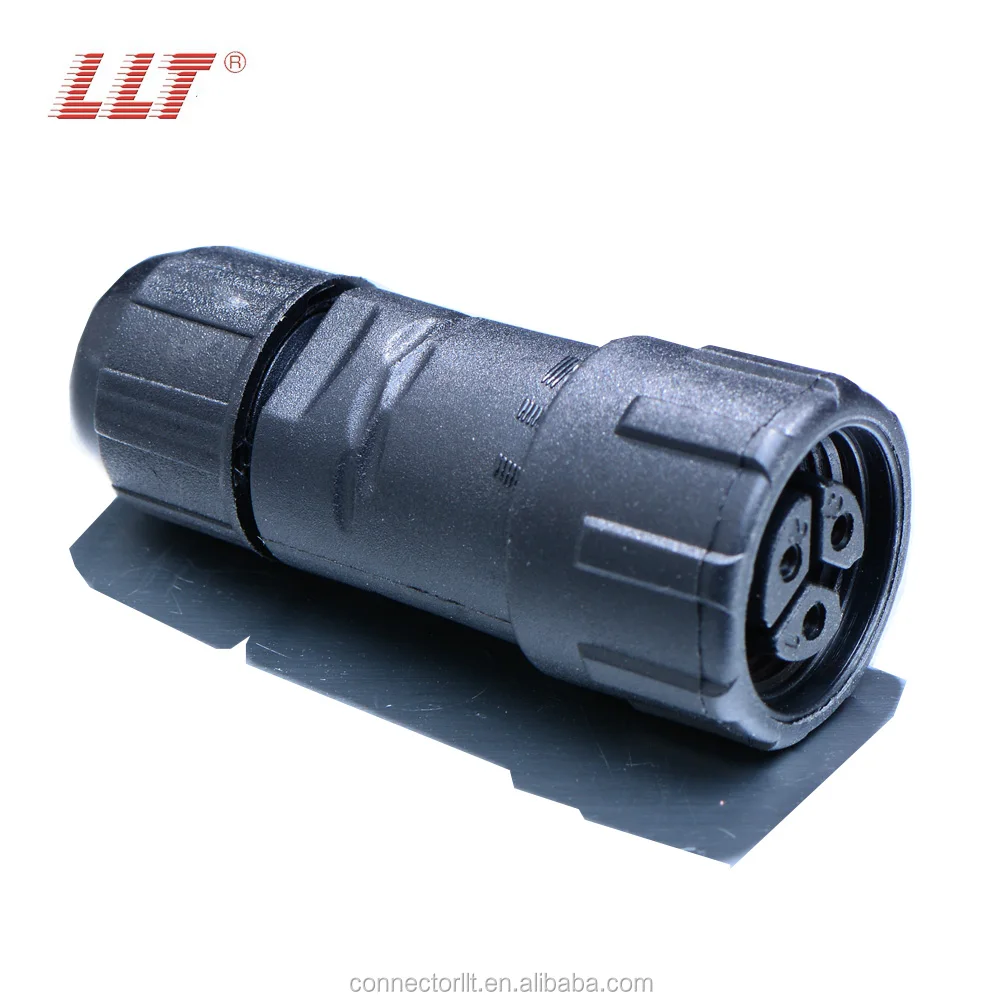

Production Photo
Production Advantage
1.Water circular connectors can connect electrical products perfectly .
2.Approved by UL,CE,TUV,ROHS,CCC,TS16949,ISO14001.
3.Our connector can be used outdoor during harsh winter or sweat summer . the endurance temperature range is -40℃-105℃.
4.We have got REACH certification ,Environmental connector is worthy of your reliable.
5.Every product will be inspected strictly ,we guarantee its good quality before delivery.
6.100% QC inspection before delivery .
7.Best quality & best service wtih a relative low price.
8.Advanced production equipment & strong technical strength ensure high quality and competitive products.
9. Your inquiry related to our products or price will be replied in 24 hours
10. Accept small order or mix order .trail order welcome
11. Large quantity order will win competitive factory price
12.OEM,ODM,any your customized idea ,we can help you to realize and put into products .
13.Protection you sale market ,idea design and all your private information
14.Fast delivery,2-15 workdays base on your order quantity after payment confirmed
Certificate
Why Choose Us
1.We are the leader in the waterproof connector field at China .
2.100% QC inspection before delivery .
3.Best quality & best service wtih a relative low price. .
4.Advanced production equipment & strong technical strength ensure high quality and competitive products.
5.we are one of the most powerful factory in China and our products are exported to many countries and a lot of good review from customers.
6. OEM,OBM is available.
7.Full Certificate such as UL,CE,TUV,SAA,ROHS,CCC,TS16949,ISO14001 are available.
8.High quality products with 12 months guaranty, best after-sales service 6x24 hours
Professional strict inspection
1.Before producing, all raw material must be detected by our QC, and make sure 100% passed.
2.During producing, we have professional assembly line to make the produce more specialty, careful and humanization.3.After finishing production, our QC will use our professional machine to test finished products one by one.Only 100% passed, then we package them in standard export carton.
4.Before shipping, our delivery staffs will pick some samples in random,and test again. Only the 100% passed, we will send the products to our customers.
Application
Our products are widely used in LED light ,outdoor display ,electrical equipment ,automation machine ,electrical technology and medical equipment ,interactive samart grid,automation machine ,industrial pc ,marine device .
Our successful cases at home and abroad.
1. London Olympic Games
2. 2008 China Olympics-the Birds Nest Stadium and the Water Cube
3. Guangzhou Asian Games
4.Shanghai World Expo
5.Shenzhen Subway
6.Western Corridor
7.Drilling platform
8..China high-speed railway and so on
2. 2008 China Olympics-the Birds Nest Stadium and the Water Cube
3. Guangzhou Asian Games
4.Shanghai World Expo
5.Shenzhen Subway
6.Western Corridor
7.Drilling platform
8..China high-speed railway and so on
Recommend Products
Company information
We are global large-scale waterproof connector production enterprise. Our factory specilize in different knids of waterproof connector such as M12/M14/M16/M19/M22/M25/M29/M45/T/Y field assembly connector and molded cable connector Our products are best-sell around whole world . Our products all win high appraisal and reputation from our clients . With around 20 years of unremitting efforts ,Our team is committed to providing customers with low-price and high-quality products as well as professional
customer service.Professional team,creative idea ,superior products .LLT company hope to be common developing with you to achieve in the future .
customer service.Professional team,creative idea ,superior products .LLT company hope to be common developing with you to achieve in the future .
Packing & Delivery
Packing :1.plastic bag
2.Carton
3.Wooden Box
4. As customer requirement.
Shipping :There are all kinds of methods of shippment for you to choose,Conpetitive express freight such as DHL/FedEx/UPS.For thoes of mass orders a quote of ocean shipping would be provided too if required .
FAQ
Q1 Can I have a sample for test?
Yes,Sample order is welcome,the lead time will be 3-5 day base on your request.
Q2 How about the lead time?
Sample order need 3-5 days,bulk order need 7-20 days.
Q3 Do you have certificates about the waterproof connector?
Yes, we have got the UL,TUV,CE,ROHS,CCC,CQC certificate .
Q4 What payment can you accept?
We are appreciate that you can pay via T/T, Western Union, and Alibaba Trade Assurance .
Q5 Is that available to print our logo on you product and package?
Yes ,it is ok. Before our production ,please inform us formally,and confirm the design firstly based on the sample we send to you .
Q6 Are you a factory?Where is your factory?
Yes ,we are factory located at Pinghu Shenzhen
Q7 Do you accept OEM & ODM service?
Yes , we accept OEN and ODM,we will produce according to your requirement ,our engineers have 15 years in the waterproof connector field .
Q8 Can I order 100m cable for 1pc waterproof connector?
Yes ,we can connect with 10cm,1m,5m,100m and so on .will produce following your instruction
This style we have pin range from 2 to 8 and 2+2/2+3/2+4 pin. If you are interested in any items ,please let us know freely ,you'll get soonest response. Looking forward to your inquire
