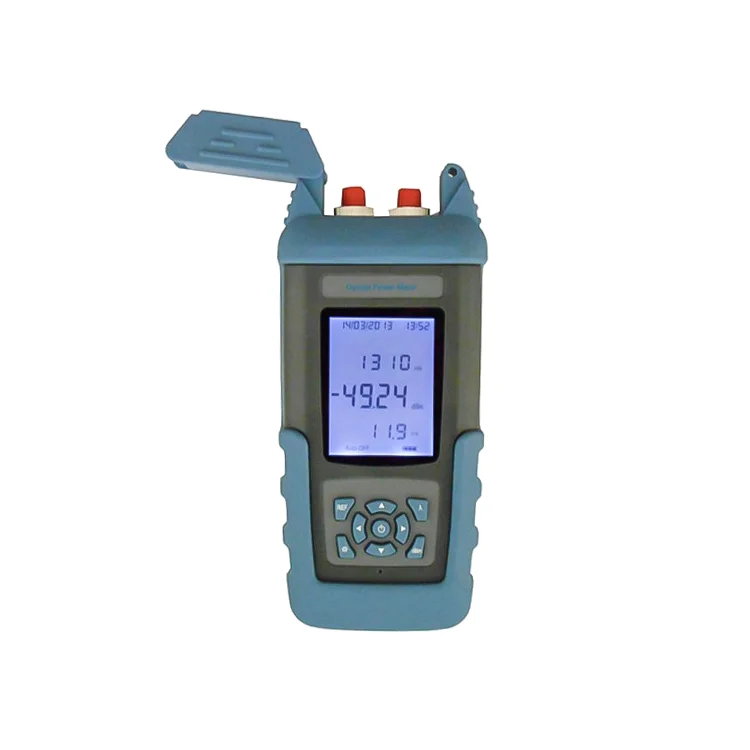

ST801B источник света измеритель мощности Оптический мультиметр

Combining optical source and optical power meter in one, Optical Power Multi Meter is a portable and intelligent instrument for optical network test. There are inner 1310nm and 1550nm dual wavelength and single output optical source. It can fulfill the functions of steady optical source and optical power meter at the same time, and it realizes the loop test and two-way automatic test. Its single-end test solution greatly advances the test efficiency. The inner microprocessor and linearity magnification technology ensure the long time calibration and test accuracy.

Main Functions

1. Multi wavelength precise test

2. Absolute power test for dBm or μW

3. Relative power test for dB

4. Single end for dual wavelength output, free switch from 1310 nm and 1550 nm

5. 1000 groups of test data storage and management

6. Multi adapters(FC, SC, ST, LC for power meter; FC, ST, SC for light source)

7. Light modulation and identification of 270Hz, 330Hz, 1K, 2 KHz and auto wavelength identification mode

8. Wavelength identification (with the help of light modulation and identification mode)

9. USB communication function can upload the test result to management software by USB port.

10. Handheld, large LCD display, easy to operate

11. Real-time clock function can real-time display the current time; provide recording time for data storage.

12. Auto power off in 10 minutes

13. LED backlight on/off function

14. Backlight auto off in 10s

15. Lithium battery or AA dry battery

16. Battery voltage monitoring display

17. Under voltage indication and under voltage auto off

Technical Specifications

ST801B Optical Power Multi Meter Series

Please choose the right model number and then we can quote you a proper price. Bag is optio

Shandong SENTER is the first shortlisted enterprise of China Unicom and China Telecom Group's instrument centralized purchasing collection
Telecom Test PDA ST327 has been sold more than 150,000 units  in Markets,Markets share first in China operators
Fully passed the ISO9001 international quality system certification
Products comply with CE certification, has software copyright 34 items
SENTER has total 161 patent applications, including 49 invention patents
“High-tech enterprises” and “software companies” granted by the government

Q: What's Your Products Warranty?

A: We Offer 12 Months Warranty after shipment sent. If you need 24 or 36 months warranty, extra payment need to add

Q: How to repair the device if any problem ?

A: We will provide technical support online to solve problem; If for the hardware problem , we could send the parts or  components and teach customer to fit if they have technician or can also send back to us to fix it.
