Высококачественный регулятор скорости генератора электронный ESD5330E

Высококачественный регулятор скорости генератора электронный ESD5330E

Категория: >>>
Поставщик: Fuan Three Bees Electronic Technology Co. Ltd.

Цена:135,00 $ - 155,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

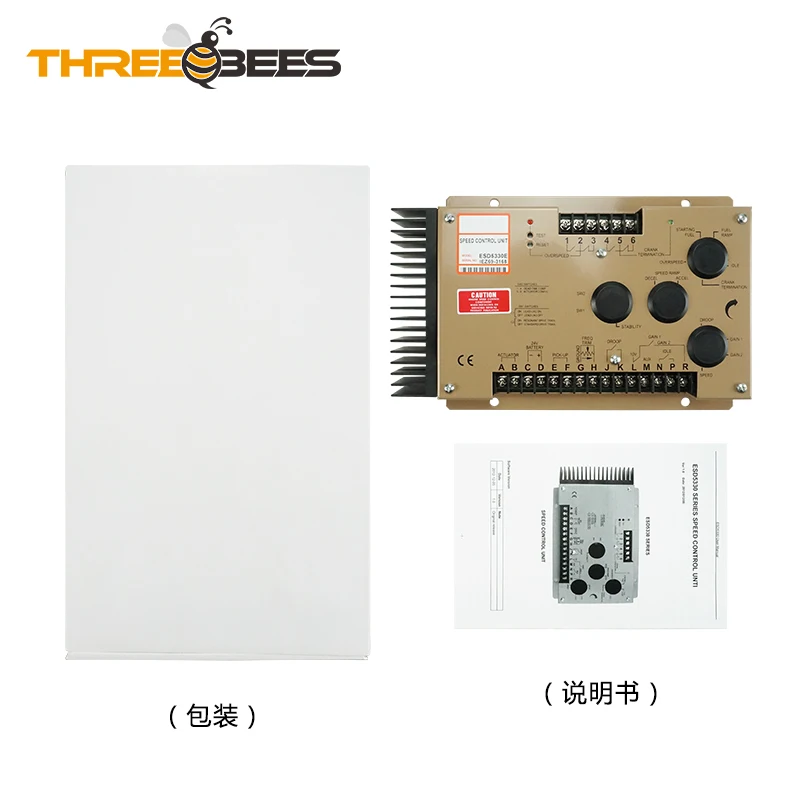

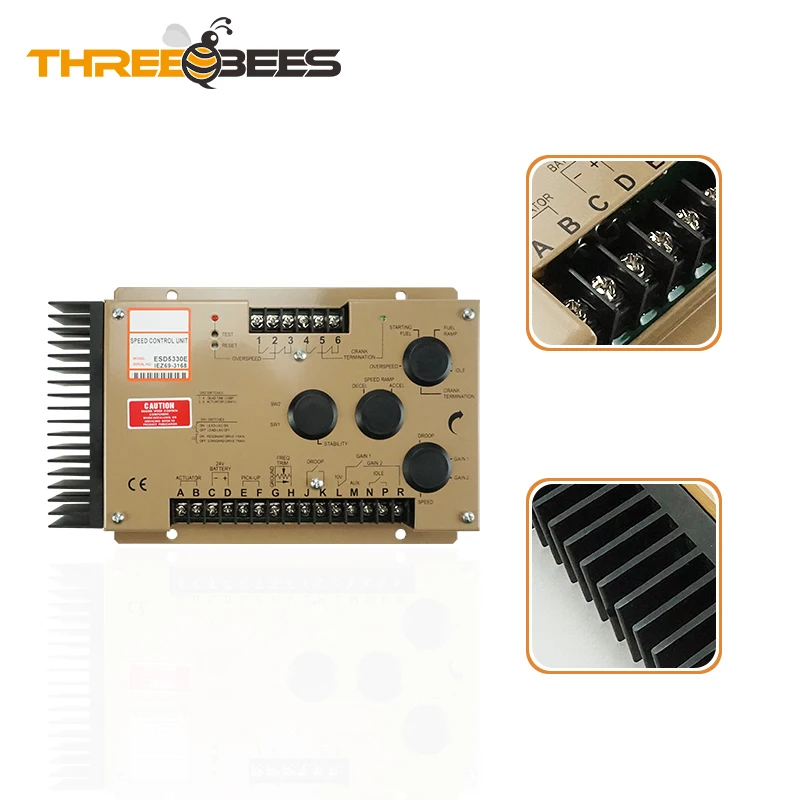

Speed Control Unit ESD5330E

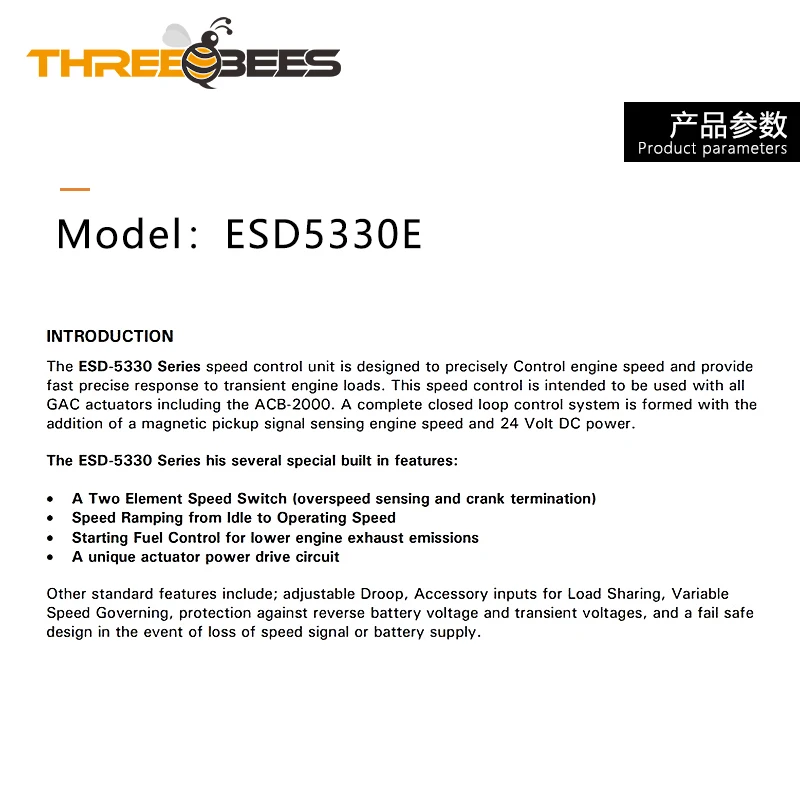

The ESD5300 Series speed control unit is designed to precisely control engine speed and provide fast precise response to transientengine loads. This speed control is intended to be used with Actuators including the ACB2001.

A complete closed loop control system is formed with the addition of a magnetic pickup signal sensing engine speed and 24 Volt DC power.

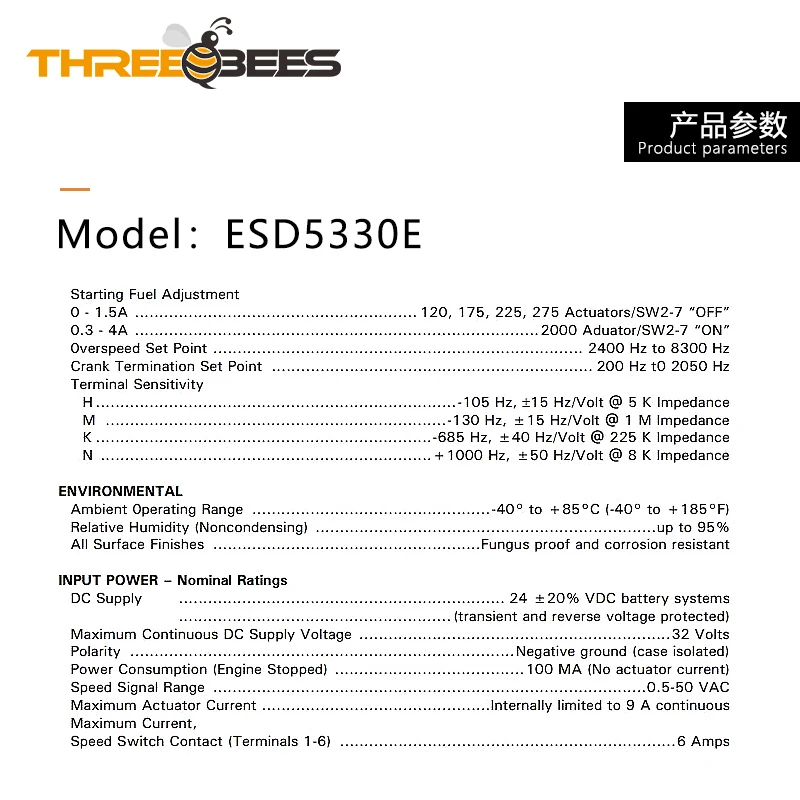

Starting Fuel Adjustment	0-1.5A	120,175,225 ,275 Actuators/SW2-7"OFF"
		0.3-4A	2000 Actuators/SW2-7"ON"
		Overspeed Set Point	2400Hz to 8300Hz
		Crank Termination Set Point	H:-105Hz，±15Hz/Volt @ 5 K Impedance
				M:-130Hz，±15Hz/Volt @ 1 K Impedance
				K:-685Hz，±40Hz/Volt @ 225 K Impedance
				H:+1000Hz，±50Hz/Volt @ 8 K Impedance
Environmental	Ambient Operating Temperature Range	-40 to +85 Deg. C
		Relative Humidity	Up to 95%
		All Surface Finishes	Fungus Proof and Corrosion Resitant
Input Power	DC Supply	24 ± 20% VDC battery systems
	DC Supply			( transient and reversevoltage protected)
		MAX Continuous DC Supply Voltage	32Volts
		Polarity	Negative Ground (Case Isolated)
		Power Consumption	100 MA (No actuator current)
		Maximum Actuator Current	Internally limited to 9 A continuous
		Speed Sensor Signal	0.5-50 Volts RMS
		Speed Switch Contact (terminals 1-6)	6 Amps

Features:

* A Two Element Speed Switch (overspeed sensing and crank termination)

* Speed Ramping from Idle to Oprating Speed

* Starting Fuel Control for lower engine exhaust emissions

* A unque actuator power drive circuit

Other standard features include:

adjustable Droop, Accessory input for Load Sharing,Variable Speed Governing,protection against reverse battery voltage and transient, and a fail safe design in the event of loss of speed signal or battary supply
