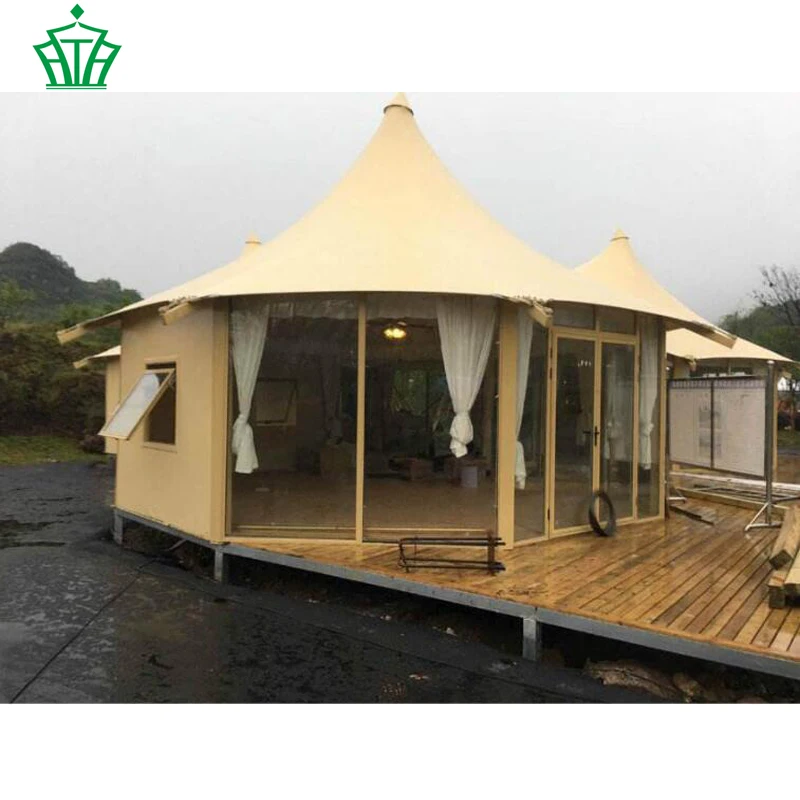

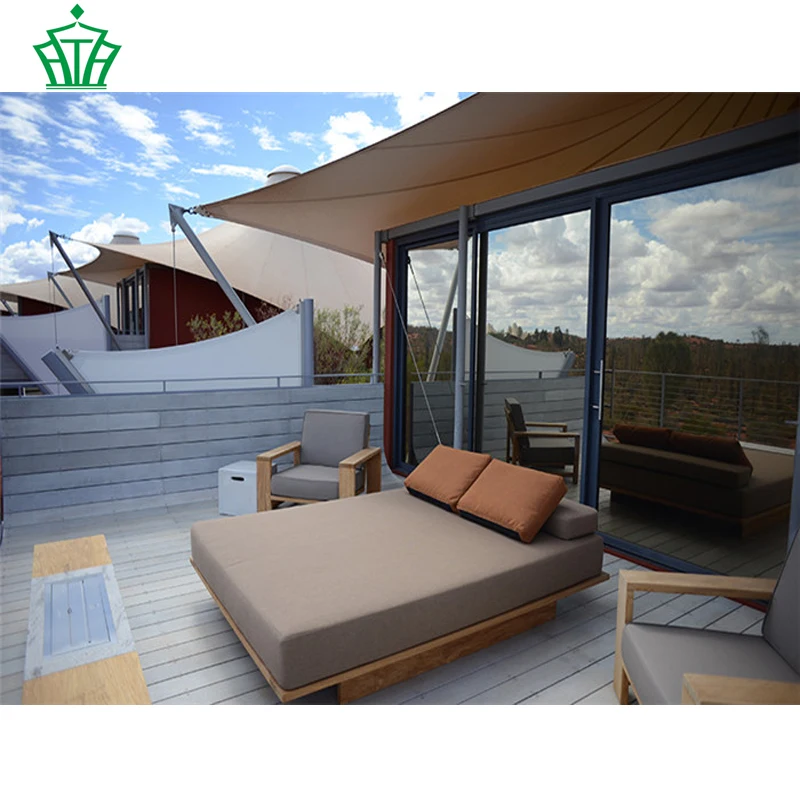

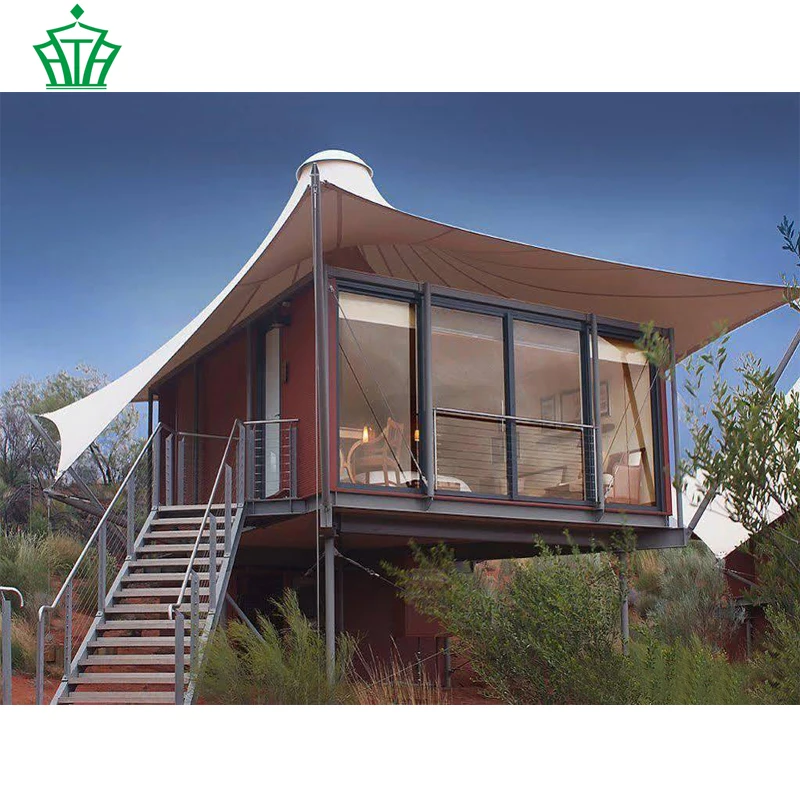

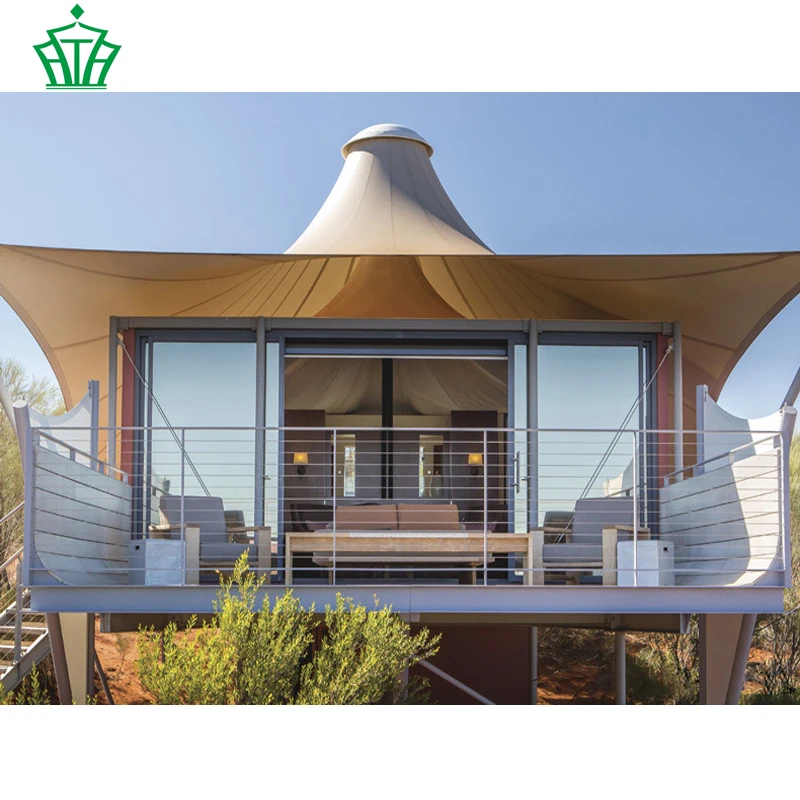

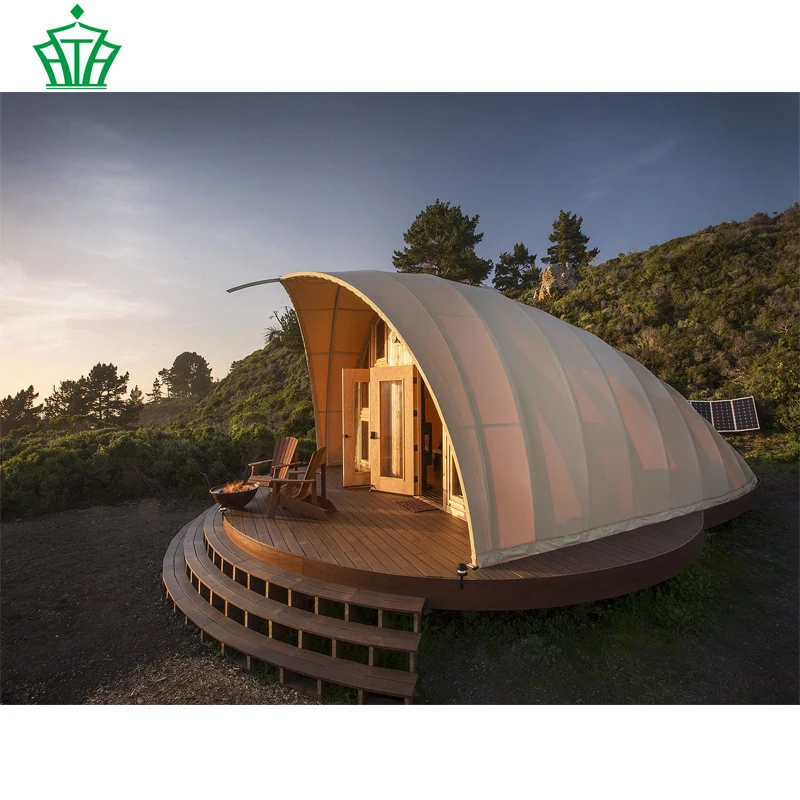

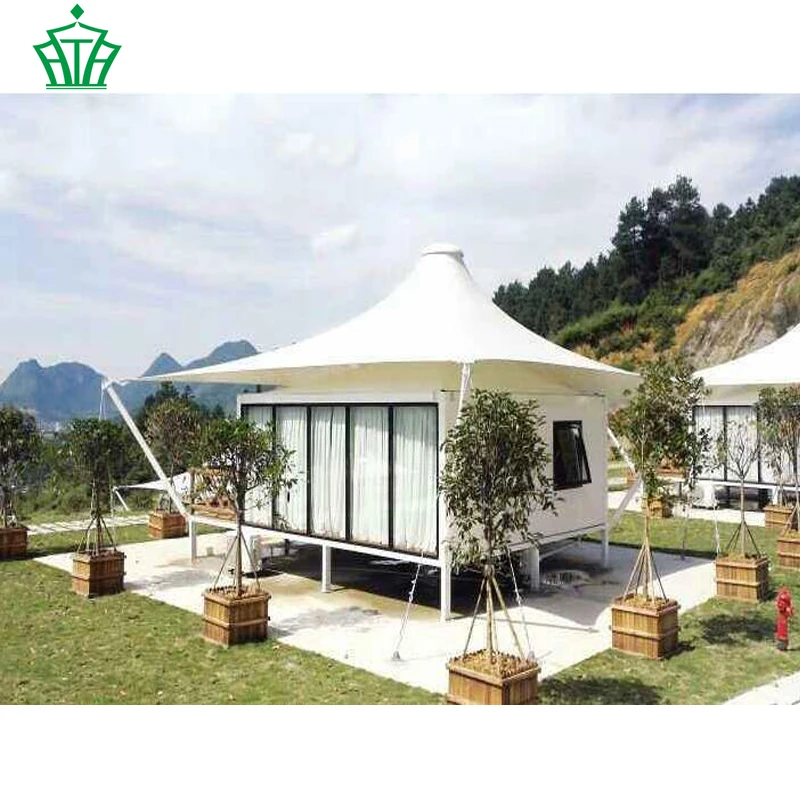

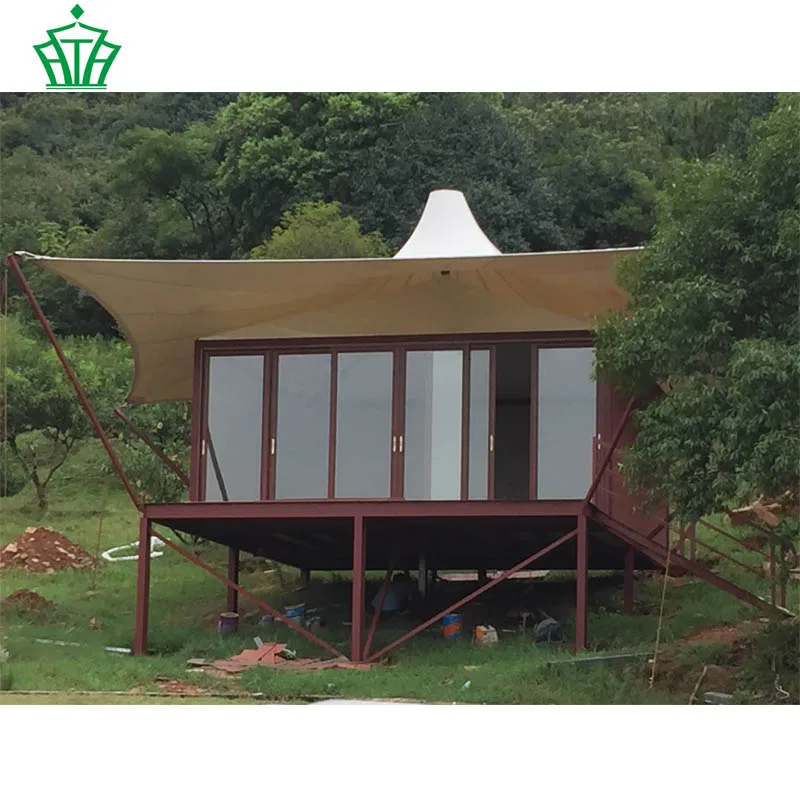

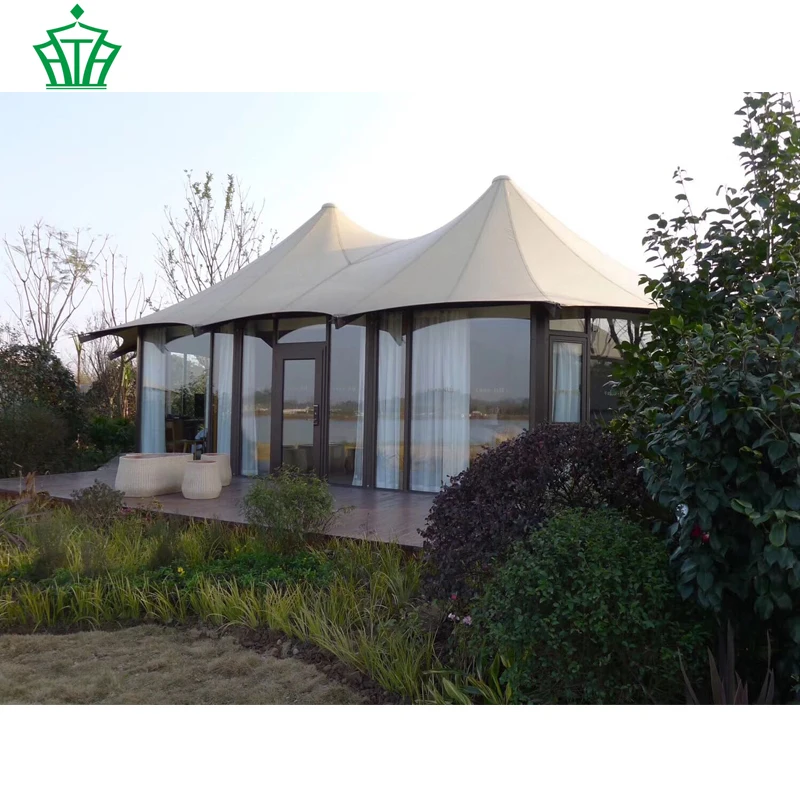

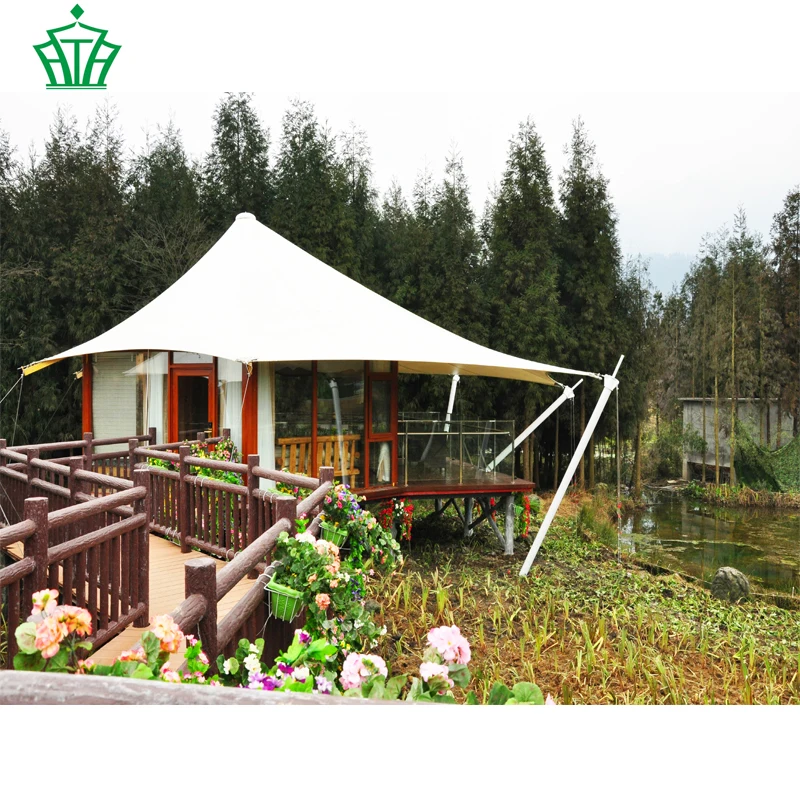

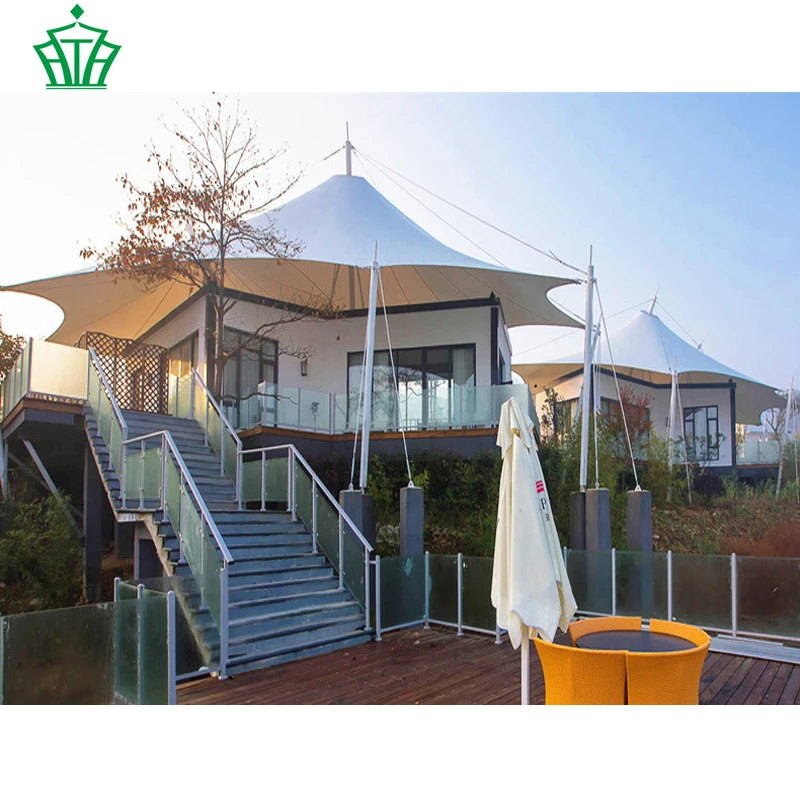

Waterproof Outside Tourism Resort Hotel room Glamping Tent Luxury Hotel Tent for sale

Membrane structure which called tension membrane structure ,is a new kind of building structure.It through the steel frame,steel column or wire make the membrane material produce a certain tension in order to form a certain space shape,composition can bear a certain tension stability catenary system.Membrane structure of the membrane material should be made concave and convex space curved surface to ensure its stability,so the membrane structure is called space membrane structure as well.

PVDF ROOF COVER
Technical profile
Technical
Technical Date
Executive Standard
Base Fabric
High Strength Low Yarn polyester Yarn
DIN EN 60001
Yarn count(yarn/cn)
1100dtex
DIN ISO 2060
Weave Style
12/12/yarn/cm
DIN EN 1049-2
Weight of Base Fabric (G/SQM)
Dyeing Cloth
Total Weight (G/SQM)
1000G/SQM
Total thickness(mm)
0.8mm
Tensile Stregth(N/5cm)
4400/4200N/5cm
DIN EN 1421
Tear Strength(N)
600/550N
DIN 53363
Adhesion(N/5cm)
>120N/5cm
IVK 3.13
Threshold Temperature
(-30)℃---(+70)℃
DIN EN1876-1
Light Transmission
5%
Acoustical Weakening Index
15dBA
Surface Treatment
Double layer PVC ,clean by itsself
Flame Retardancy
DIN 4102B1 GB8624 B1
Quality Management
DINEN ISO9001

Features:
1,High strength and intensity but light weight
2,Waterproof, UV resistance, heat insulation,anti-aging, Transmittance ect.
3,Moisture proof, smoke proof, soundproof self-cleaning, beautiful view
4,Modern design, Easy to install
5, used in seasonal or permanent structures for indoor sports and recreational facilities as gymnasiums, stadiums, swimming pools, cafeterias and food courts, exhibition and conventional
centers, canopies and vehicle parkings, etc

We can make the 3D and CAD drawing for clients free of charge according to clients project.

Advantages:

A. Cost efficiency
Tension membrane architecture offers both the structure and the roofing shell in one. Depending upon the requirements, shaped fabrics under tension can span large areas at dramatically reduced costs compared with conventional roofing systems. They are also erected more efficiently reducing costs even further.

B. Design Freedom
Being a flexible and highly formable systems, tensile fabric membranes are able to be formed into breathtakingly spectacular designs. This allows architect to do things unthinkable with conventional construction materials. A well designed tensile structure instantly adds to a buildings aesthetics, whilst improving its functionality.
