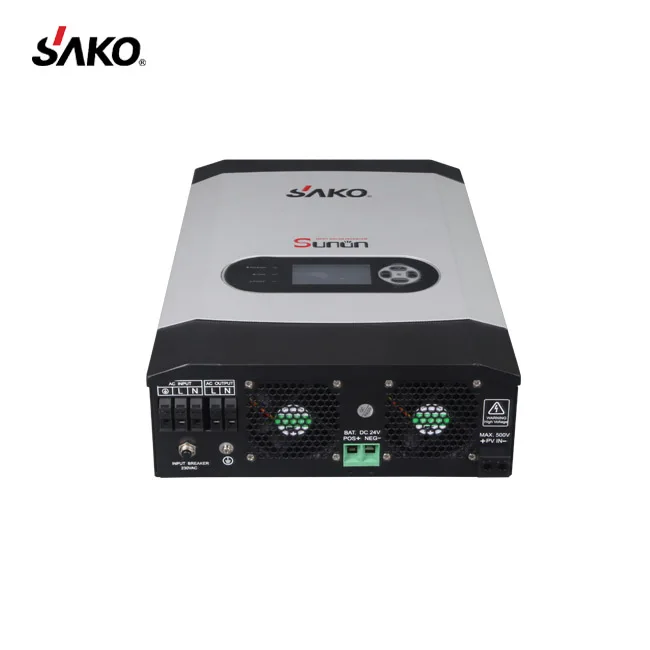

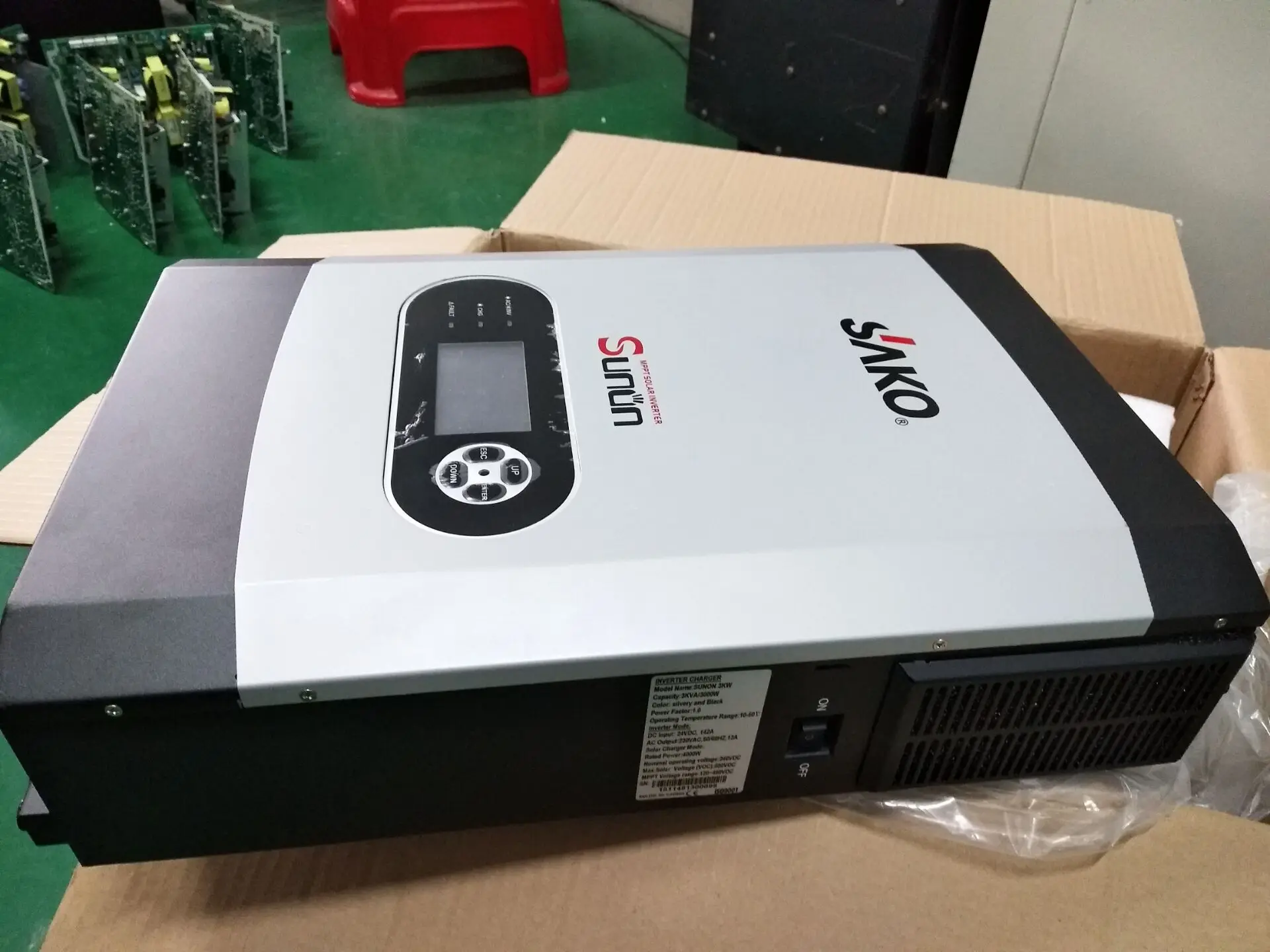

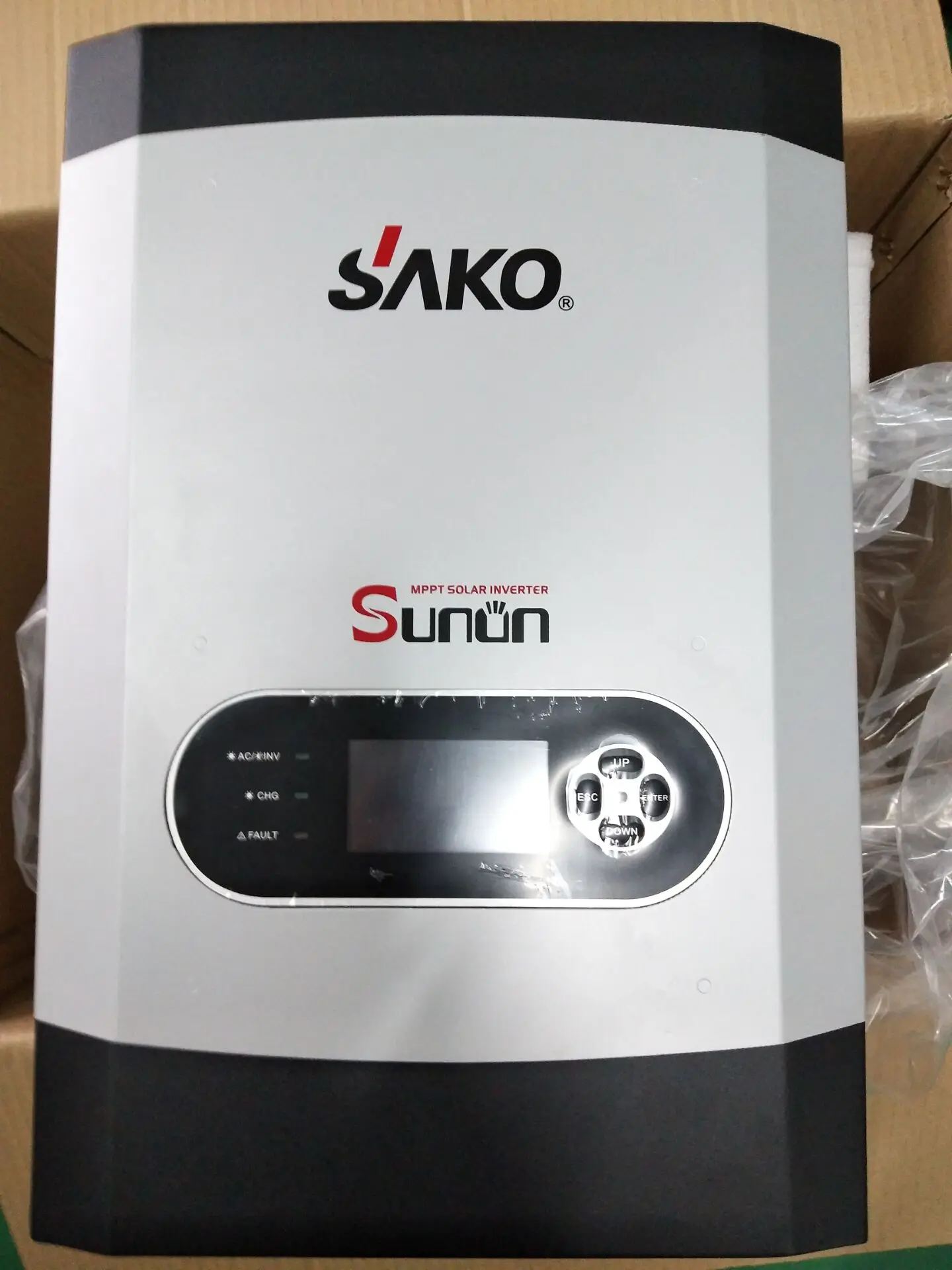

Инвертор SAKO 3 кВт 24 В инвертор для солнечной батареи с 80 А MPPT производитель Shenzhen работает без
- Категория: >>>
- Поставщик: Shenzhen Sako Solar Co. Ltd.
Сохранить в закладки 62545985205:
Описание и отзывы
Характеристики
Products Description
Main Features
1. With MPPT solar charger controller built inside. 2. Built inside with high Voltage MPPT solar charger (upto 500vdc), and support no battery work during the day time
3. Remote&Removable LCD control mpudle with various connunication 4. Smart and intelligent pure sine wave, high frequency technology,wall amounted design,light weighted and easy to operate
5. Selectable charging current based on applications
6. Configurable AC/Solar input priority via LCD setting
7. Compitable with (LI Ion, LiFePo4 and ect.), batteries with BMS system and battery equalization
8. Optional for wifi remote control or monitor on phone with extra charge (can do ocal wifi or remote wifi montior depends one different demand)
5. Selectable charging current based on applications
6. Configurable AC/Solar input priority via LCD setting
7. Compitable with (LI Ion, LiFePo4 and ect.), batteries with BMS system and battery equalization
8. Optional for wifi remote control or monitor on phone with extra charge (can do ocal wifi or remote wifi montior depends one different demand)
9. Smart battery charger and management for optimized battery performance
11. High Efficient DC-To-AC Conversion.Minimizing Energy Loss and self power consumption 12. All around protection functions: Overload/short circuit protection/high voltage/low battery voltage/high temerature,etc.
11. High Efficient DC-To-AC Conversion.Minimizing Energy Loss and self power consumption 12. All around protection functions: Overload/short circuit protection/high voltage/low battery voltage/high temerature,etc.
Model | SUNON 3KW | SUNON 5KW | ||
The rated power | 3000VA/3000W | 5000VA/5000W | ||
PV INPUT (DC) | ||||
Maximum PV Array Power | 4000W | |||
Norminal PV Voltage | 240Vdc | |||
MPPT Range Operation Vol | 120-450VDC | |||
Maximum PV Array Open Circuit Vol. | 500VDC | |||
Solar Charge Type | MPPT | |||
Maxmum Charge Current(AC+Solar) | 80A | |||
AC INPUT | ||||
Voltage | 230 VAC± 5% | |||
Low Loss Voltage | 170Vac± 7V (UPS); 90Vac± 7V (Appliances) | |||
Low Loss Recovery Voltage | 180Vac± 7V (UPS); 100Vac± 7V (Appliances) | |||
High Loss Voltage | 280Vac± 7V | |||
High Loss Recovery Voltage | 270Vac± 7V | |||
Max AC PV input | 300VAC | |||
Frequnecy Range | 50Hz/60Hz (Auto sensing) | |||
Transfer Time | 10ms typical (UPS) , 20ms typical (Home Appliances) | |||
BATTERY MODE OUTPUT (AC) | ||||
Nominal Output Power | 3KVA/3KW | 5KVA/5KW | ||
Surge Power | 6000VA | 10000VA | ||
AC Voltage Regulation (Batt. Model) | 230VAC ± 5% | |||
Power factor | 1 | |||
Wave form | Pure sine wave | |||
Efficiency(Peak) | > 90%-93% | |||
UTILITY CHARGER (AC) | ||||
Battery voltage | 24VDC | 48VDC | ||
Maximum Charging Current | 60Amp | |||
Floating Charge Voltage | 27VDC | 54VDC | ||
Overcharge Protection | 33VDC | 63VDC | ||
PHYSICAL | ||||
Products Dimension, D*W*H(mm) | 3KW: 481*313*117MM | 5KW: 481*313*117MM | ||
Packing size, D*W*H(mm) | 3KW: 543*394*204MM | 5KW: 543*394*204MM | ||
Net Weight (kgs) | 3KW: N.W.: 9.5KGS, G.W.: 10.5KGS | 3KW: N.W.: 9.5KGS, G.W.: 10.5KGS | ||
OPERATING ENVIRONMENT | ||||
Humidity | 5% to 95% Relative Humidity (Non-condensing) | |||
Operation Temperature | 0℃-50℃ | |||
Altitude | 0-1000m | |||

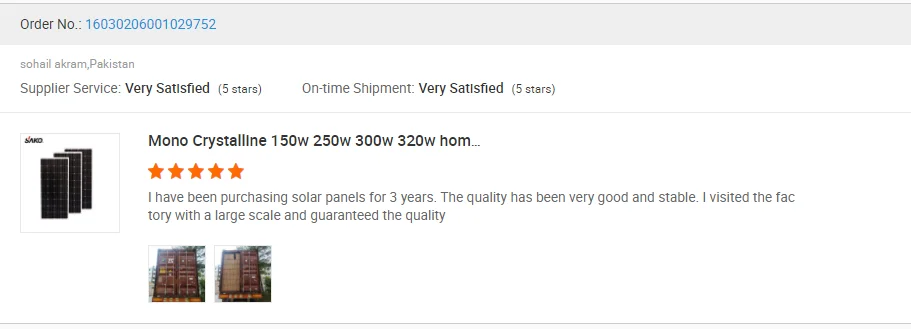

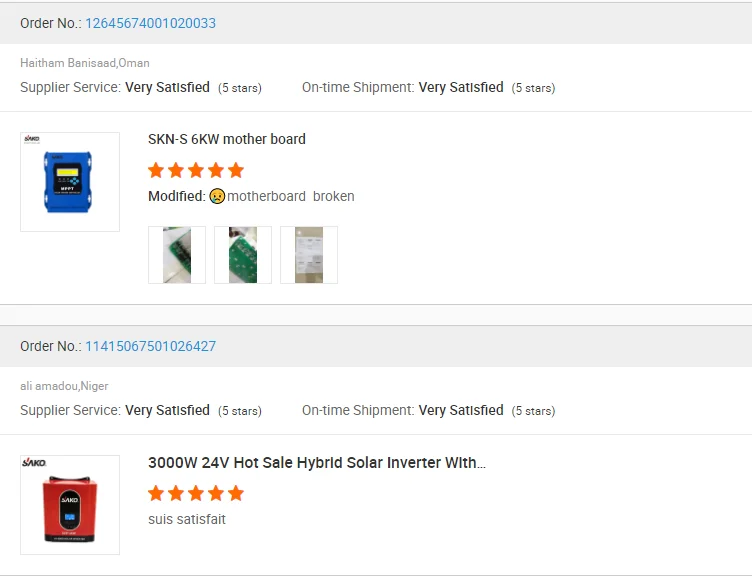

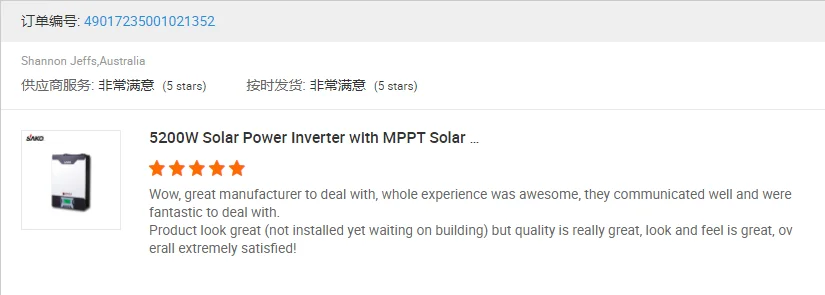

Customer reviews
Recommend Products
Certifications
Company Profile
TEDEPE Solar is a new PV factory founded in the year of 2016 , we have a number of experienced professionals who have been eagaged in this field with product development , production and marketing for more than 10 years . TEDEPE Solar located in Changping Town ,Dongguan city which is the most famous manufacturing city ,from Guangzhou or Shenzhen city to Changping Town by high speed train only 30 minutes .

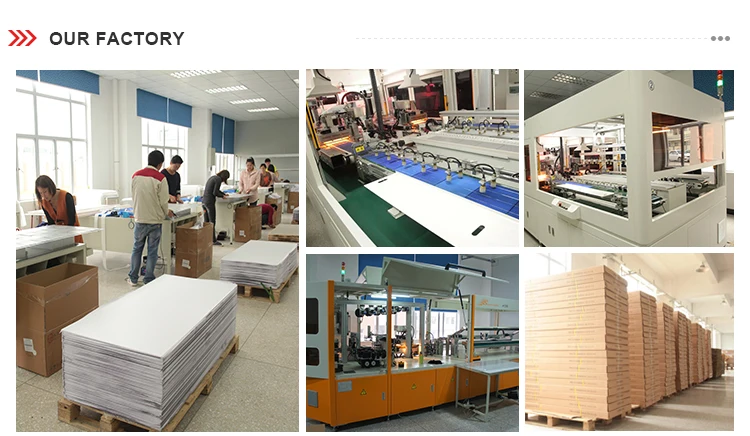

TEDEPED Solar with most advanced equipments of Tabber and Stringer Solar Machine,two laser cutting machine ,two solar Simulator ,one Auto Selection Solar Cell Tester,one of line EL Detector ,two solar panel Tester and Three Laminationg Machine .

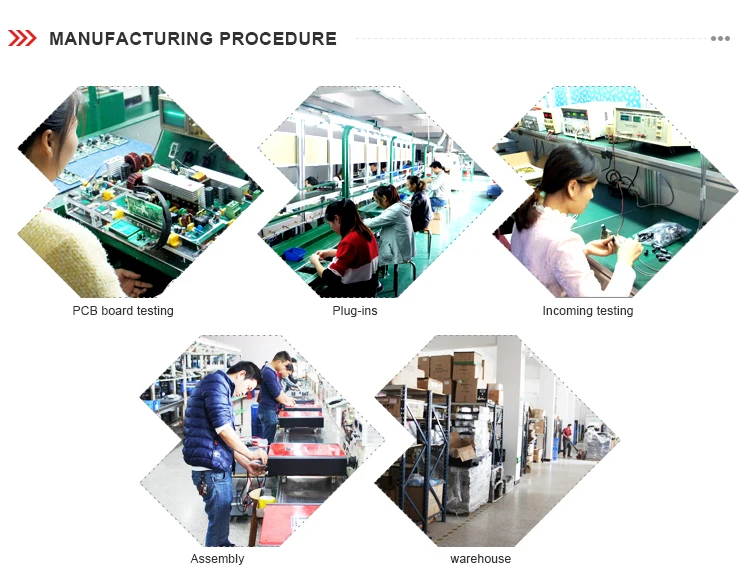

SAKO POWER has three branch manufacturers,Stabilizer manufacturer was located in Wenzhou city ,UPS and Inverter was located in Shenzhen City,DC power supply and switching power supply was located in Hangzhou city ,sako is committed to provide defferent location advantages to customers and each manufacturer.We have professional marketing engineering teams to dedicate in product development.Sako Power guarantees reliable product development and consistent manufacturing quality ,from raw materials to finished products ,and deeply respects its delivery deadlines.
Sako Powre is a trulty reliable company,with its personnel providing in service ,innovation and growth .Sako Power's professional team is always be one of the best sincerely and realiable cooperators in global powre market .
SAKO Enterprise ,like a pearl,shinning so ever brightly in the power supply industry of China.
Leading OEM/ODM Manufacturer in Solar System ,Solar Inverter ,Home Inverter ,UPS,Frequency Inverter ,switching power supply ,Stabilizers and AVR.
TEDEPED Solar with most advanced equipments of Tabber and Stringer Solar Machine,two laser cutting machine ,two solar Simulator ,one Auto Selection Solar Cell Tester,one of line EL Detector ,two solar panel Tester and Three Laminationg Machine .
SAKO POWER has three branch manufacturers,Stabilizer manufacturer was located in Wenzhou city ,UPS and Inverter was located in Shenzhen City,DC power supply and switching power supply was located in Hangzhou city ,sako is committed to provide defferent location advantages to customers and each manufacturer.We have professional marketing engineering teams to dedicate in product development.Sako Power guarantees reliable product development and consistent manufacturing quality ,from raw materials to finished products ,and deeply respects its delivery deadlines.
Sako Powre is a trulty reliable company,with its personnel providing in service ,innovation and growth .Sako Power's professional team is always be one of the best sincerely and realiable cooperators in global powre market .
SAKO Enterprise ,like a pearl,shinning so ever brightly in the power supply industry of China.
Leading OEM/ODM Manufacturer in Solar System ,Solar Inverter ,Home Inverter ,UPS,Frequency Inverter ,switching power supply ,Stabilizers and AVR.

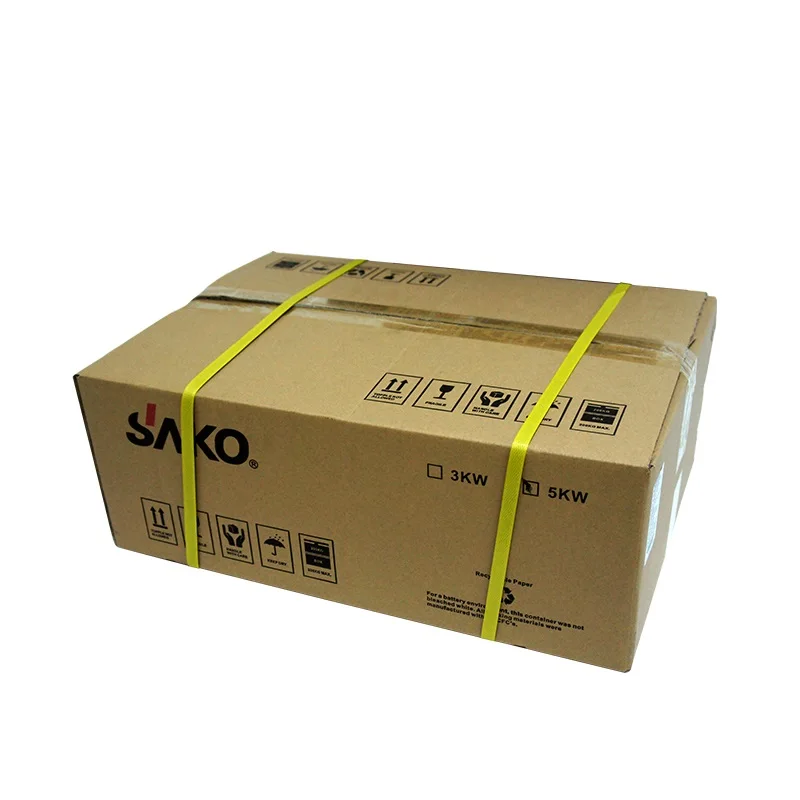

Product packaging
FAQ
Q1：What certificates you have？
A1：We are an ISO9001 manufacture,all the produces are of CE certified,and some of the inverters are of RoHS ULcertified
Q2：What is the MOQ if i want you to apply my design for parameter,outside looking ,logo on producsts and cartons?
A2：MOQ30-100pcs for different products
Q3：How if i just want one sample OEM and ODM?Is it possible
A3：Yes,that possible but need to pay certain percent OEM cost
Q4：What about the warranty?what you will do if the inverter in problem during 1 or 2 years?If refund should i return the goods?
A4：the inverters are of 1years warranty,during the warranty we offer you free replacements for parts,no need to send back to china.and after warranty period，we will offer support but you need to pay for the parts component cost.
Q5：How long the delivery time if i order?how soon can you send out the goods?
A5：some of the inverters in stock,and to make new inverters take 1-2 weeks time,ODM OEM take 4-5 weeks time for customization
Q6：What happen if i meet problem during instalation?Will you support and how.
A5：Yes that we are 24hours online to help,pls contact us by email or by whatsapp should anything need help,no matter technical service or after sale service.
Q7: Does your company also provide other solar products except Pure Sine Wave Inverter?
A1: Yes, we also provide other solar products, like MPPT Solar Controller, poly solar panel, off grid solar inverter, on grid
inverter, battery, portable solar system, solar charger and other accesories
related to the solar power system.
A1：We are an ISO9001 manufacture,all the produces are of CE certified,and some of the inverters are of RoHS ULcertified
Q2：What is the MOQ if i want you to apply my design for parameter,outside looking ,logo on producsts and cartons?
A2：MOQ30-100pcs for different products
Q3：How if i just want one sample OEM and ODM?Is it possible
A3：Yes,that possible but need to pay certain percent OEM cost
Q4：What about the warranty?what you will do if the inverter in problem during 1 or 2 years?If refund should i return the goods?
A4：the inverters are of 1years warranty,during the warranty we offer you free replacements for parts,no need to send back to china.and after warranty period，we will offer support but you need to pay for the parts component cost.
Q5：How long the delivery time if i order?how soon can you send out the goods?
A5：some of the inverters in stock,and to make new inverters take 1-2 weeks time,ODM OEM take 4-5 weeks time for customization
Q6：What happen if i meet problem during instalation?Will you support and how.
A5：Yes that we are 24hours online to help,pls contact us by email or by whatsapp should anything need help,no matter technical service or after sale service.
Q7: Does your company also provide other solar products except Pure Sine Wave Inverter?
A1: Yes, we also provide other solar products, like MPPT Solar Controller, poly solar panel, off grid solar inverter, on grid
inverter, battery, portable solar system, solar charger and other accesories
related to the solar power system.
Похожие товары
Тамаринд с продажей
Новинка 2018 года, водонепроницаемый светодиодный фонарик для дайвинга IP68, фонарик с затемнением для подводной охоты
9,80 $ - 11,80 $
100% натуральный сушеный Тамаринд
Бессаженные экспортеры тамаринда из Индии в Мексику/Доминиканскую Республику/Объединенные Арабские Эмираты
Полностью высушенный тамаринда без бубука и бубутик
Старомодный больница взвешивание весы 2 * AAA батареи ипин или OEM с ЖК-дисплеем в Китае (стандарты CE, Ross Reach сертификат B28-PK2 CN;GUA
4,80 $ - 5,80 $

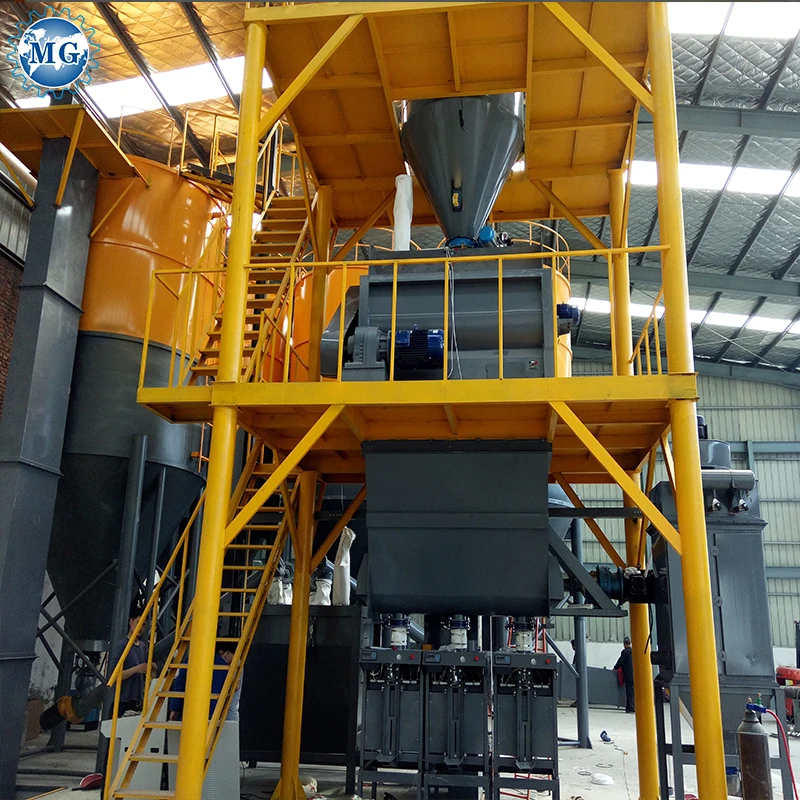

Конкурентоспособная цена От 10 до 12 лет/ч сухих строительных смесей, не требующий частого завод клей для керамической плитки цены на машины изготовления картонных коробок для продажи
