Радиальная проволочная сварочная машина с двойным кольцевым вентилятором

Описание и отзывы

Характеристики

Radial Wire Fan Guard Double Middle Ring Welding Machine :

Machine Features:

 Fan Guard Production Line include: ring bending machine, ring butt welding machine,inner ring spot welding machine, hydraulic press for guard shape forming, outer ring welding machine, middle ring welding machine,   handle bending machine, handle welding machine, edge trimming machine, etc.

Main technical data of auto hydraulic ring making machine for electric fan guards:

 -- Machine model: DQ2-6

 -- Hydraulic rolling and cutting, quick and accurate (length tolerance less than 1%).

 -- Suitable diameter: 2.0-6.0mm

 -- Suitable ring diameter: 50-900mm

 -- Main driving power: 1.5kW

 -- Linear wire feeding speed: about 30m/min

 -- Productivity: 6000-8000 pieces per 8 hours shift

 -- Dimension: 1350 x 700 x 1450mm

 -- Weight: about 400kg

Main technical data of ring butt welding machine for electric fan guards:

 -- Machine model: UN-40

 -- Rated power: 40KVA

 -- Max. pressing force: 1100N

 -- Max. welding force: 400N

 -- Max. welding section area: 80mm2

 -- Welding speed: 5000-10000 pieces per 8 hours shift

 -- Dimension: about 800 x 850 x 1000mm

 -- Weight: about 250kg

Main technical data of electric fan guard inner ring spot welding machine:

-- Machine model:DN-25

-- Suitable wire diameter: 1.0-1.8mm

-- Size of fan guard: 8”-20” (by changing flange moulds)

-- Rated welding power: 25KVA

-- Productivity: about 1000-1500 pieces per 8 hours shift (16”, 120 pieces radial wires)

-- Air consumption: 0.15M3/min

-- Welding current: 6A every welding point

-- Dimension: 1600 x 1000 x 1300mm

-- Weight: about 480kg

Main technical data of hydraulic press machine for electric fan guards:

 -- Machine model: BO-25T

 -- Voltage: 380V/50Hz

 -- Power: 5.5kw

 -- Capacity of tank: 850*850*400mm

 -- Productivity: 4000-6000 pieces per 8 hours shift

 -- Dimension: about 1250 x 1050 x 2350mm

 -- Weight: about 1600kg

Main technical data of electric fan guard outer ring welding machine:

 -- Machine model: DN-50KVA

 -- Suitable wire diameter of the outer ring: 3-4mm

 -- Rated welding power: 50KVA

 -- Size of guards: 8"-20"

 -- Productivity: 2000-3000 pieces (16", 120 radial wires)

 -- Air consumption: 0.4m3/min

 --Welding current: 10A per time

 -- Dimension: 1200 x 950 x 1550mm

 -- Weight: about 500kg

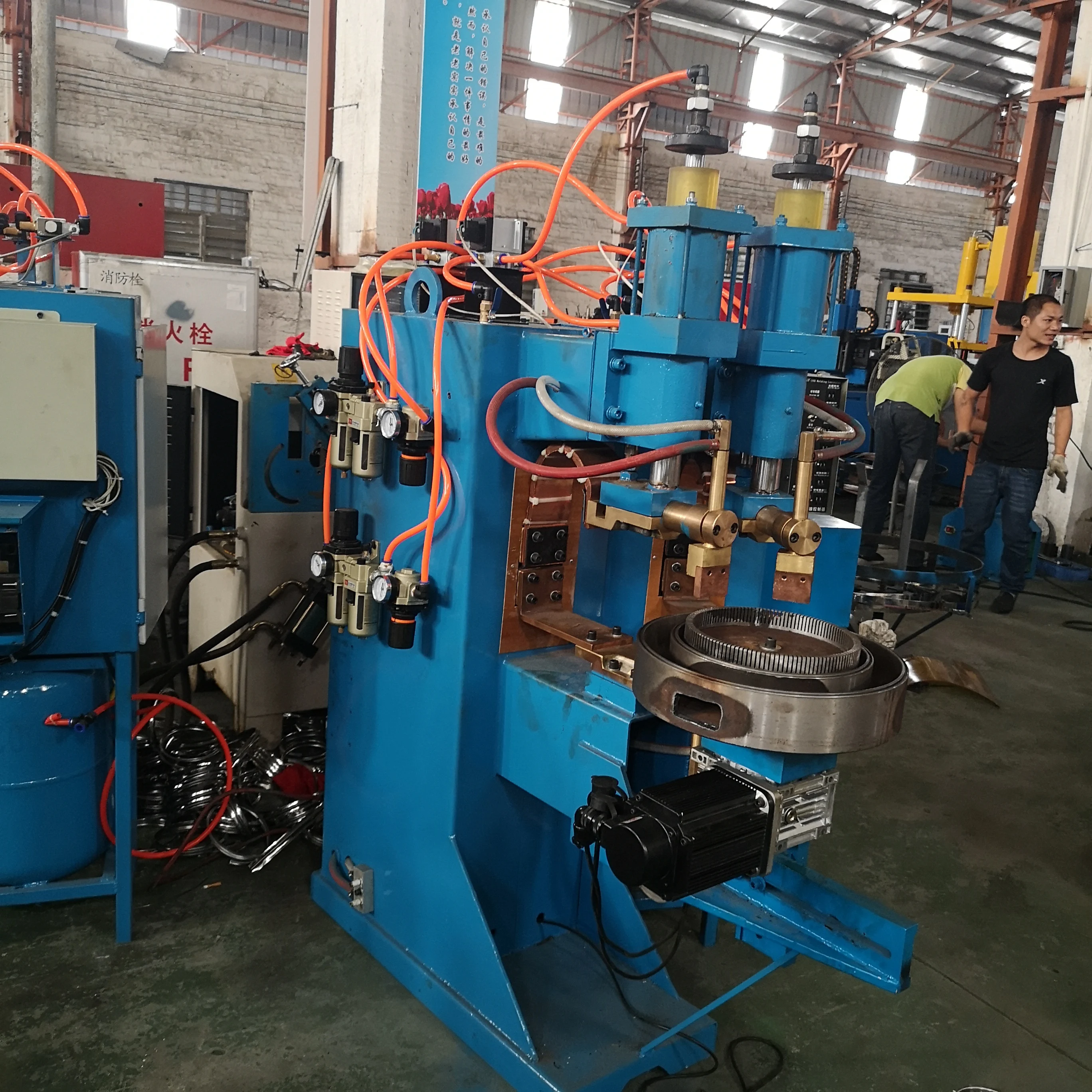

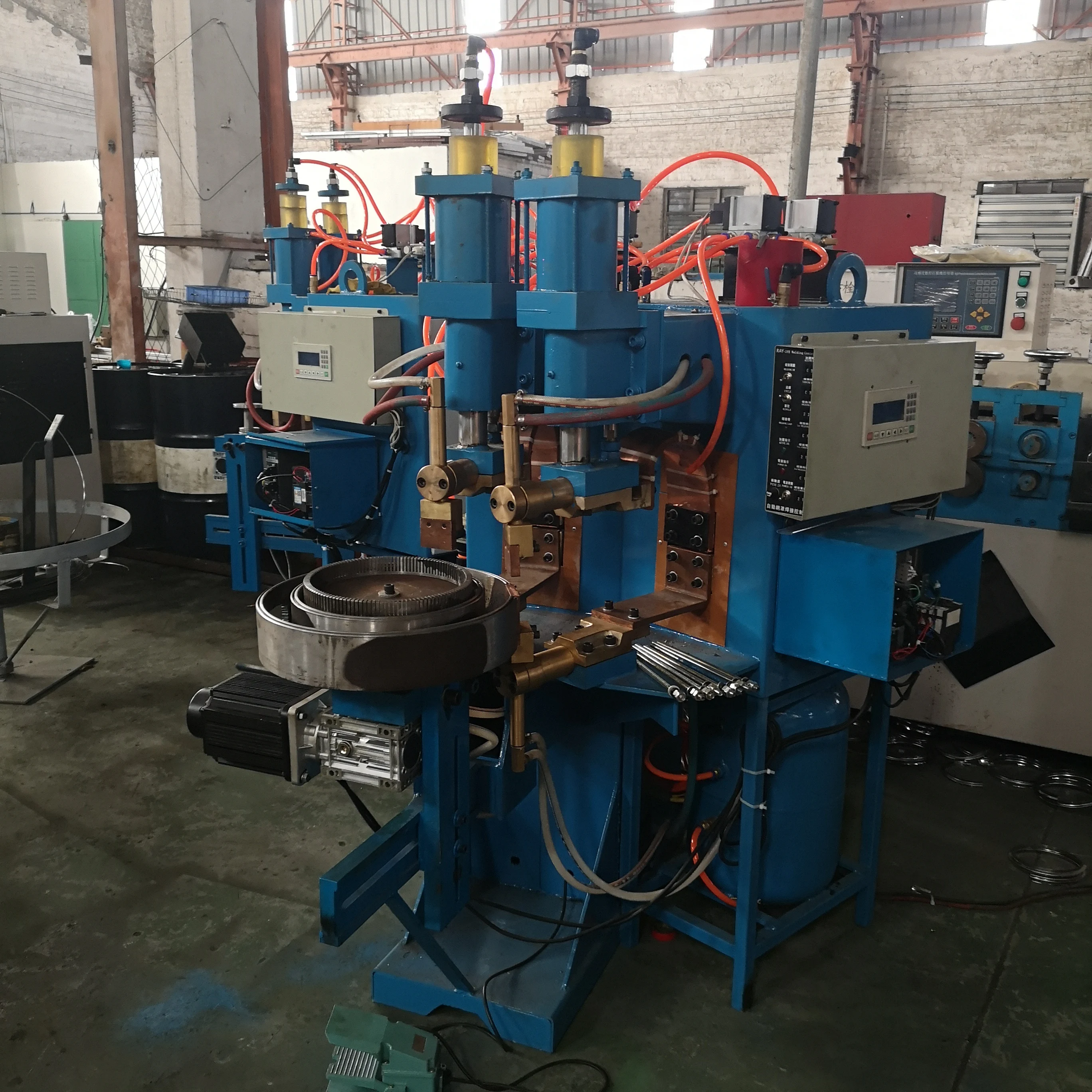

Main technical data of electric fan guard double middle ring welding machine:

 -- Machine model: DN-40+40KVA

 -- Suitable wire diameter for middle ring: 1.5-3.0mm

 -- Rated welding power: 40+40KVA

 -- Size of guard: 8”-22”

 -- Productivity: 2000 pieces (16”, 120 pieces radial wires)

 -- Air consumption: 0.5M3/min

 -- Welding current: 10A per time

 -- Dimension: 1150 x 450 x 1600mm

 -- Weight: about 450kg

Main technical data of lifting handle forming machine for electric fan guards:

 -- Machine model: CX-180

 -- Wire diameter: 1.0-3.0mm

 -- Motor power: 1.5kw

 -- Dimension: about 1500 x 600 x 750mm

 -- Weight: about 250kg

Main technical data of lifting handle welding machine for electric fan guards:

 -- Machine model: DN-63

 -- Rated power: 63KVA

 -- Suitable wire diameter: 1.0-6.0mm

 -- Welding speed: 5000-10000 pieces per 8 hours shift

 -- Dimension: about 900 x 450 x 1600mm

 -- Weight: about 380kg

Main technical data of electric fan guards edge trimming machine:

 -- Machine model: QB-6

 -- Suitable wire diameter: 1.0-6.0mm

 -- Driving motor power: 0.55kW

 -- Productivity: 6000-8000 pieces per 8 hours shift

 -- Dimension: 600 x 400 x 800mm

-- Weight: about 135kg

Workshop:

Our vision:

We are factory manufacturer located in FoShan. We have been working hard to
provide reliable quality machine with reasonable price and qualified service for
our worldwide customers!
Our Advantages:
High quality parts, Compact Machine Structure, High Stability and Reliability.

We have professional teams experting in production, design and R&D for over 10 years to
meet clients' different demands.

High precison and excellent performance for producing all kinds of machines.

Machine test run (at least for one week) before we ship the machine, in an effort to insure
every mechanical and electrical parts are in perfect condition.

 After order placed, we accept to adjust the products according to customer's demand, and remain the program and tool settings on machine in order to insure a quick start of machine once customer receive it.

 Packaging & Shipping:

Standard Export Polywood Package Case

Our Certificates:

As a professional wire bending machinery manufacturer, we will try our best to
supply you not only high quality machine and very competitive price, but also in good service.
We also hope we can make friendly cooperation with you!

FAQ:

Q1: What does your factory produce ?
  A: We produce and export Fan Guard Production Line. We also can design and develop Fan Guard Production Line according to your requirements.
Q2: What about your standard delivery date ?
  A: Usually 35-45 days.
Q3: Does your factory sale directly ?
 A: Yes. Our factory sells directly and we have competitive price with high quality and
excellent after-sale service.
Our quality products have been export to many countries, such as India, Bangladesh, Russia,
USA, Argentina, Peru, Turkey, Iran, Brazil, Spain, South Asia and Middle East countries.
Q4: Can you export machines by your factory?
  A: Yes, we can.
Q5: Where are your factory?
  A: Our factory is located in FoShan City , Guangdong Province,China.
Q6: Will you send engineer to help installing the machine?
  A : Yes, if you need, we can send our engineer to go to your factory to help you install our  machine, train the workers and make sure the welding machine running well before he leaves.

Q7: If the machine get damaged, what can I do ?
   A: In the guarantee time (1 year) , we will send the spare parts to you for free and
provide the technical consultant for anytime. If more terrible, we can send our engineers
to your factory. We will provide same good after-sale service as the pre-sale service.
For any of your questions, we will reply within 12 hours.
