Product Description

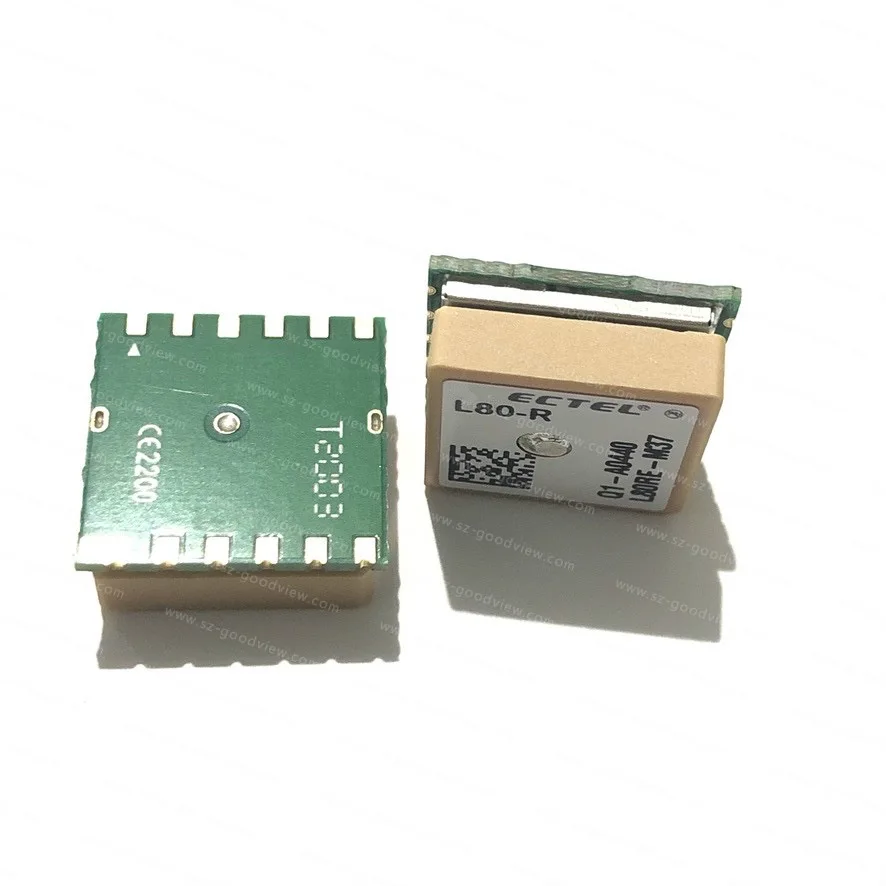

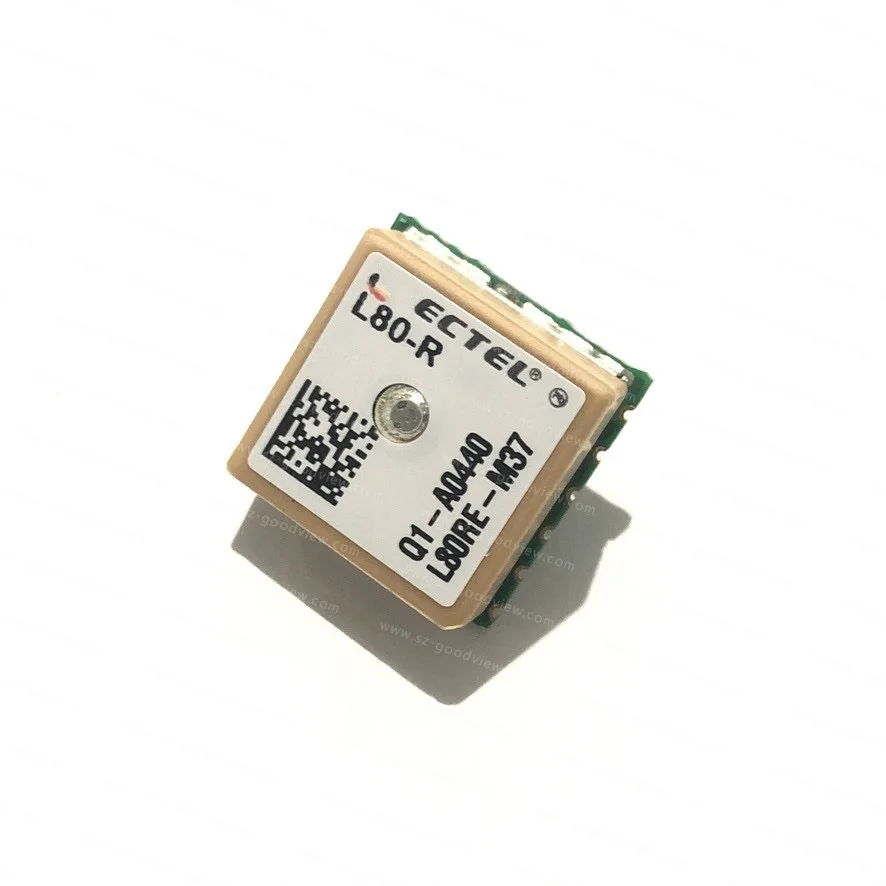

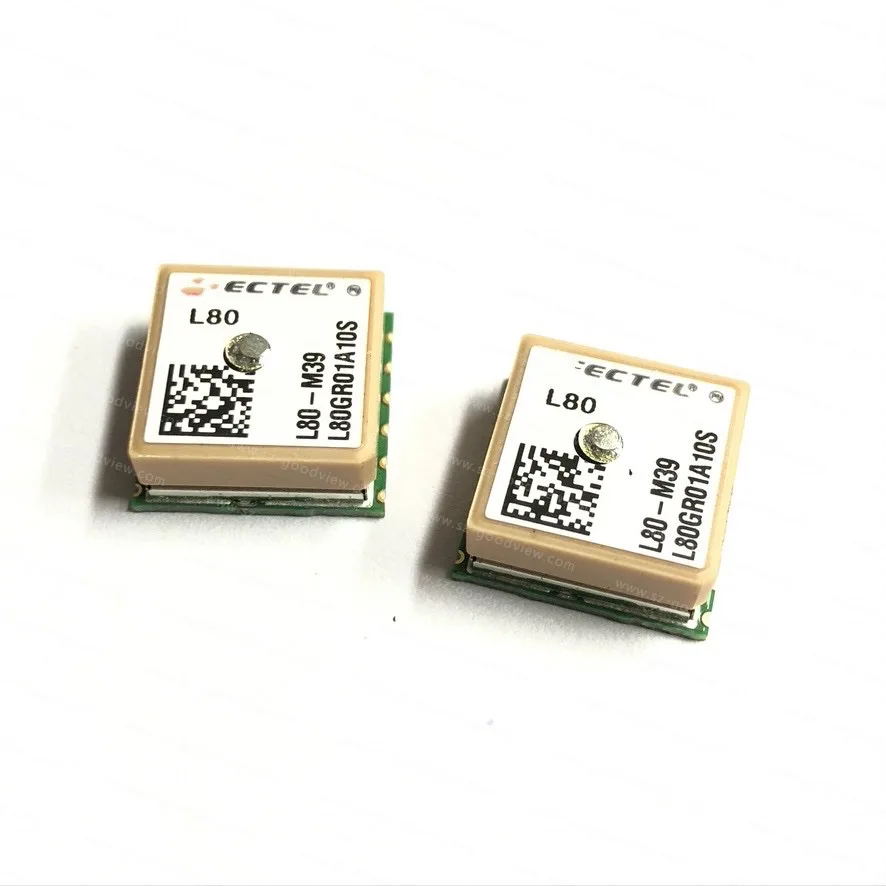

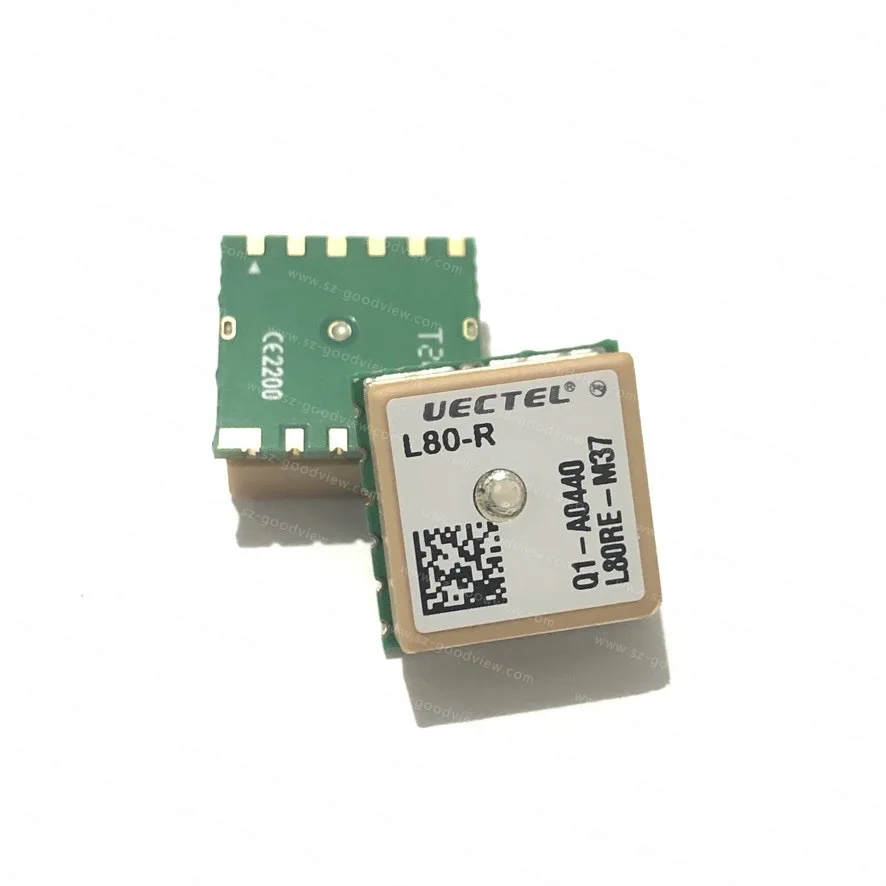

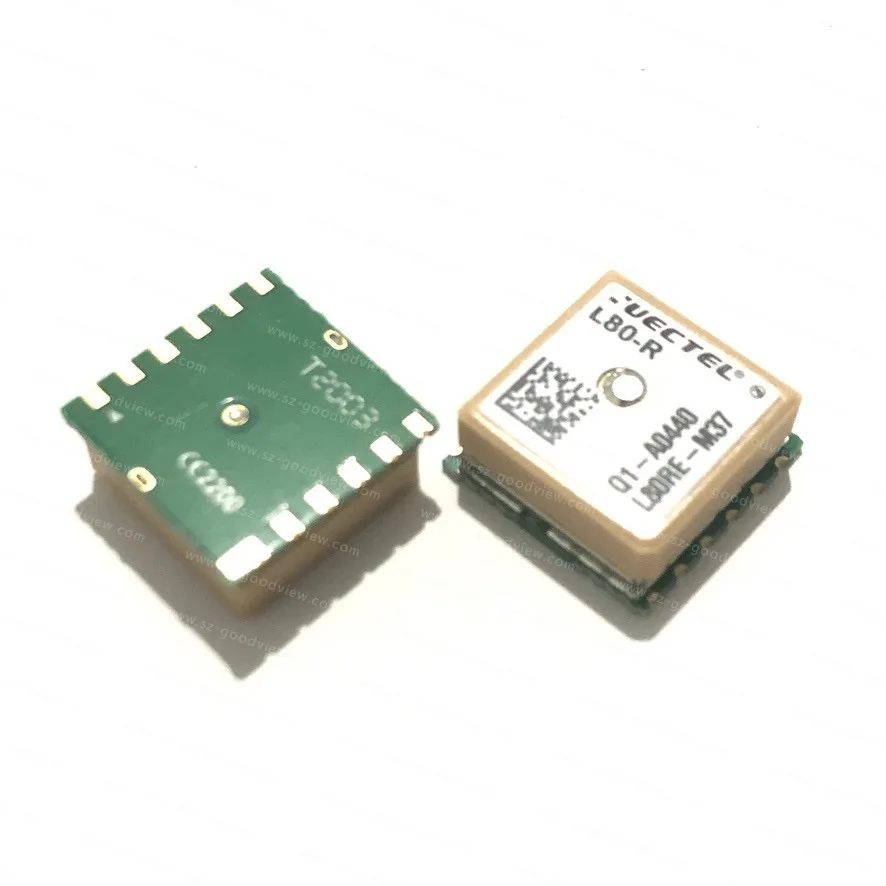

L80
L80 is an ultra compact GPS POT (Patch on Top) module with an embedded 15.0mm × 15.0mm × 4.0mm patch antenna. This space-saving design makes L80 the perfect module for the miniature devices. Adopted by LCC package and integrated with patch antenna, L80 has exceptional performance both in acquisition and tracking.
Combining advanced AGPS called EASY™ (Embedded Assist System) and proven AlwaysLocate™ technology, L80 achieves the highest performance and fully meets the industrial standard. EASY™ technology ensures L80 can calculate and predict orbits automatically using the ephemeris data (up to 3 days) stored in internal RAM memory, so L80 can fix position quickly even at indoor signal levels with low power consumption. With Always Locate™ technology, L80 can adaptively adjust the on/off time to achieve balance between positioning accuracy and power consumption according to the environmental and motion conditions.
L80 supports automatic antenna switching function. It can achieve the switching between internal patch antenna and external active antenna. Moreover, it keeps positioning during the switching process.
The Fitness Low Power (FLP) feature provides low power GPS solution for fitness application. It is an optimized solution for wearable, fitness and tracking devices and only costs about 50% power consumption of normal mode.
With its compact design, high precision and sensitivity, L80 is perfectly suitable for a broad range of M2M applications such as portable device, automotive, personal tracking, security and industrial PDA, especially suitable for special applications, like GPS mouse and OBD.
Key Benefits
● Embedded patch antenna: 15.0mm × 15.0mm × 4.0mm
● Extremely compact size: 16.0mm × 16.0mm × 6.45mm
● Automatic antenna switching function
● Support short circuit protection and antenna detection
● Built-in LNA for better sensitivity
● EASY™, an advanced AGPS technology without external memory
● Ultra low power consumption in tracking mode, 20mA
● AlwaysLocate™, an intelligent controller of periodic mode
● LOCUS, an embedded logger solution with no need of host and external flash
● High sensitivity, -165dBm @Tracking, -148dBm @Acquisition
● 66 acquisition channels, 22 tracking channels
● FLP mode, about 50% power consumption of normal mode
● Balloon mode, for high altitude up to 80km
● Support DGPS, SBAS (WAAS/EGNOS/MSAS/GAGAN)
● Anti-Jamming, Multi-tone Active Interference Canceller
● PPS VS. NMEA can be used for time service
● Support SDK command developed
Combining advanced AGPS called EASY™ (Embedded Assist System) and proven AlwaysLocate™ technology, L80 achieves the highest performance and fully meets the industrial standard. EASY™ technology ensures L80 can calculate and predict orbits automatically using the ephemeris data (up to 3 days) stored in internal RAM memory, so L80 can fix position quickly even at indoor signal levels with low power consumption. With Always Locate™ technology, L80 can adaptively adjust the on/off time to achieve balance between positioning accuracy and power consumption according to the environmental and motion conditions.
L80 supports automatic antenna switching function. It can achieve the switching between internal patch antenna and external active antenna. Moreover, it keeps positioning during the switching process.
The Fitness Low Power (FLP) feature provides low power GPS solution for fitness application. It is an optimized solution for wearable, fitness and tracking devices and only costs about 50% power consumption of normal mode.
With its compact design, high precision and sensitivity, L80 is perfectly suitable for a broad range of M2M applications such as portable device, automotive, personal tracking, security and industrial PDA, especially suitable for special applications, like GPS mouse and OBD.
Key Benefits
● Embedded patch antenna: 15.0mm × 15.0mm × 4.0mm
● Extremely compact size: 16.0mm × 16.0mm × 6.45mm
● Automatic antenna switching function
● Support short circuit protection and antenna detection
● Built-in LNA for better sensitivity
● EASY™, an advanced AGPS technology without external memory
● Ultra low power consumption in tracking mode, 20mA
● AlwaysLocate™, an intelligent controller of periodic mode
● LOCUS, an embedded logger solution with no need of host and external flash
● High sensitivity, -165dBm @Tracking, -148dBm @Acquisition
● 66 acquisition channels, 22 tracking channels
● FLP mode, about 50% power consumption of normal mode
● Balloon mode, for high altitude up to 80km
● Support DGPS, SBAS (WAAS/EGNOS/MSAS/GAGAN)
● Anti-Jamming, Multi-tone Active Interference Canceller
● PPS VS. NMEA can be used for time service
● Support SDK command developed
Company Introduction
Related Products
Product transportation costs-take the United States as an example(DHL) The specific cargo weight is calculated based on the product volume. | ||||||||
Qty(pcs) | weight(kg) | shipping cost(usd) | ||||||
1-50 | 0.5 | 22 | ||||||
50-100 | 1 | 28 | ||||||
101-150 | 1.5 | 35 | ||||||
151-200 | 2 | 45 | ||||||
FAQ
Q: What it the delivery time?
A: Always is 3-5 days by DHL /UPS/ Fedex
Q: What is your testing policy and how you control the quality?
A: GSM GPS GLONASS Module & Accessories: Original Brand, testing 100%
A: Always is 3-5 days by DHL /UPS/ Fedex
Q: What is your testing policy and how you control the quality?
A: GSM GPS GLONASS Module & Accessories: Original Brand, testing 100%
Q:What is your package?
A:With anti static bag&Then pack it together in a box.
A:With anti static bag&Then pack it together in a box.
How to Pay with your visa & master card:
1. Please create a personal buyer account before you buy from alibaba
2. Write your email address , when place an order.
3. Go to your email and clik the link, " Send Initial Payment / Pay Balance " or “go to pay" ,
4. Then choose “+Add a new card to pay in USD($)"
5. Fill in the bank card information , "Confirm and Pay" , that charge from your card derectely, place an order successful
1. Please create a personal buyer account before you buy from alibaba
2. Write your email address , when place an order.
3. Go to your email and clik the link, " Send Initial Payment / Pay Balance " or “go to pay" ,
4. Then choose “+Add a new card to pay in USD($)"
5. Fill in the bank card information , "Confirm and Pay" , that charge from your card derectely, place an order successful
Похожие товары

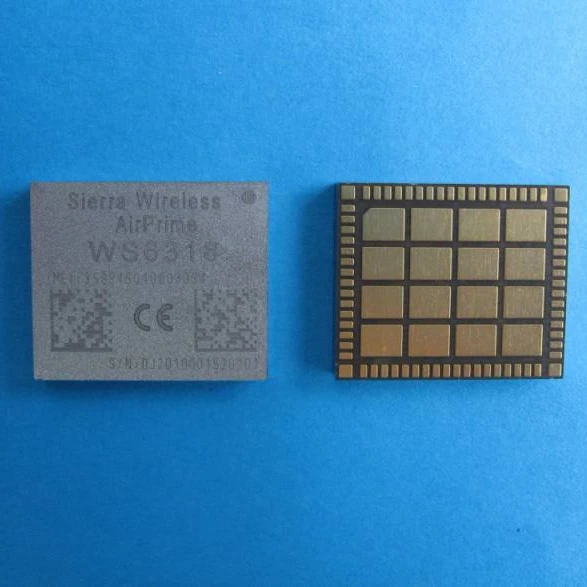

Original Sierra wireless GSM/GPRS/EDGE/HSPA module WS6318
Радиочастотный модуль 10 Вт 20 Вт 30 Вт 40 Вт 50 Вт 100 Вт 2,4 г 1,5 г для телекоммуникационного телефонного сигнала беспилотного летательного аппарата
Модуль GSM/GPRS + GNSS SIM868 SIM868E
Армейский резервуар для воды для кемпинга
Оригинальный новый модуль трансивера DWM1001C 802.15.4 v4.0 UWB 2,4 ГГц 6,5 ГГц встроенное поверхностное крепление для приложений M2M IoT
19,00 $ - 19,20 $
Модуль WS6318 Sierra GSM GPRS
30,00 $ - 50,00 $

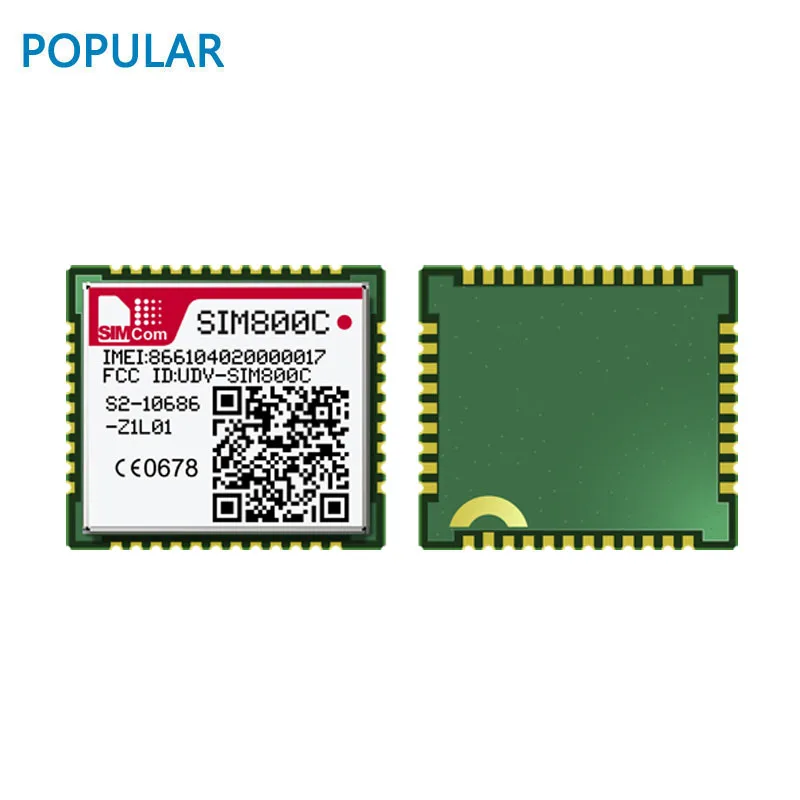

SIM800C GSM GPRS of wireless module SIMCOM
