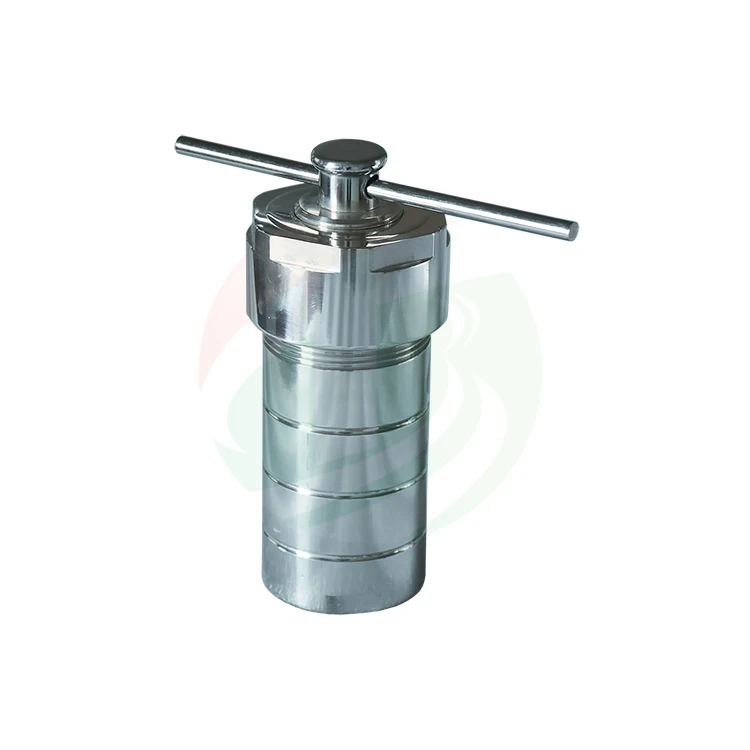

200ml Hydrothermal Synthesis Autoclave Reactor with PTFE PPL Lining

1. Introduction

Hydrothermal synthesis reactor is a kind of closed vessel which can decompose insoluble substances. It can be used for sample pretreatment in atomic absorption spectrometry and plasma emission analysis, small dose synthesis reaction, and fast digestion of insoluble substances in the closed environment of high temperature and high pressure with strong acid or alkali in the tank.

The samples were pretreated in the chemical analysis methods of gas phase, liquid phase, plasma mass spectrometry, atomic absorption and atomic fluorescence.

It can be used in the determination of heavy metals such as lead, copper, cadmium, zinc, calcium, manganese, iron, mercury, etc. it can also be used as a high-temperature, high-pressure, corrosion-resistant and high-purity reaction vessel, as well as organic synthesis, hydrothermal synthesis, crystal growth or sample digestion and extraction.

In the sample pretreatment, heavy metals, agricultural residues, food, sludge, rare earth, aquatic products, organic matters, etc. are digested. It is widely used in the research and production of petrochemical, biomedical, material science, geological chemistry, environmental science, food science, commodity inspection and other departments.

2. Composition

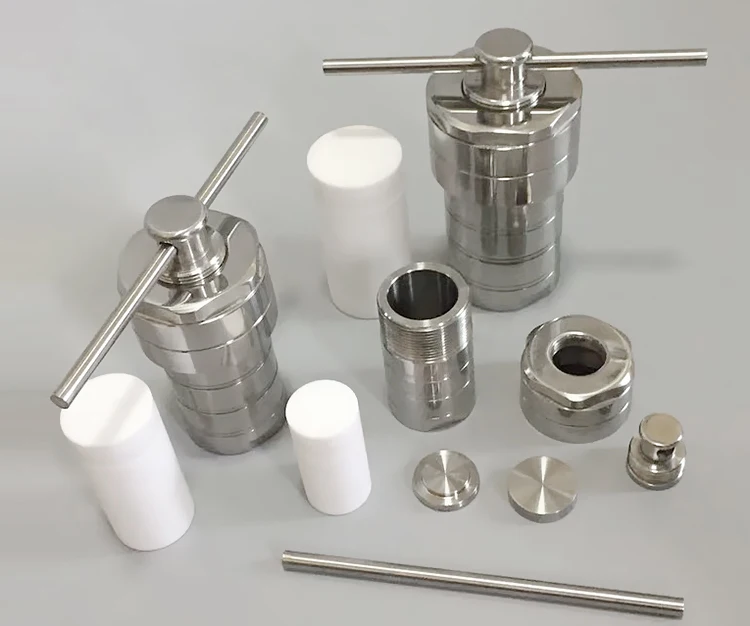

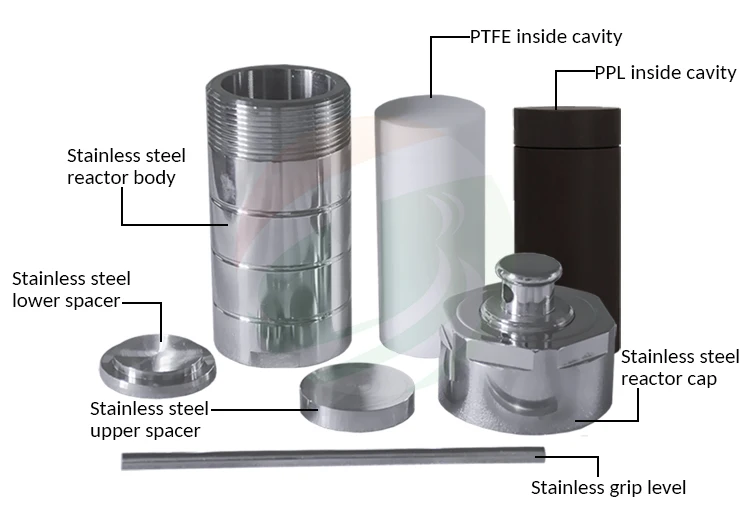

The hydrothermal synthesis reactor is composed of lower spacer, stainless steel reactor body, inside lining (PTFE or PPL), inside lining cover, upper spacer, stainless steel reactor cover, secondary fastening bolt and fastening force bar.

3. Performance

The body is made of 304 high quality stainless steel, sealed by round tenon and groove, and fastened by manual screw. It has the characteristics of good sealing and high safety factor. The external surface is polished with stainless steel mirror, with high smoothness and beautiful appearance.

Material characteristics

4. Technical parameter
