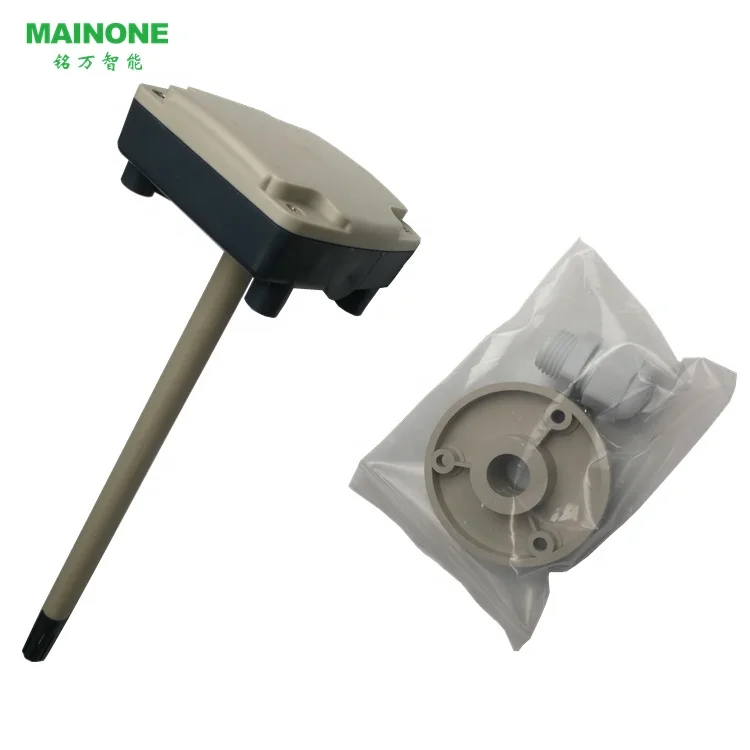

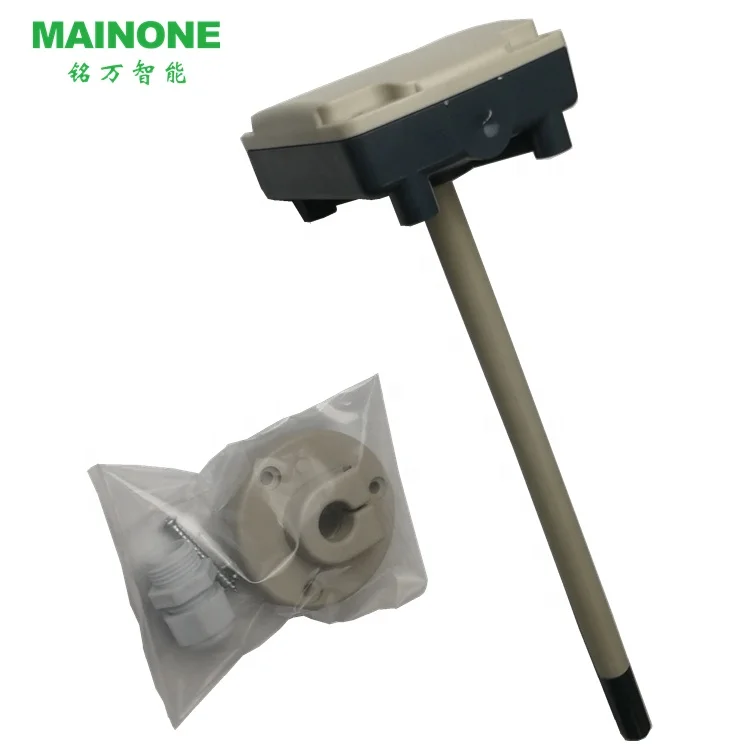

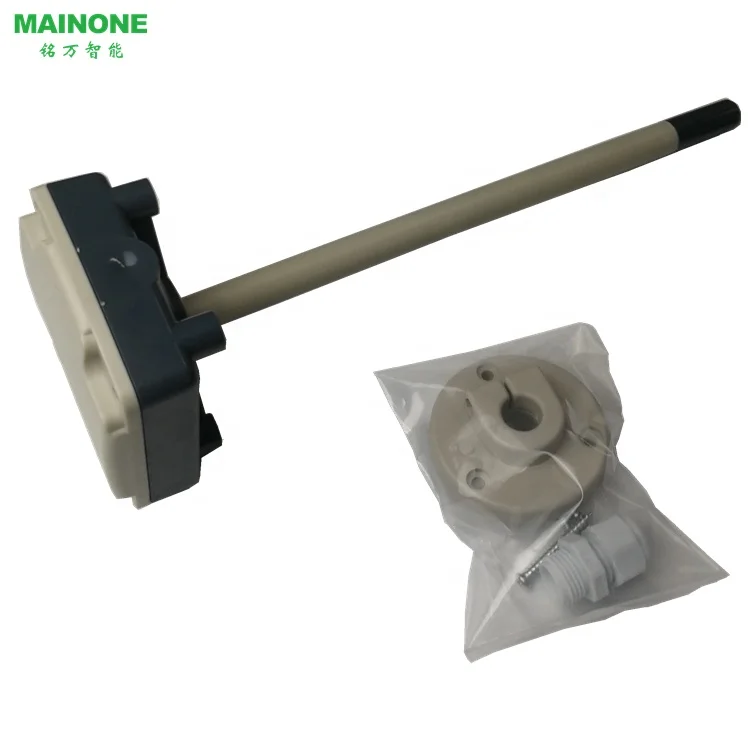

OEM Duct temperature sensor

 Overview

This series of duct type temperature sensors detects the temperature through the thermistor NTC and platinum resistance PT. A variety of thermistors and platinum resistors are available for users to choose from. Thermistors and platinum resistors are sensitive components that vary according to temperature resistance.

 Typical applications

Building automation.
Storage room.

Energy-saving ventilation control.
Environmental and ventilation control

Features

A variety of thermistor sensors are available, PT1000 or PT100 platinum resistors are available
Signal filtering function, performance is more stable and reliable, anti-interference ability is stronger.
Duct temperature measurement.
Simple and safe installation.
Compact size and modern design.

technical parameter

Installation

The duct type sensor should be installed directly on the air duct, and the installation position should be selected in an area where the temperature can be accurately detected (a position 2-3 meters away from the fan or the cold coil, which can obtain a better measurement effect).
1. The diameter of the opening in the air duct is 13mm. It is necessary to fix the flange on the air duct with 3 self-tapping screws.

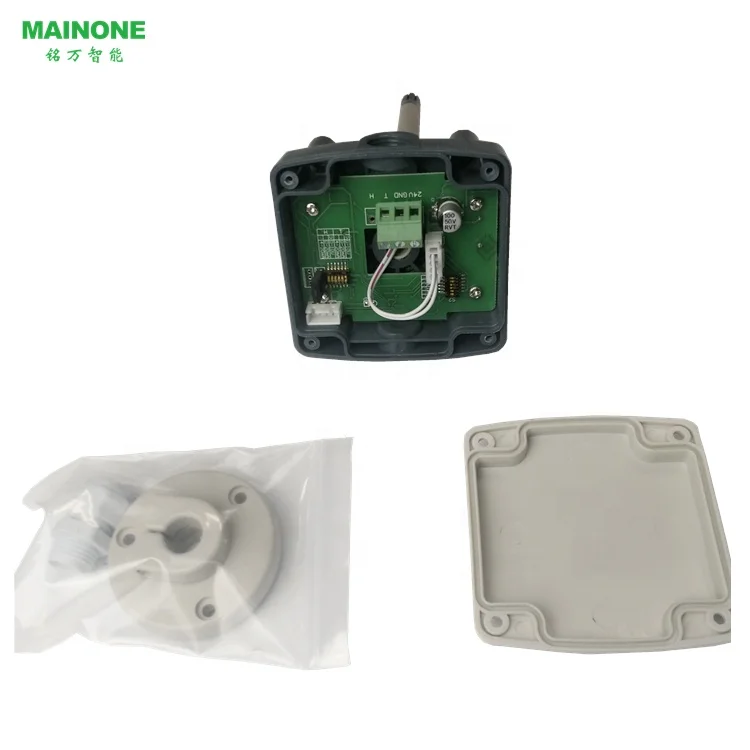

2. Open the top cover

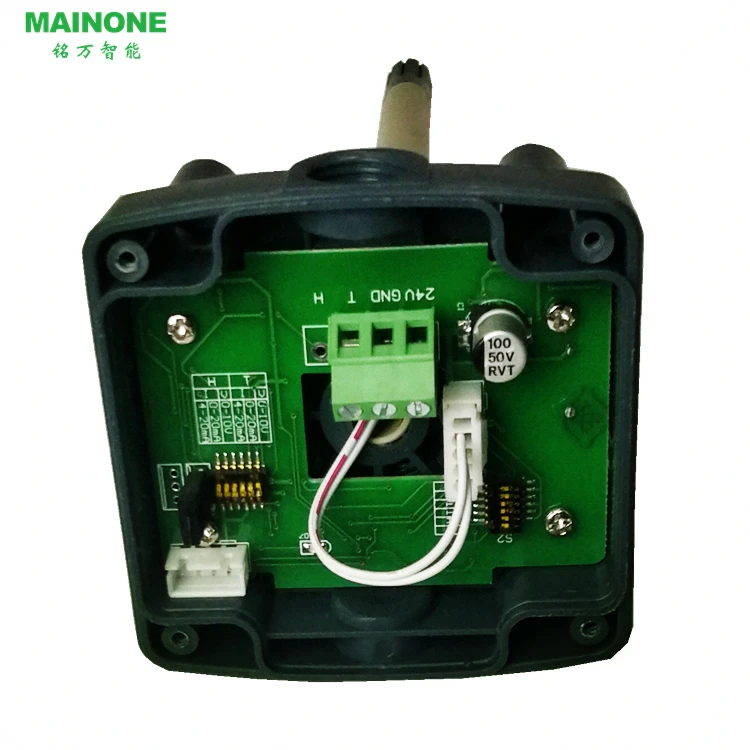

3. Connect the signal cable correctly according to the wiring diagram

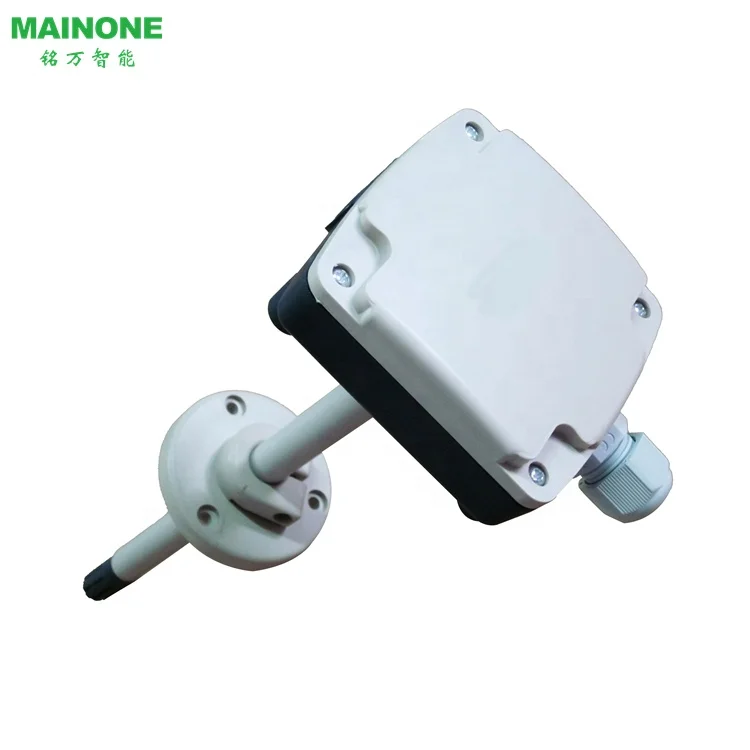

4. Insert the sensor and fix it on the air duct
5. Install the stamp and tighten the screws

Wiring diagram

Note: 1 and 2 have no order and can be reversed

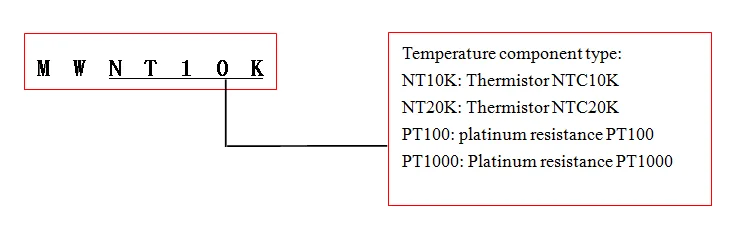

Order guide

Matters needing attention

 When installing and using, pay attention to the installation direction of the product, and avoid direct sunlight or direct contact with heat source/cold source to avoid static electricity. Be careful not to touch it with your hands to prevent damage.
Do not perform on-site repairs and abnormal conditions. Please contact your nearest supplier in time.
The sensor outlet should be bent down first to prevent water droplets from entering the circuit along the wire.

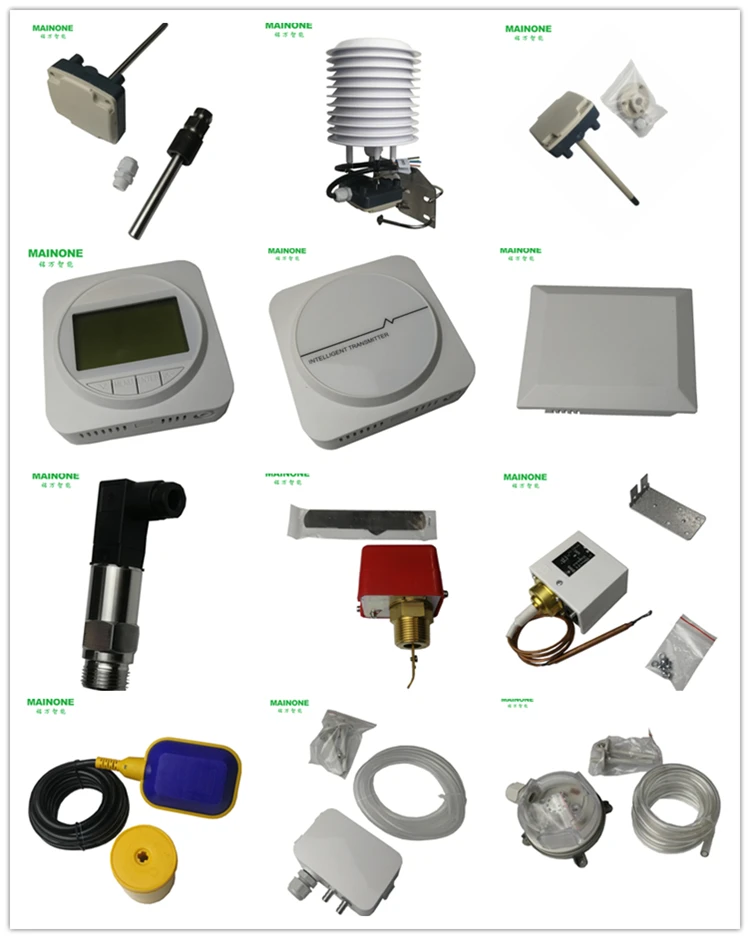

Provide a variety of building automation products: temperature and humidity transmitters, pressure transmitters, flow switches, pressure switches, antifreeze switches
