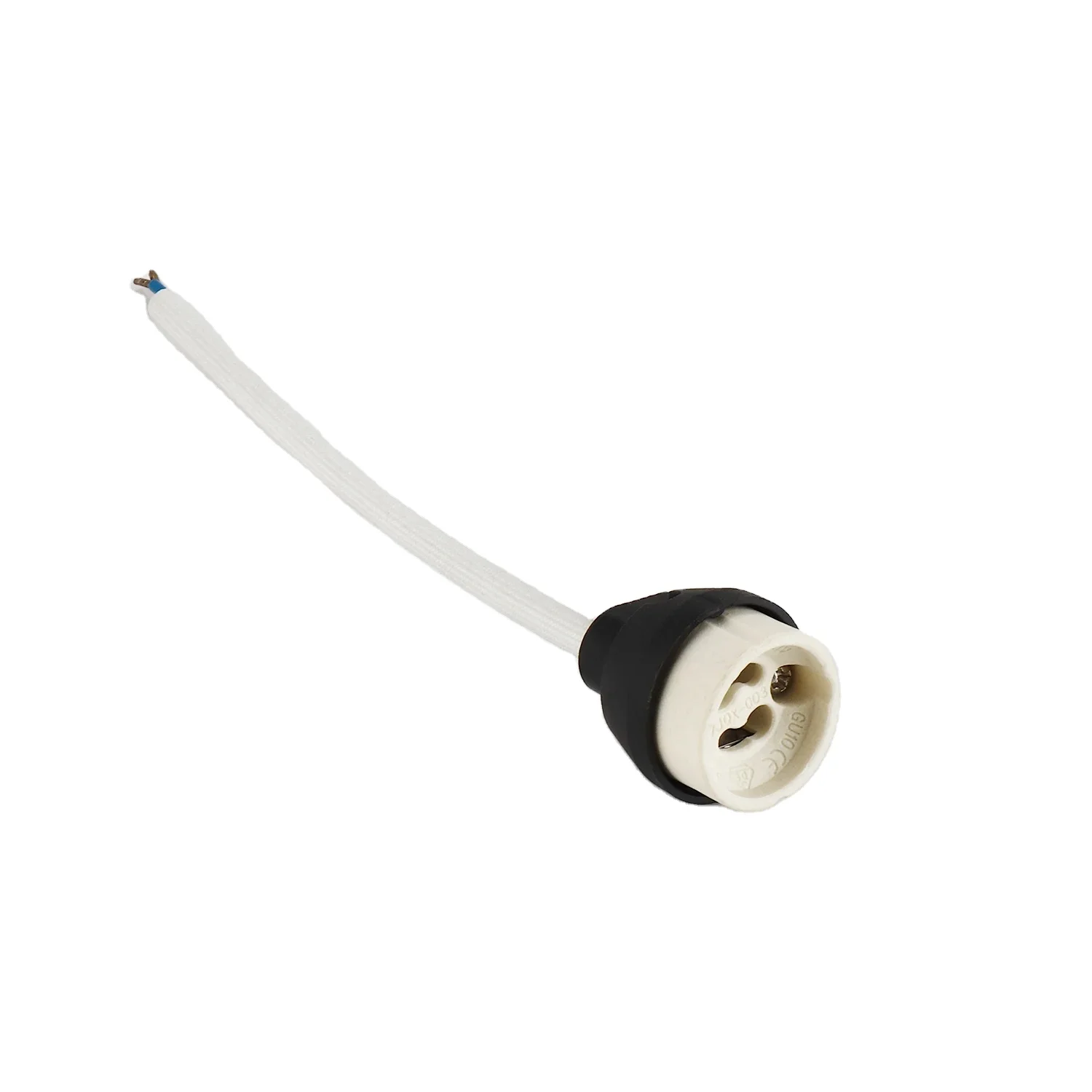

Керамический держатель галогенной лампы ENEC VDE GU10 с распределительной коробкой/гнездом лампы с длинными проводами
0,57 $ - 0,65 $
Qipang высокоскоростной пневматический катерообразный станок для затягивания проводов и кабелей строительный Съемник кабеля машина трактора
- Категория: >>>
- Поставщик: Shanghai Qipang Industrial Co. Ltd.
Сохранить в закладки 62558618859:
Описание и отзывы
Характеристики
Product Description
Qipang High Speed Pneumatic Capstan Wire & Cable Haul Off Caterpillar Machine,Building Cable Puller
Uses and performance:
This machine is used in the power supply cable factory and optical cable factory for extrusion, flag installation, cable forming and other production lines to pull various cables. It adopts flat belt traction form and pneumatic clamping.
The structure is reasonable and it is a new type of ideal traction device. The main power can choose DC motor or variable frequency speed regulation.
Quick Details：QIPANG Wire & Cable Haul-off machine for pipe pvc CCV cable production equipment Caterpillar Traction
Place of Origin:China Brand Name:QIPANG
Motor Power:3-55kw Motor Speed:1500rpm
Usage:Extruding, Extruding Tractive Force:200~15000kg
Belt Width:70-240mm No. of Cylinder:3-14pairs
Speed:20-150m/Min Belt Grip Length:520-5000mm
Model Number:QP 300/500/800/1250/1600...
Product name:Optical fiber cable production equipment Caterpillar Traction
Motor Power:3-55kw Motor Speed:1500rpm
Usage:Extruding, Extruding Tractive Force:200~15000kg
Belt Width:70-240mm No. of Cylinder:3-14pairs
Speed:20-150m/Min Belt Grip Length:520-5000mm
Model Number:QP 300/500/800/1250/1600...
Product name:Optical fiber cable production equipment Caterpillar Traction
Application: QIPANG Wire & Cable Haul-off machine for pipe pvc CCV cable production equipment Caterpillar Traction
1. The whole frame is made of high-quality steel plate after bending and splicing, and the appearance is novel.
2. The equipment adopts the motor-transmission gearbox, a reduction gearbox, and a hard drive structure of the upper and lower helical gears, a crawler wheel, stable transmission, large carrying capacity and convenient maintenance.
2. The equipment adopts the motor-transmission gearbox, a reduction gearbox, and a hard drive structure of the upper and lower helical gears, a crawler wheel, stable transmission, large carrying capacity and convenient maintenance.
3. The whole series has more than ten specifications of 200kg-15000kg, and there are two kinds of speed regulation structures of Z4 DC motor or variable-frequency motor for users to choose.
4. With electronic meter, it can display the line speed and meter length in time.
5. It is equipped with a ground shaft transmission structure for users to use in cable, armor, copper tape shielding and winding production lines.
6. The tension tractor adopts magnetic powder tension control, which is used for the traction of the insulation
and sheath extrusion production line. The tension is instantaneously adjustable, preventing the abrasion of the cable in the sink after the extrusion, and effectively solving the synchronization problem. And the effect of uneven tension on the wire diameter.
7. The small tractor has an overall moving or upper frame moving structure, which is convenient for users to use in special processes and effectively improve the repeated service life of the track
and sheath extrusion production line. The tension is instantaneously adjustable, preventing the abrasion of the cable in the sink after the extrusion, and effectively solving the synchronization problem. And the effect of uneven tension on the wire diameter.
7. The small tractor has an overall moving or upper frame moving structure, which is convenient for users to use in special processes and effectively improve the repeated service life of the track
Equipment Application:
Mainly used for various cable production lines for single machine or front and rear double traction.
type | Max. traction force(kg) | Cable through the outer diameter(mm) | Track contact length(mm) | Track width | Number of cylinder(pair) | Traction speed |
TQD 300 | 300 | ≤Ø 15 | 390 | 60 | 3 | 200 |
TQD 500 | 500 | ≤Ø 30 | 850 | 80 | 3 | 150 |

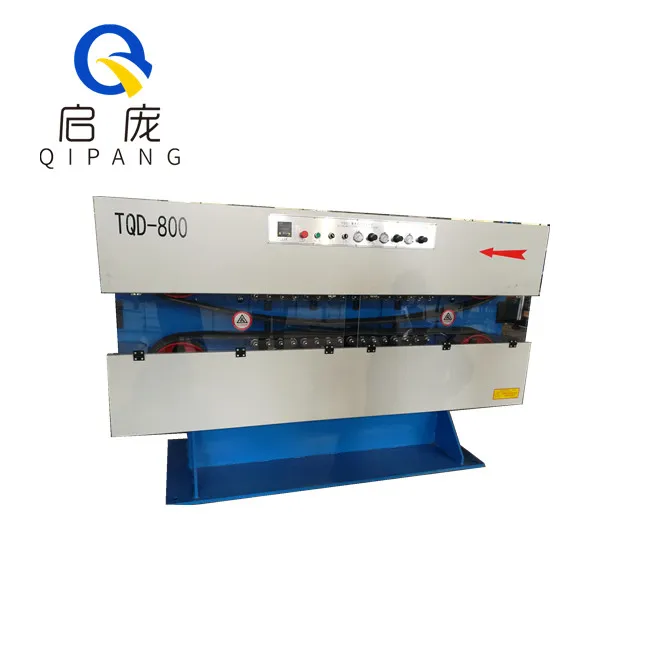

TQD 800 | 800 | ≤Ø 40 | 1150 | 80 | 4 | 120 |

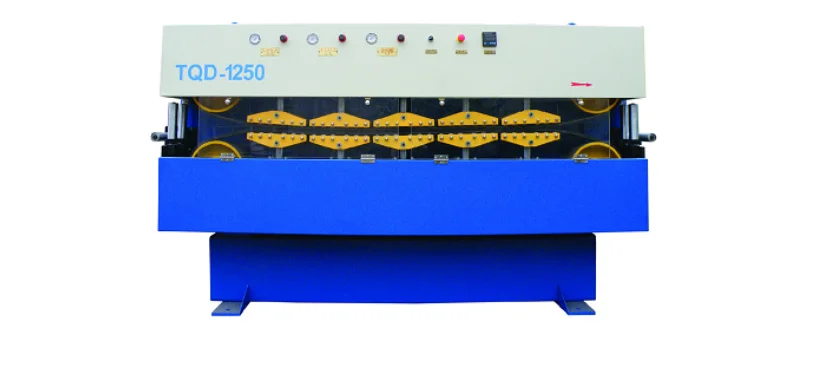

TQD 1250 | 1250 | ≤Ø 60 | 1600 | 120 | 5 | 100 |
TQD 1600 | 1600 | ≤Ø 80 | 1900 | 120 | 6 | 80 |
TQD 2000 | 2000 | ≤Ø 100 | 2300 | 120 | 7 | 80 |
TQD 2500 | 2500 | ≤Ø 120 | 2500 | 140 | 8 | 60 |
TQD 3200 | 3200 | ≤Ø 150 | 2800 | 140 | 9 | 60 |
TQD 4000 | 4000 | ≤Ø 180 | 3500 | 160 | 10 | 30 |
TQD 5000 | 5000 | ≤Ø 200 | 4000 | 180 | 11 | 30 |

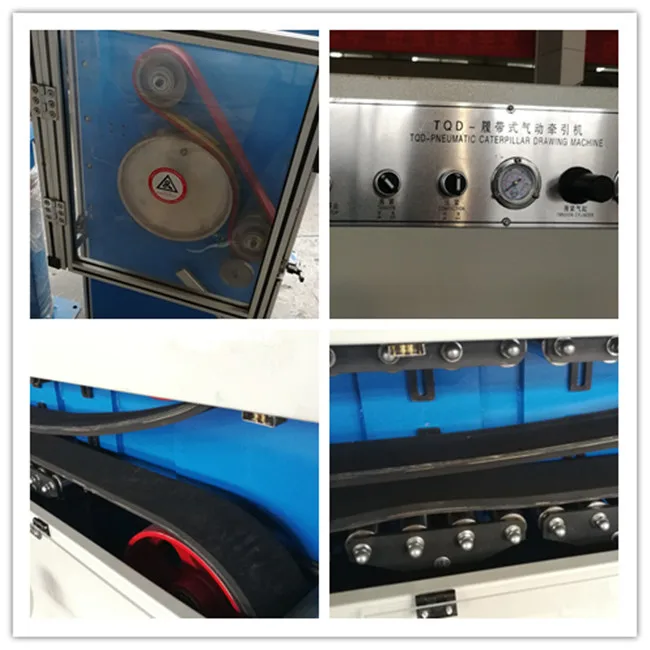

Detailed Images:

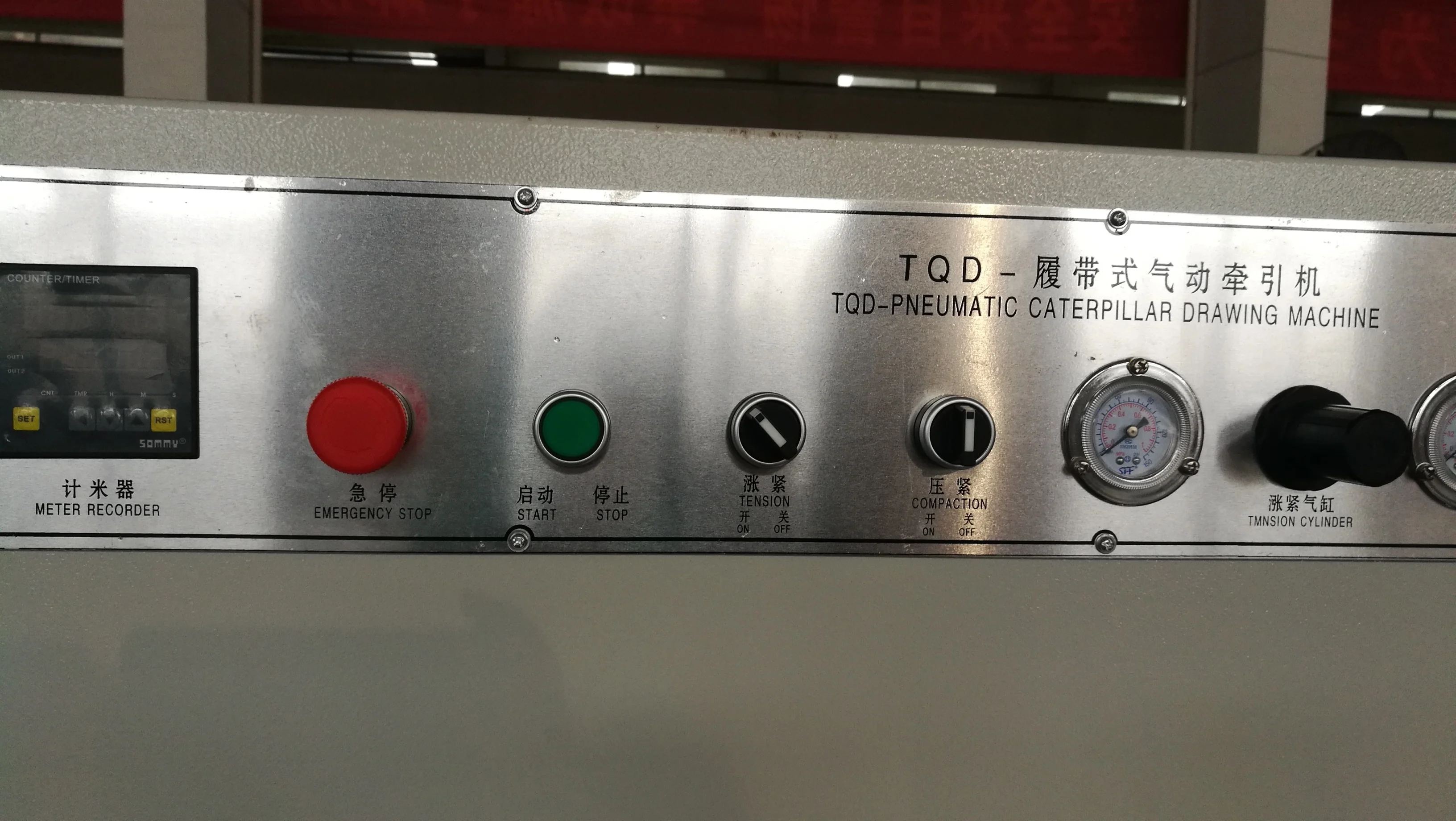

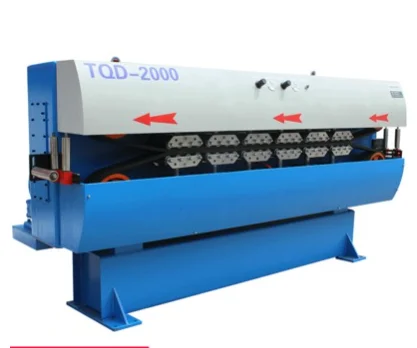

Pneumatic Capstan Wire & Cable Haul-off machine, Haul Off Machine/ CCV LINE FOR XLPE CABLE*
Company Profie
Shanghai QIPANG Industrial co., LTD is a professional research and development, manufacturing, sales of wire and cable equipment of high and new technology enterprise companies adhering to the loyalty, integrity, wise spirit, advancing with The Times, continuous learning advanced foreign technology, as well as customer feedback in practical operation experience of information, to continuously improve product innovation, the company's main: polished rod line machine, straightening machine, take-up machine, feeding machine, such as wire and cable industry related equipment, as well as the peripheral equipment research and development and manufacturing.
FAQ
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Похожие товары

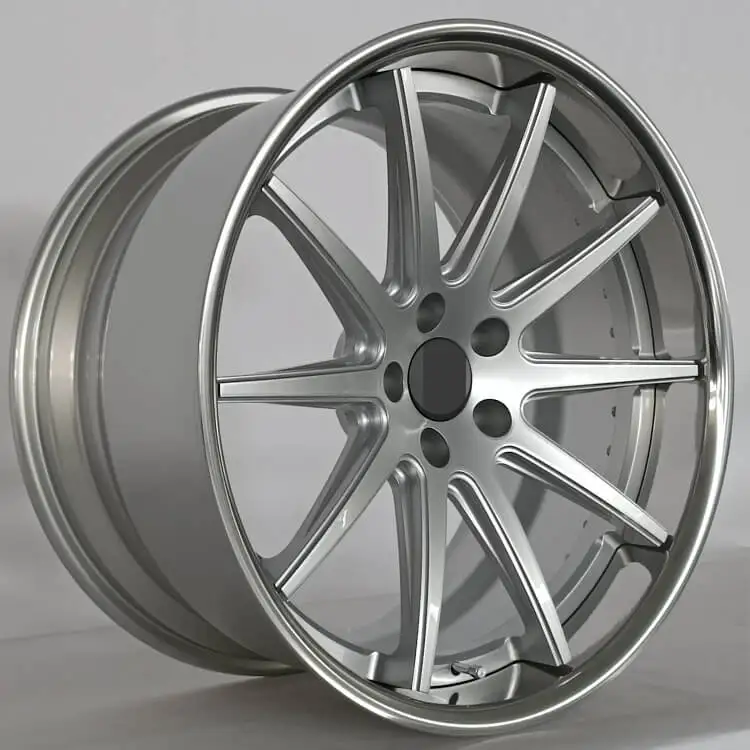

2 штуки, 10 спиц, колесные диски Rin 19 20 21x85 22x12-44 5127 51143 5x114 5x100 5x115 вогнутые колеса
200,00 $ - 450,00 $
Высококачественные офтальмологические диагностические полоски с розами, бенгальские, больничные, по оптовой цене
6,50 $ - 9,00 $
Свитер женский из 100% хлопка
4,00 $ - 7,00 $

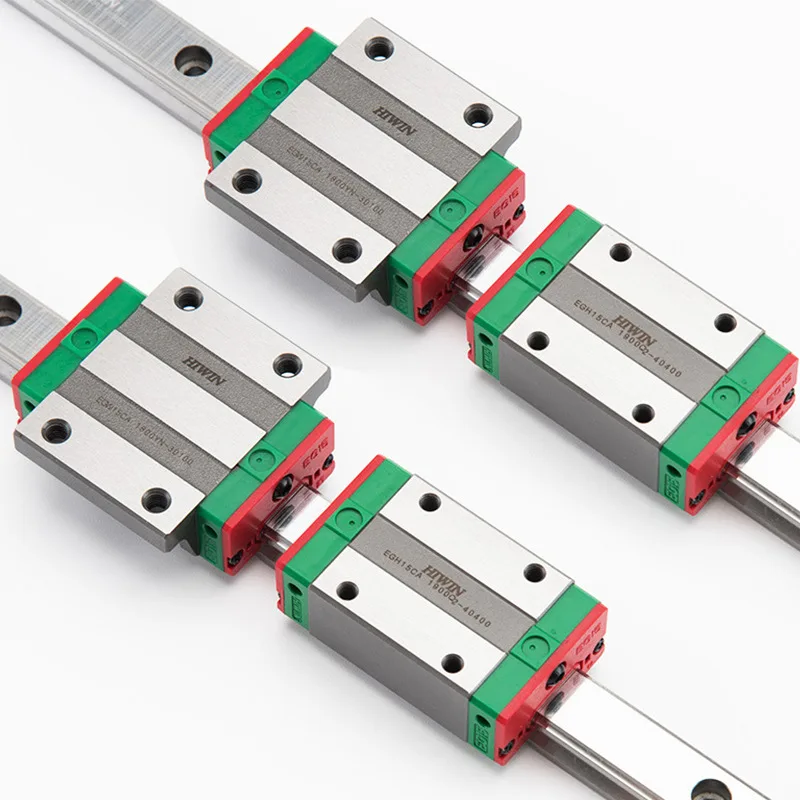

Роликовые линейные направляющие 1000 мм рейка RGH25 RGW25 RGR25 RG25 RG25R Длина 1000 мм
76,00 $ - 78,00 $

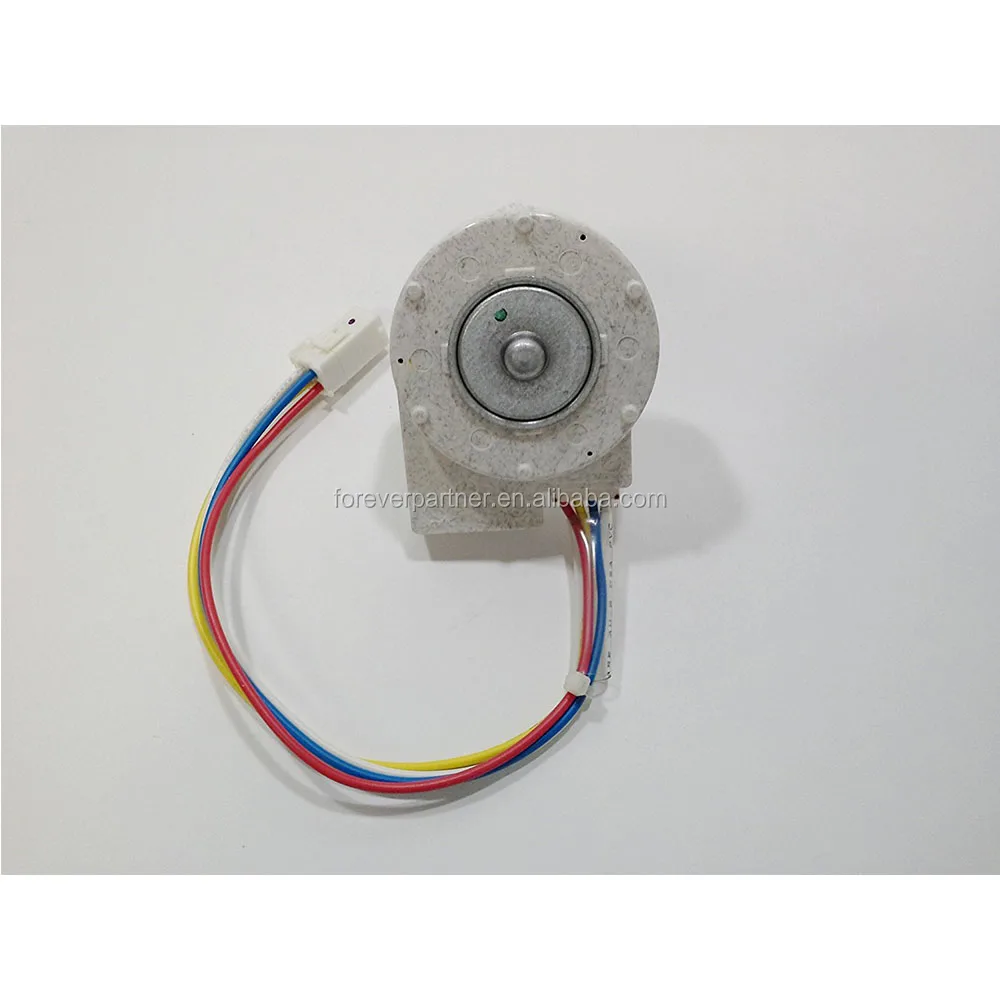

Двигатель вентилятора испарителя WR60X10155 для холодильника wr60x10042, WR60X10053, WR60X10065, WR60X10080, WR60X10081, WR60X10155, WR60X1
Новая Современная Художественная креативная дизайнерская стеклянная люстра в форме облака для столовой, гостиной, лестницы, украшение, изысканный светодиодный подвесной светильник
16,80 $ - 32,50 $

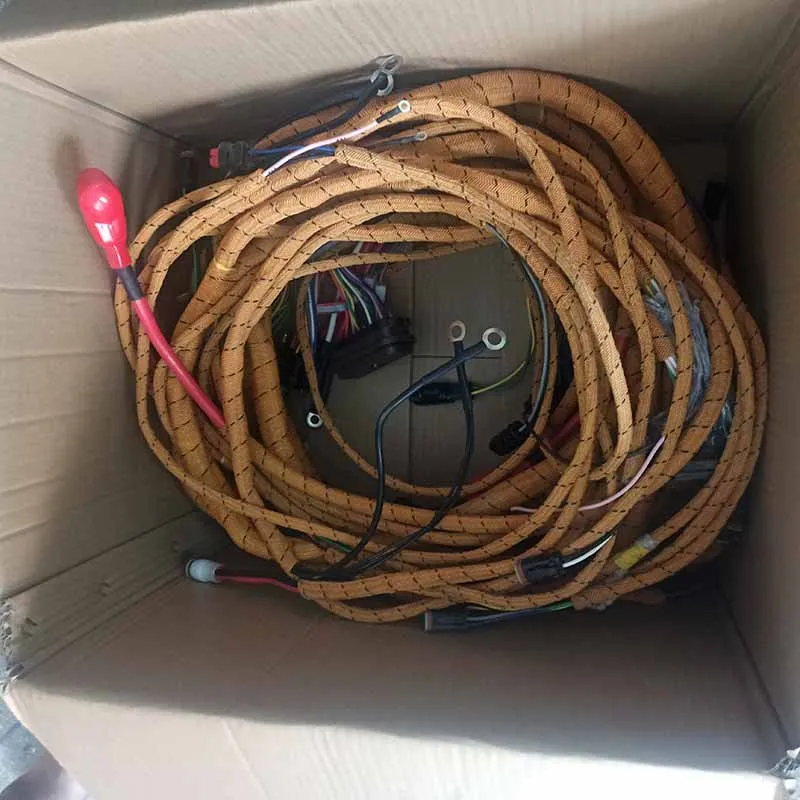

Кота 324D 325D 329D C7 жгут проводов шасси в сборе для экскаватора запчасти 283-2932 366-9320 2832932 3669320
