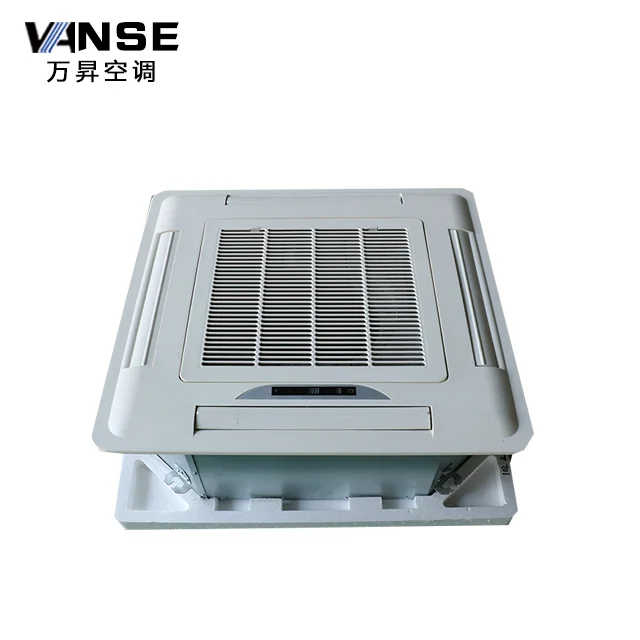

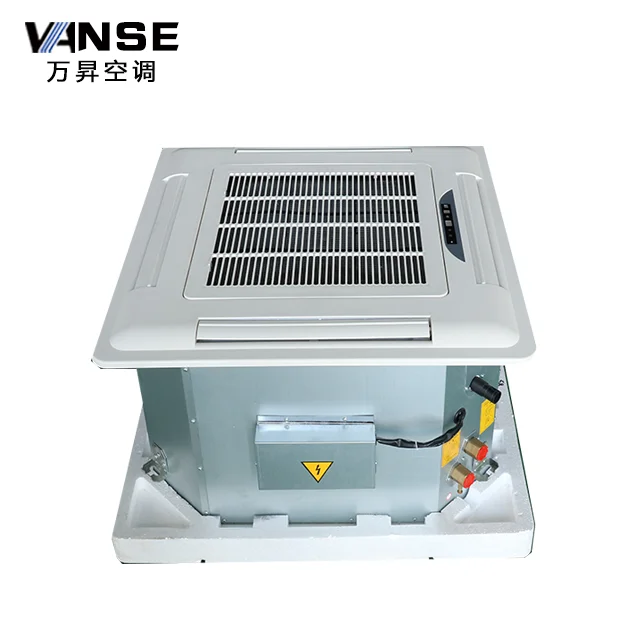

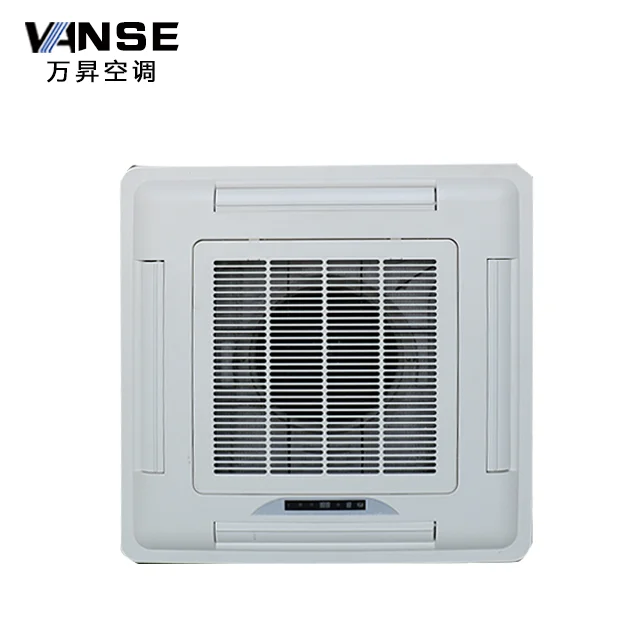

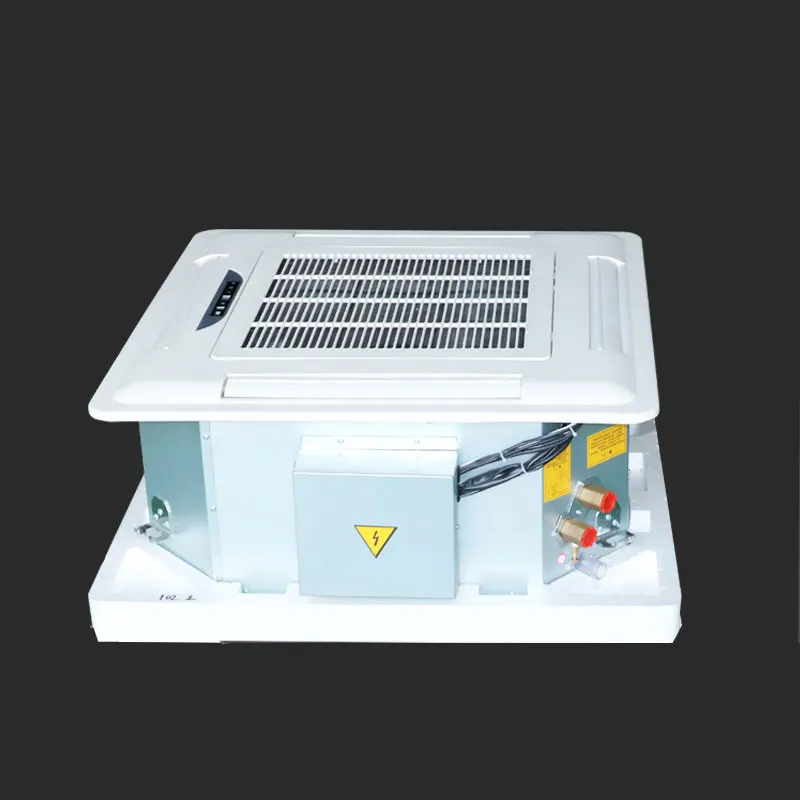

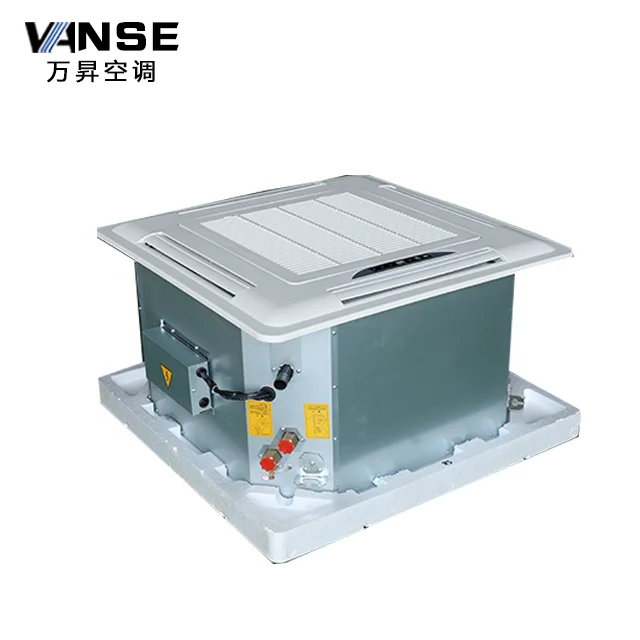

Efficient customized small 4-way box chilled water fan coil unit for cold end device
Model and performance |
| FP-34 | FP-51 | FP-68 | FP-85 | FP-102 | FP-136 | FP-170 | FP-204 | FP-238 |
Rated air flow m3/h | high | 340 | 510 | 680 | 850 | 1020 | 1360 | 1700 | 2040 | 2380 |
Medium | 280 | 390 | 520 | 640 | 790 | 1030 | 1290 | 1500 | 1800 | |
low | 180 | 260 | 350 | 430 | 520 | 690 | 860 | 1030 | 1200 | |
Rated cooling capacity W | high | 1980 |
| 3680 | 4980 | 5580 | 7200 | 9900 | 10800 | 12600 |
Medium | 1631 | 2279 | 2814 | 3750 | 4322 | 5534 | 7512 | 8088 | 9681 | |
low | 1048 | 1519 | 1894 | 2519 | 2854 | 5534 | 5008 | 5554 | 6454 | |
Rated heat W | high | 2980 | 4800 | 5480 | 7200 | 8180 | 10800 | 14500 | 16200 | 18900 |
Medium | 2454 | 3671 | 4191 | 5421 | 6335 | 8179 | 11005 | 12353 | 14521 | |
low | 1578 | 2447 | 2821 | 3600 | 4481 | 5479 | 7335 | 8482 | 9681 | |
The input power | W | 34 | 50 | 58 | 72 | 92 | 126 | 128 | 152 | 198 |
The amount of water m3/h | 0.42 | 0.52 | 0.62 | 0.86 | 0.98 | 1.08 | 1.58 | 1.78 | 1.92 | |
Water press loss Kpa | 14 | 14 | 16 | 18 | 22 | 25 | 39 | 44 | 46 | |
Motor number | 1 | 1 | 1 | 1 |
| |||||
power | 220V~240/50HZ |
Shandong Vanse Air Conditioning Equipment Co., Ltd.Main Business scope1.Chiller and heat pump series:* Water-cooled series: Centrifugal cold(hot )water units,Screw Ground(water)source heat(cold)units, Scroll Ground(water)source heat(cold)units,Water loopunits.* Air-cooled series: Screw cold(hot) water units,Module cold(hot ) water units,Villa-use cold(hot) water unit,VRV series units, Rooftop packaged unit, Rooftop split unit.* Unit style series: Constant temperature humidity units,Air(water) cooling unitary air conditioning units, Dehumidification units.2.Terminal series: Purfy Air Conditioning,Combined air handling unit,Fresh air handing units, Fan Coil Series.3.Ventilation series: Fire fighting exhaust fan, Roof ventilator Axial flow fan,Diagonal fan,centrifugal fan and so on.4.Cooling tower series:All kinds of FRP draft cooling tower,Stainless steel cooling tower.5.Air-conditioning auxiliary:Cyclone desander,Water knockout drum(collector),Dirt separator,Water Softener Plant,Plate heat exchanger units, Constant pressure equipment.6.Air Conditioning Parts:All kinds of fire dampers,Regulating valves,Tuyere series.7.Other products:Low temperature industrial water chiller units, Freezing and refrigerating equipment ,Planting and breeding air-conditioning equipment.B. Engineering construction:Mechanical and electrical equipment installation,Fire engineering,Decoration and cecorating,EquipmentMaintenance and Repair, and all kinds of qualifications related to those above mentioned.with well-equipped testing facilities and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in many industries.Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
We'll show you the photos of the products and packages before you pay the balance.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
A: Generally, it will take 15 to 30 days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
We can build the molds and fixtures.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
