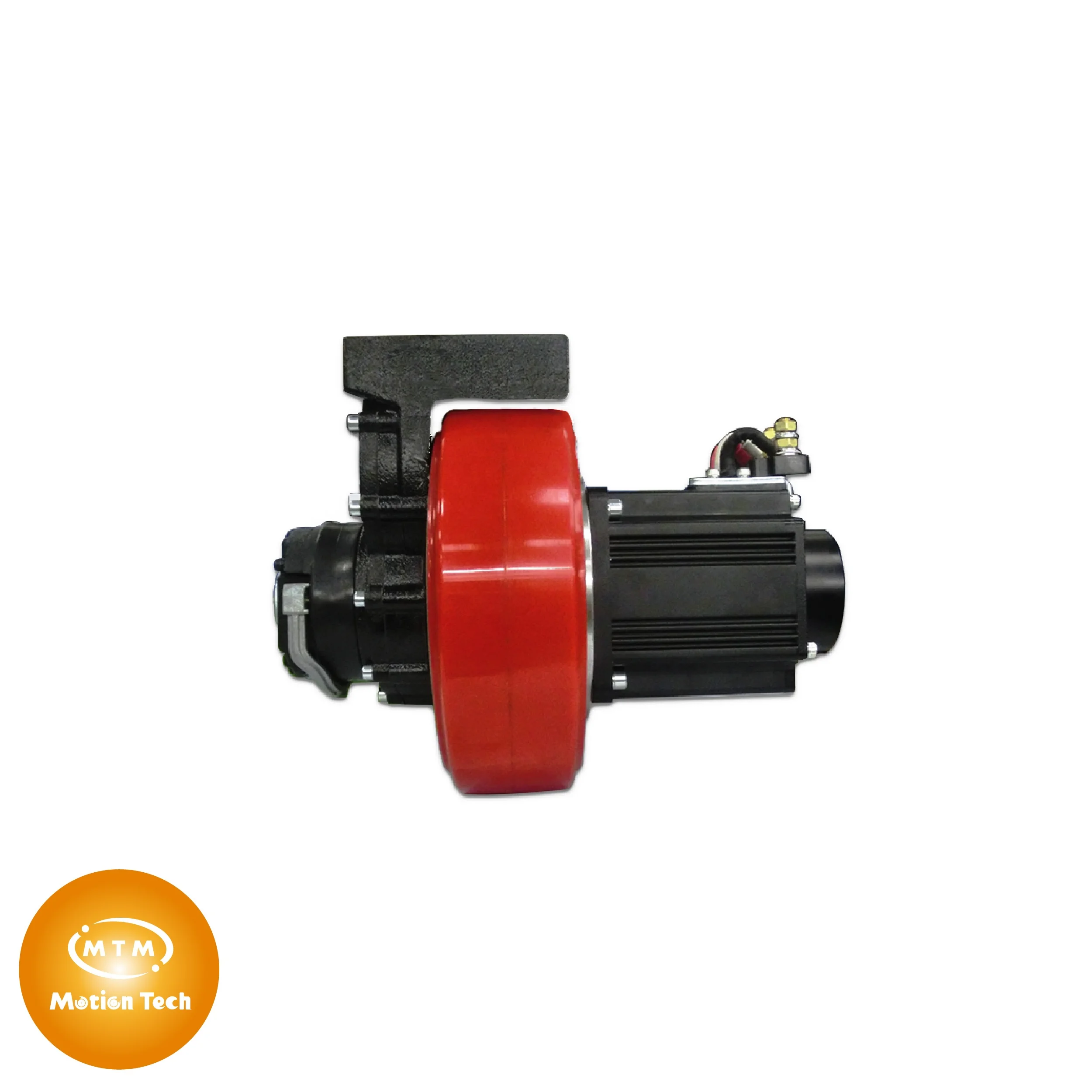

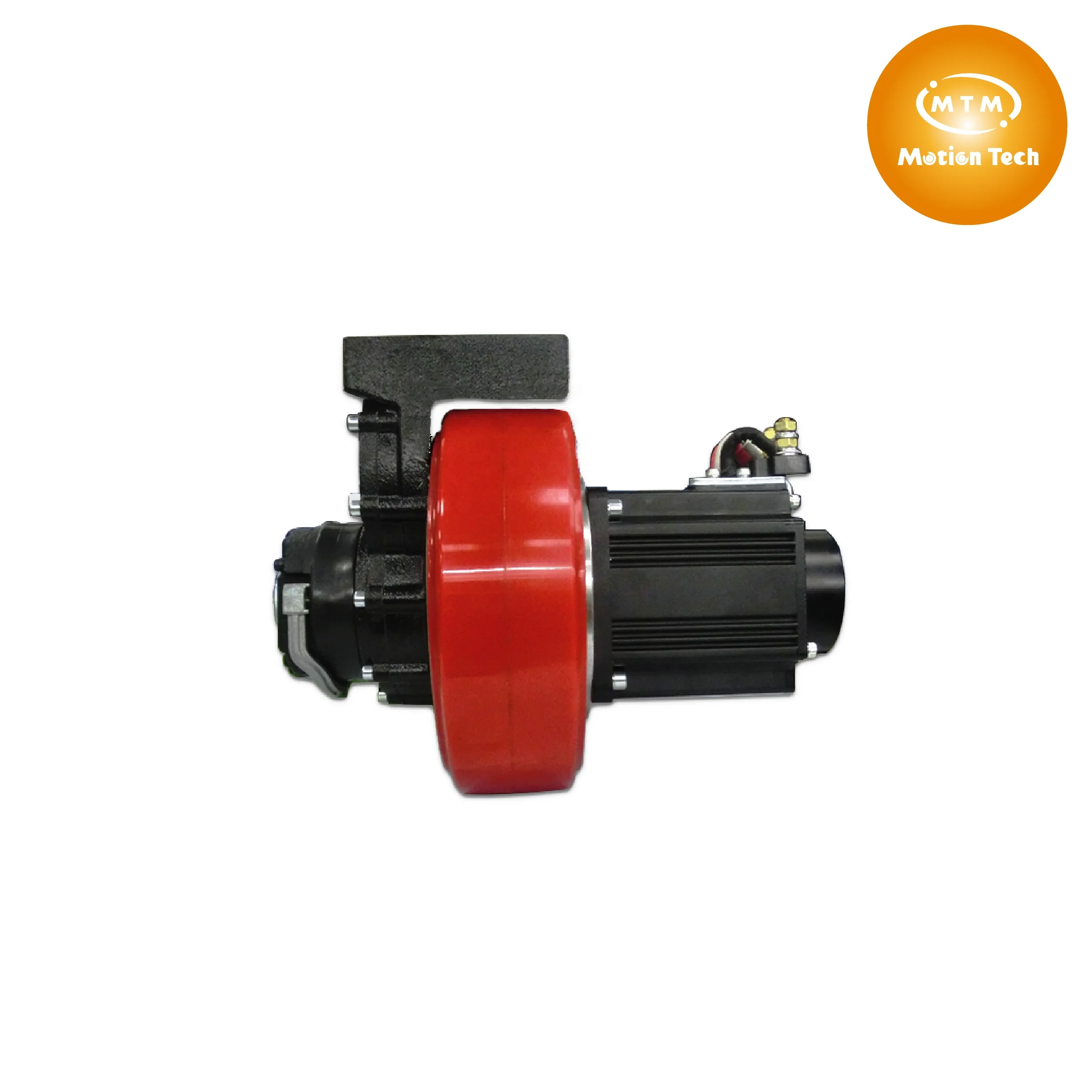

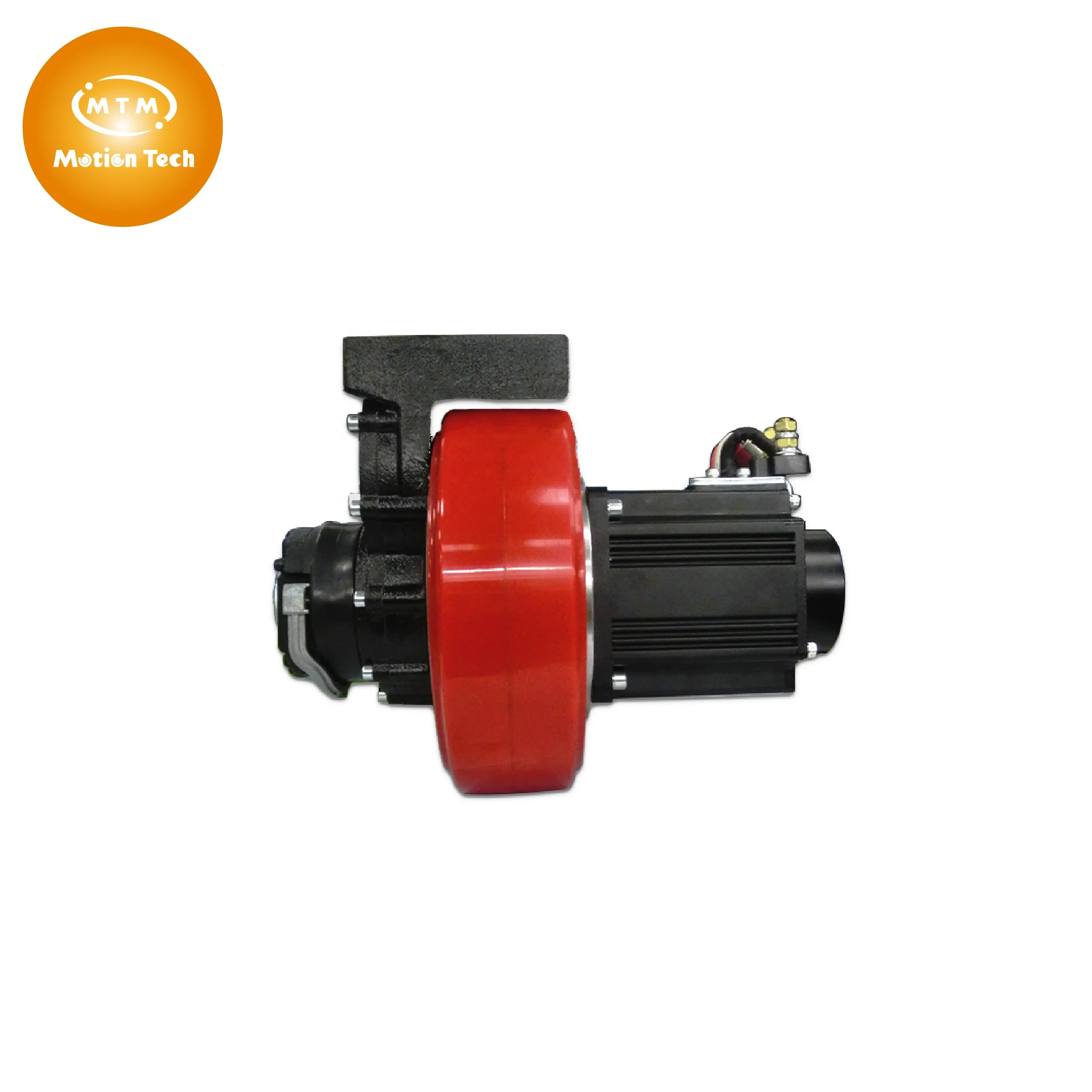

[MTM] 1:35.7 приводное колесо 48V 1.5kW agv мотор Сделано в Тайване IE4 bldc бесщеточный двигатель с электрическим стартером мотора тормоза

Сохранить в закладки 62562288022:


Цена:1 060,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description


Simple but Tough
Motor: 24V / 1KW / 3000RPM
Gearbox Ratio: 1:37.5
Motor Controller: Rated 58.3A
Rated Output: 3000RPM / 0.32 N-m
Recommend AGV Load + Weight: 1000 ~2000KG


Product Paramenters




Certifications






Packing & Delivery




About BLDC Series


From 15W to 9000W
MTM have a complete BLDC product line from 15w to 9000w, from 100rpm to 8000rpm, from 12VDC to 96VDC, from 100VAC to 220VAC.
Standard BL42 products: 15W~30W
Standard BL60 products: 40W~120W
Standard BL90 products: 100W~500W
Standard BL104 products: 400W~1000W
Standard BL130 products: 1000W~2000W
Standard BL180 products: 2000W~9000W
Optional Power off brake: 2N-m~10N-m
Gearbox motor is available from 40W~7000W


Model
Rated Power(W)
Rated Voltage(V)
Rated Torque(N-m)
Rated Speed(RPM)
Brake
With Driver
No Driver
BL180L
5500
48VDC
23.9
2000
x
BL180M
3500
48VDC
16.7
2000
x
BL180S
2000
48VDC
9.6
2000
x
BL130M
2000
48VDC
6.4
3000
x
1000
48VDC
6.4
1500
10N-m
BL130N
1500
48VDC
4.8
3000
10N-m
1000
24VDC
3.2
3000
5N-m
BL104L
1000


48VDC

3.2
3000
x
link
1000
48VDC
3.2
3000
x
link
BL104M
750
48VDC
2.38
3000
x
750
48VDC
2.38
3000
6N-m
BL90L
500
48VDC
1.6
3000
x
500
48VDC
1.6
3000
4N-m
350
24VDC
1.8
1800
x
350
24VDC
1.8
1800
4N-m
BL90M
350
24VDC
1.1
3000
x
350
24VDC
1.1
3000
2N-m
BL90N
200
24VDC
0.64
3000
x
BL90S
150


24VDC

0.48


3000

x
BL60L
120


24VDC

0.39


3000



x

BL60M
80


24VDC

0.26


3000



x

BL60S
40


24VDC

0.13


3000



x

BL42M
30


24VDC

0.1


3000



x

BL42S
15


24VDC

0.05


3000



x



Applications


Brush motor is our root, Servo motor and brushless motor is our future.
The main product of MTM is for vehicles with low voltage DC power. If you are looking for a DC power servo motor, BLDC, brush motor or gearbox, MTM is your best choice.


Company Profile


About MTM
ISO 9001, ISO 14001 AUTHORIZED.
Motion Tech is the leading role in motor industry in Taiwan and leading brand of medical electric wheelchair, E-scooter all over
the world.. We devote to manufacture PMDC motors and BLDC motors since 2002.The main products of MTM is power module which
included motor, gearbox and motor controller. MTM provide customization service which included design, test and manufacture to
create a product with quality, efficiency and reliability.
