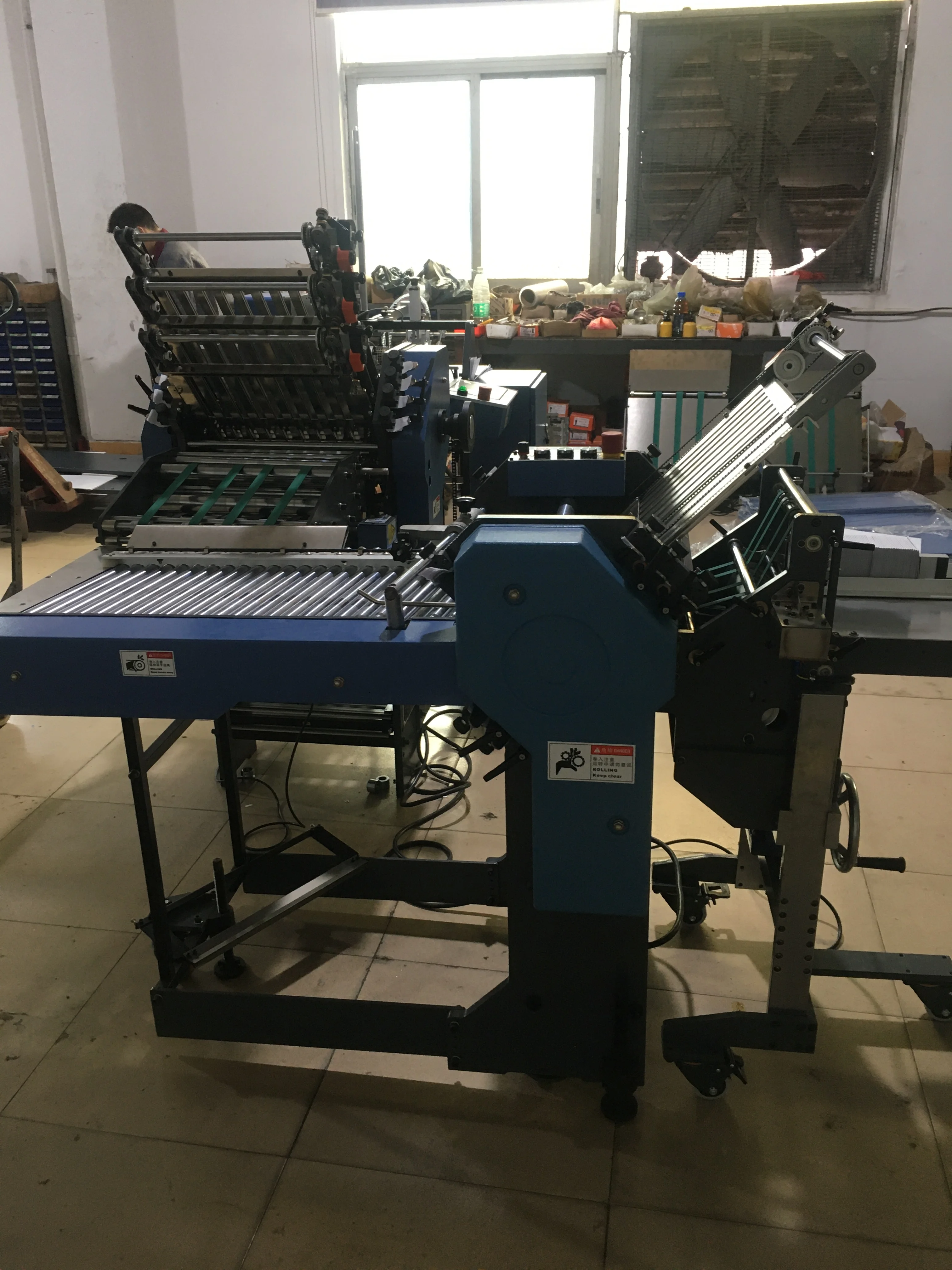

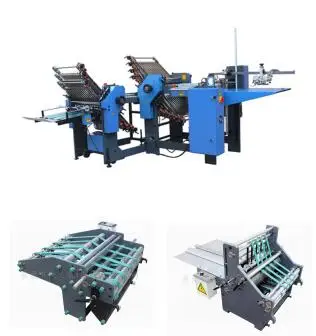

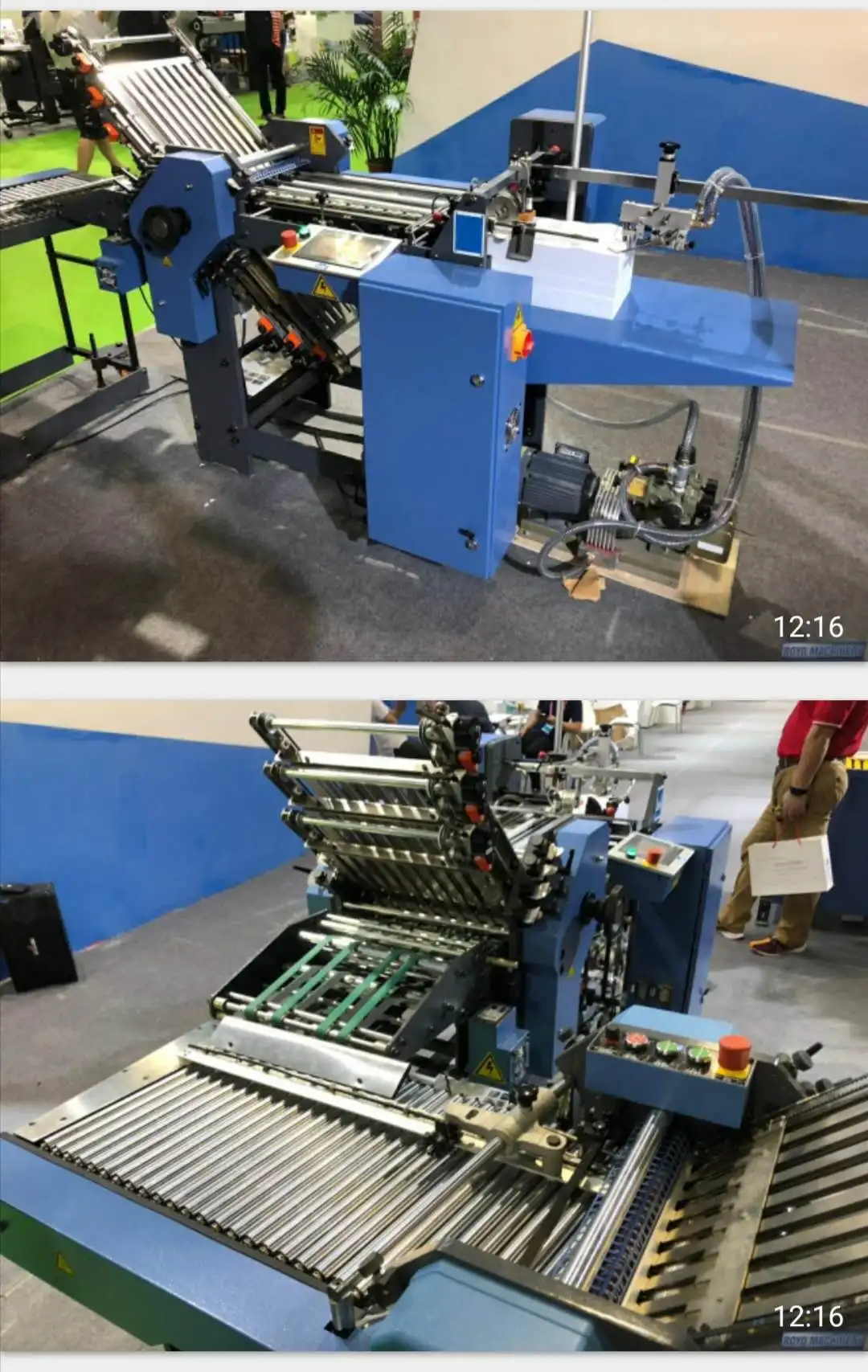

Автоматическая машина для складывания медицинской бумаги ZL360T

Сохранить в закладки 62567127065:


Цена:30 600,00 $ - 31 600,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики


Automatic medical instruction paper folding machine ZL360T


010  Electronic Feeder/Air sending paperVKD360T


VKD360T 6buckles+6buckles+transational station + vertical stacker


Max sheet size: 360X750MM  Mini sheet size:50X100MM  Mini finished size:20X50MM


Thickness: 40-180GMS


Electronic feeder/Double paper controller/Pump


Electronic paper counter (can be set)





020 Controller system


Electronic control/Computer Operation





030 Buckle system


Fixed buckles


Diameter of roller 32MM


Diameter of cutter 32MM


Width of working 360MM


No of buckles 12


Buckles can be moved according to the requirements.





040 Special processed roller (Imported material which is same as STHAL machine. hardness 12).bearing imported from Japan. and main electronic machine is siemens. Omron. Schneider.





050 Transporter device


Electronic Motor drive


Width of working 360mm





060 Professional medicine and mini instruction book cutter. total six kinds of cutter





070 The main machine and the paper collector can be put according to customers needs


Width of working 360mm





090 Can be adjust for the smaller size paper products


Mobile Phone /Wechat/0086 13795293655

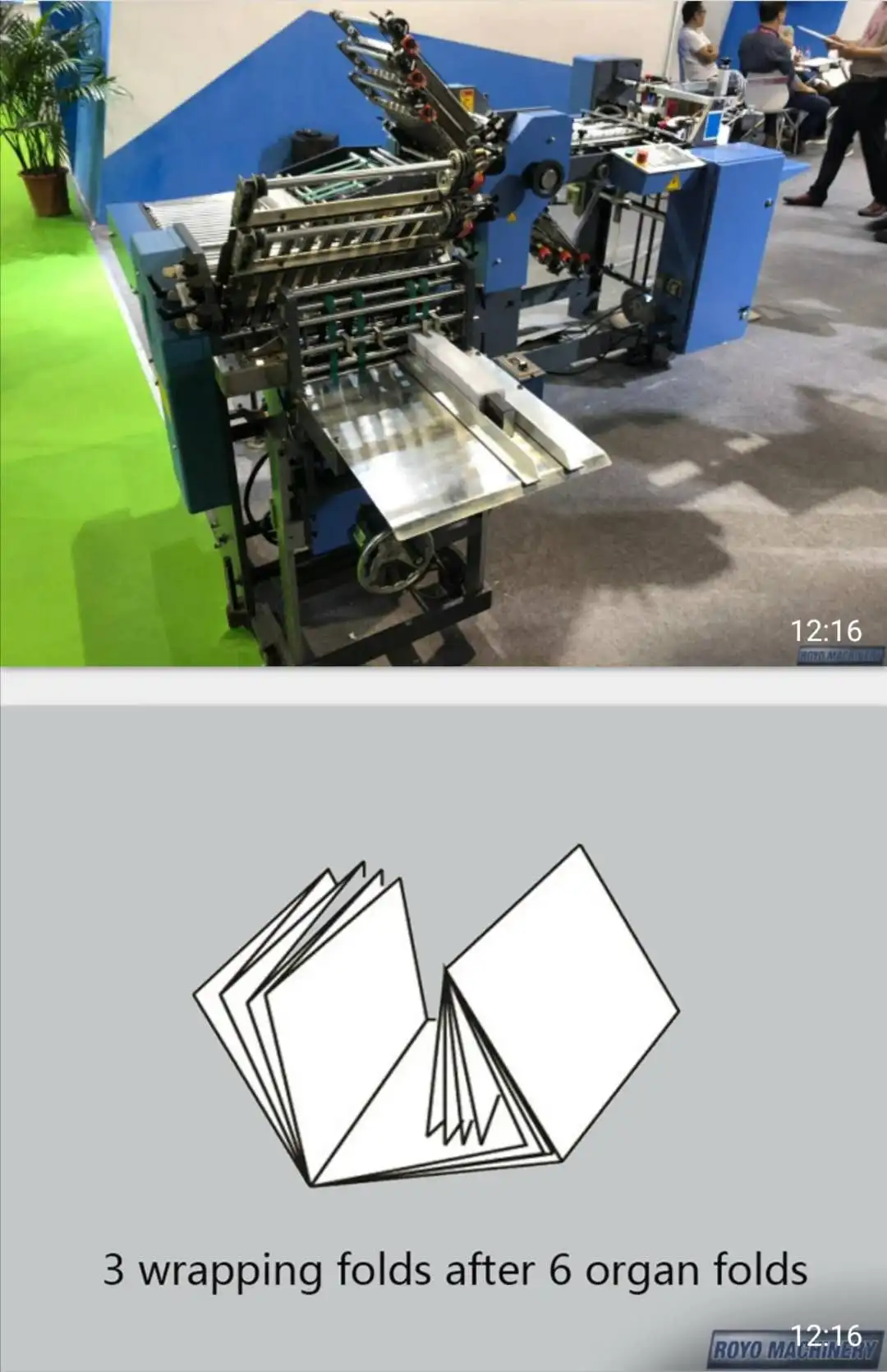

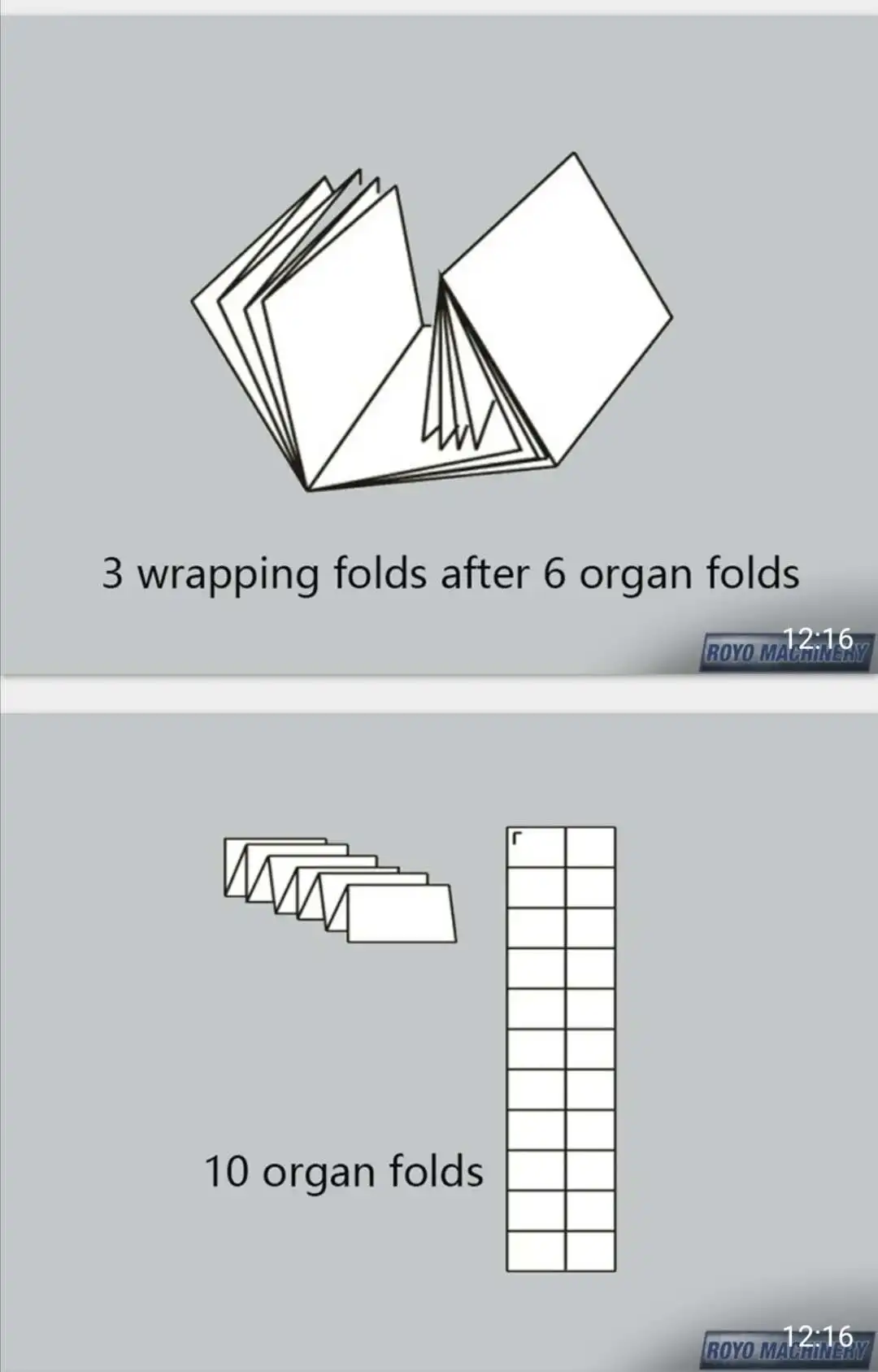

It is broadly used for folding various kinds of presswork.The main machine is composed of 6buckles+6buckles configuration.The first fold composed of 6buckles can carry out 6times organ fold.and the second organ fold whose comb tail is composed of 6buckles which can be placed parallel or transversal with the main machine for 6times organ fold.
