Ebyte SX1262 LoRa модуль беспроводного последовательного порта 230 м комплекты тестовых плат E22 230TBH 01 USB макетная плата МГц беспроводной

Ebyte SX1262 LoRa модуль беспроводного последовательного порта 230 м комплекты тестовых плат E22 230TBH 01 USB макетная плата МГц беспроводной

Категория: >>>
Поставщик: Chengdu Ebyte Electronic Technology Co. Ltd.

Цена:14,29 $ - 15,78 $*

Количество:

В избранное

Описание и отзывы

Характеристики

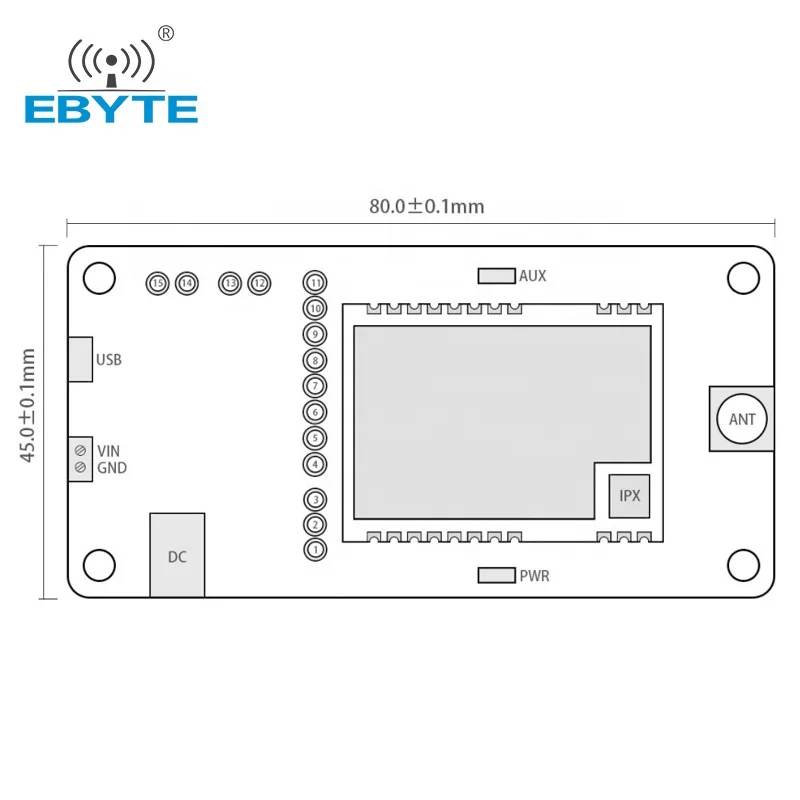

Ebyte SX1262 LoRa wireless serial port module 230M test board kits E22-230TBH-01 USB development board 230MHz wireless rf module

Product Description

E22-230T30S Parameter is blelow:

Click here to buy this module

RF Parameter	Value	Remark
Working frequency	220.125~236.125 MHz	Support ISM band
Transmitting power	30 dBm	Max. Power (1W)
Receiving sensitivity	-148 dBm	Air data rate is 2.4kbps
Air data rate	0.3k~15.6kbps	Controlled via user's programming
Test distance	10000m	Test condition：clear and open area, antenna gain: 5dBi，antenna height: 2.5m，air data rate: 2.4kbps

Electronic parameter	Min.	Typ.	Max.	Unit	Condition
Power supply	3.3	5	5.5	V	≥5.0 V ensures output power
Communication level	-	3.3	-	V	For 5V TTL, it may be at risk of burning down
Transmitting current	-	530	-	mA	Instant power consumption
Receiving current	-	17	-	mA
Sleep current	-	2	-	μA	Software is shut down
Operating temperature	-40	20	85	℃
Operating humidity	10	60	90	%
Storage temperature	-40	20	125	℃

Company Information

We research and develop various productswith diversified firmware;
Our catalogue covers WIFI, BLUE TOOTH, ZIGBEE, wireless data transceivers etc.;
Our products are being applied in over hundreds of contries and regions globally;
We have obtained various of patents and software copyrights, and have acquired FCC, CE, RoHs etc.

Packing&Shipping

1. Delivery will be arranged by DHL/UPS/Fedex/TNT/EMS,normally it will take 3-7 working days to arrive in most countries.
2.We can also help you ship the goods by air line,then you need to go to Air port totake it ,it takes about 2-7 days to arrive ;
3.If goods are large quantity and you not need the goods so urgently ,you can choose by sea to save some freight cost which takes about one month to arrive.
4.We can accept the payment method such as Paypal/Credit card/ L/C and T/T.

Client Feedback

FAQ

Q: Are you trading company or manufacturer ?
A: We are manufacturer.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we provide sample, customer need to pay for the express fee.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=3000USD, 50% in advance ,balance paid before shippment.

Q: Can I design new products by myself?
A: Yes, we can customize new products and new design for you.

Q: How can we guarantee our products quality?
A: 1.For every finished product, should have passed more than hundred times of inspection, because QC checking on each production
process.
2.We suggest you to buy a sample first before placing a big order.
3. If any quality problems are proved to be our responsibility, we will try our best to settle this issue and satisfy you.
4.We provide 1 year warranty, if you have any problems in the use of products, please contact to your sales person.
