Заводские поставки серия GFG Высокоэффективная Вибрирующая Жидкостная платформа для пищевой промышленности

Описание и отзывы

Характеристики

Factory supplies GFG series high efficiency vibrating fluid bed drier for foodstuff industry

Applications:

1.The granules is produced by screw extraded granulator, swaying granulator or high speed mixing granulator.

2.Pharmaceutical, foodstuff, feed, chemical industries and so on fields.

3.Large granules, small blocks and adhesive material.

4.The material that volumes might vary different during drying process

Features:

1.The structure of fluidization bed is round so as to avoid dead corner.

2.Inside the hopper there is a stir in order to avoid agglomeration of raw material and forming canal of flow

3.The granule is discharged through the method of turning over. In this way it is very convenient. The discharging system can be designed as request too.

4.It is operated at the conditions of negative pressure and seal. The air is filtered.

5.Therefore it is simple in operation and convenient in clean. It is an idea equipment that is in conformity with the requirement of GMP

6.The drying speed is fast and the temperature is uniform. In general the drying time is 20~30 minutes.

Principle:

Purified and heated air is immited from the bottom by fan and passed through the screen plate of hopper. In the work chamber, the state of fluidization is formed through stirring and negative pressure.

The moisture is evaporated and removed rapidly and the raw material is dried quickly.

Technical parameters

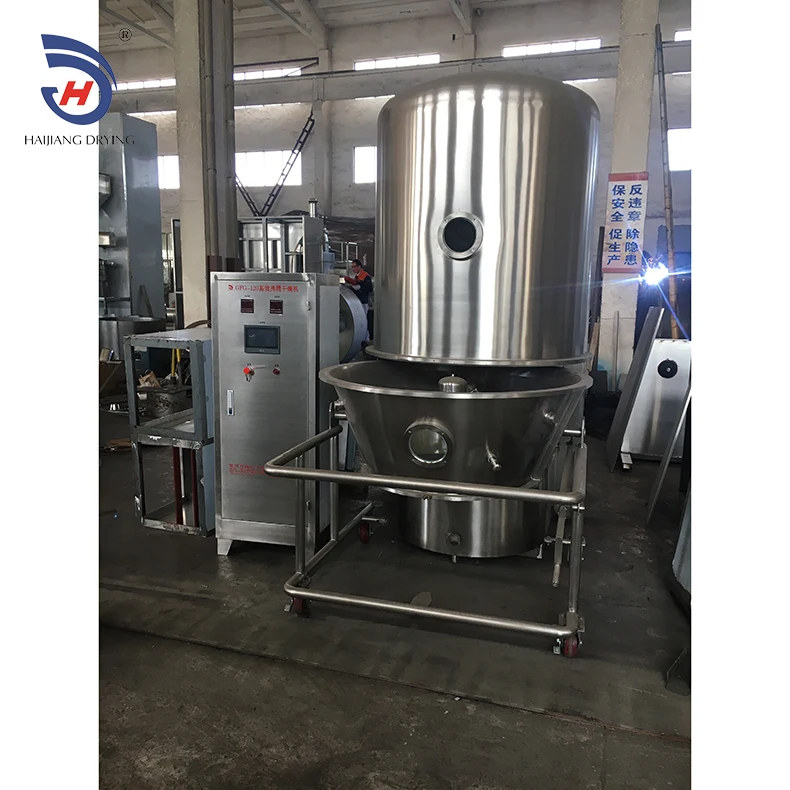

Detailed picture
