Контроллер двигателя крутящего момента QIPANG LJKY трехфазный регулятор напряжения
- Категория: >>>
- Поставщик: Shanghai Qipang Industrial Co. Ltd.
Сохранить в закладки 62572663644:
Описание и отзывы
Характеристики
Product Description

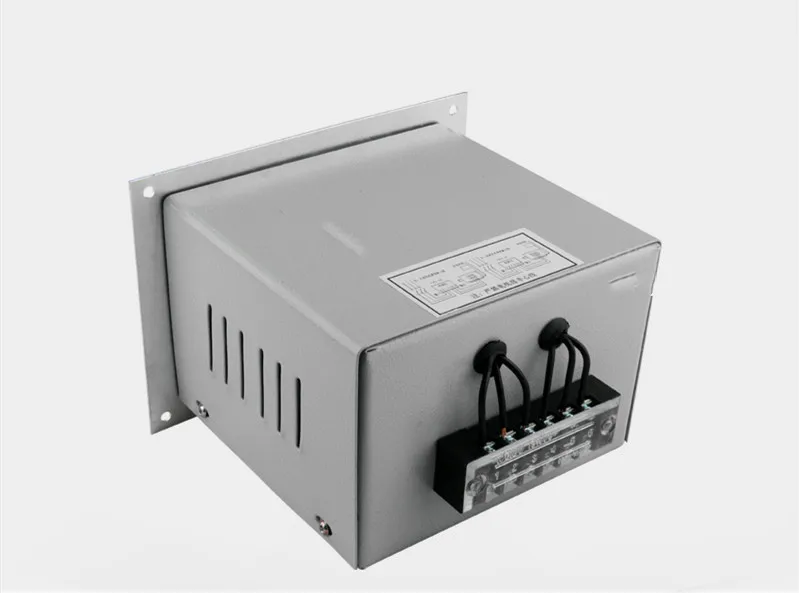

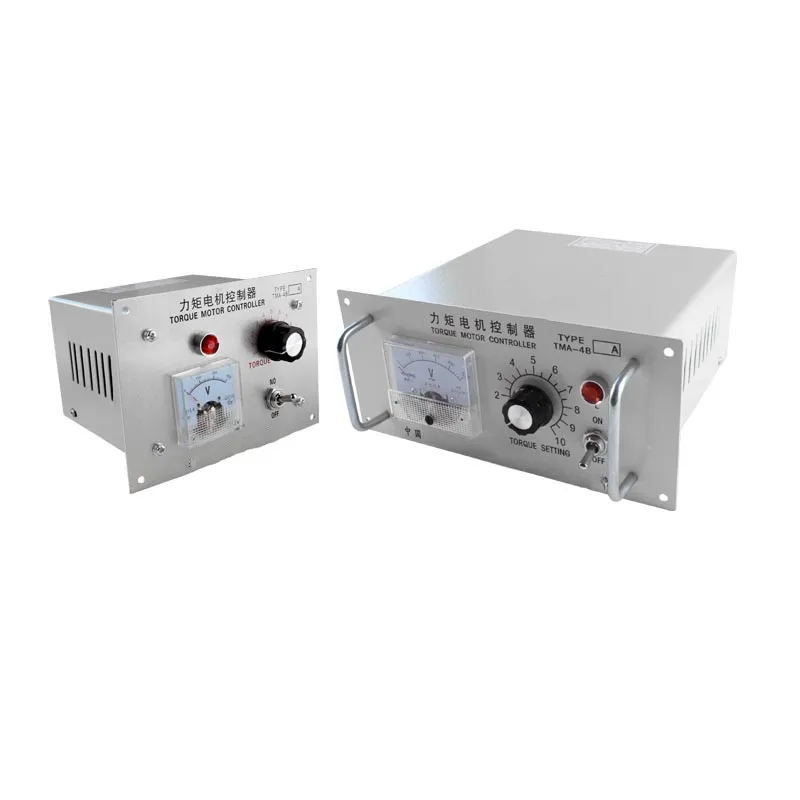

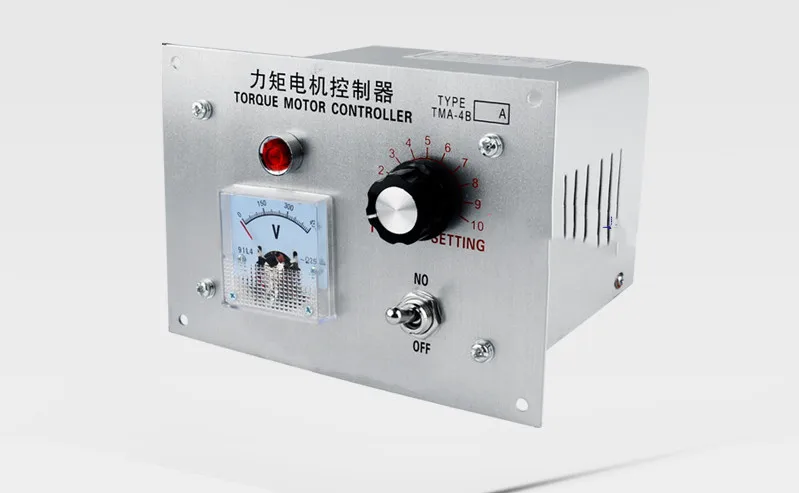

QIPANG LJKY torque motor controller three-phase torque motor governor torque motor voltage regulator
Thiscontroller is an advanced electronic control device specially designed to replace the three-phase autotransformer.Adopt imported bidirectional SCR, change the open Angle size of SCR, make the working voltage of motor or other load continuously adjustable from 0 to 380V, also realize the balanced ground voltage regulation and speed regulation process, to meet the different production processre quirements.And can work in resistance, inductive load, widely applicable to hardware machinery plastic, wire, cable,rope mesh, printing, papermaking, textile, printing and dyeing, chemical fiber, rubber, film rubber, and other machinery,mechanical and electrical industries.
Compared with the three-phase self-coupling voltage regulator, the controller has good starting performance due to the use of electronic regulation, no contact wear, voltage regulation balance.And with small size, light weight, high efficiency, small heat, energy saving (measured average energy saving more than 17%), long service life, installation, maintenance convenience.
Compared with the three-phase self-coupling voltage regulator, the controller has good starting performance due to the use of electronic regulation, no contact wear, voltage regulation balance.And with small size, light weight, high efficiency, small heat, energy saving (measured average energy saving more than 17%), long service life, installation, maintenance convenience.
Specification

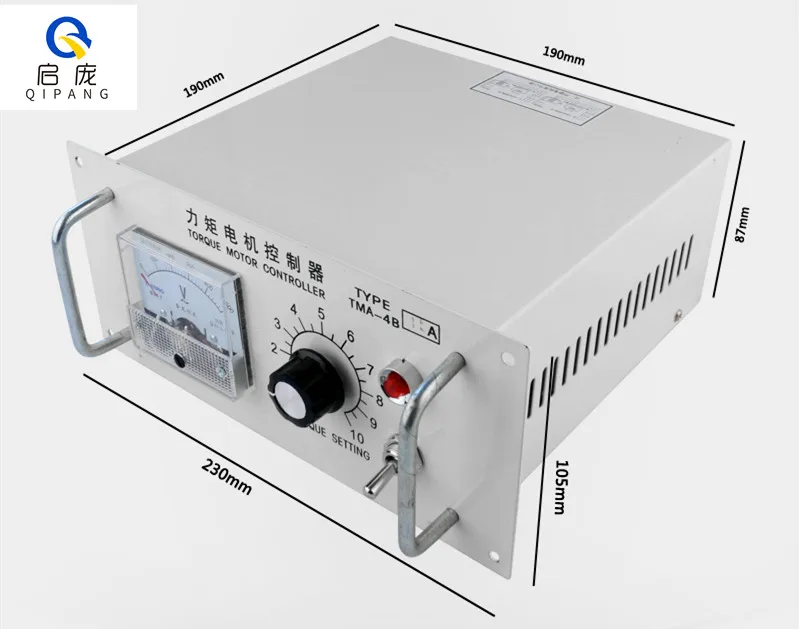

Product power | Panel size | hole size |
6A-12A | 160*115mm | 145*100mm |
15A-40A | 230*105mm | 205*92mm |
50A-80A | 300*130mm | 205*92mm |
Model No. | Input voltage | Out voltage | Max current | Three phase error |
LJKY -II10A | AC 380V | 0V(90V)-380V | 10A | ±10% |
LJKY -II20A | AC 380V | 0V(90V)-380V | 20A | ±10% |
LJKY -III20A | AC 380V | 0V(60V)-380V | ±3%20A | ±3% |
LJKY -III30A | AC 380V | 0V(60V)-380V | 30A | ±3% |
LJKY -III40A | AC 380V | 0V(60V)-380V | 40A | ±3% |
LJKY -III50A | AC 380V | 0V(60V)-380V | 50A | ±3% |
LJKY -III80A | AC 380V | 0V(60V)-380V | 80A | ±3% |
Usage:
This product is used in metallurgy, printing, petrochemical, textile, plastic, wire and cable, paper, boilers, lifting, machine tools, general machinery and other industries in the winding device winding diameter from the beginning stage to the final stage of gradually increasing tension and the whole process line speed changes remain within the allowable range. Mostly for plastic packaging equipment!
Main Features:
Three phase motor adjust balance
●Turning on performance is good
●The introduction of voltage negative feedback technology make the torque more stable.
●Volume is small and weight is light
1.Torque motor control device (panel) is a new electronic voltage (open, loop) controlling equipment, which is characterized in that the tension is still maintained in the range even after a line speed changes, apply to keeping the winding.
2.The motor performance and coordination winding performance matching is ideal mechatronic torque motor supporting devices.
3.Controller (board) adopts SCR stepless voltage regulation to the torque motor, good starting performance, small size, light weight, high efficiency, easy installation, long service life.
4.This product is used in metallurgy, printing, petrochemical, textile, plastic, wire and cable, paper, boilers, lifting, machine tools, general machinery and other industries in the winding device winding diameter from the beginning stage to the final stage of gradually increasing tension and the whole process line speed changes remain within the allowable range.
5.Mostly for plastic packaging equipment!
This product is used in metallurgy, printing, petrochemical, textile, plastic, wire and cable, paper, boilers, lifting, machine tools, general machinery and other industries in the winding device winding diameter from the beginning stage to the final stage of gradually increasing tension and the whole process line speed changes remain within the allowable range. Mostly for plastic packaging equipment!
Main Features:
Three phase motor adjust balance
●Turning on performance is good
●The introduction of voltage negative feedback technology make the torque more stable.
●Volume is small and weight is light
1.Torque motor control device (panel) is a new electronic voltage (open, loop) controlling equipment, which is characterized in that the tension is still maintained in the range even after a line speed changes, apply to keeping the winding.
2.The motor performance and coordination winding performance matching is ideal mechatronic torque motor supporting devices.
3.Controller (board) adopts SCR stepless voltage regulation to the torque motor, good starting performance, small size, light weight, high efficiency, easy installation, long service life.
4.This product is used in metallurgy, printing, petrochemical, textile, plastic, wire and cable, paper, boilers, lifting, machine tools, general machinery and other industries in the winding device winding diameter from the beginning stage to the final stage of gradually increasing tension and the whole process line speed changes remain within the allowable range.
5.Mostly for plastic packaging equipment!
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profie
FAQ
Q1: Are you a factory or trading company?
We are a factory . We can promise you a short lead time and best price if you purchase our machine. We also have our own trading department.
Q2: How does the factory ensure products quality?
With Nearly 16 years experience in manufacturing winding machine, we have our own technology develop department and testing department.
Quality is the first priority. We have strict purchasing system to ensure the quality of spare parts. We have experienced workers to assemble and test machine.
Q3:How about your after-sale service?
We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone,webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.
Q4: What are your payment terms?
100%TT or prepaid 50% , balance 50% before shipping.
Q5: How can I get my order? How can I know you sent the goods?
We will send the goods by UPS, DHL, FedEx or sea shipment. After we sent the goods, we will give you the tracking number or other relative files for checking.
Q6 : Will you send the installed machine or machine parts?
We will install the machine and test the machine before delivery. And the machine can be used directly after receiving the machine.
Q7: Will you provide operation guidance for us?
We will send the instruction book with the machine and send you a video about how to operate the machine.
We are a factory . We can promise you a short lead time and best price if you purchase our machine. We also have our own trading department.
Q2: How does the factory ensure products quality?
With Nearly 16 years experience in manufacturing winding machine, we have our own technology develop department and testing department.
Quality is the first priority. We have strict purchasing system to ensure the quality of spare parts. We have experienced workers to assemble and test machine.
Q3:How about your after-sale service?
We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone,webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.
Q4: What are your payment terms?
100%TT or prepaid 50% , balance 50% before shipping.
Q5: How can I get my order? How can I know you sent the goods?
We will send the goods by UPS, DHL, FedEx or sea shipment. After we sent the goods, we will give you the tracking number or other relative files for checking.
Q6 : Will you send the installed machine or machine parts?
We will install the machine and test the machine before delivery. And the machine can be used directly after receiving the machine.
Q7: Will you provide operation guidance for us?
We will send the instruction book with the machine and send you a video about how to operate the machine.
Q8 : How long is the warranty period?
12 months warranty, we will send you free spare parts by air within one week if there are any quality problems.
12 months warranty, we will send you free spare parts by air within one week if there are any quality problems.
Похожие товары
Тюки для сухой рыбы, Норвегия, полный тюк/пакет для рыбы в наличии (сушеная треска), купить треску в наличии, размер 80/90
Бесконтактный Жидких Промышленных Короткий Импульсный Радарный Индикатор Уровня
Полностью автоматическая машина для собаки делая машину производитель Pet Жевать снэк-установка для пищевой промышленности

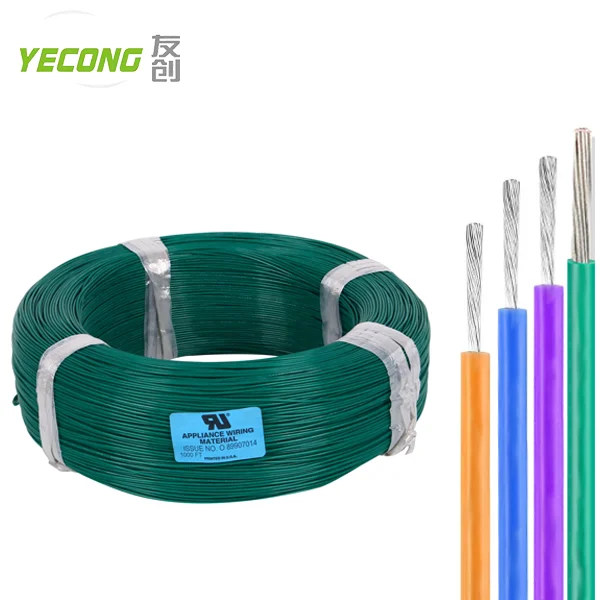

Посеребренный тефлоновый провод из ПТФЭ 28 awg 600 В, изоляционный кабель ПТФЭ
0,08 $ - 0,80 $

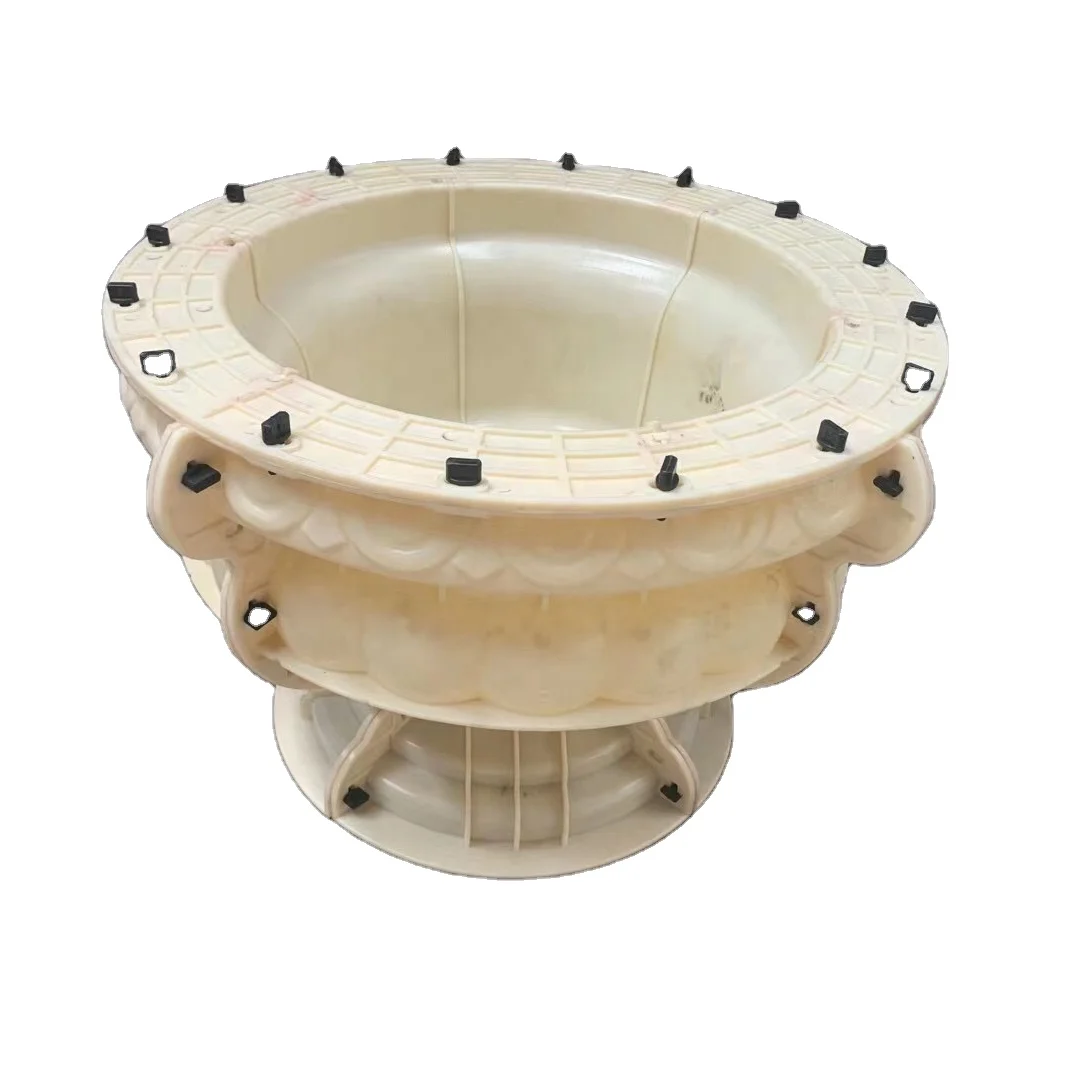

Китайская компания по производству пластиковых форм eautiful, новый дизайн, для изготовления цветочных горшков, бетонных форм
