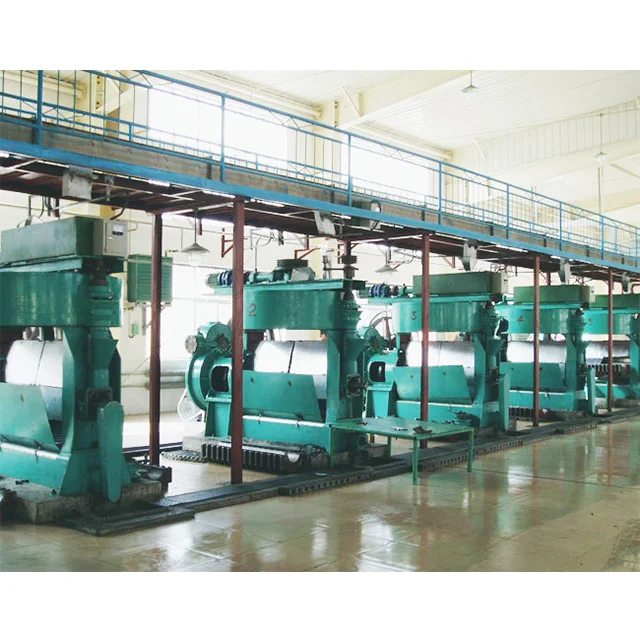

150 300 кг/ч производственная мощность и новое состояние завод по производству растительного соевого
- Категория: Сельскохозяйственная техника >>>
- Поставщик: Wuhan Hdc Technology Co. Ltd.
Сохранить в закладки 62573414852:
Описание и отзывы
Характеристики
Product Description

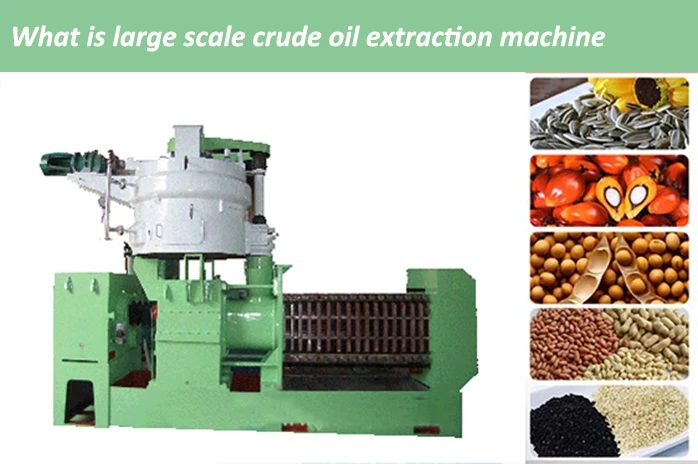

Large scale crude oil extraction machine is mainly used in the middle and large scale oil mill plants for vegetable and biodiesel
oil processing. These large oil presses are generally divided into two kinds: oil press for hot pressing, and low temperature oil
press for cold pressing. The large scale oil press extraction machines we supply is suitable for extraction of vegetable oils from
oil bearing seeds and nuts, such as rapeseeds, grounnut, sesame seeds, cottonseeds, soybean seeds, corn germ, copra, sunflower
seeds, etc.
1. Magnetic separation: Clearing the iron impurity which might be in the seed. Since during the process, the iron impurity will be harmful to the machines.
2. Cleaning: This parts have different size cleaning sieves toseparate the different impurities. Through this part, most of the impurities are removed out of oil seeds.
3. Crusher: Because of the big size of oil seeds, the oil seeds are necessary to be crushed to small pieces.
4. Cooker: This machine can adjust the moisture content of the oil seeds. It’s also good for the pressing and oil extraction process.

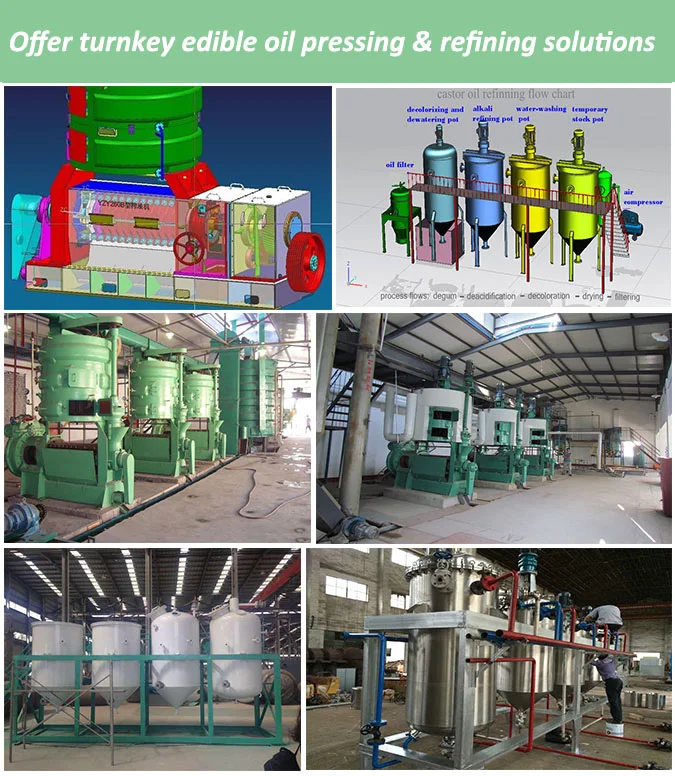

5. Pressing: This machine is used to extract oil out of oil seeds.Finally,the crude oil needs to be refined to get refining oil, after degumming, deacidification, decoloration, dewaxing,deodorization.
Crude cotton oil → degumming ,deacidification→ decolorization →deodorization → refined cotton oil.
2. Cleaning: This parts have different size cleaning sieves toseparate the different impurities. Through this part, most of the impurities are removed out of oil seeds.
3. Crusher: Because of the big size of oil seeds, the oil seeds are necessary to be crushed to small pieces.
4. Cooker: This machine can adjust the moisture content of the oil seeds. It’s also good for the pressing and oil extraction process.
5. Pressing: This machine is used to extract oil out of oil seeds.Finally,the crude oil needs to be refined to get refining oil, after degumming, deacidification, decoloration, dewaxing,deodorization.
Crude cotton oil → degumming ,deacidification→ decolorization →deodorization → refined cotton oil.

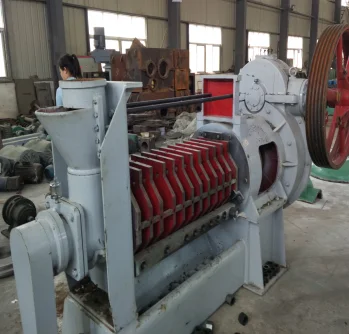

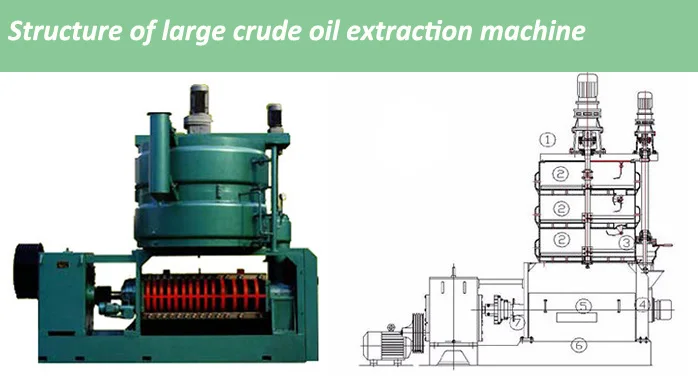

Product Structure
Main parts of oil press machine:
It is composed of gear box, cover, cylinder gear, energy base, rolling bearing and triangle belt wheel, etc
Main Parts Of The Automatic Oil Press Machine:
1.screw shaft
2.feeder
3.pressing cage
4.oil pan
5.squeezing bolt
6.vacuum oil filter system
7.electric control system
8.heating ring
Operate Processing Of The Automatic Oil Press Machine:
1.stir-fring the seed
2.feed in the oil seed
3.pressing the seed in the pressing chest
4.oil drip on the oil pan from the squeezing bolt
5.then oil inflow the vacuum oil filter pan by the vacuum system
6.then pure oil come out of the filter
7.ready
2.feed in the oil seed
3.pressing the seed in the pressing chest
4.oil drip on the oil pan from the squeezing bolt
5.then oil inflow the vacuum oil filter pan by the vacuum system
6.then pure oil come out of the filter
7.ready

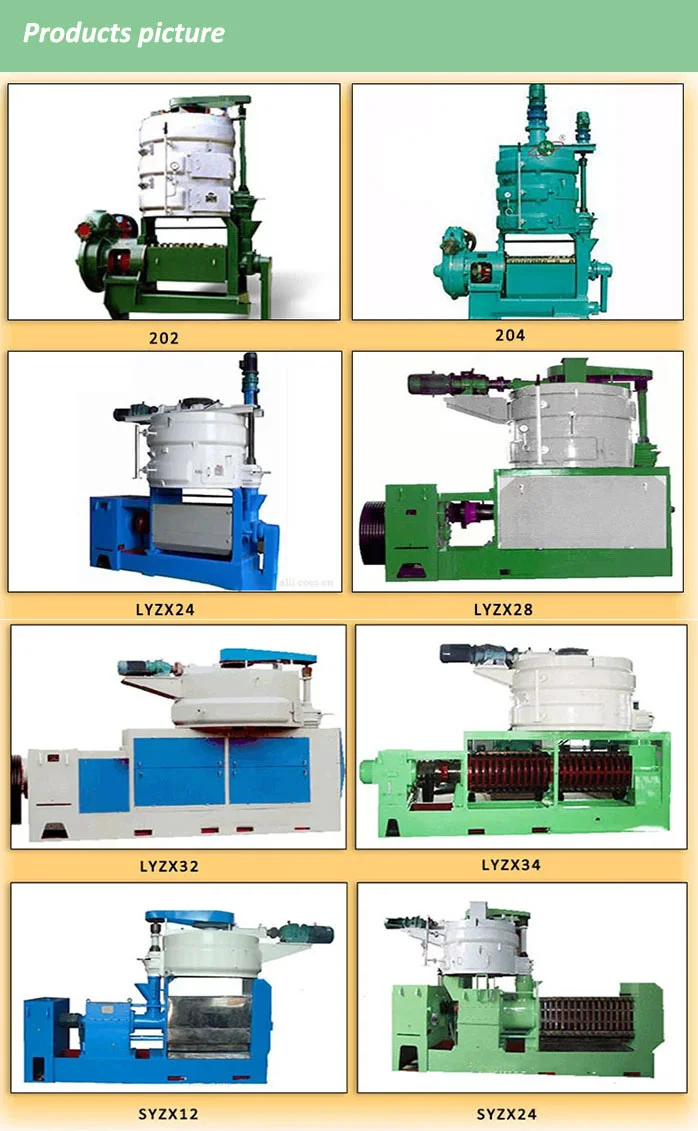

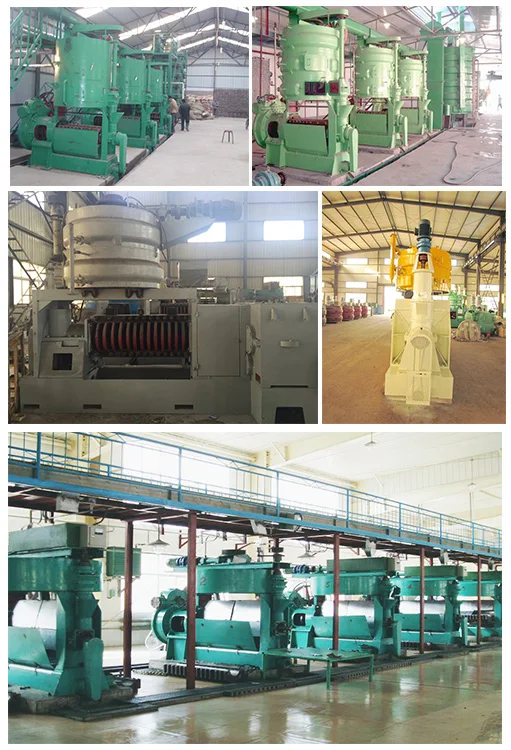

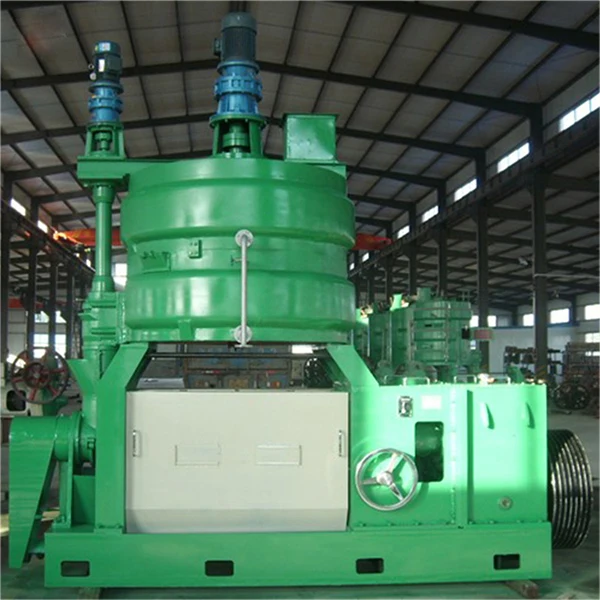

Product Show
Technology parameter
The large screw crude oil extraction machine (oil expeller) is designed to use physical mechanical pressing way to press oil out from the oil seeds. Single machine capacity 10-200TPD.
Model | Capacity | oil content in cake | Motor power(kw) |
202 | 40-50 TPD | less than 13% | 30 |
204 | 75-80 TPD | 15-18% | 30 |
LYZX24 | 20-25 TPD | 10-19% | 30+5.5+3 |
LYZX28 | 40-60 TPD | 15-19% | 45+11+1.5 |
LYZX32 | 80-100 TPD | 15-19% | 90+.5+1.5 |
LYZX34 | 150-180 TPD | 11-15% | 160 |
SYZX12 | 4-6 TPD | 4-6.5% | 18.5+1.1 |
SYZX24 | Hot pressing 80-100 TPD | 10-17% | 55+7.5 |
Cold pressing 40-50 TPD | 5-7% |
Our Advantages
1. Energy Saving:The electric power can be reduced by 40% under the same output. For example, the machine can save 6 kilowatt at an average of one hour. In that case, it could save about 30 RMB per day.
2. Labor Saving:60% labor can be saved under the same output. One or two person can organize the production. It can save about 40 RMB of labor cost every day.
3. Widely Usage:The machine is multi-function. It can process more than 20 kinds of oil crops, such as, peanut, linseed,sesame,rapeseeds, sunflower, cottonseeds, soybean, etc.
4. Oil Pure:Vaccum filter can filter the residue and ensure the oil quality. The oil can meet the standard of health quarantine.
5. Small Area Covering: 10 ~ 20 m2can meet the production needs.
2. Labor Saving:60% labor can be saved under the same output. One or two person can organize the production. It can save about 40 RMB of labor cost every day.
3. Widely Usage:The machine is multi-function. It can process more than 20 kinds of oil crops, such as, peanut, linseed,sesame,rapeseeds, sunflower, cottonseeds, soybean, etc.
4. Oil Pure:Vaccum filter can filter the residue and ensure the oil quality. The oil can meet the standard of health quarantine.
5. Small Area Covering: 10 ~ 20 m2can meet the production needs.
1.Large processing capacity
2.Combined Steaming & Cooking3.Lower energy consumption
4.Automatic and Continuous Operation
5.Flexible production
6.Higher quality oil and cake & Steady oil yield
7.Perfect Construction, Simple Control and Durable service
2.Combined Steaming & Cooking3.Lower energy consumption
4.Automatic and Continuous Operation
5.Flexible production
6.Higher quality oil and cake & Steady oil yield
7.Perfect Construction, Simple Control and Durable service

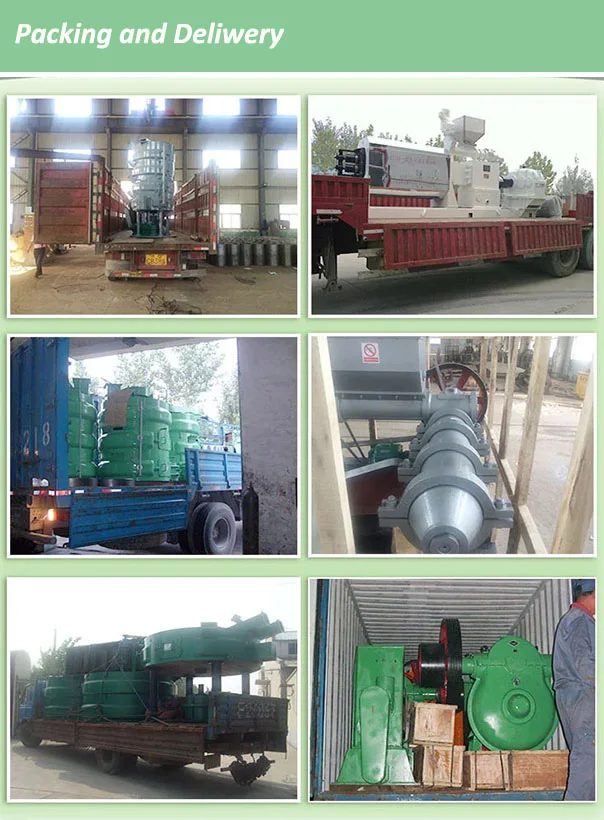

Packing and Delivery

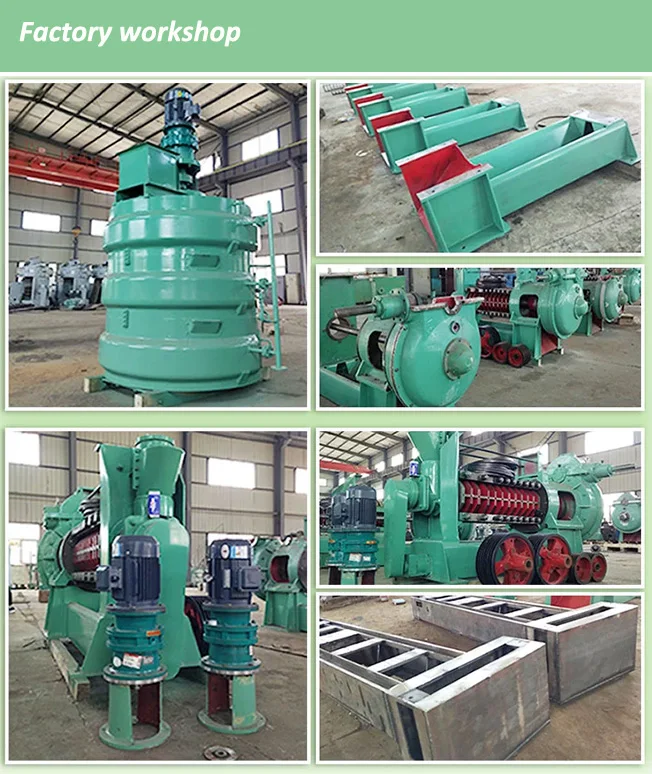

Our factory
Our Service:
Pre-sales service
1.Quick response
2.Detailed quotation
3.Professional production and transportation solution
After-sales service
1.Warranty policy one year from shipment
2. We will send you the replacement after received the broken part
3. Evaluate the customs risk and choose safest shipping company before shipping.
4. Follow status up time by time until the goods arrived.
FAQ
Q1: What is the Warranty for the machines?
A1: 12 months free guarantee and life long standard paid service.
Q2: What is the Material?
A2: Carbon steel suitable for pressing.
Q3: When can I get the price?
A3: Within 24 hours, if urgent, please directly call us.
Q4: Whether the machine price can be more discount?
A4: In general, our MOQ is 1set with very reasonable price, but if large order, we also can apply to our manager to appropriately give you a little discount.
Q5: How long will it take to receive my products?
A5: Generally, it will take about 5 days to make the machinery, 3-7 days to deliver it to
shipping port, and 10-45 days on sea transporting.
Q6: Is the machine suitable for different raw material ?
A6: Yes, but we recommend no more than 3 different types.
Q7: Where is your factory located?
A7: Zhengzhou, Henan Province.
Q8: How to ask quotation?
A8: Please note us what type of raw seeds , and your capacity per day, then send your inquiry below, click "send" now.
