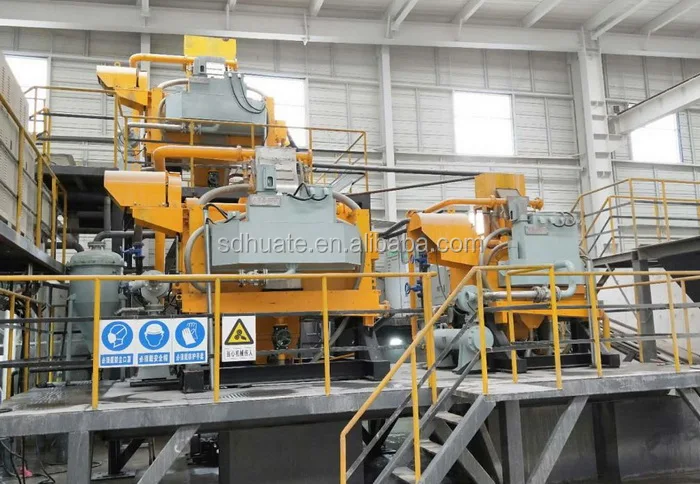

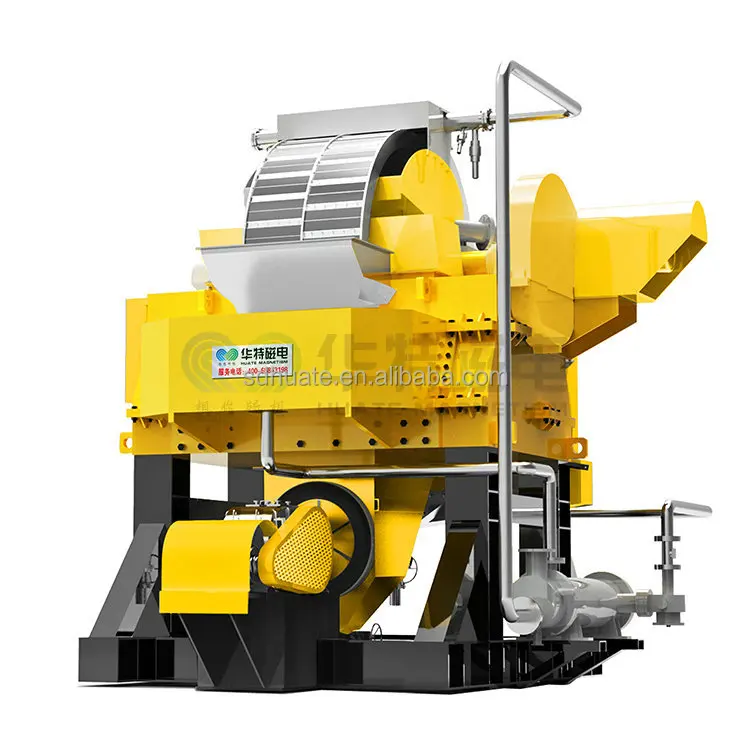

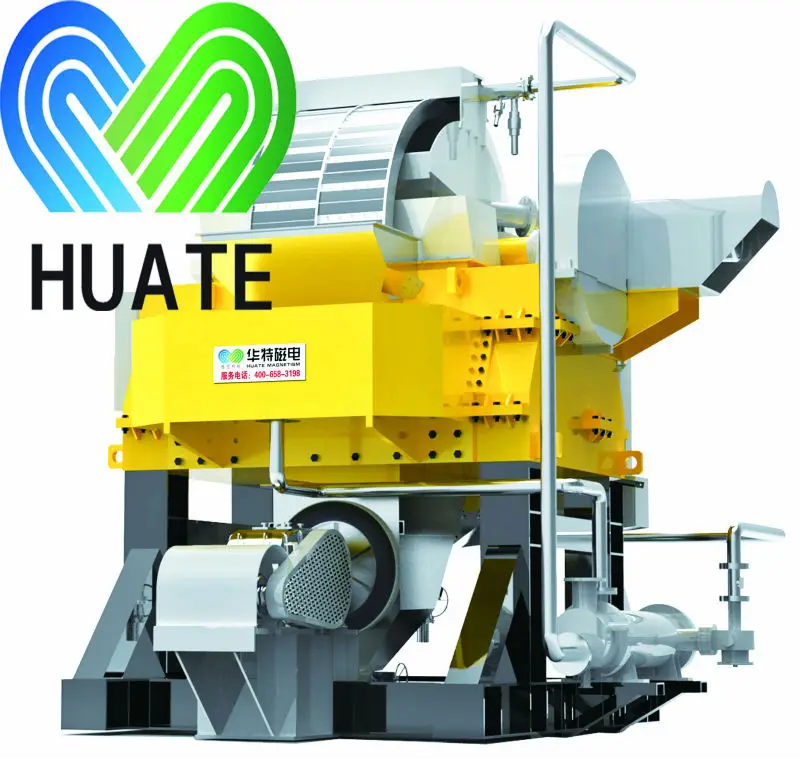

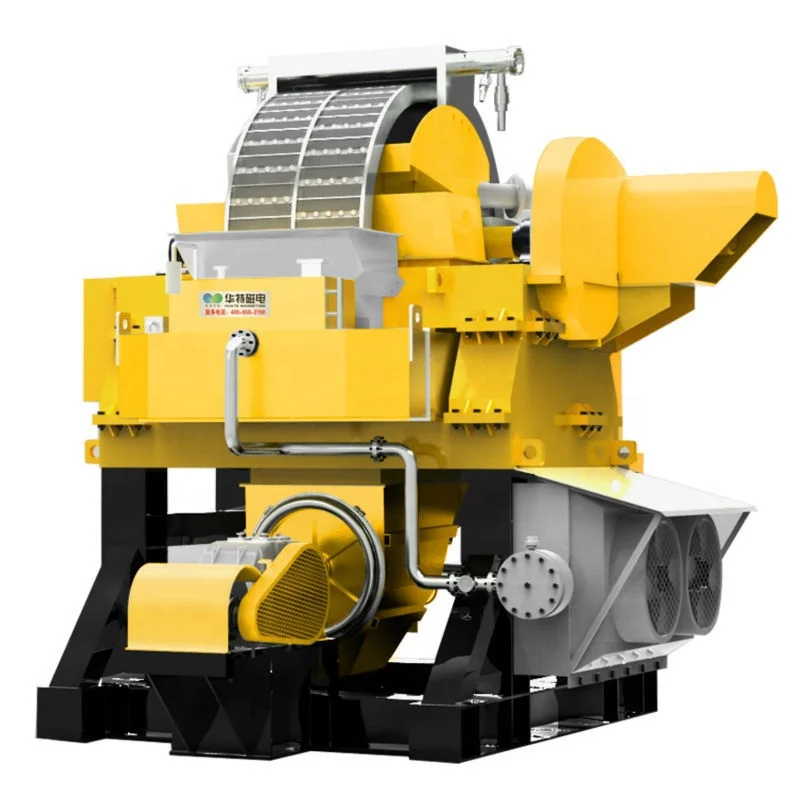

Влажный Магнитный минеральный сепаратор с высоким градиентом для хрома/вольфрама/марганцевой руды/ильменита
- Категория: Минеральный сепаратор >>>
- Поставщик: Shandong Huate Magnet Technology Co. Ltd.
Сохранить в закладки 62575987237:
Описание и отзывы
Характеристики
Product Description
Application:
Vertical ring wet high gradient magnetic separator can be used in wet beneficiation for particles below 1.2 mm (30~100% passing 200 mesh) of fine-grained liberated red ore (hematite), limonite, manganese ore, ilmenite and other kinds of weakly magnetic minerals, and can also be used for removing of iron impurity and purification of non-metallic minerals, such as silica sand, feldspar, nepheline, kaolin.
Technical Features

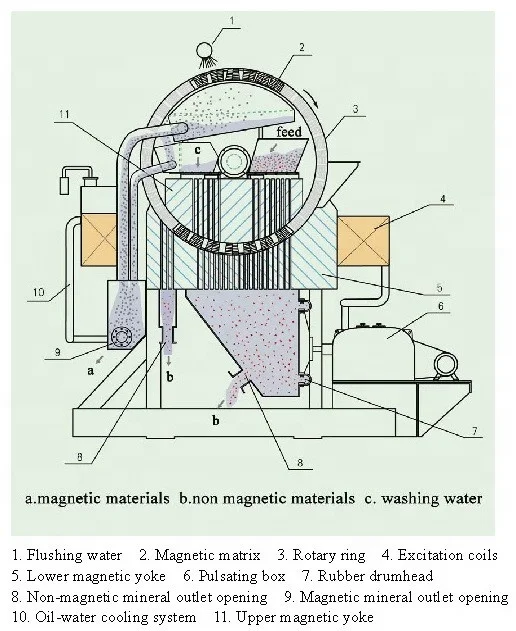

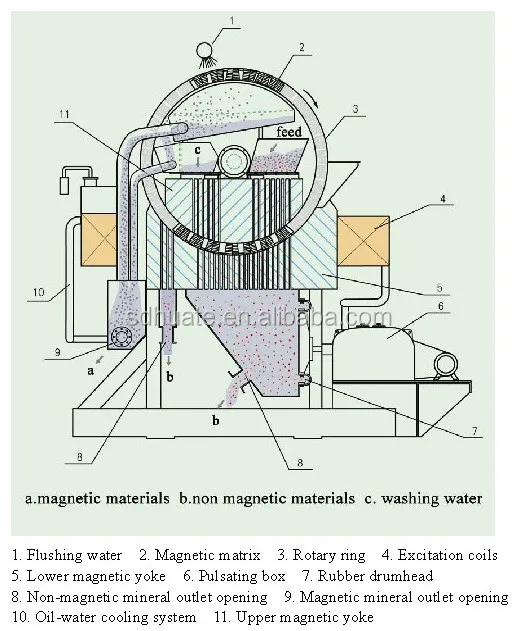

1. The oil-water cooling vertical ring high gradient magnetic separator has an advanced cooling system. The coil is fully sealed and with forced oil-cooling external circulation. The principle of oil-water heat exchange is adopted, and the heat generated by the coil is quickly taken away by the flush water, so that the coil temperature rise is less than 25 °C, and the magnetic field thermal decay is minimal.
2. Both ends of the coil are wrapped with iron shields, which improves the magnetic energy utilization rate, and increases the magnetic field strength in the separation area by more than 8%, and the background magnetic field is above 1.4 T.
3. The coil housing is fully sealed, rainproof, dustproof and corrosion resistant, ensuring that the equipment can work in a variety of harsh environments.
4. Using the flushing water to cool the transformer oil, which eliminates the need for additional cooling water, saves the energy, protects the environment and saves water resources.
5. The magnetic medium is a rod medium structure with different cross-sections, adopting a four-point restraint mechanism, having large magnetic field gradient, high field strength and long service life.
6. With advanced fault diagnosis system and remote control system, realizing intelligent operation control of equipment.
7. Optional pneumatic-water flushing and pulsation device can be equipped according to the characteristics of different materials, featuring high flushing efficiency, good separation effect and low water consumption.
2. Both ends of the coil are wrapped with iron shields, which improves the magnetic energy utilization rate, and increases the magnetic field strength in the separation area by more than 8%, and the background magnetic field is above 1.4 T.
3. The coil housing is fully sealed, rainproof, dustproof and corrosion resistant, ensuring that the equipment can work in a variety of harsh environments.
4. Using the flushing water to cool the transformer oil, which eliminates the need for additional cooling water, saves the energy, protects the environment and saves water resources.
5. The magnetic medium is a rod medium structure with different cross-sections, adopting a four-point restraint mechanism, having large magnetic field gradient, high field strength and long service life.
6. With advanced fault diagnosis system and remote control system, realizing intelligent operation control of equipment.
7. Optional pneumatic-water flushing and pulsation device can be equipped according to the characteristics of different materials, featuring high flushing efficiency, good separation effect and low water consumption.
Technical Specifications
Model No. | LHGC- 1000F | LHGC- 1500F | LHGC- 1750F | LHGC- 2000F | LHGC- 2250F | LHGC- 2500F | LHGC- 3000F | LHGC- 3600F | ||||||||
Background magnetic field (T) | 1.0/1.4 can be adjusted continuously | |||||||||||||||
Induction magnetic field (T) | 1.7/2.4 can be adjusted continuously | |||||||||||||||
Rated excitation power (kW) | 17/28 | 27/48 | 37/58 | 42/70 | 51/73 | 57/76 | 74/108 | 90/115 | ||||||||
Solids capacity (t/h) | 2 ~3.5 | 10 ~15 | 15 ~25 | 25 ~40 | 40 ~60 | 50 ~75 | 75 ~125 | 125~200 | ||||||||
Pulp capacity (m3/h) | 12.5~20 | 50 ~100 | 75 ~150 | 100~200 | 160~300 | 200~400 | 350~650 | 550~950 | ||||||||
Feed concentration (%) | 10~35 | |||||||||||||||
Feed size(mm) | -1.2 | |||||||||||||||
Ring rotation speed (r/min) | 2~3 | |||||||||||||||
Ring outer diameter (mm) | 1000 | 1500 | 1750 | 2000 | 2250 | 2500 | 3000 | 3600 | ||||||||
Ring drive motor power (kW) | 1.1 | 3 | 4 | 5.5 | 7.5 | 11 | 18.5 | 30 | ||||||||
Flushing water pressure (MPa) | 0.2~0.4 | |||||||||||||||
Flushing water consumption (m3/h) | 8 ~12 | 20 ~30 | 30 ~50 | 40 ~80 | 60 ~100 | 80 ~120 | 120~220 | 150~250 | ||||||||
Machine weight (t) | 9.5/13 | 24/27 | 35/48 | 48/60 | 75/85 | 105/120 | 165/185 | 275/310 | ||||||||
Weight of the heaviest part (t) | 2.3/3.3 | 8/10 | 13/18 | 16/22 | 25/28 | 23/32 | 24/35 | 32/36 | ||||||||
Note: The data in blue is for 1.4 T background magnetic field. | ||||||||||||||||
Related Products
Production Flow
Company Profile
HuaTe, engaged in R & D, manufacturing and technical services of electric-magnetic separation equipment for nearly 30 years, providing customers with packaged solutions. The company specializes in the design, manufacture and supply of superconducting magnetic separator, high gradient magnetic separator, drum magnetic separator, iron separator, mineral processing line, magnetic stirrer, non-ferrous metal separation equipment, non-metallic mineral processing equipment, ocean & lake ecological equipment and so on more than 9 categories, 80 series and more than 700 models. Our service scope involves coal, mine, electricity, building material, metallurgy, port, environmental protection and so on more than 10 fields. With more than 15,000 customers, our equipment are exported to the USA, Germany, Japan, Italy, Norway, South Africa, Brazil, India, Pakistan and many other countries.

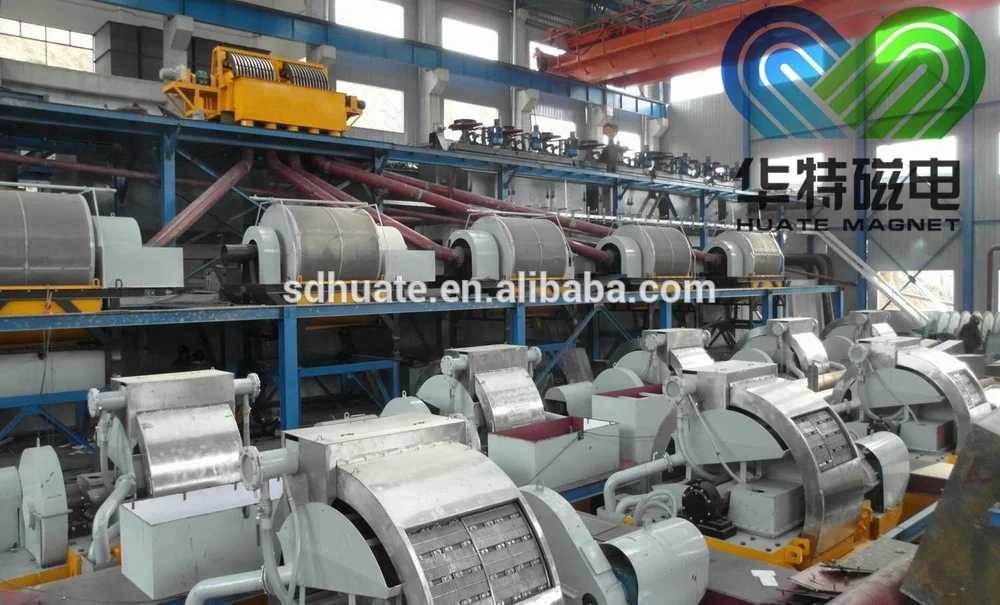

Laboratory Testwork
* Our laboratory center covers an area of 8,600 square meters. Through scientific research and testwork of sensor based technology with artificial intelligence, superconducting magnetic separation technology, electromagnetic and permanent magnetic separation and recycling application technology, the laboratory is committed to providing scientific guidance and application demonstration, and training of key talents for the development of the global mineral processing and sorting industry.
* The laboratory center is equipped with material testing area, crushing and grinding area, superconducting magnetic separation area, sensor based sorting area, dry magnetic separation test area, wet magnetic separation test area, flotation and gravity separation area, semi-industrial continuous separation test complete line and powder complete processing test line etc, with complete processing equipment, testing and analysis instruments, and product test conditions.
* The laboratory center is equipped with material testing area, crushing and grinding area, superconducting magnetic separation area, sensor based sorting area, dry magnetic separation test area, wet magnetic separation test area, flotation and gravity separation area, semi-industrial continuous separation test complete line and powder complete processing test line etc, with complete processing equipment, testing and analysis instruments, and product test conditions.
After-Sales Service
“Create value for customers wholeheartedly” has always been HuaTe’s mission since its establishment. With our top tier installation team and professional after-sale service, we will always place both product quality and our customers at our ultimate priority. Where there are our products, there will be HuaTe’s service, and our brand has left a deep impression on our customers all over the world.
Похожие товары

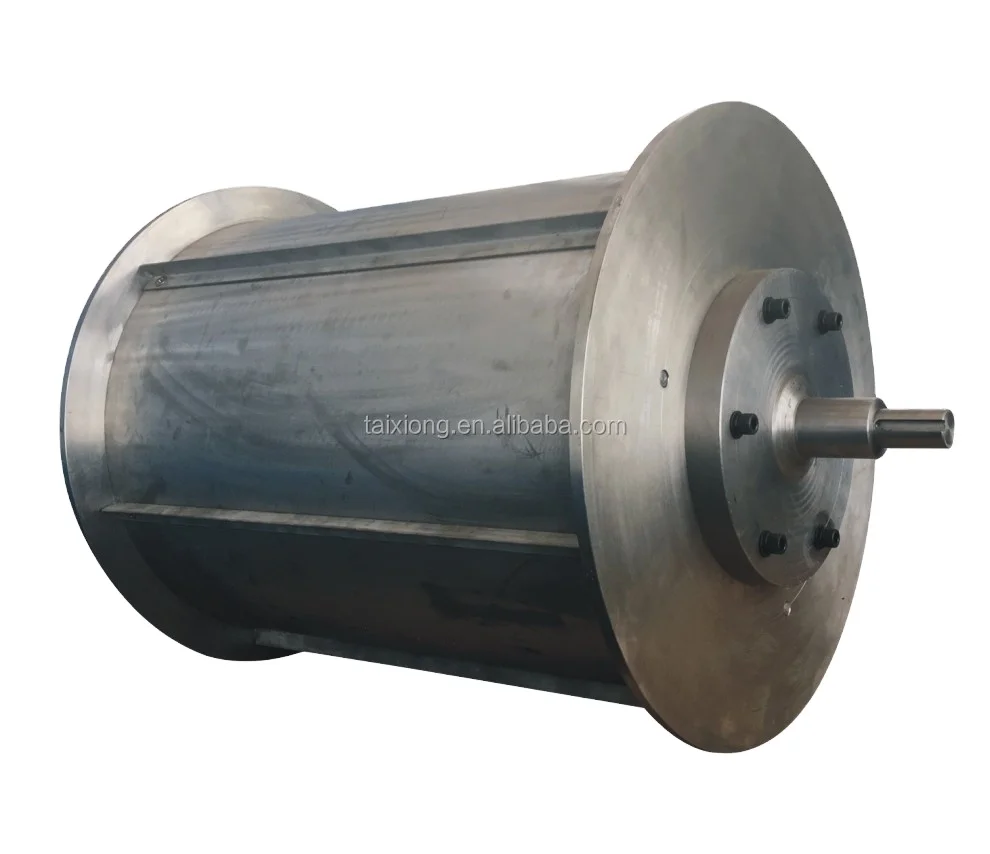

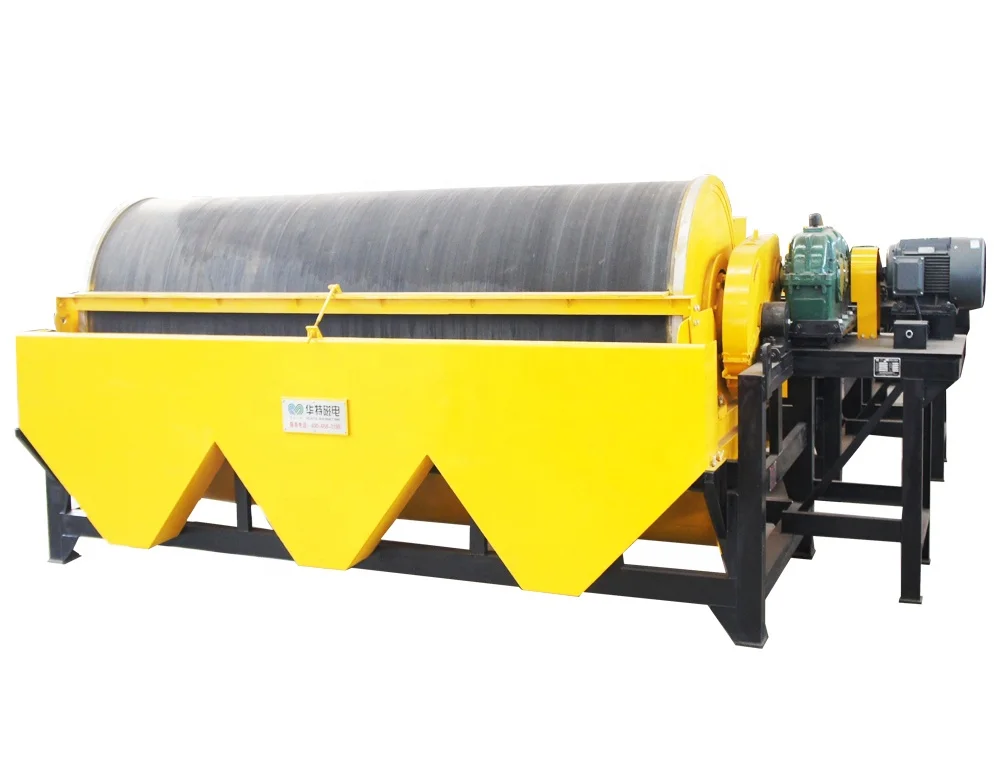

Прямая поставка с завода, высококачественный Магнитный роликовый сепаратор

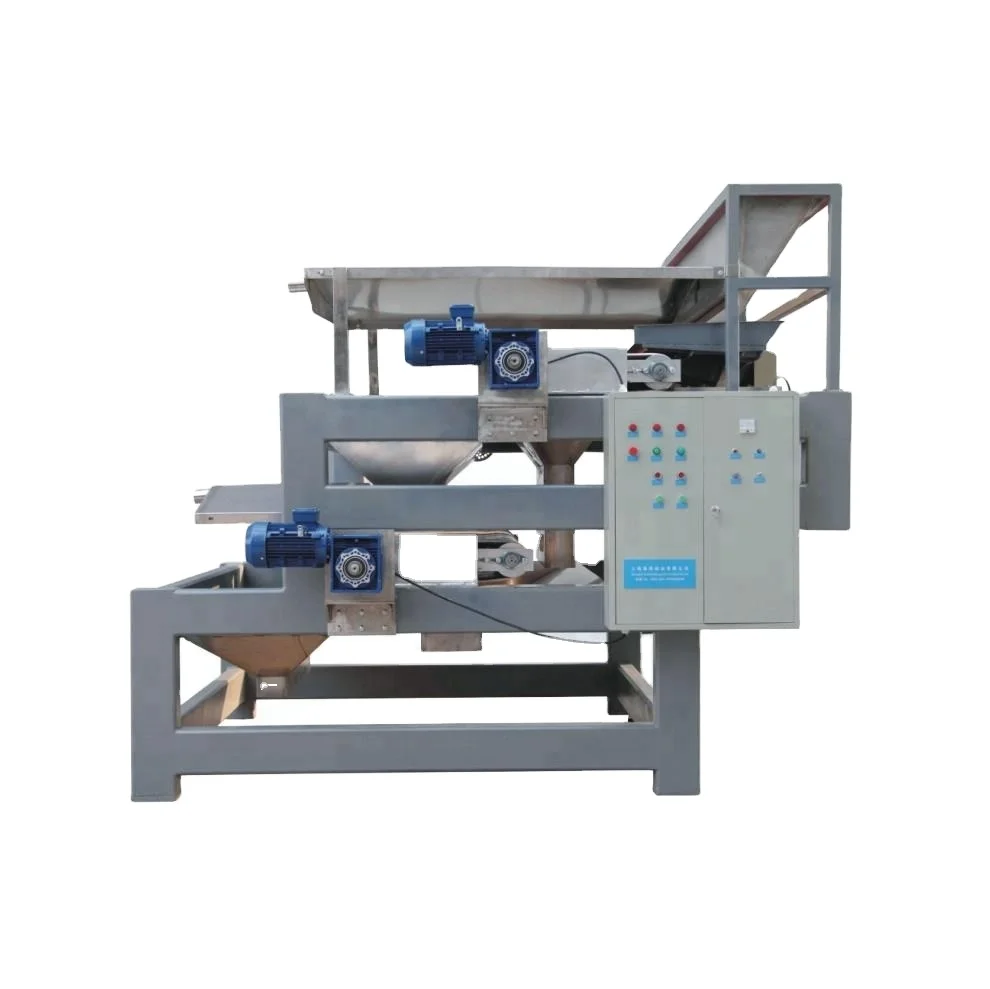

Series SGB Wet Panel Strong Magnetic Separator/Sand Belt magnetic separator
25 000,00 $

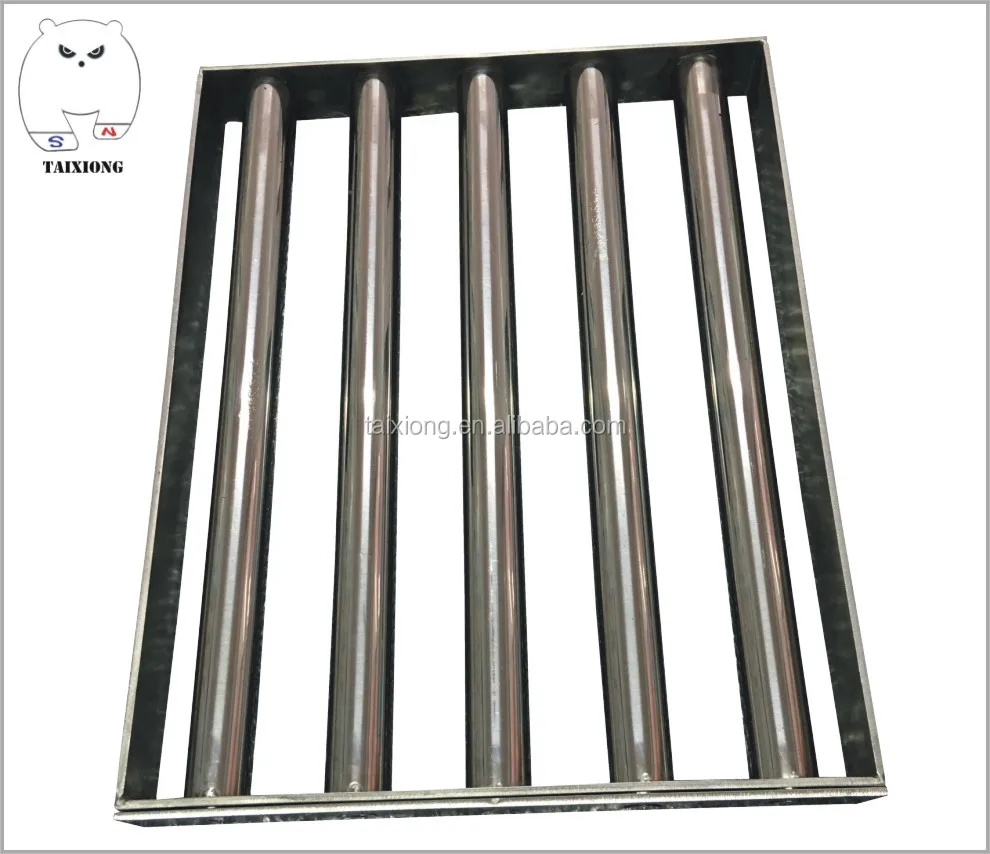

Магнитная решетка SmCo/AlNiCo/NdFeB 12000 Gauss для ручной очистки/гриль/решетки/стержни

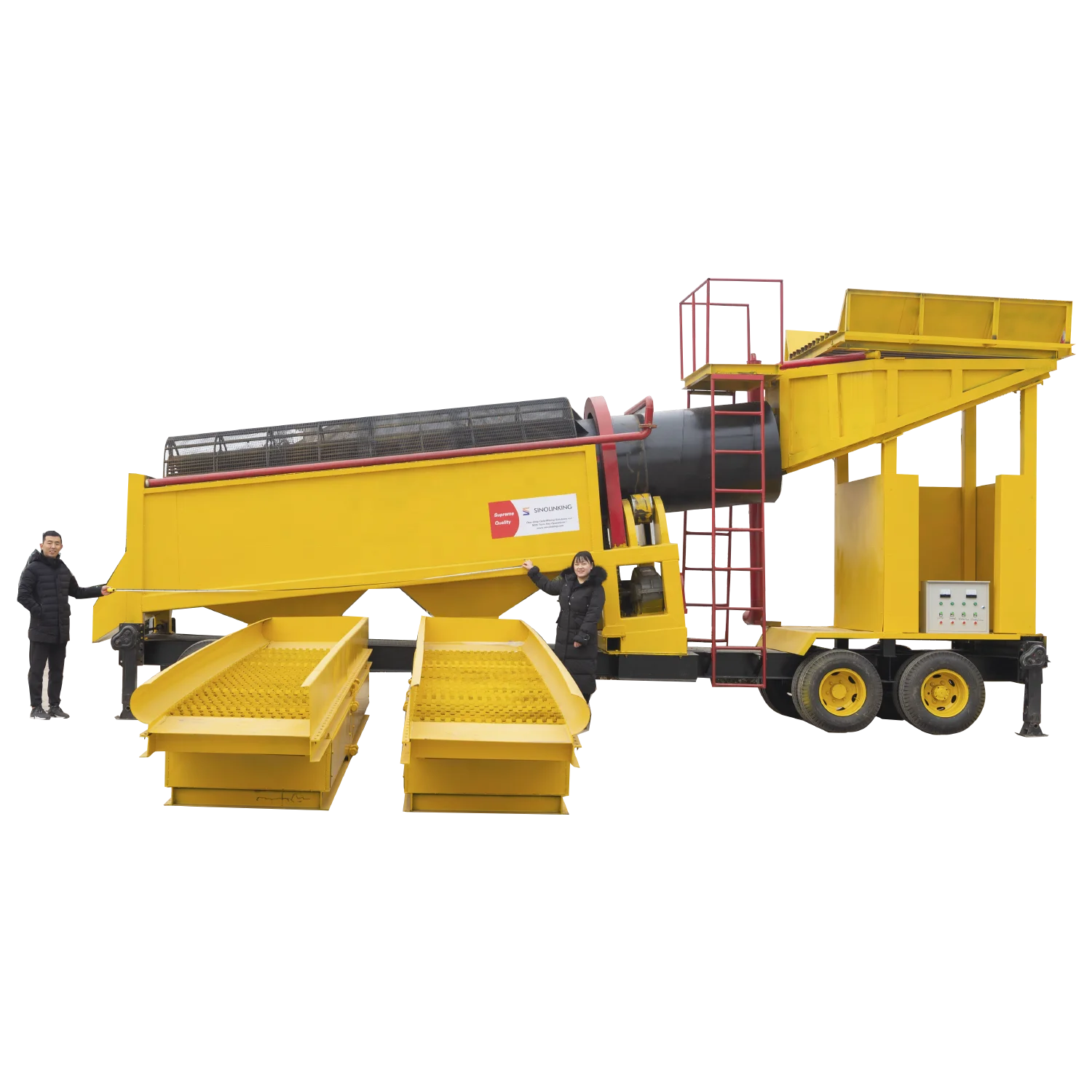

SINOLINKING тяжелый Портативный Золотой троммель, цена
40 000,00 $ - 42 000,00 $

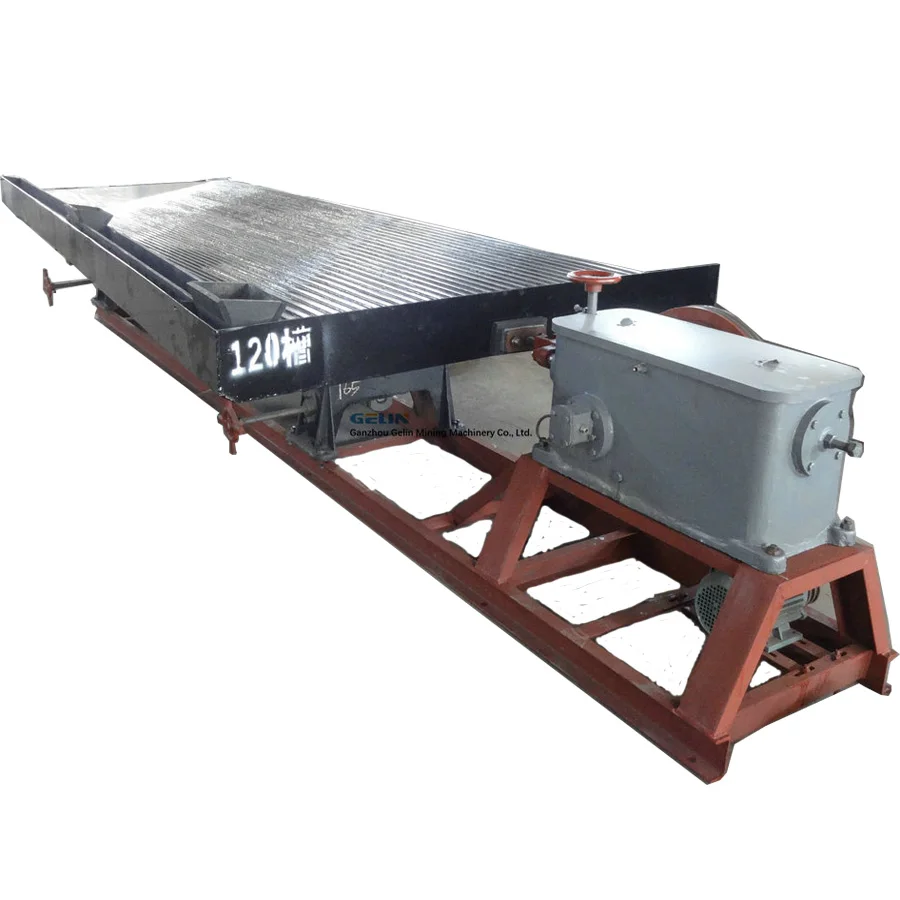

Золотистый вибрирующий стол Holman
2 000,00 $ - 2 200,00 $
SF series Copper ore Dissolved air impeller flotation machine equipment, mine concentrate processing production line for ferrous
2 000,00 $

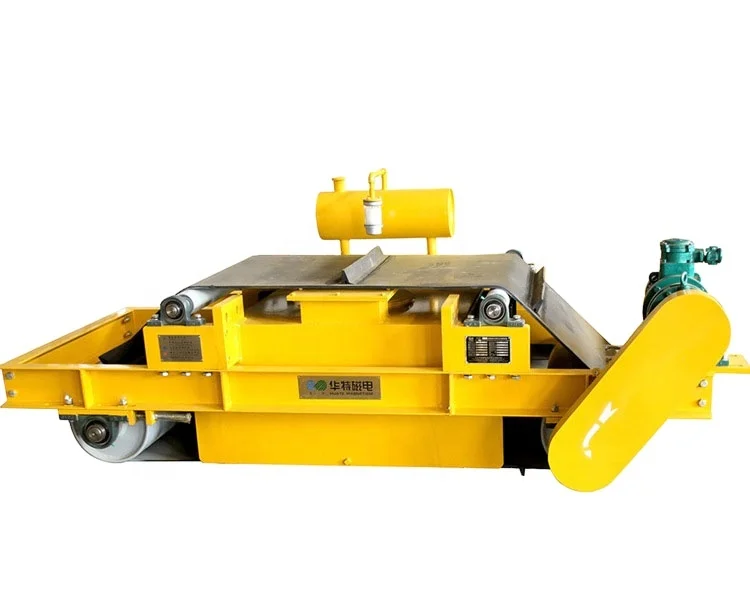

Серия RCDF маслоохлаждающие самоочищающиеся электрические магнитные железные сепараторы для конвейерной ленты
