Fullwell 1310 нм/1490 нм/1550 нм FTTH CATV приемник оптический преобразователь мини-узел с 2RF
11,00 $ - 11,50 $
Fullwell FTTH XG(S) PON NG PON2 1270/1577 & 1310/1490 нм и активный WDM оптический приемник/мини узел
- Категория: Оборудование для радио и ТВ >>>
- Поставщик: Hangzhou Fullwell Optoelectronic Equipment Co. Ltd.
Сохранить в закладки 62578560035:
Описание и отзывы
Характеристики
Products Description

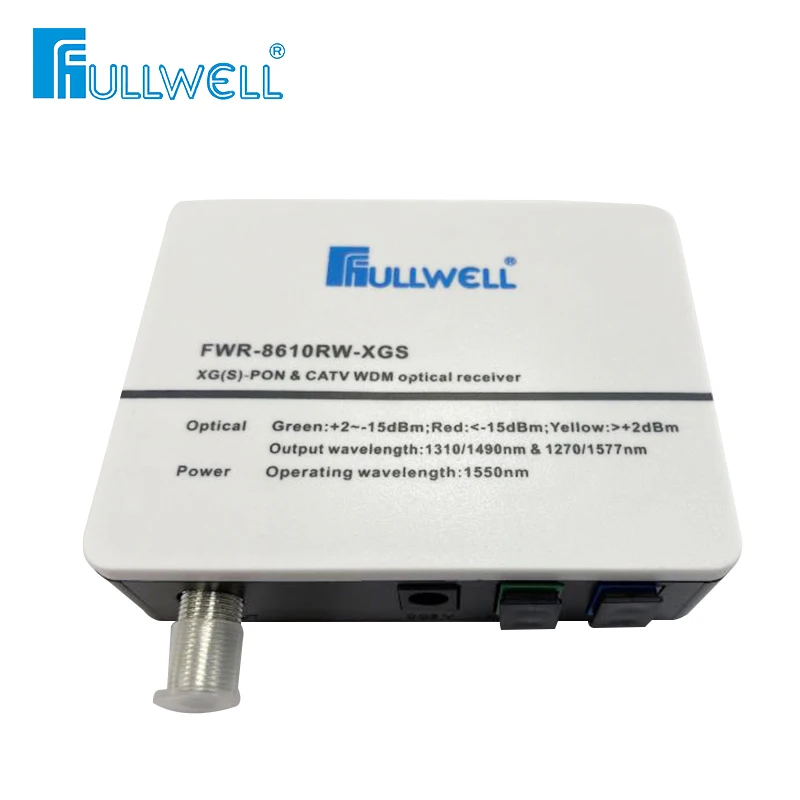

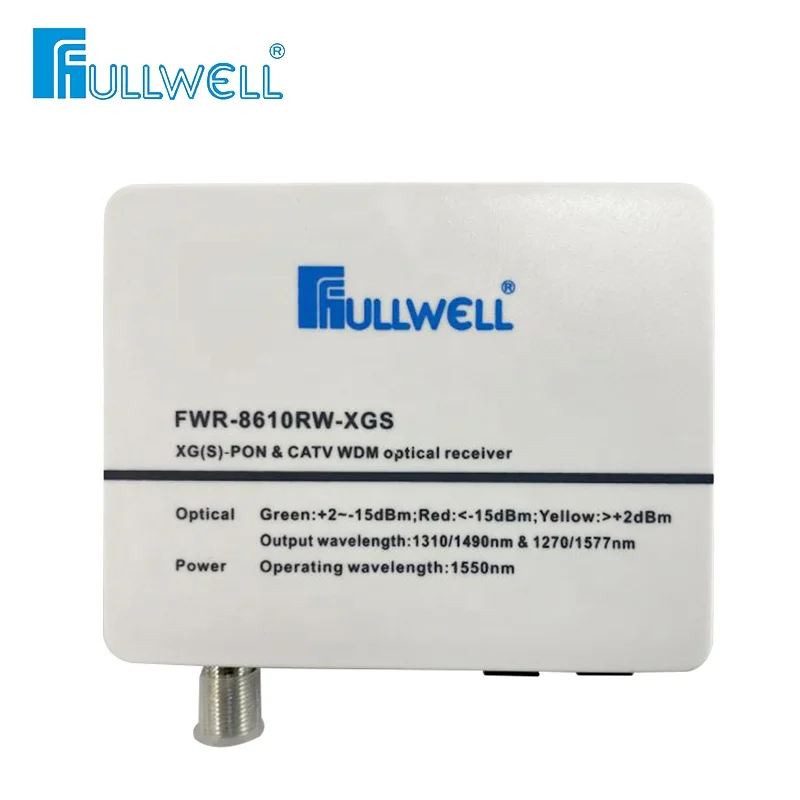

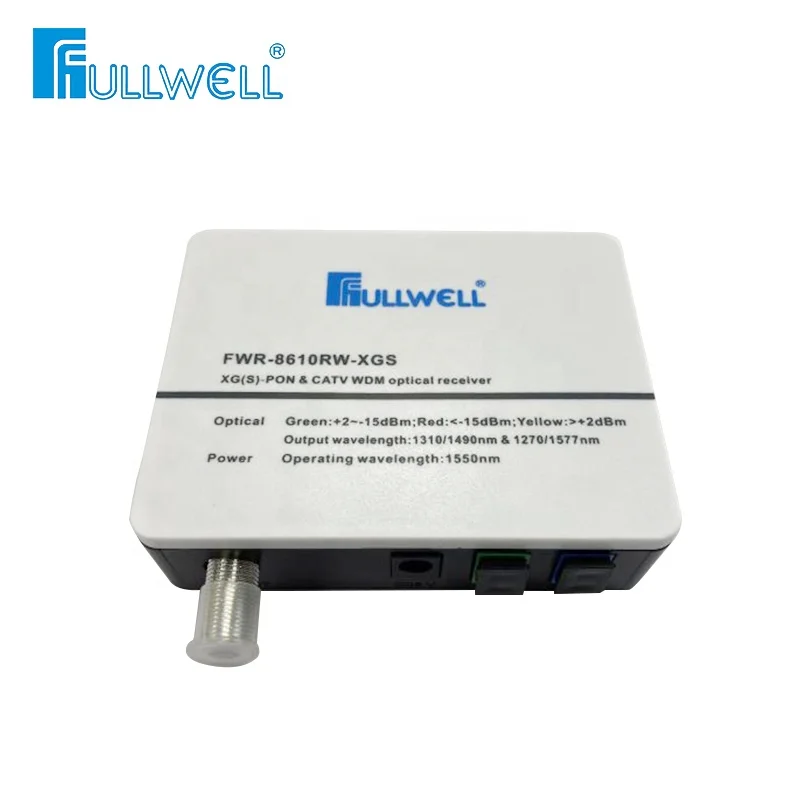

♦ FWR-8610RW-XGS wave-splitting optical receiver adopts high isolation and WDM technology to separate CATV and ONU signals, which can meet the needs of FTTH fiber to household in CATV+XPON or XG (S) -pon optical network to receive 1550nm CATV signal and output PON signal (1310/1490nm & 1270/1577nm).
♦ FWR-8610RW-XGS partial wave WDM optical receiver chooses high bandwidth, high sensitivity photoelectric cell, and low noise matching circuit, all Shen gallium IC amplifier, with low optical power receiving and RF - AGC technology, light receiving range - 18 ~ + 2 DBM, electric AGC:-2 ~ -12 dBm, RF constant output 82 dbuv, also on the front panel LED lights with optical power monitoring (15 DBM) or higher.
♦ G/EPON and XG(S)-PON access technologies are becoming more and more mature, which conforms to the construction idea of FTTH.
♦ Fwr-8610rw-xgs optical receiver adopts the integrated PD with XG(S)-PON WDM channel and 1550 wavelength reception, which also caters to the end user's downlink G/EPON or XG(S)-PON ONU, and realizes 1540-1565nmcatv optical signal reception.
♦ The machine adopts low-light power receiving and light-controlled AGC technology, which can receive at -2 ~ -12dBmRF 82dBuv constant output; The machine is also equipped with light power receiving and monitoring (≤ -15dbm), constant RF output and LED indicator light for working power supply on the panel, which is convenient for users to use.
Product Paramenters
Item | Unit | Performance Parameter | ||
Input wavelength | (nm) | 1310,1490,1550（XG(S)-PON,1270/1577nm） | ||
Output wavelength | (nm) | 1310,1490 (XG(S)-PON,1270/1577nm) | ||
Operation wavelength | (nm) | 1540～1560 | ||
Channel separation | (dB) | ≥40（1310/1490nm and 1550nm ) | ||
Response | (A/W) | ≥0.9 | ||
Receive power range | (dBm) | +2～-18 | ||
Reflection loss | (dB) | ≥55 | ||

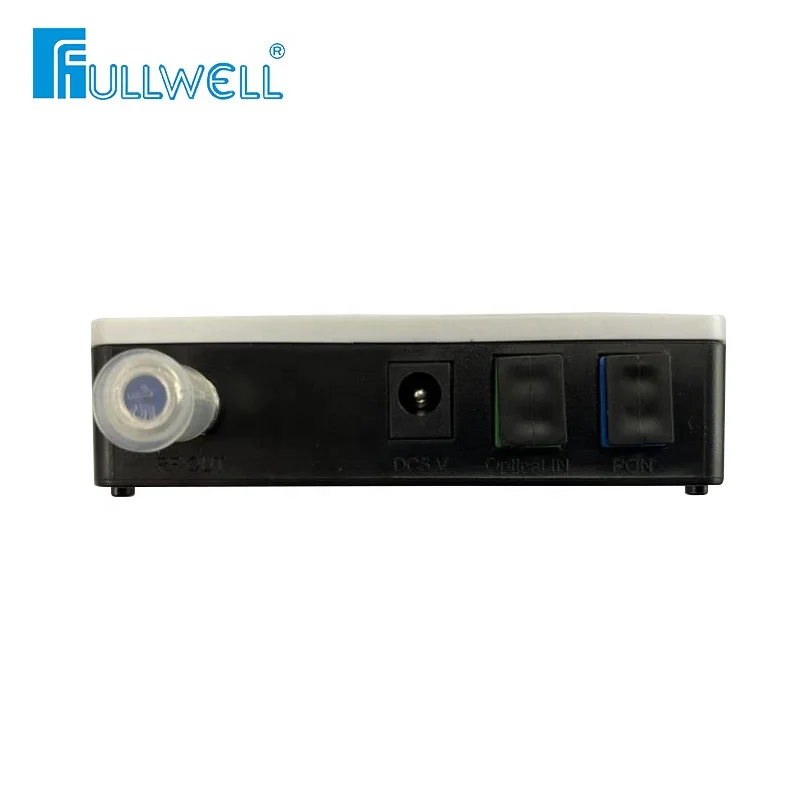

Fiber linker | / | SC/APC | ||
PON linker | / | SC/UPC(or SC/APC) | ||
Bandwidth/flatness | MHz/dB | 47-1000/≤±1 | ||
Output level | dBuv | 1 RF | AGC: 82±1/(-2～--12dBm) | |
2RF（Can be customized） | AGC: 78±1/(-2～--12dBm) | |||
Output level adjustable Range | dB | 0～15（Can be customized） | ||
Reflection loss | dB | ≥14（75Ω characteristic impedance） | ||
RF output interface | / | Inch (one way output)（Can be customized two ways output） | ||
CNR | dB | ≥44/34(PAL-D 60CH,OMI3.8%,-9dBm) | ||
CTB | dB | ≥65/≥60/≥60(-1dBm receive) | ||

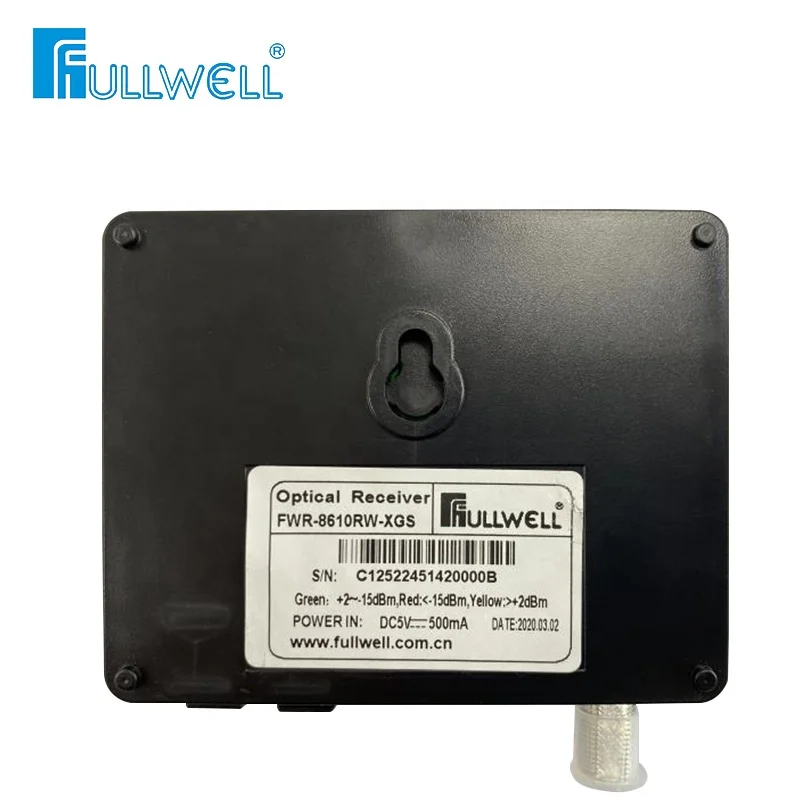

Power supply/consumption | V/W | AC100～240V→DC5/3 | ||
Working/storage Temperature | ℃ | -35～50/-40～75(humidity 5～90%) | ||
Size | mm | 95×92×23 | ||
Company Profile
FAQ
1. What are your terms of payment?
Usually, we can accept T/T, PayPal and Western Union. You can select the terms of payment which is more convenient for you.
2. What about the lead time?
Usually, if there is stock of goods, we will deliver the goods within 3~5 work days after we receive the payment.
3. How about the shipping?
Usually, we will deliver the goods via International Express like FedEx, DHL, TNT, and UPS and so on. Door to door delivery service will be provided.
4. How can I place an order?
(1) Agreement is achieved on the product price and product specifications.
(2) We make proforma invoice for your confirmation.
(3) When you agree on the proforma invoice, you make the payment.
(4) We deliver the goods after we receive your payment.
5. Can you do OEM for us?
Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
6. What are the advantages of your products?
A. Good quality and competitive prices.
B. Strict quality control during production process.
C. Professional operations in processes of production, sales, assembling, packaging and shipping.
D. Good after-sale service. Professional online technical support can be provided. Moreover, if there is any problem of the goods, we will help to solve the problem or provide replacement of the goods.
Usually, we can accept T/T, PayPal and Western Union. You can select the terms of payment which is more convenient for you.
2. What about the lead time?
Usually, if there is stock of goods, we will deliver the goods within 3~5 work days after we receive the payment.
3. How about the shipping?
Usually, we will deliver the goods via International Express like FedEx, DHL, TNT, and UPS and so on. Door to door delivery service will be provided.
4. How can I place an order?
(1) Agreement is achieved on the product price and product specifications.
(2) We make proforma invoice for your confirmation.
(3) When you agree on the proforma invoice, you make the payment.
(4) We deliver the goods after we receive your payment.
5. Can you do OEM for us?
Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
6. What are the advantages of your products?
A. Good quality and competitive prices.
B. Strict quality control during production process.
C. Professional operations in processes of production, sales, assembling, packaging and shipping.
D. Good after-sale service. Professional online technical support can be provided. Moreover, if there is any problem of the goods, we will help to solve the problem or provide replacement of the goods.
Похожие товары
1U 4 канала H.265 HEVC hd-sdi видео кодировщик поддержка RTSP RTMP UDP RTP ONVIF Потоковое вещание кодирования
745,00 $ - 759,00 $
TS8100 HDMI-ASI Hashcode, удаление кодировщика с аудио-кодом
Новый кодировщик видеосигнала 8 HDMI H.265 для прямой трансляции IPTV через IP в Wowza,YouTube
1U 4 канала стеллаж для выставки товаров-монтажник H.265 RTMP RTSP ONVIF HD/SD/3G SDI к IP TV потоковой передачи видеокодер
745,00 $ - 759,00 $
Модулятор IP Edge QAM, носитель, 48 каналов

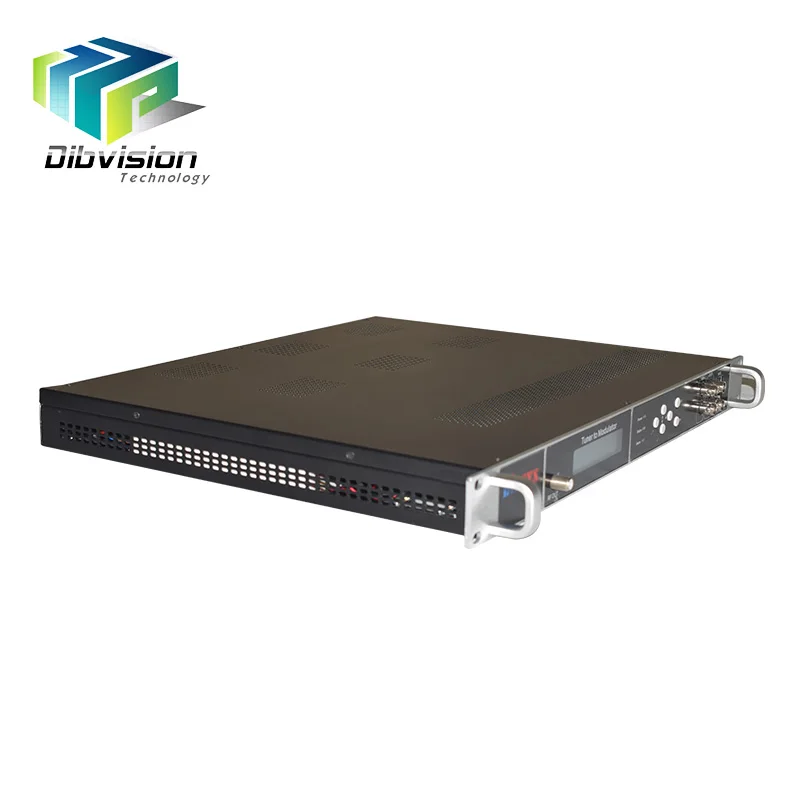

12 в 1 ТВ transmodulator dvb-s для dvb-т преобразователя вещания оборудование кабельного ТВ головной узел

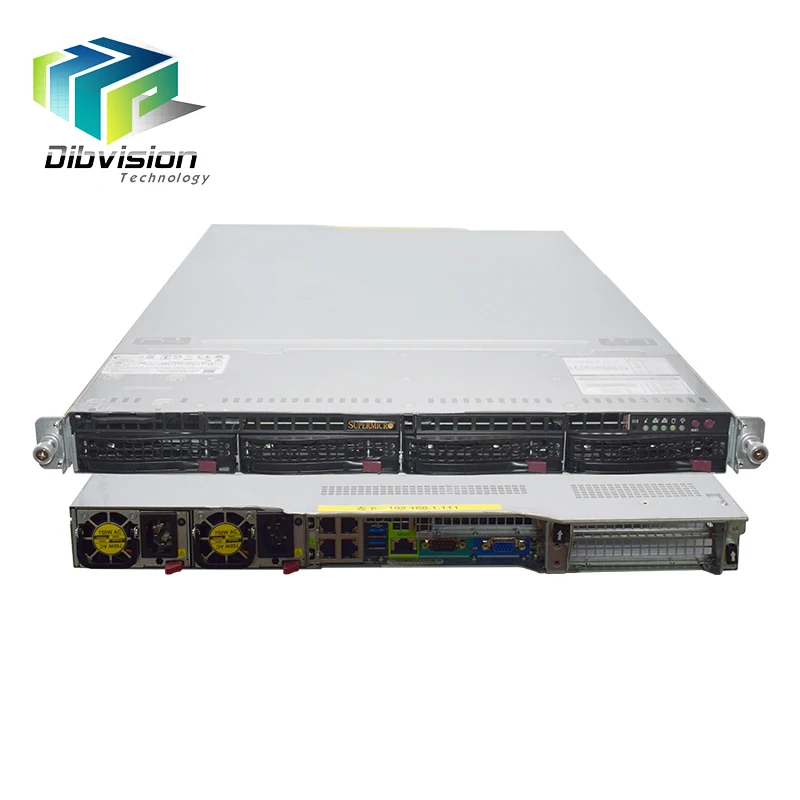

До 50 каналов, транкодер iptv h.264, транкодер http rtmp, кодировщик для потоковой системы iptv ott
