Smart Security SIP-E124D 3MP Starlight IP Camera Module



Product Description

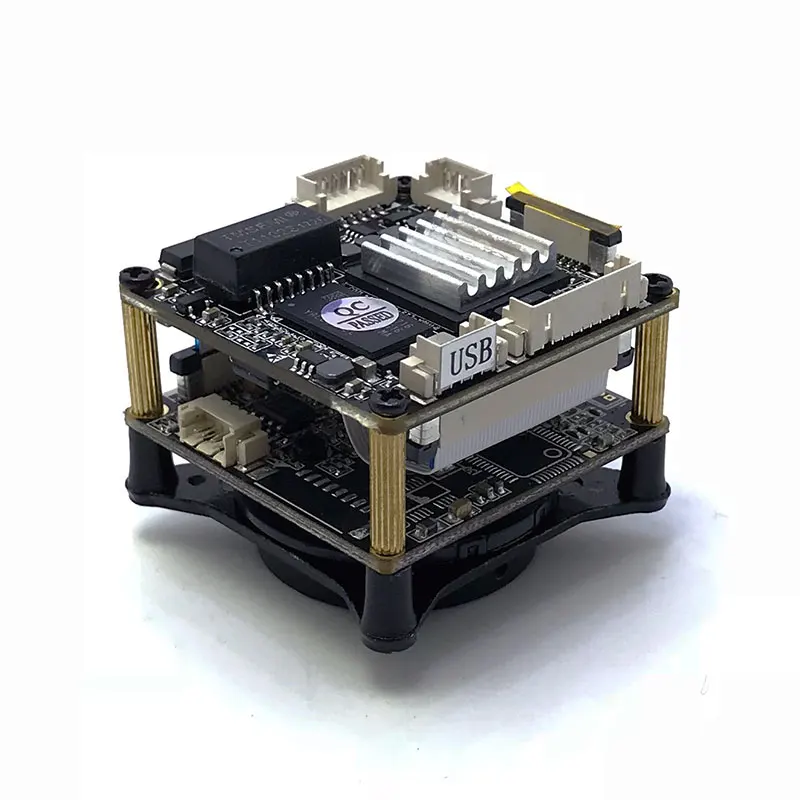

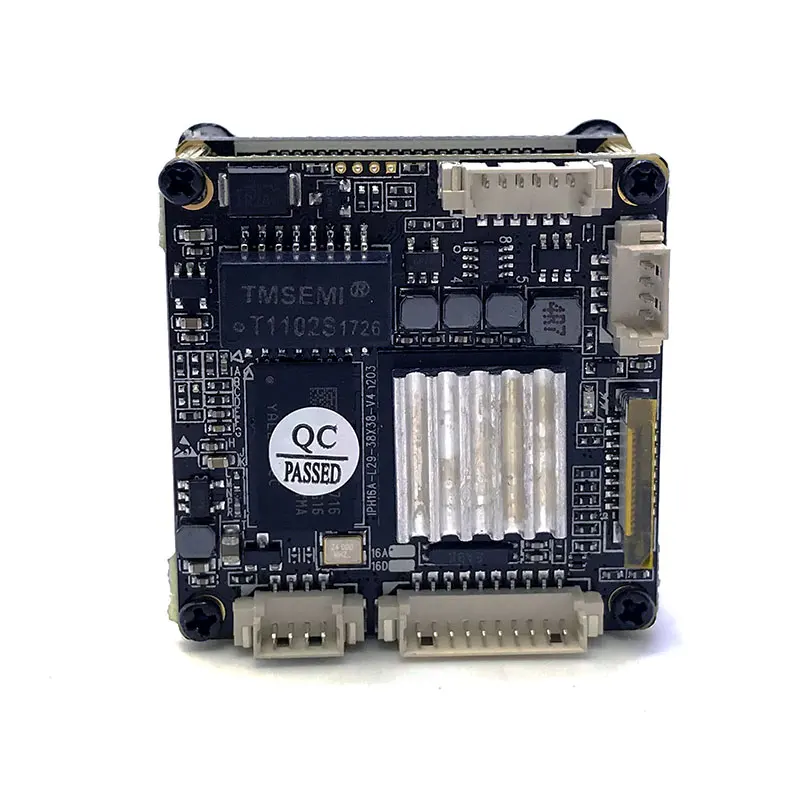

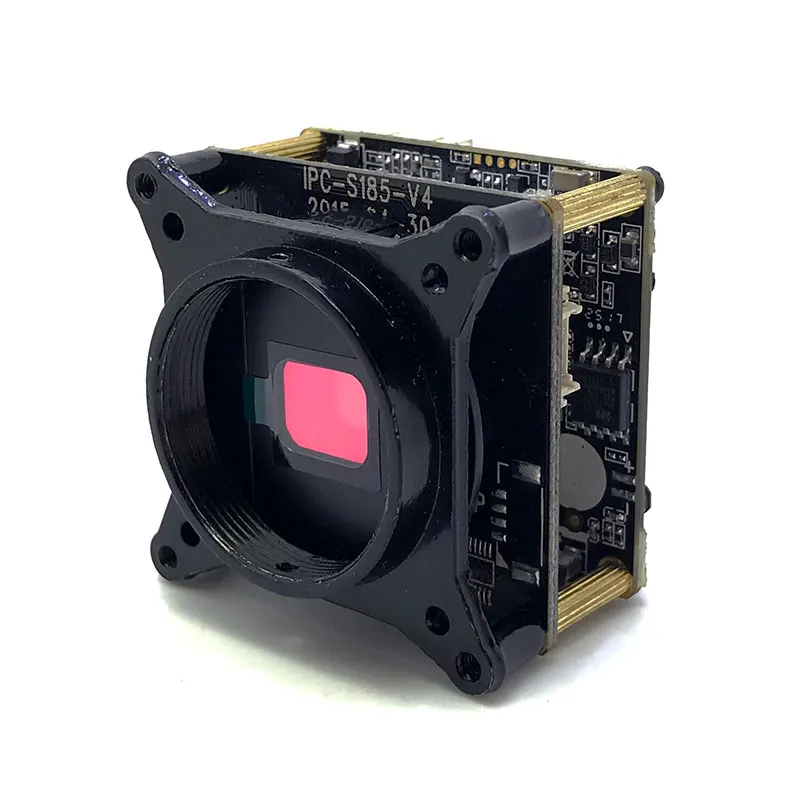

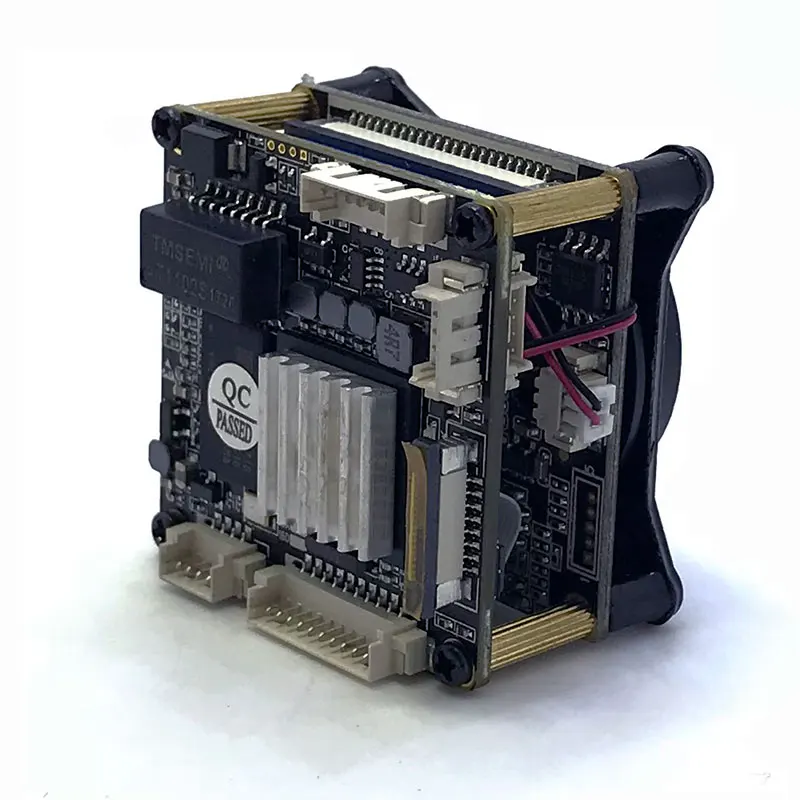

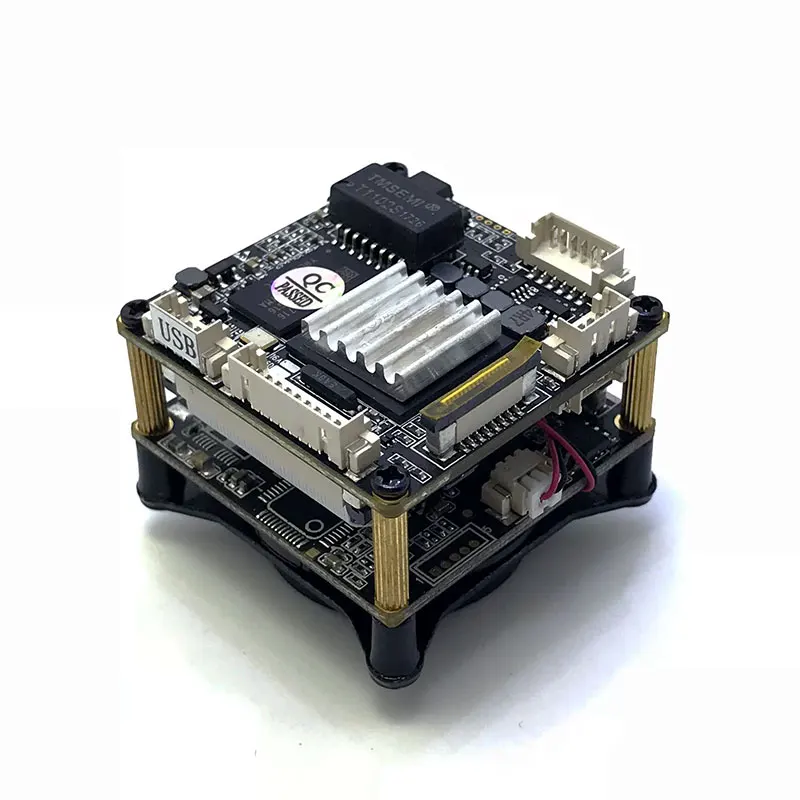

2MP  high quality ip camera Module


Model: SIP-E223A


















































































































































































































































ModelSIP-E223A
Camera Type2 MP high quality ip camera Module

Image Sensor1/2.8" Panasonic  CMOS MN34223+3516A
DSPHisilicon 3516D
Effective Pixels2065 (H) X 1553 (V) approx. 3.21M pixels
Scanning SystemProgressive
Electronic Shutter SpeedAuto (1/25 ~ 1/10000s)
Min. Illumination0.001Lux/F1.2
S/N Ratio≥80dB
Lens MountDefault CS Mount (Optional M12 Mount)
IR-CutSupport
Day/NightAuto(ICR)/Color/B/W
WDRDigital WDR  >80db
White BalanceAuto
Gain ControlAuto
Noise Reduction3D-DNR
Privacy MaskingUp to 4 areas
Image parameterBir/Con/Hue/Sat/Acu/Gamma
Image basicMirror/Flip/LSC/CTB/AntiFogging
Video/Audio
Video Compression H.265+/H.265/H.264/Mjpeg Dual-stream encoding
ResolutionMain Stream:2048X1536, 1920X1080, 1280X720  (1~25/30fps)
Sub Stream:D1,VGA,CIF,  (1~25/30fps)
Frame Rate1~25/30fps
Bit Rate30Kbps~16Mbps, support VBR, CBR
Text OverlayChannel, Date & Time, Bit Rate
Audio CompressionG.726/G.711A/G.711U
Audio bit rate16000
Sampling rate8K
Network
Data StorageVideo record, Picture format
TriggerManual, Automatic(motion detection, alarm, schedule, cycle )
Alarm data transmissionFTP, E-mail, Browser, CMS
ProtocolTCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP
ONVIFONVIF V2.4
Max. User Access8 users, IE, Google, Firefox
Smart PhoneSupport iPhone, iPad, Android View
Interface
Audio1ch input, 1ch output
BNC Video out1CH Analog Video output, Support CVBS standard, PAL/NTSC Optional
RS4851ch
USB1ch (Support 128G USB flash/WIFI/3G Extended)
Alarm1ch input
ResetSupport
Optional function#
Memory Card#Support Max 128G TF/MicroSD Card,1ch alarm output
Motorized Zoom#Support Auto Zoom, Auto Focus, Auto IRIS
WIFI #802.11b/g/n
Auto IRIS#Support DC drive auto iris lens
POE #IEEE802.3af
General
Power SupplyDC12V
Power Consumption<3W
Working Environment -20°C~+55°C , Less than 90% RH
Product Size38 x 38 x 25mm
Net Weight0.2kg
#Remark: Auto iris,Electric zoom,WIFI,POE,TF Card functions are optional . Please consult with us if need.

E4689DS-E510DS-(1).jpgE4689DS-E510DS-(2).jpgE4689DS-E510DS-(3).jpgE4689DS-E510DS-(4).jpg


The POE Module(Optional):


38X38mm PoE module   IEEE802.3af/at protocol

POE power: 12W (12V/1A)

POE: 1,2+/3,6- and 4,5+/7,8- adaptive transmission



The TF/Micro SD Card Slot Board(Optional)


>  TF Card storage,Only suitable for Single board (Extend via USB), Add TF then no USB

Expansion  TF Card

Support MAX. 128G TF Card














The WiFi Module(Optional):


80mW, WIFI module (3dBi containing small antenna, feeder, SMA interface), IPEX antenna interface, support 802.11BGN


> Support SIP-E Series

> IP module USB interface expansion

> Use WIFI function, you can not use USB storage
