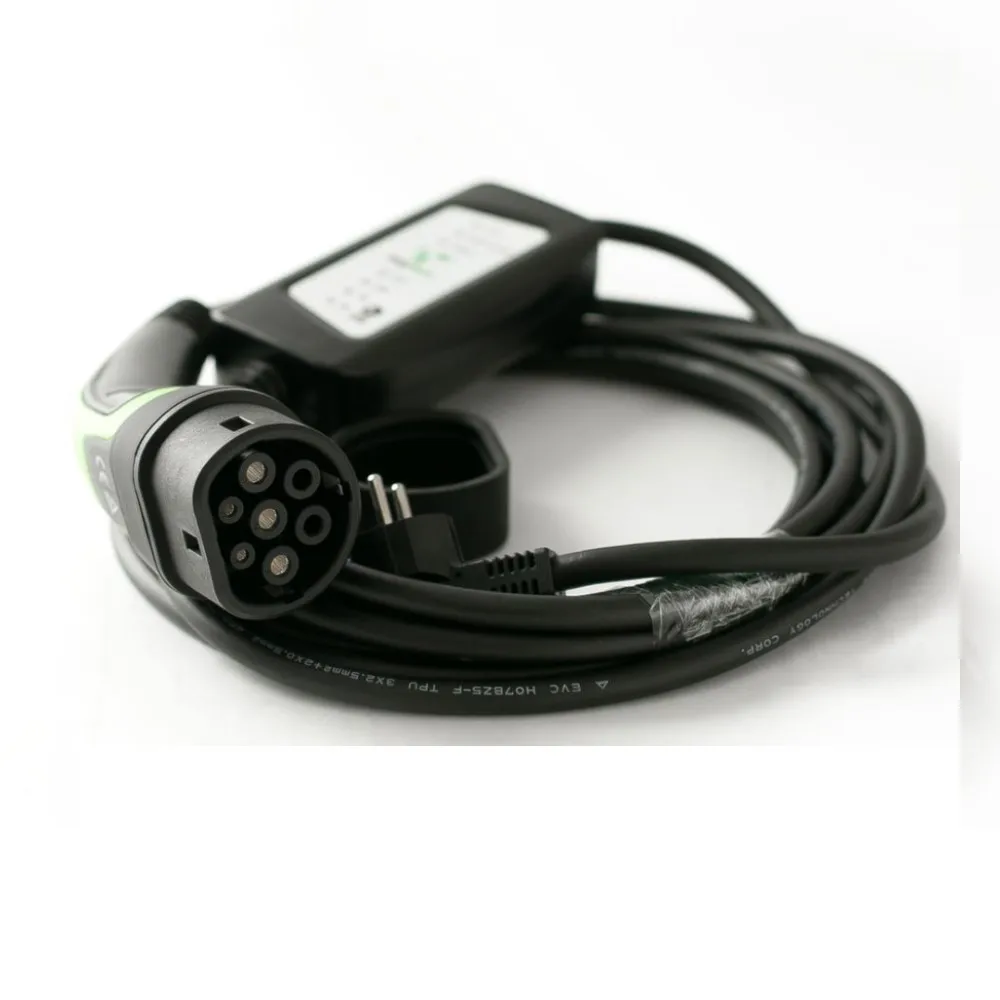

Портативное домашнее зарядное устройство 220 В для электромобиля, портативное зарядное устройство EV типа кабеля 2
147,00 $ - 176,00 $
Домашнее зарядное устройство EV быстрая электрическая зарядная станция электрический автомобиль один пистолет 22 кВт домашнее настенное переменного тока
- Категория: Charging Stations >>>
- Поставщик: Guangzhou Max Power New Energy Technology Co. Ltd.
Сохранить в закладки 62579760338:
Описание и отзывы
Характеристики
Guangzhou Max Power New Energy Technology Co., Ltd. is a high-tech company which has been invested by the fund supported by Jiangxi provincial government. It focuses on the R&D for the core parts such as on/off board charger & DCDC for new energy vehicle(EV, PHEV etc.). The core team members have rich working experience in Valeo with background of overseas education. The products we developed (OFBC,OBC & DCDC) have excellent performance and dominant position in the market.
Product Description

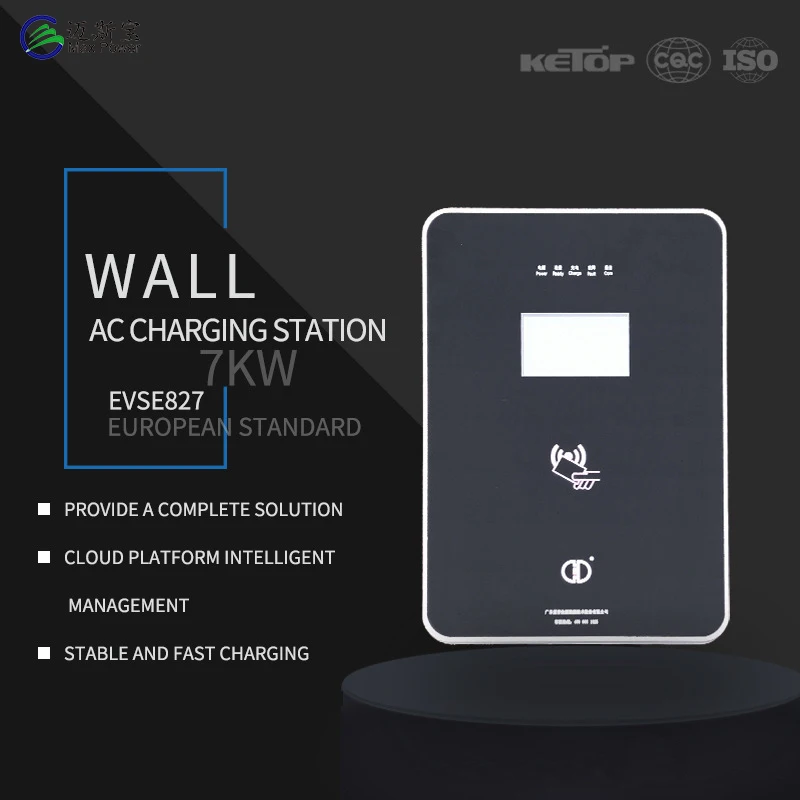

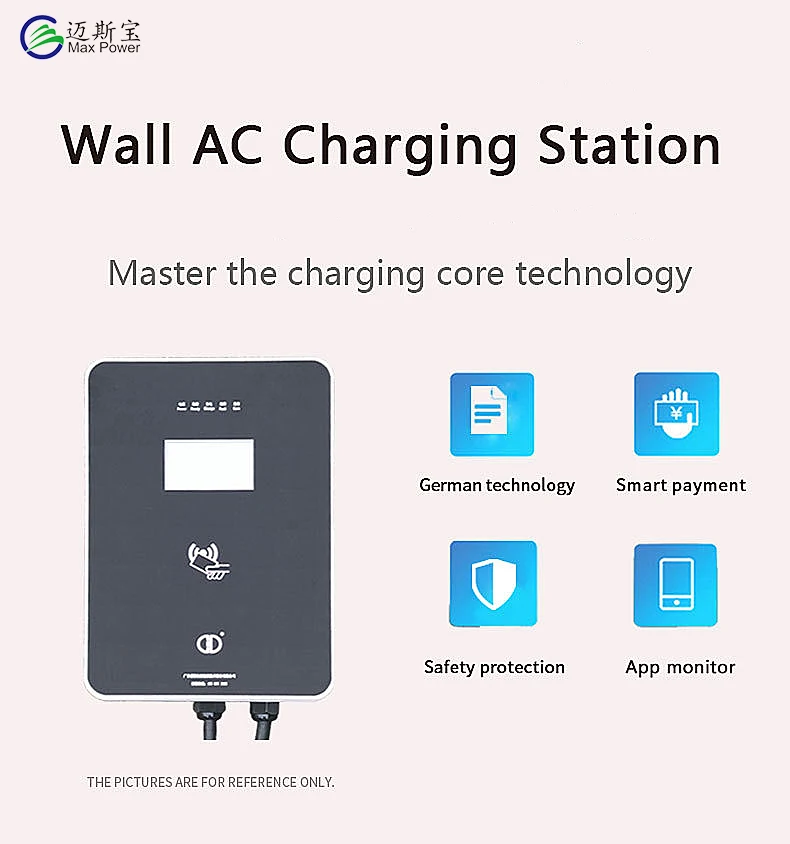

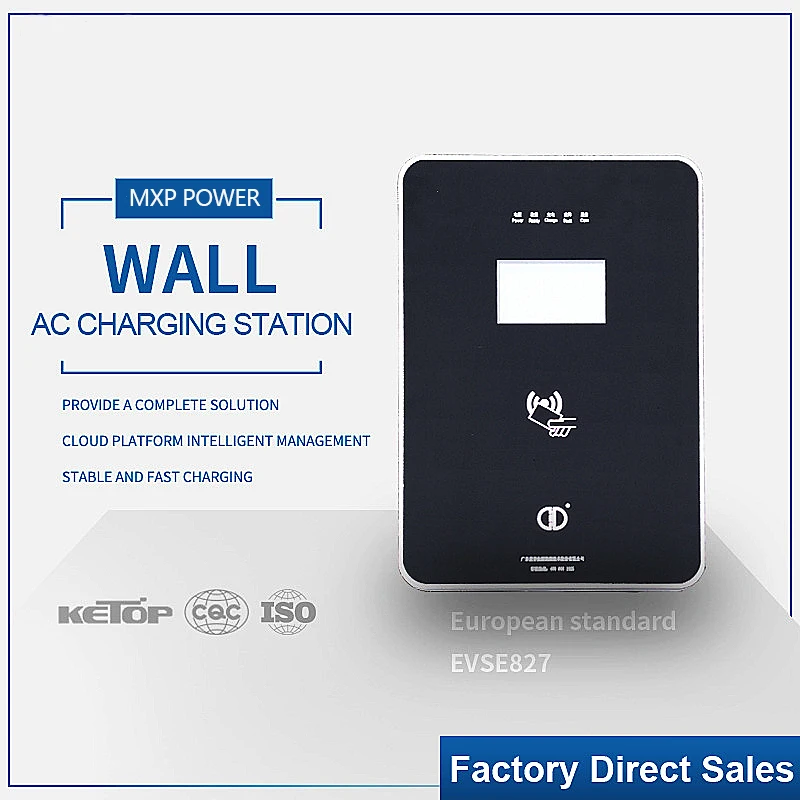

EV CHARGER 7KW 22KW
The Charging pile produced by MXPower with European standard has different types to meet the charging needs of different vehicles,
It can provide intelligent charging services based on different charging scenarios.
It can provide intelligent charging services based on different charging scenarios.
Feature
Attractive appearance, 7'LCD screen, simple but elegant.* Full protection
Full electrical protection, over/under temperature protection, Protection against lightning,leakage,short circuit,over current,etc.
* Stable
IP65 protection grade, capable for harsh environment, salt-mist condition.
* Intelligent
4G/ethernet/Wifi/ Background monitoring, RFID/QR payment support.
* European standard
OCPP vl.6 standard open communication protocol, IEC62196-2 type 2 connector.
* Easy to install and operation

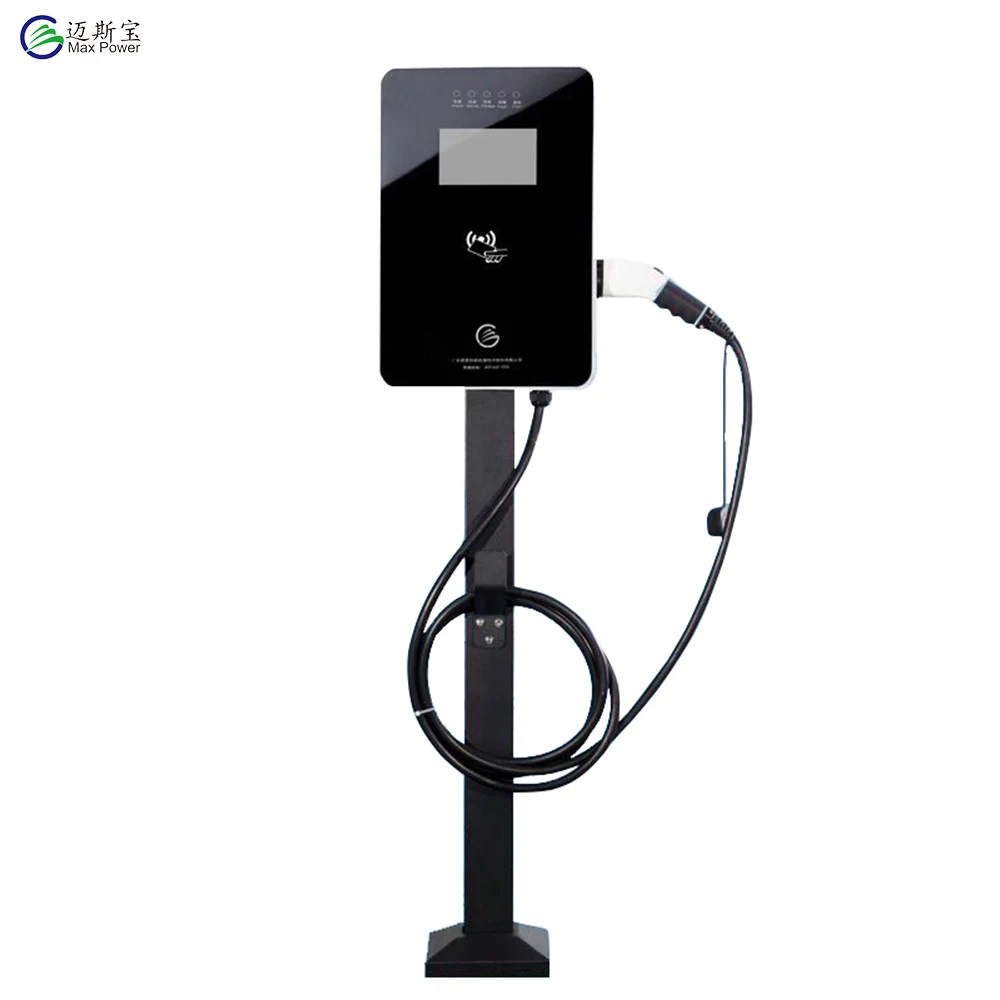

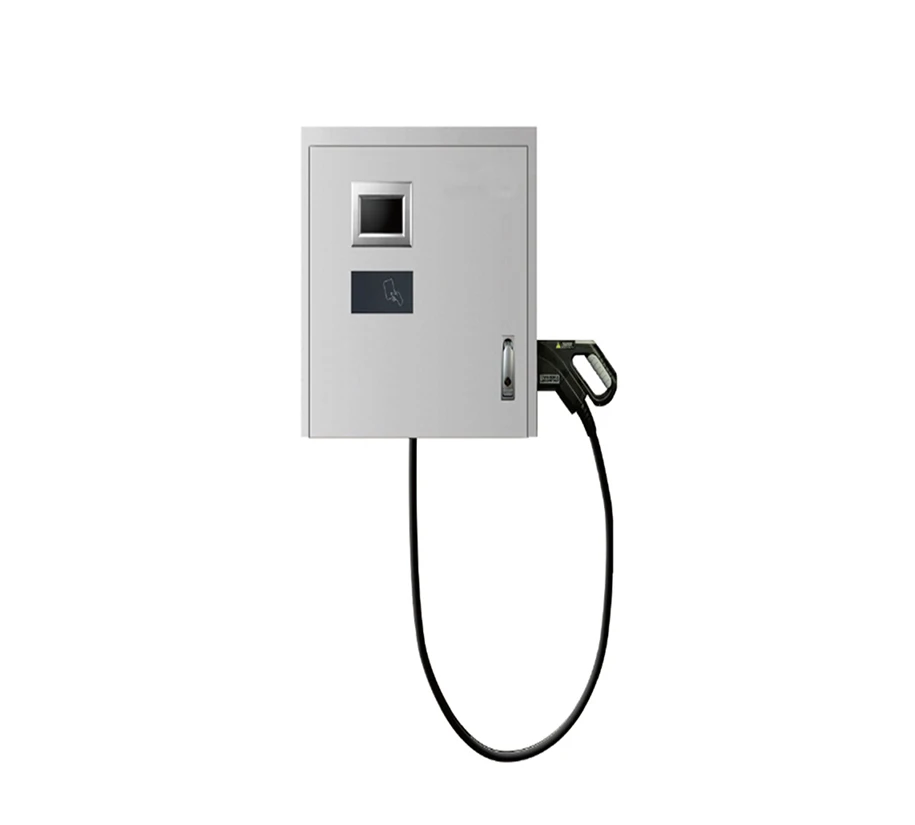

Wall-mounting or pole-mounting optional.
Note:All product outward appearance, the color take the material object as, the picture only supply the reference
Specification
Model | EVSE828-EU | EVSE828S-EU | ||
Input&Output | ||||
Input voltage(AC) | AC220V(L+N+PE) | AC220V(L+N+PE) | ||
Input frequency | 50Hz | 50Hz | ||
Output voltage | 220V AC | 220V AC | ||
Max.output power | 7KW | 7KW | ||
Max.output current | 32A | 32A | ||

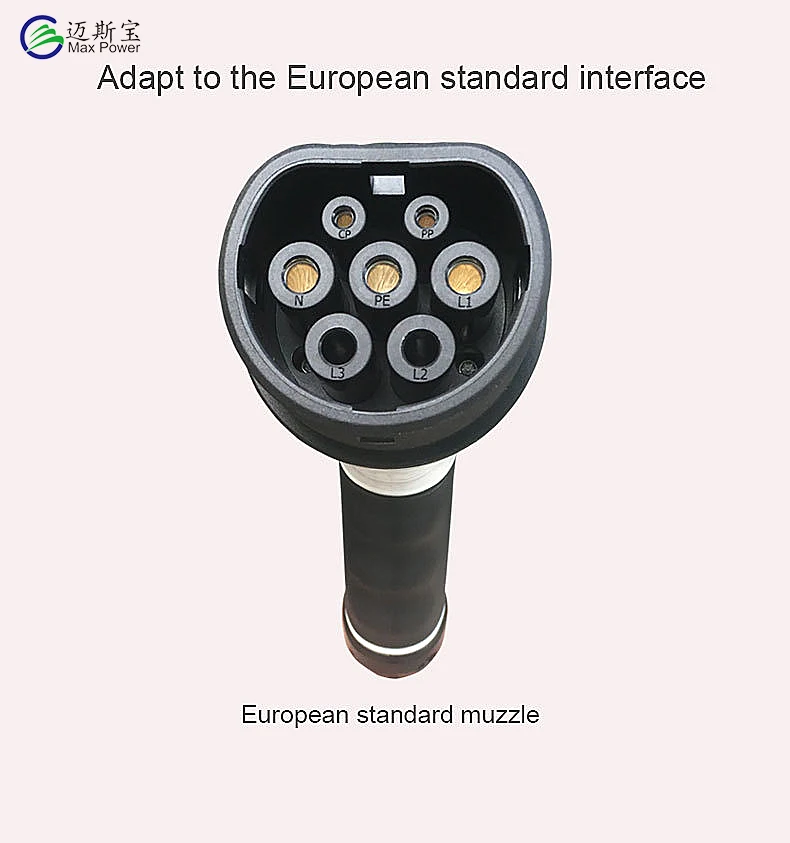

Charger interface type | IEC62196-2, type 2 | IEC62196-2, type 2 | ||
Protection | ||||
Overvoltage protection | Yes | Yes | ||
Undervoltage protection | Yes | Yes | ||
Overload protection | Yes | Yes | ||
Shortcircuit protection | Yes | Yes | ||
Earthleakage protection | Yes | Yes | ||
Over-temperation protection | Yes | Yes | ||
Lightning protection | Yes | Yes | ||
Function and accessory | ||||
Ethernet/WIFI/4G | Yes/Yes/Opt | Yes/Yes/Opt | ||
Connection | IEC62196-2 | IEC62196-2 | ||
RCD | Type B faultcurrent protection | Type B faultcurrent protection | ||
LED Indicator light | Yes | Yes | ||
Emergency stop button | Opt | Opt | ||
Charging Mode | RFID swipe card(Opt) | RFID swipe card(Opt) | ||
Communication interface | RS-232/485 Opt | RS-232/485 Opt | ||
Background agreement | Support OCPP 1.6 protocol | Support OCPP 1.6 protocol | ||
Mean Time to Failure | MTBF=8796h | MTBF=8796h | ||
Display Screen | 7 Inches | 7 Inches | ||
With charging socket/cable | Opt | Opt | ||
Working evironment | ||||
Protection degree | IP65 | IP65 | ||
Evironment temperature | -20℃+55℃ | -20℃+55℃ | ||
Relative humidity | 5%-95% non-condensing | 5%-95% non-condensing | ||
Storage temperature | -40℃+70℃ | -40℃+70℃ | ||
Maximum altitude | <2000m | <2000m | ||
Cooling | Natural air cooling | Natural air cooling | ||
Standby power consumption | <3W | <3W | ||
Mechnical | ||||
Dimension(W/H/D) | 400/280/120mm | 400/280/120mm | ||
Weight | <8KG | <8KG | ||
Mounting | ||||
Mounting mode | Wall hanging | Upright | ||
Moutiong accessories | Wall-mounting bracket | Ground-mounting pole | ||
SUPPORT CAR:
Packing & Delivery
1. During the transportation process, the charger body package should be firmly sealed and the loading and unloading direction should be identified by a solid wooden packing box. The charger should not be stored upside down. Corresponding tightening measures should be taken during transportation to avoid strong vibration and bumps that damage the outer packaging of the equipment.
2. After the arrival of the goods, it should be checked for damage. If there is any damage to the transportation, it should be
settled with the transportation party and our company. Immediately after unpacking, check that the contents of the box match the packing list.
3. The packaged equipment should be stored in a room with a relative humidity of ≤80% and an ambient air temperature of -10 °C to +40 °C. Storage places should be dry, clean, air circulated, and can prevent the intrusion of various harmful gases. It is strictly forbidden to store in corrosive materials in the same place.4.For customers to choose, DHL, Fedex, TNT, UPS, Air freight, Ocean freight. The package and label can be with customer's requirement.
2. After the arrival of the goods, it should be checked for damage. If there is any damage to the transportation, it should be
settled with the transportation party and our company. Immediately after unpacking, check that the contents of the box match the packing list.
3. The packaged equipment should be stored in a room with a relative humidity of ≤80% and an ambient air temperature of -10 °C to +40 °C. Storage places should be dry, clean, air circulated, and can prevent the intrusion of various harmful gases. It is strictly forbidden to store in corrosive materials in the same place.4.For customers to choose, DHL, Fedex, TNT, UPS, Air freight, Ocean freight. The package and label can be with customer's requirement.
Company Profile
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q9:Are you a factory or trading company?
A: We are a professional manufacturer of new and sustainable energy applications for over 18 years
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q9:Are you a factory or trading company?
A: We are a professional manufacturer of new and sustainable energy applications for over 18 years
