Светодиодный диммер 0 10 В для светодиодной лампы 230 трехкнопочный настенный выключатель с сенсорной

Сохранить в закладки 62581577399:


Цена:17,07 $ - 17,67 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики


0-10v led dimmer for led lamp 230v three buttons wall switch touch board


0-10v led dimmer for led lamp 230v three buttons wall switch touch board





















Accessories















 Description   Label


  • Supply voltage : AC100-265V

  • Frequency: 50/60Hz

  • Output voltage: 0-10VDC

  • Output current: 50mA

  • Static power: <1.2W

  • Working temperature: -20℃-50℃

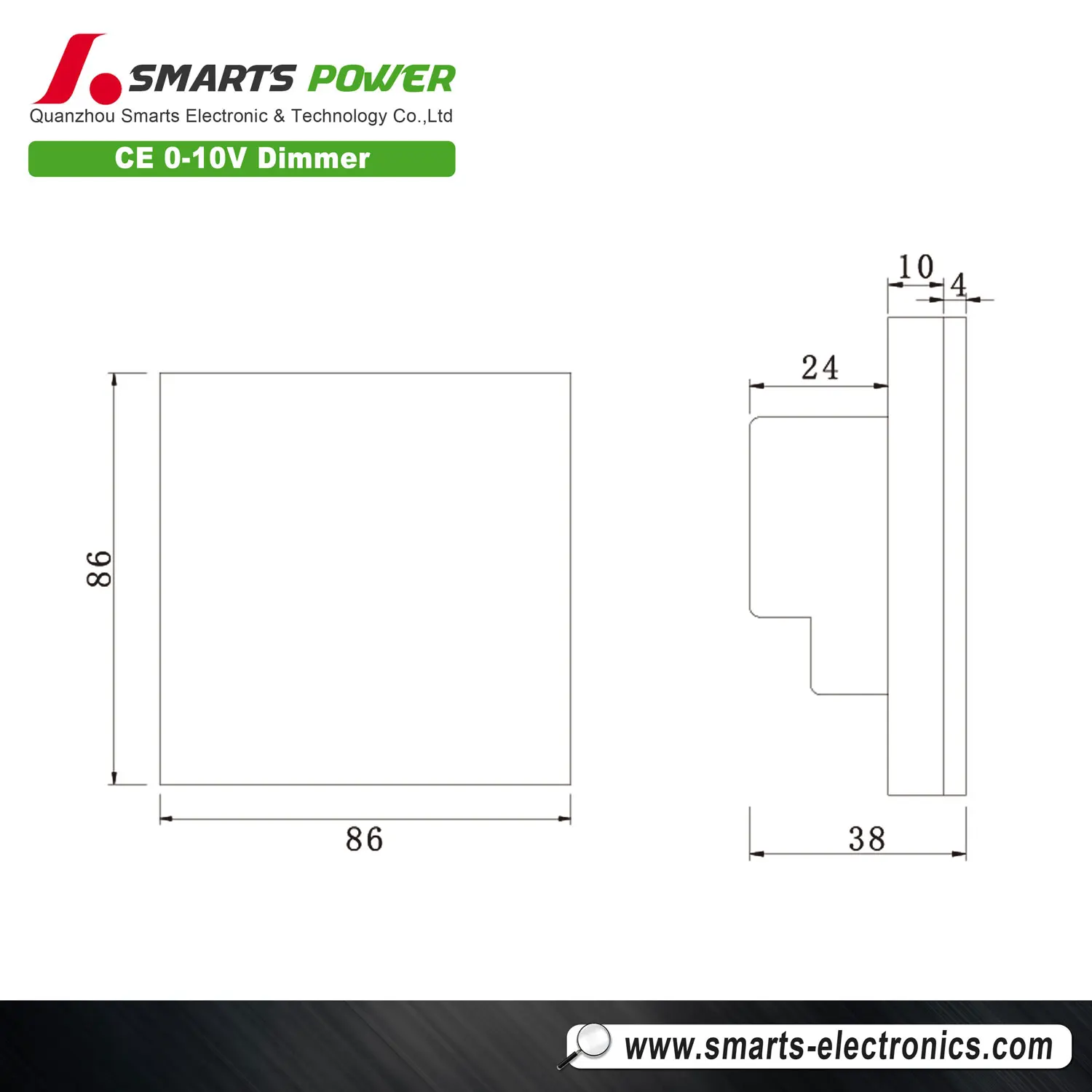

  • Product dimension: L86*W86*H38mm

  • Packing size: L116*W110*H51.5mm

  • Net weight: 170g

  • Gross weight:  228g


0-10v led dimmer for led lamp 230v three buttons wall switch touch board

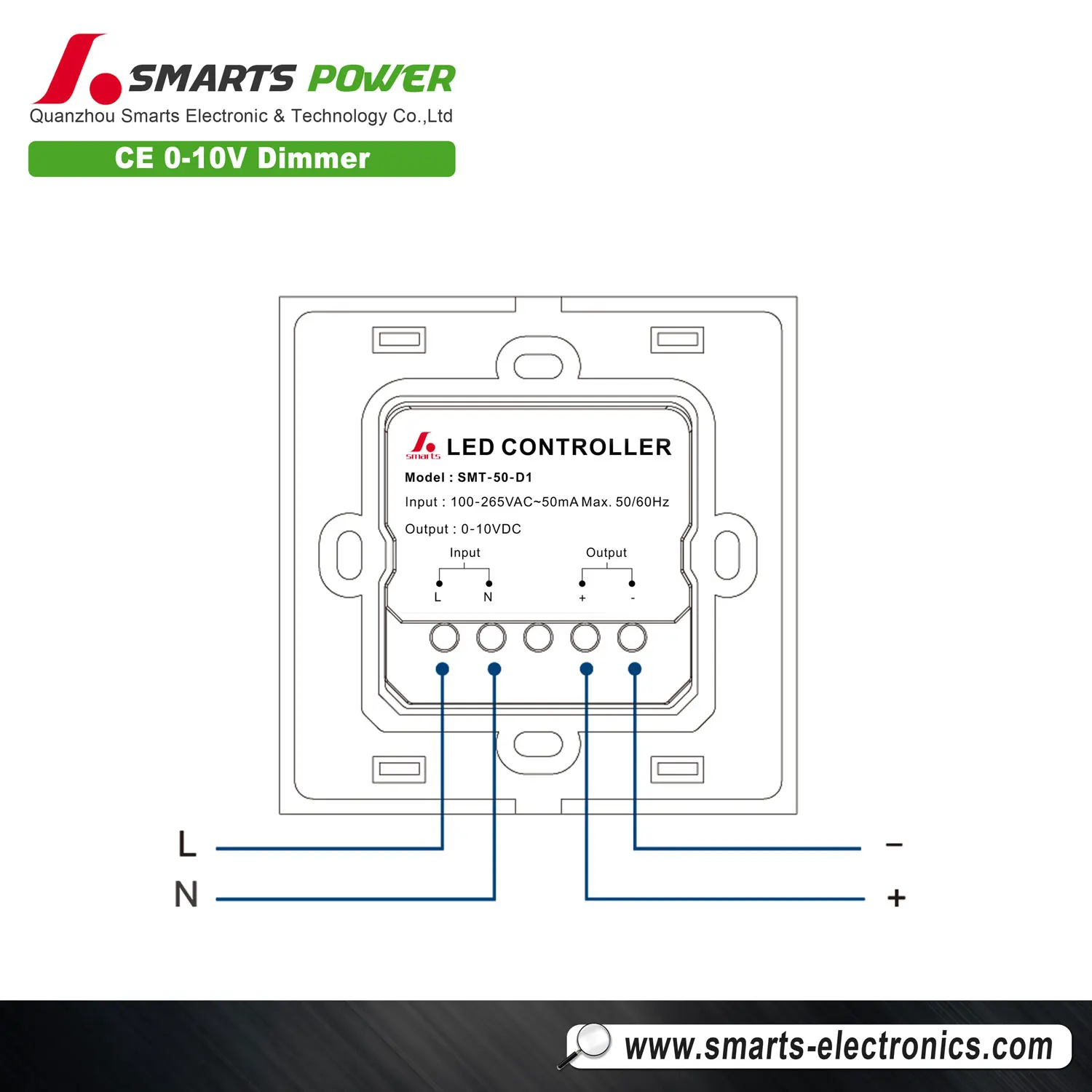

  Typical Application


0-10v led dimmer for led lamp 230v three buttons wall switch touch board












0-10v led dimmer for led lamp 230v three buttons wall switch touch board

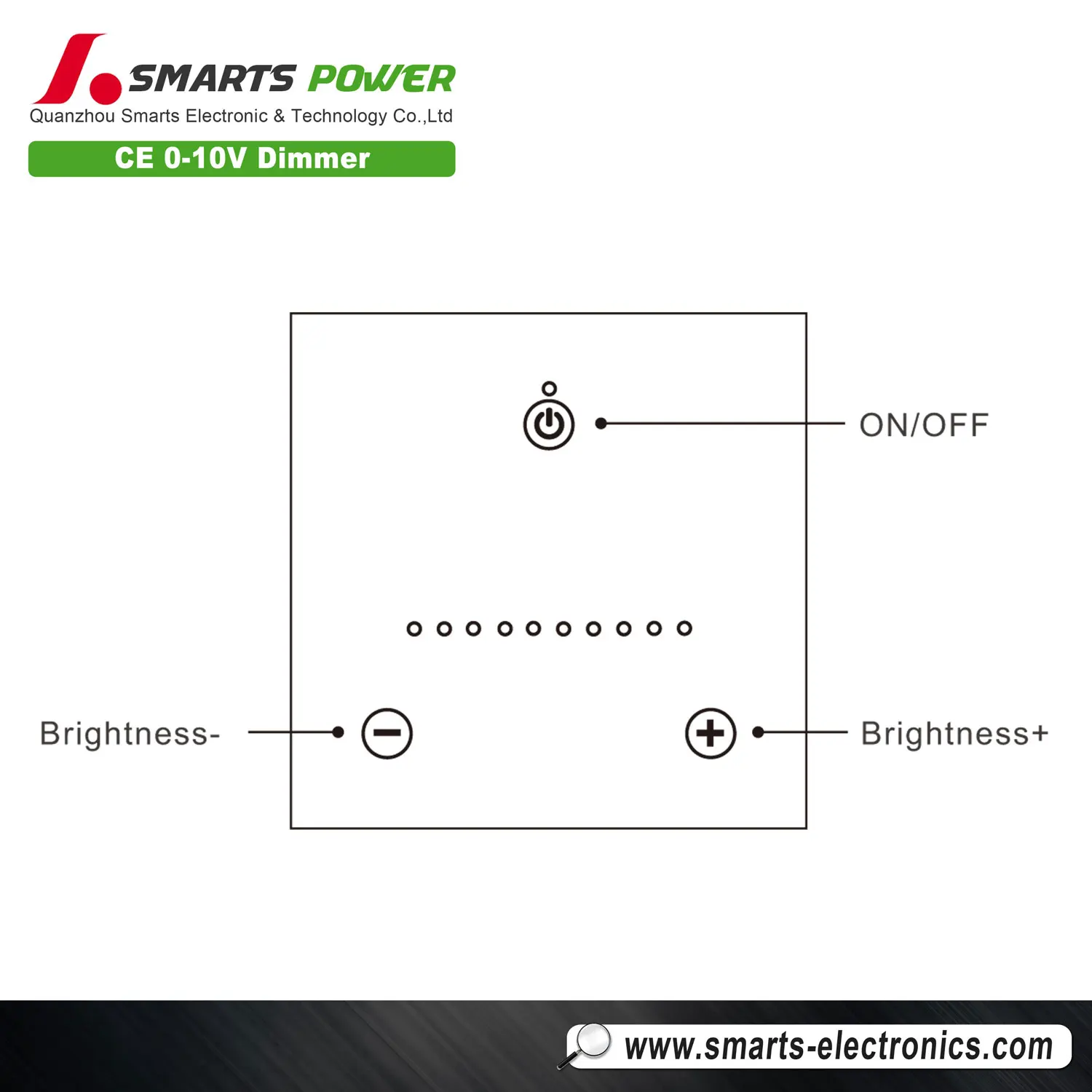

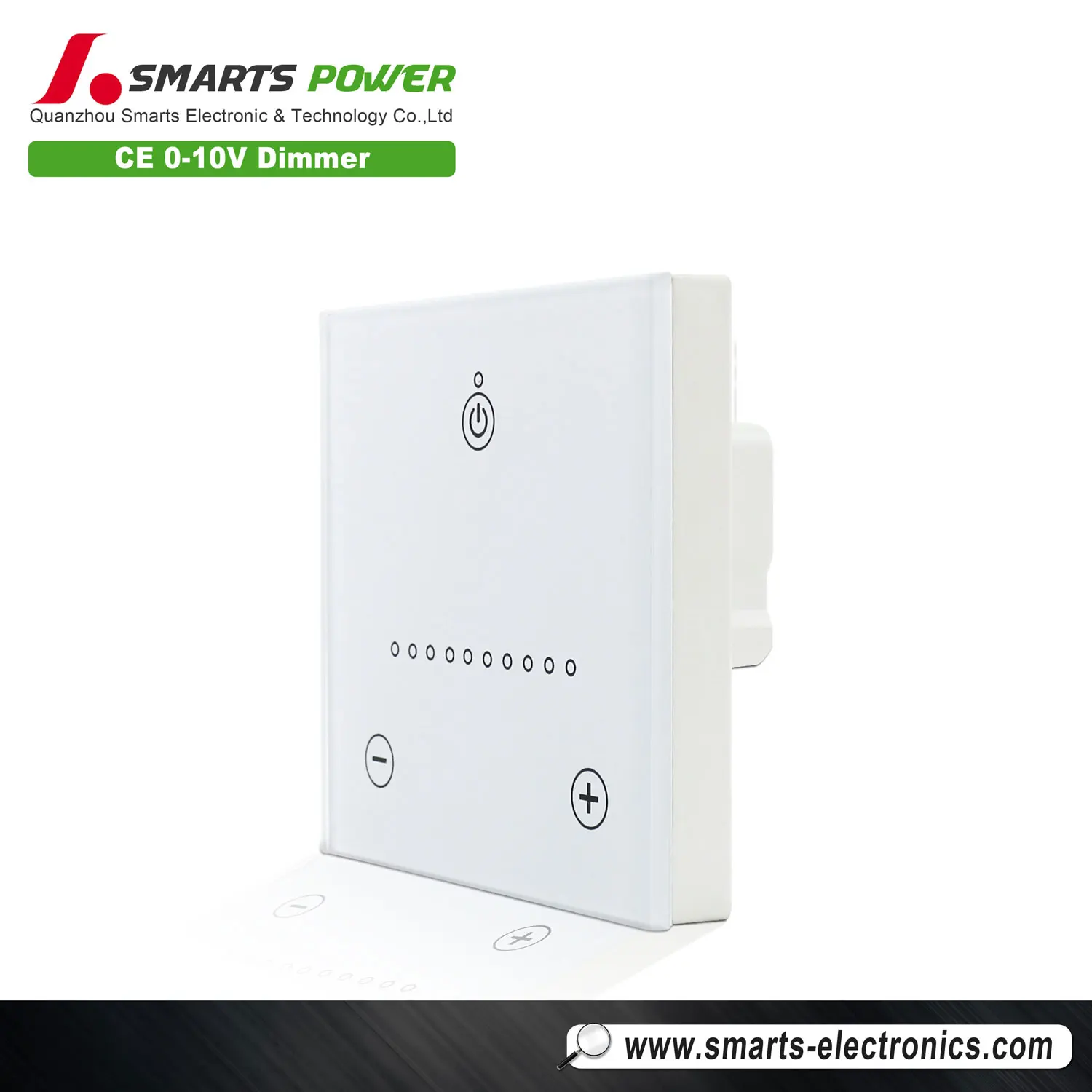

  Interface Introduction


Brightness+:add one grade from 0-10V by each press
Brightness-:reduce one grade from 0-10V by each press





Combination KEY ( + -) : Output Pattern can be switched between constant voltage
and constant current Pattern for constant votlage driver or constant current driver.





Combination KEY only works when dimmer closed,The Factory Default is constant voltage pattern.
During the pattern switching , when in Constant voltage pattern the front 5 indicator lights will up,when
in constant current pattern the back 5 indicator lights will up





Remark:If the lamp is not light up after correct wiring and power on according to the
illustration figure shown.Please check the dimmer brightness level is not level 0? In order
to easy for debugging observation please adjust the brightness level to a suitable level.






click for more information
