Промышленная машина для резки 1625 пенопласта кожи Осциллирующий нож режущий плоттер меха с устройством растяжки
- Категория: >>>
- Поставщик: Jinan HT Machinery Co. Ltd.
Сохранить в закладки 62583002974:
Описание и отзывы
Характеристики
On the basis of replacing manual processing to improve processing accuracy, efficiency and safety on a large scale, it can also avoid environmental pollution caused by laser cutting and other processing methods, so as to achieve automatic processing with high accuracy, high efficiency, high reliability and environmental protection.
Product Description
Industrial 1625 1816 foam cloth leather cutting machine oscillating knife cutting plotter fur with stretching device
Machine features:
High efficiency: don't need any die mold, or die mold cutting machine, this machine can press mark, cutting and molding on soft material such as leather, carton etc. Save much labor and cost.
Low cost: one machine can do design, cutting instead of manual design and cutting, save labor, and material wastage cost.
Wide application: This machine can cut leather, PU, fiber, EVA, XPE, sponge cladding, composite cladding, Sponge+drape+composite leather, PVC foot mat, paper, carton, plastic board etc. Soft material.
Good performance: adopt Taiwan TBI ball screw or Wuxi High precision rack pinion, low noise, accurate transmission. Long lifespan and high precision.
Technical Paramaters: | ||
X working size | 1600mm | |
Y working size | 2500mm | |
Z working size | 50mm, max cutting thickness of material is 50mm | |

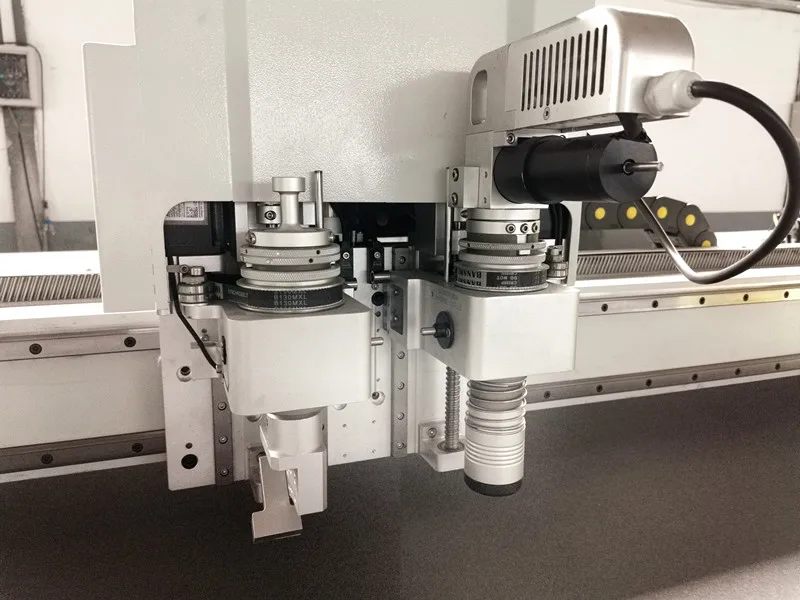

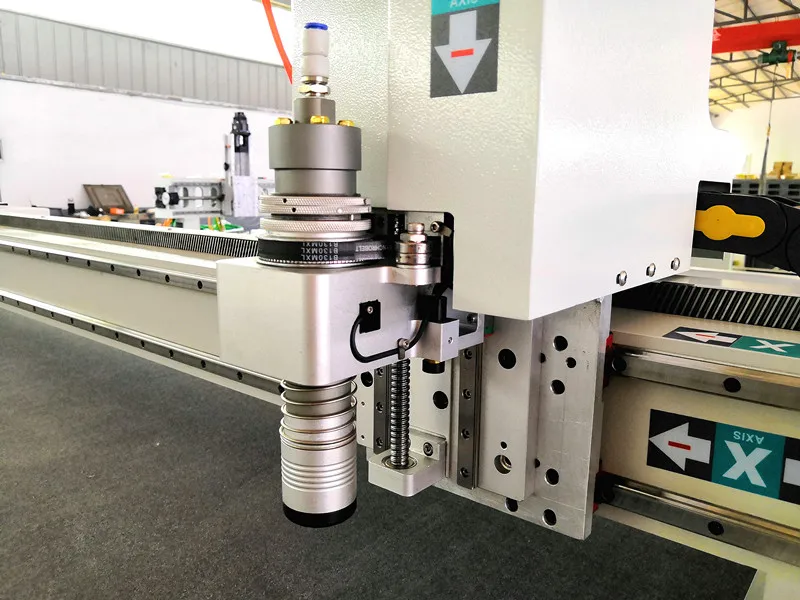

Cutting head | cnc oscillating knife cutting head | |
Display way | English LED touch screen | |
Machine table | Suction Table, suitable for textile, sponge, foam, corrugated board, paper, plastic film and other soft material | |
Data transfer way | Intel | |
Vacuum pump | 9KW air type vacuum pump | |
Driving system | Taiwan delta servo driver and motor | |
Control system | RD control system | |
Guiding system | Taiwan TBI square rail | |
Weight | About 1200kgs | |
Size | 2250*3300*1650mm | |
Power | 380V 50HZ | |
PS: All the working area and specifications can be customized according to your requests.
Advantages：
2. Ruida control system, high precision, high efficiency, high reliability, green and environmental protection automatic processing
3. Modular structure design, simple and safe operation mode, to ensure the speed and accuracy of operation.
4. Vacuum adsorption table, high-power vacuum pump, air volume up to 300m3 / h.
5. Perfect lubrication system to extend the service life of the machine.
6. The gantry type movement is adopted, and the materials on the working table can be processed at will, so the operation is convenient.

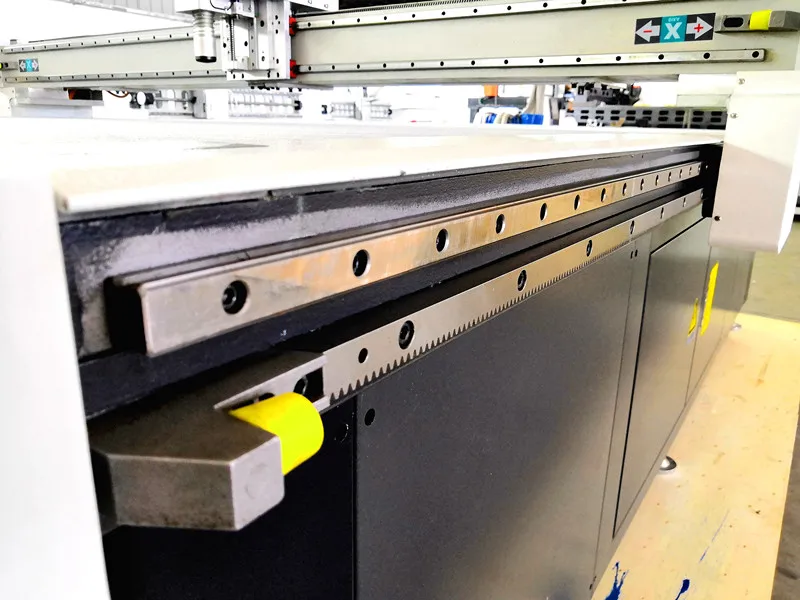

7. X / Y axis is driven by high-precision rack, with high speed and precision.
8. The z-axis is driven by high-precision double nut automatic clearance ball screw with high precision.
9. The cutting machine adopts square linear guide rail to ensure the high precision of the machine and bear large load
10. The wire adopts imported high flexible shielded cable

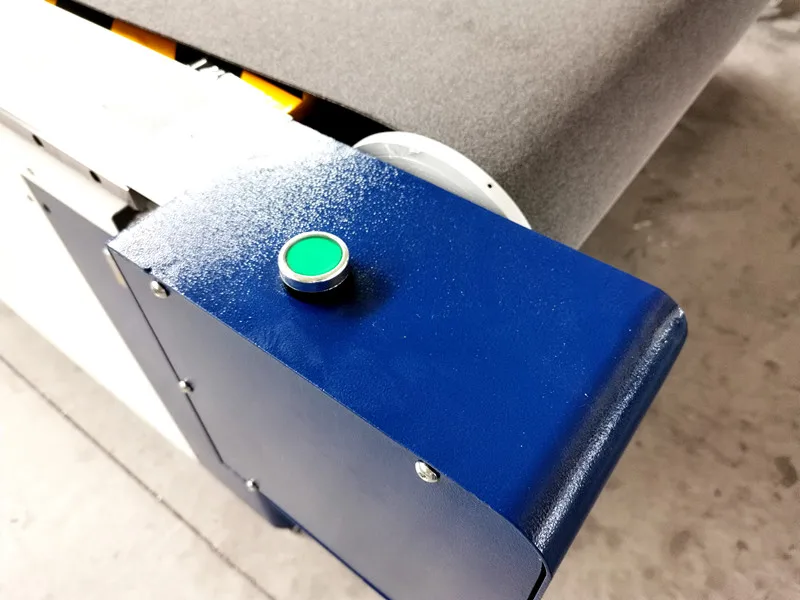

Detailed Images
Cnc oscillating knife cutting machine Application:
1）Sofa, seat, car seat cover, car floor mat, car carpet, luggage, handbag and other industries.
2）It is applicable to shoe industry, clothing industry, composite material industry, luggage industry, automobile industry
3）Advertising and printing industry, electronic industry, decoration industry, furniture industry, etc.
Packing & Delivery
Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.
Improved package, much more strong and environmental protection.
We can also make package according to your requests.
Delivery Detail: Shipped in 20-30 working days after payment.
Service & Feedback
Guarantee and After-sale service:
1. 12 months warranty for the whole machine.
2. Technical support by phone, email or WhatsApp/Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.
2. Technical support by phone, email or WhatsApp/Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.
Company Information
HT
Jinan HT Machinery Co., Ltd.was founded in 2003, produce superstar brand plate furniture production line,woodworking engraving machine, cnc wood router, advertising engraving machine, stone engraving machine, Buddha engraving machine,metal mold machine. fiber laser cutting machine etc.
Super star cnc group built overseas warehouse in 11 counties including pakistan, vietnam, kenya, south africa, russia,thailand,malaysia, uzbekistan, kazakstan, dubai etc. The customers from these countries can enjoy in-time service and delivery.
Welcome to visit us, click https://jnhtmachinery.en.alibaba.com/ to learn more about us.
Cercifications
FAQ
Q1: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.
Q2: How to install and run the machine?
A: Our technician have installed and Full test before shipping. , we will send detail training video , user’s manual along with the machine. 95% customers can learn by themselves.
Q3.What is the producing time after order?
The proucing time is about 10-20 days depend on different machines.
Q4.If we don't know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee,like tickets and hotel and meal.
Q5.How about your after-sales service?
we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.
Похожие товары
Оптовая продажа от производителя, искусственный торт, букет, мыло, розы, цветы
6,98 $ - 7,81 $
DJD001-C прочный Пользовательский логотип 3D весенний игровой коврик для гольфа
116,67 $ - 200,83 $
Новинка от производителя, осенняя Роза, искусственные цветы для домашнего декора, Декоративный букет, магнолия, маргаритки, ветки, тюльпан, Букет пионов
0,39 $ - 0,45 $
Автоматическая машина для розлива и закупорки сиропа, автоматическое оборудование для розлива ПЭТ бутылок по заводской цене
8 950,00 $ - 9 250,00 $

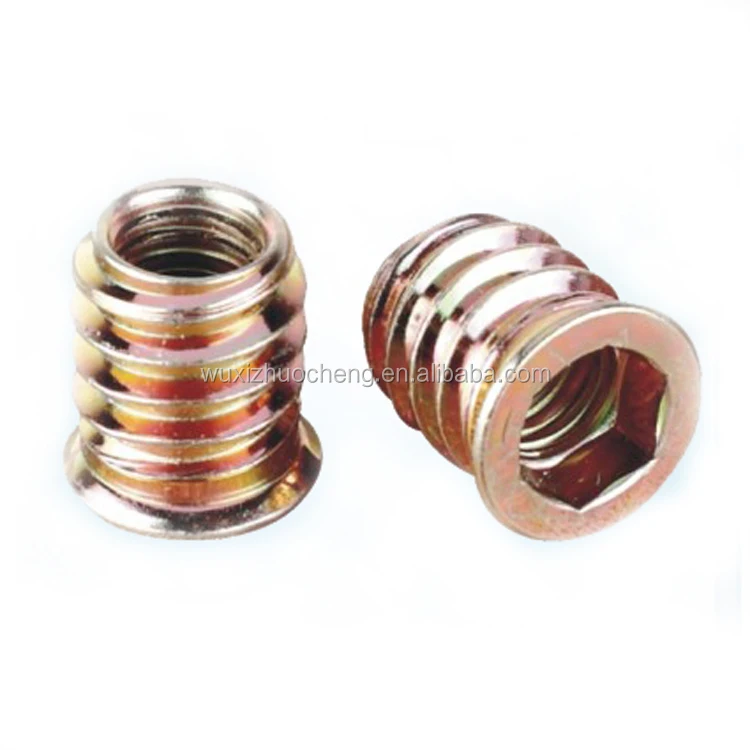

Оптовая продажа, гайки из цинкового сплава с шестигранным углублением M10 M4 с плоской головкой для деревянной мебели
