Химическая жидкость/масло из нержавеющей стали фильтровальная машина для воды мешок корпус фильтра
- Категория: Другое промышленное фильтровальное оборудование >>>
- Поставщик: Wenzhou Sangtian Fluid Automatic Control Equipment Co. Ltd.
Сохранить в закладки 62584262829:
Описание и отзывы
Характеристики
Product Description
Application:
STline bag filter have been designed for use in the food & beverage industry and are regularly used for the filtration of:Beer
Whisky
Vodka
Infused Gin
Honey
Kombucha
Water for food contact.
Features and Options:

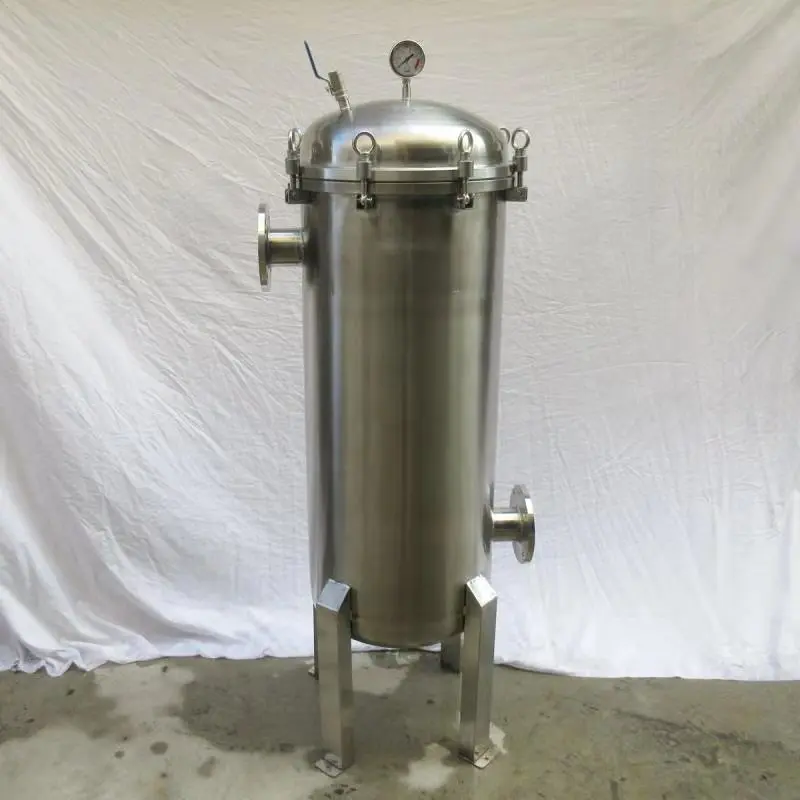

STline bag filter housings are constructed from 316/304 Stainless Steel and usually take 7” diameter Size 1 & Size 2 standard filter bags for most of our cilents.
1.Bag Material :Stainless steel,PE,PP ,Nylon etc.
2.These bag housings have a free flowing, easy to clean design and can be supplied with hygienic connections (triclamp, RJT, DIN11851 etc).
3.Removable and cleanable mesh lined baskets provide an alternative to filter bags for coarse filtration of particles. Mesh available from 0.1 micron to 2000 micron.
According to the thermal insulation performance,bag filter can be divided into normal temperature type and thermal insulation type
According to the structure, it can be divided into: single bag filter, multi bag filter and jacket type.
But if you have special,we support OEM&ODM.
Specification
Bag Specification | Flow rate | Filtration area (㎡) | Length (mm) | Bag diameter (mm) | Bag microws |
Bag No.1 | 20 | 0.25 | 410 | 180 | 0.1-Max |
Bag No.2 | 40 | 0.5 | 810 | 180 | 0.1-Max |
Bag No.3 | 6 | 1 | 210 | 102 | 0.1-Max |
Bag No.4 | 12 | 0.15 | 356 | 102 | 0.1-Max |
Bag No.5 | 25 | 0.3 | 870 | 175 | 0.1-Max |

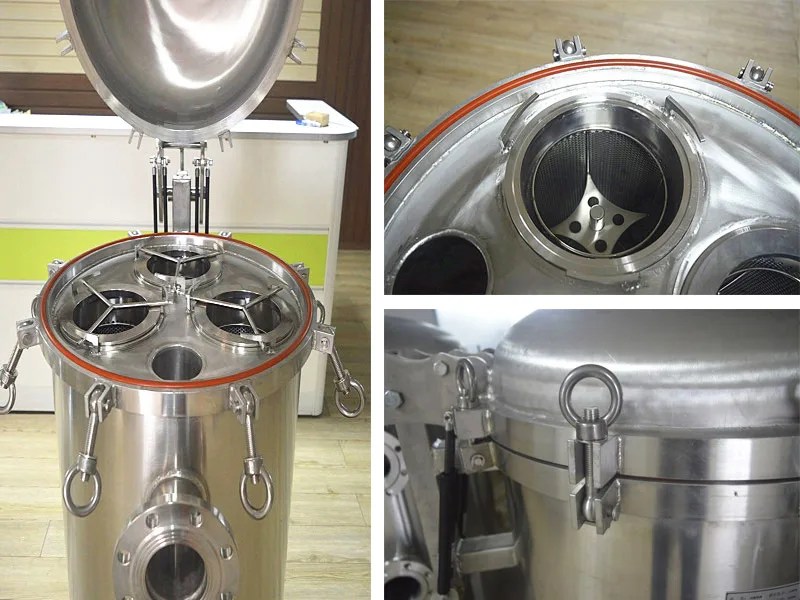

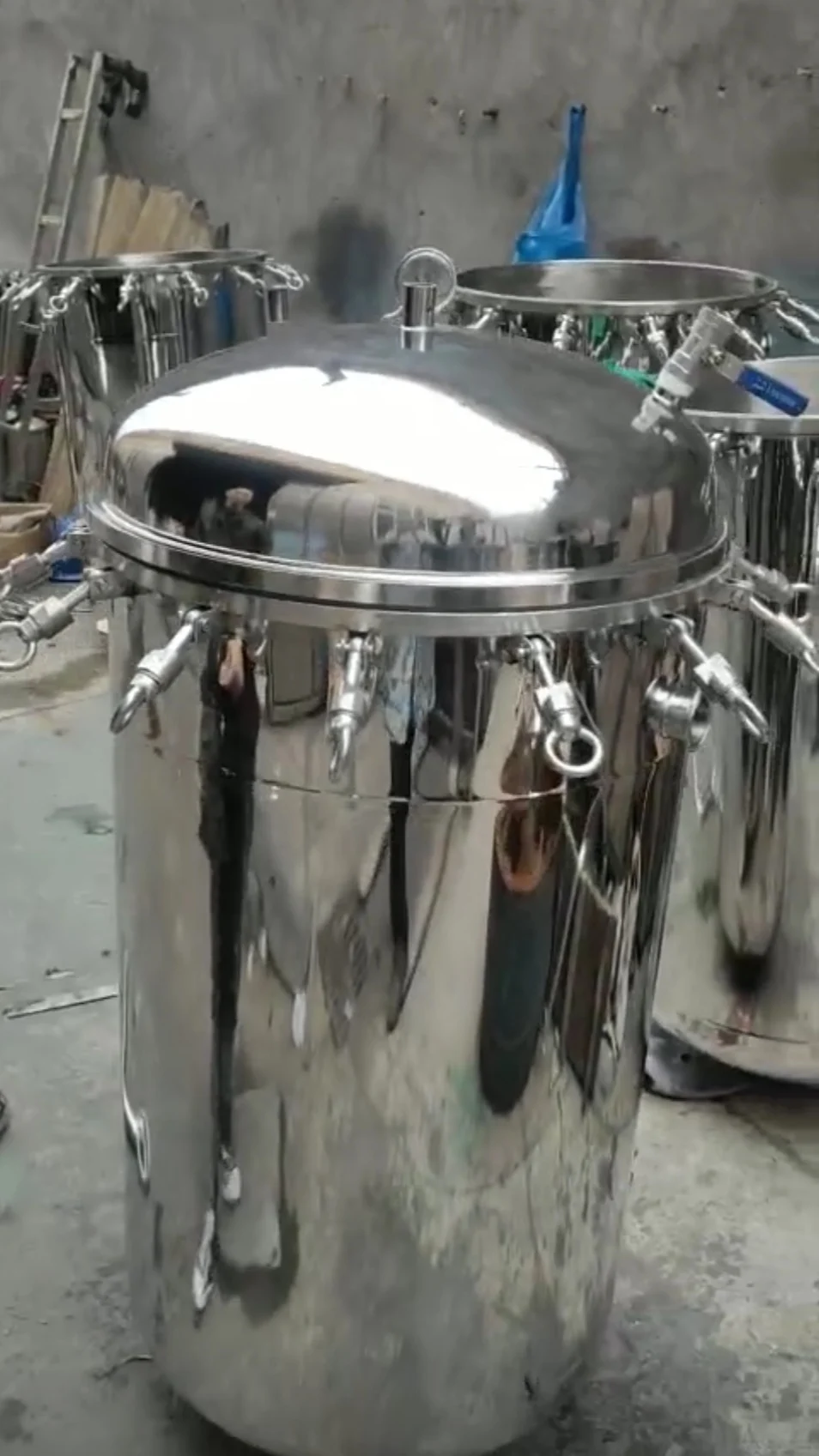

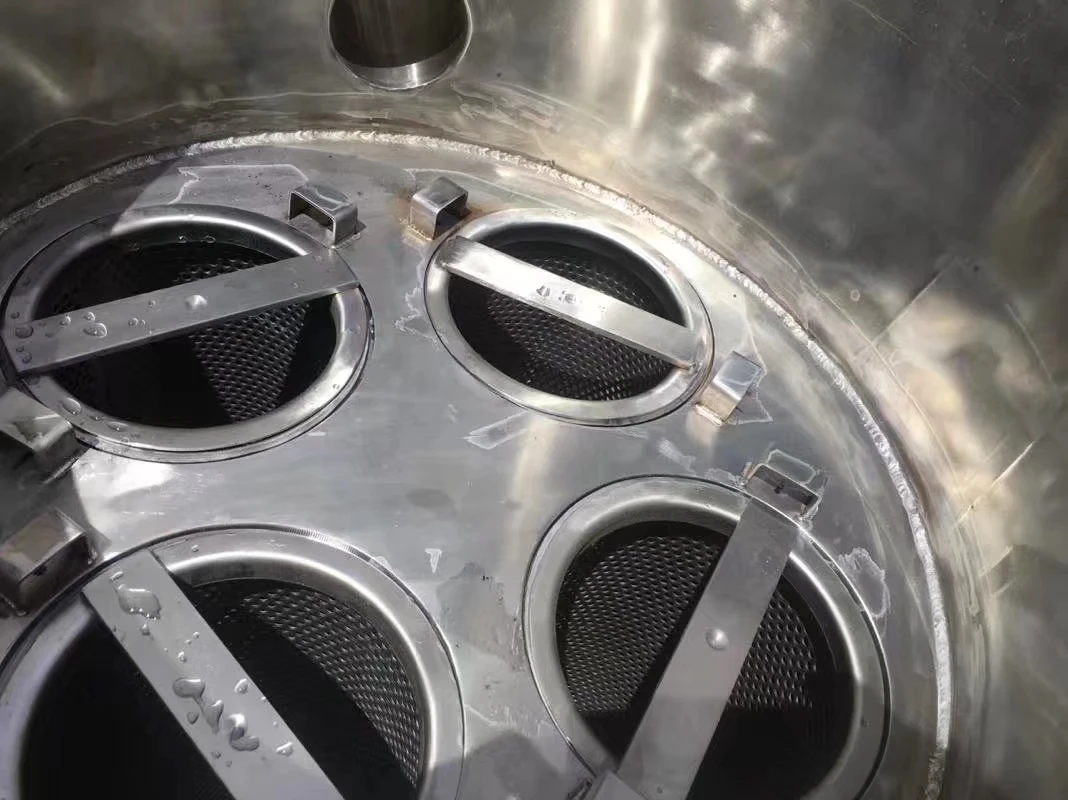

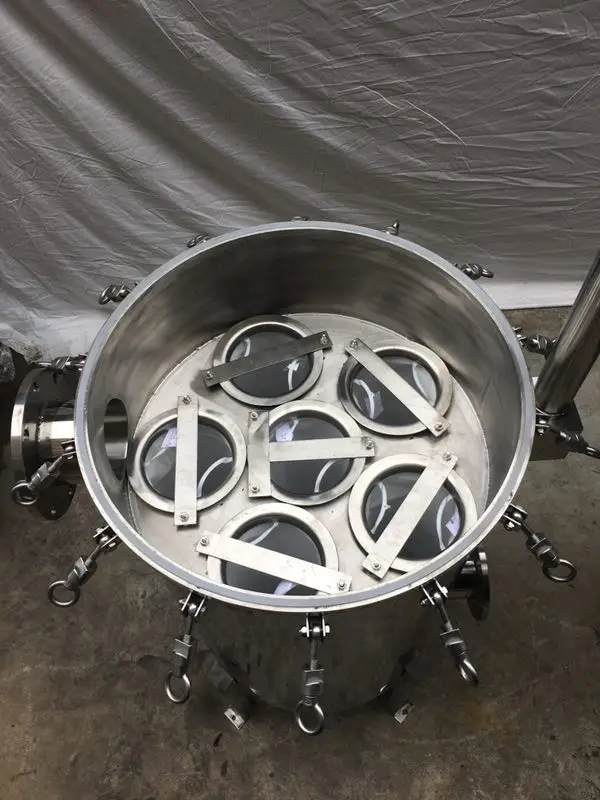

Details images of bag filter
Insulation jacket bag filter. A layer of jacket is added to the surface of the single-bag filter, which can pass steam or thermal oil to maintain or increase the temperature of the fluid, prevent the fluid from solidifying, increase the filtration speed of viscous liquid, and improve efficiency. Suitable for filtering fluids with high viscosity and rapid coagulation.

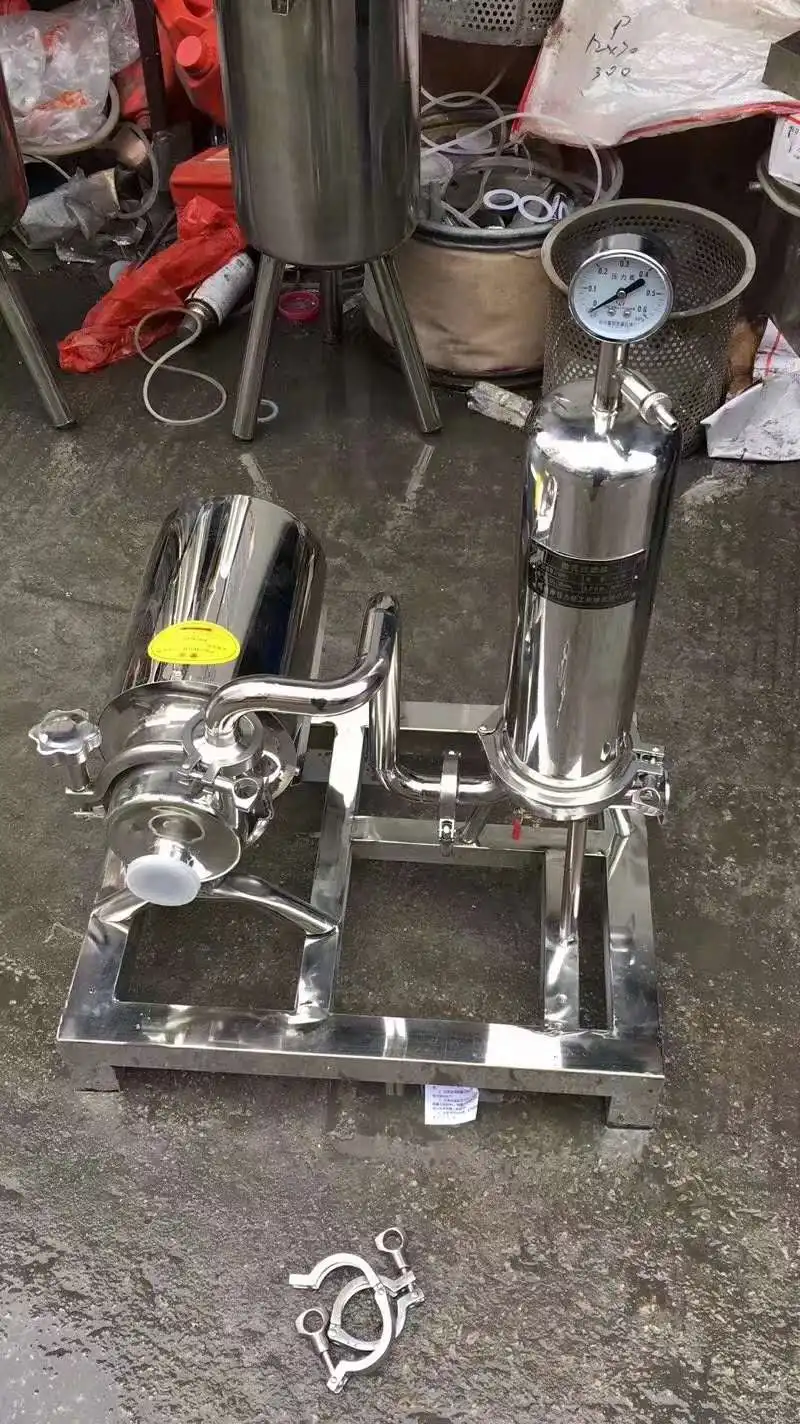

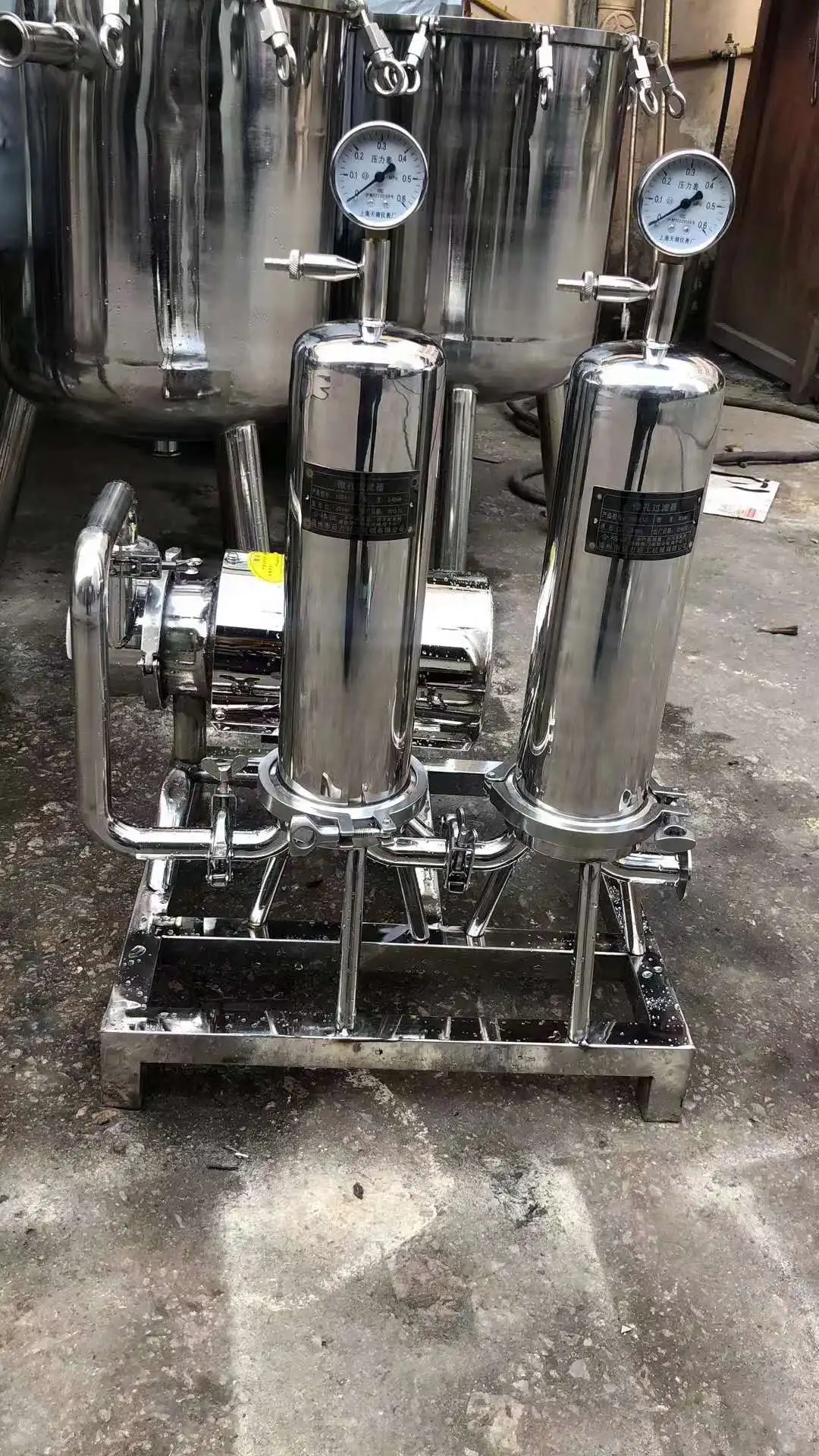

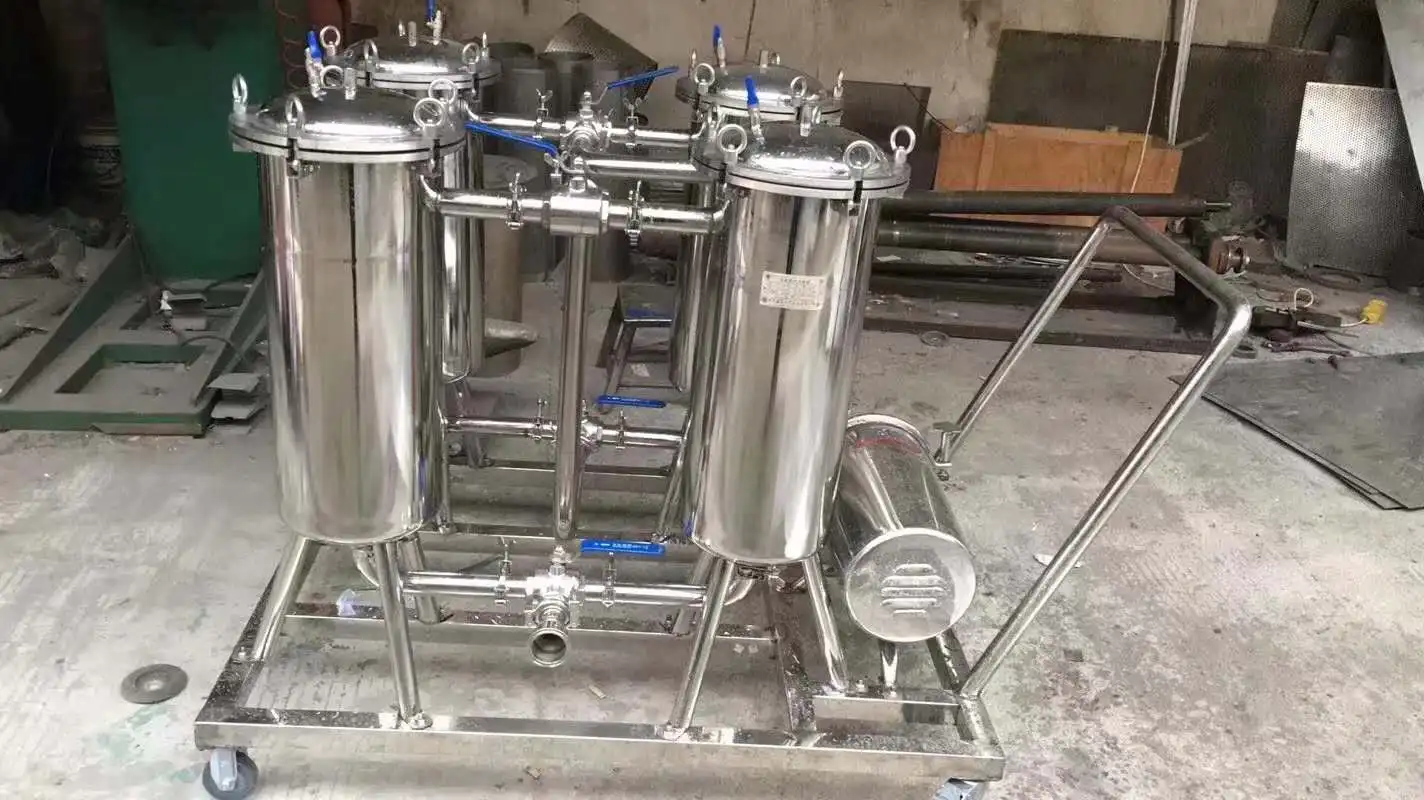

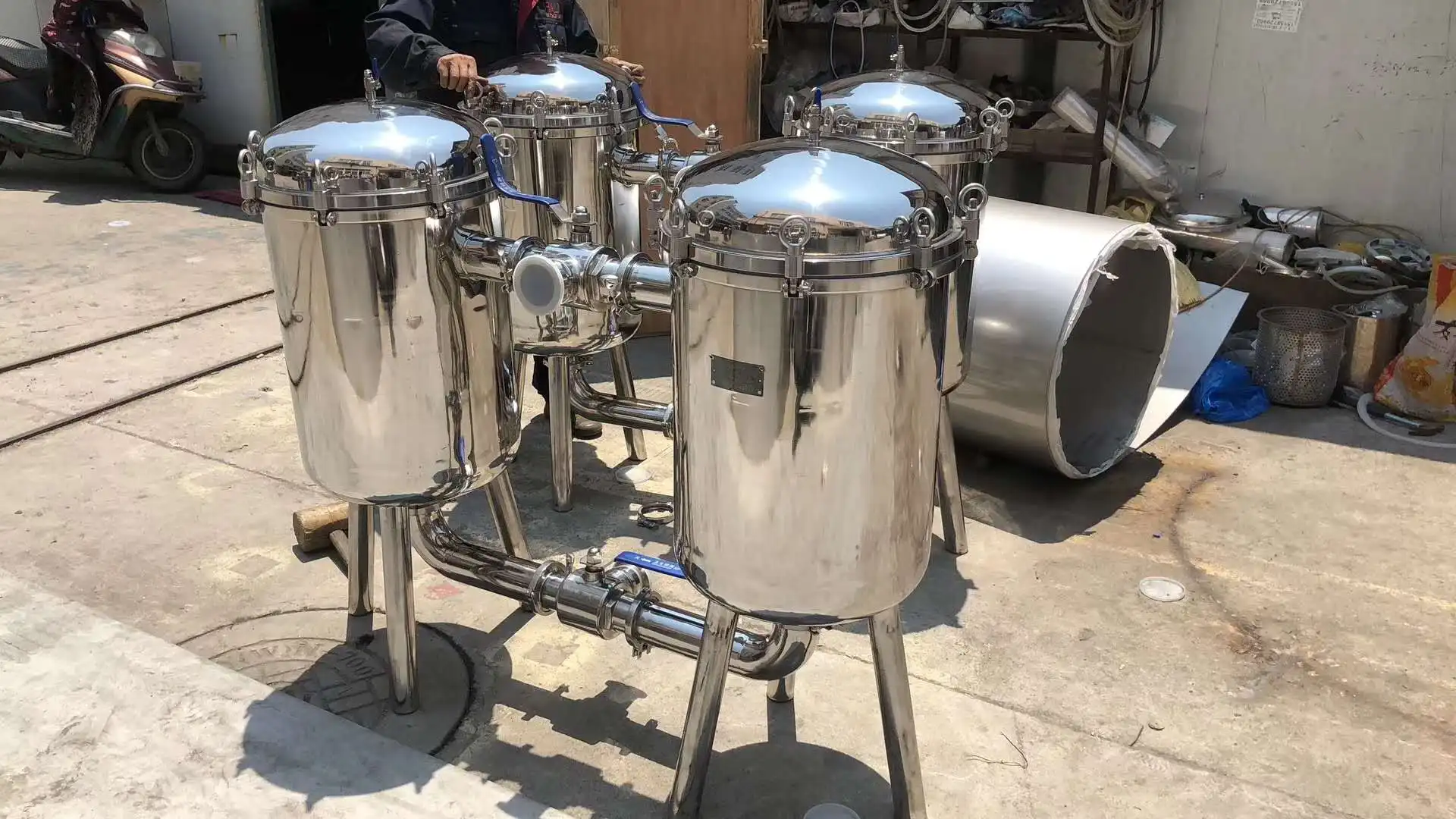

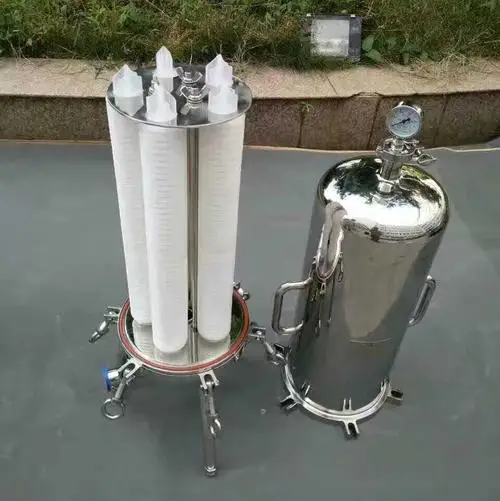

Other related filters
Packing & Delivery
Company Profie
Zhejiang sangtian fluid Automatic control equipment Co. ,ltd is a high precision fluid equipment manufacturer,our company attaches great importance to international cooperation,the introduction of international advanced processing equipment,professional production:sanitary pump, valves,pipe fitting and other products. Manufacturing products according to customers to provide technical parameters and ISO,IDF,DIN and 3A standard. The technology reached the same industry leading level,conforming to GMP requirements
FAQ
1 Are you a factory or trading company?
We are a factory specialized in manufacturing valves,fitting and pump.
And we have got the verification of compliance for ISO &CE certificate.
2 Where are the main markets for your products?
For now, our valves and fittings have been exported to especially in North America, South America, South Asia, Europe and Middle East.
3 Do you have a minimum quantity of the products?
No, we will build business with you with even 1PC. We believe this cooperation will be a long-term relationship for our high quality, competitive price and good after-sale service.
4 Are samples available to be sent with free?
It depends on what product you need. There are hundreds of products we sell. You can contact us for particular answer.
5 Can you print our Logo?
Yes, we can totally produce products according to your special request, even manufacture it base on your drawing.
6 What is your lead time?
It's around 7-15 days normally. If we have the products in stock, it will be about one week.
7 How can I check your factory situation while it's difficult for me to come to China?
We have photos and videos on our website and facebook, It shows every step of the manufacturing.
8 How can you guarantee the quality of products?
Firstly, we have the numerical control device to manufacture products accurately. Then our quality inspectors will test products one by one to make sure every valve or fitting we sell is qualified.
We are a factory specialized in manufacturing valves,fitting and pump.
And we have got the verification of compliance for ISO &CE certificate.
2 Where are the main markets for your products?
For now, our valves and fittings have been exported to especially in North America, South America, South Asia, Europe and Middle East.
3 Do you have a minimum quantity of the products?
No, we will build business with you with even 1PC. We believe this cooperation will be a long-term relationship for our high quality, competitive price and good after-sale service.
4 Are samples available to be sent with free?
It depends on what product you need. There are hundreds of products we sell. You can contact us for particular answer.
5 Can you print our Logo?
Yes, we can totally produce products according to your special request, even manufacture it base on your drawing.
6 What is your lead time?
It's around 7-15 days normally. If we have the products in stock, it will be about one week.
7 How can I check your factory situation while it's difficult for me to come to China?
We have photos and videos on our website and facebook, It shows every step of the manufacturing.
8 How can you guarantee the quality of products?
Firstly, we have the numerical control device to manufacture products accurately. Then our quality inspectors will test products one by one to make sure every valve or fitting we sell is qualified.
