UCP207 пластмассовый подшипник подшипника корпуса SS UCPPL
- Категория: Pillow Block Bearings >>>
- Поставщик: Shandong Tefule Bearing Co. Ltd.
Сохранить в закладки 62585962003:
Описание и отзывы
Характеристики
Product Description

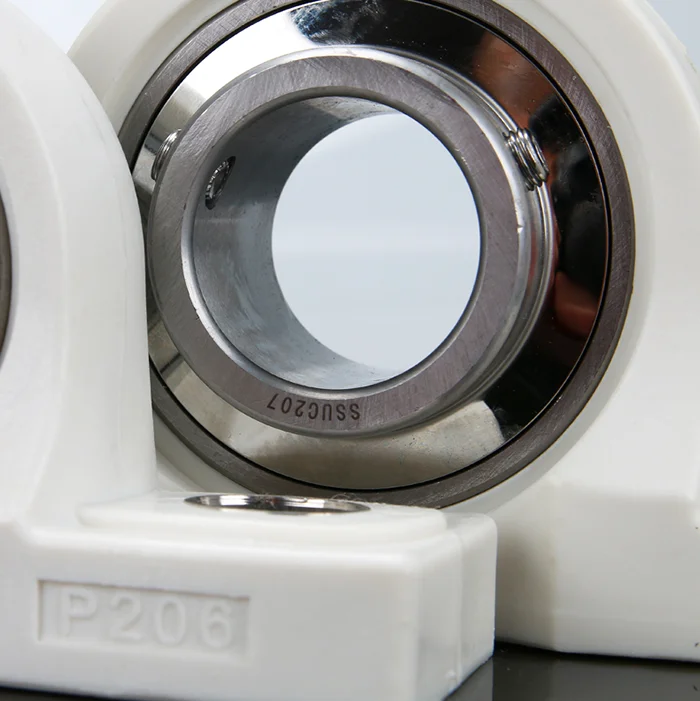

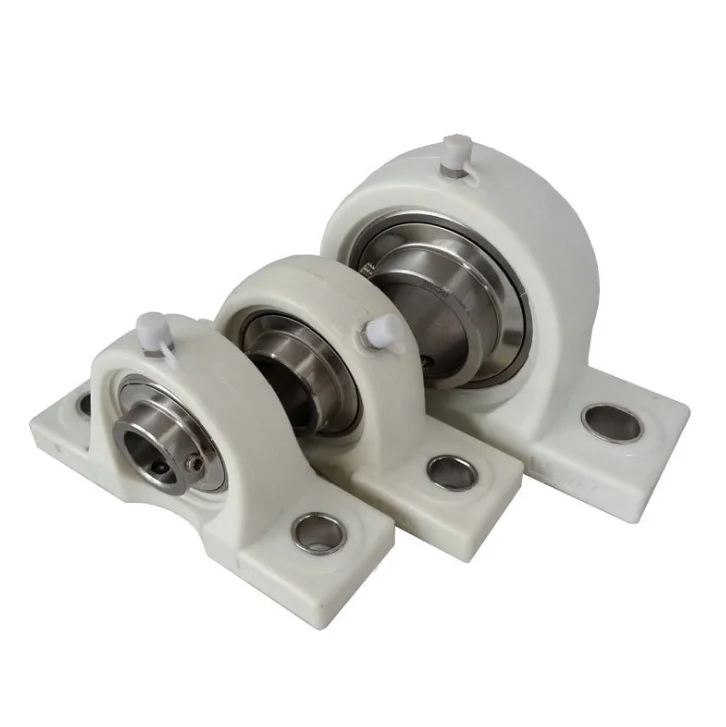

The pillow block bearing SS UCPPL series is suitable for high radial loads and is hygienic and corrosion resistant with its plastic housing and stainless steel bearing insert.
* consisting of a stainless steel bearing insert and a thermoplastic housing
* suitable for mounting on flat surfaces and high radial load capacities
* the housing is made of plastic and is therefore lightweight, hygienic, corrosion-resistant and cushioning
* the bearing insert made of stainless steel is also corrosion-resistant and has an extended inner ring with grub screws
* fixing of the shaft with two grub screws
* smooth running and good behavior with tilting due to the extended inner ring
* static misalignments can be compensated up to an angle of 2°
* two-piece sealing system: with sheet steel washer reinforced rubber seal inside; outside additionally with upstream slinger
made of sheet steel for high mechanical protection against foreign matter
* lubricated for life; under normal operating conditions relubrication is not required
* the bearing is lubricated for life with the grease for food industry FM 222 for normal operating conditions
* the bearing is used particularly in the food and beverage industry as well as in the pharmaceutical industry
* housing with integrated lubrication hole
* In addition to this article, we can also offer bearings of the brands KOYO, NSK, SNR, etc. on request.
* suitable for mounting on flat surfaces and high radial load capacities
* the housing is made of plastic and is therefore lightweight, hygienic, corrosion-resistant and cushioning
* the bearing insert made of stainless steel is also corrosion-resistant and has an extended inner ring with grub screws
* fixing of the shaft with two grub screws
* smooth running and good behavior with tilting due to the extended inner ring
* static misalignments can be compensated up to an angle of 2°
* two-piece sealing system: with sheet steel washer reinforced rubber seal inside; outside additionally with upstream slinger
made of sheet steel for high mechanical protection against foreign matter
* lubricated for life; under normal operating conditions relubrication is not required
* the bearing is lubricated for life with the grease for food industry FM 222 for normal operating conditions
* the bearing is used particularly in the food and beverage industry as well as in the pharmaceutical industry
* housing with integrated lubrication hole
* In addition to this article, we can also offer bearings of the brands KOYO, NSK, SNR, etc. on request.
Size Information
Inside Diameter (mm): | 35 |
a (mm): | 168 |
e (mm): | 127 |
w (mm): | 94.5 |
h (mm): | 47.6 |
Shaft Fastening: | Grub Screws |
Housing Type: | Plummer Block |
Grub Screw: | M8 |
Bearing No.: | SSUC 207 |
Housing No.: | PPL 207 |
Ring Material: | Stainless Steel |
Rolling Element Material: | Stainless Steel |
Cage Material: | Stainless Steel |
Housing Material: | Plastic |
Max. Tightening Torques (Nm) For Bearing Insert: | 11.5 |
Number of Mounting Holes: | 2 |
Product weight: | 0,710 Kg |
Related Products
Packing&Shipping
Packing
A: Tube packing+carton+pallets B: single box packing+carton+pallets
C:as customer's requirement
Shipment
1. By FedEx /DHL /UPS /TNT /EMS door to door services.
2. By Air or by Sea for batch goods; for FCL. You'll have to pick up the goods at the airport or port.
3. Customers specifying freight forwarders or negotiable shipping methods are available.
Payment
1. Payment: 100% T/T, Western Union, PayPal or Alibaba Secure Payment in advance;
1. By FedEx /DHL /UPS /TNT /EMS door to door services.
2. By Air or by Sea for batch goods; for FCL. You'll have to pick up the goods at the airport or port.
3. Customers specifying freight forwarders or negotiable shipping methods are available.
Payment
1. Payment: 100% T/T, Western Union, PayPal or Alibaba Secure Payment in advance;
Company Introduction
Shandong Tefule Bearing Co.,Ltd
is a professional bearing manufacturer and dealer in china.We have been engaged in bearing industry for 10 years and made international trade of bearing import and export for more than 8 years.We have our own brand "TFL" and applied ISO9001:2000 certificate for certification authority.We attend international bearing fairs, put in many B2B website and achieve many customers all over the world also bulid up good reputation from our customers.
Our company is specialized in ball bearing,roller bearing,housing units, wheel hub bearing,bearing parts and accessories, cross roller bearing.Also we can customize various large non-standard products such as the most competitive products according to customers' demands.
is a professional bearing manufacturer and dealer in china.We have been engaged in bearing industry for 10 years and made international trade of bearing import and export for more than 8 years.We have our own brand "TFL" and applied ISO9001:2000 certificate for certification authority.We attend international bearing fairs, put in many B2B website and achieve many customers all over the world also bulid up good reputation from our customers.
Our company is specialized in ball bearing,roller bearing,housing units, wheel hub bearing,bearing parts and accessories, cross roller bearing.Also we can customize various large non-standard products such as the most competitive products according to customers' demands.
FAQ
Q: Are you trading company or manufacturer?
A: We are factory. Shandong Tefule Bearing Co.,Ltd integrates production, trade, investment and sales.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods out of stock, depends on order quantity.
Q: Do you provide samples ? is it free or extra?
A: Yes, we could provide free samples, but freight collect.
A: We are factory. Shandong Tefule Bearing Co.,Ltd integrates production, trade, investment and sales.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods out of stock, depends on order quantity.
Q: Do you provide samples ? is it free or extra?
A: Yes, we could provide free samples, but freight collect.
Похожие товары

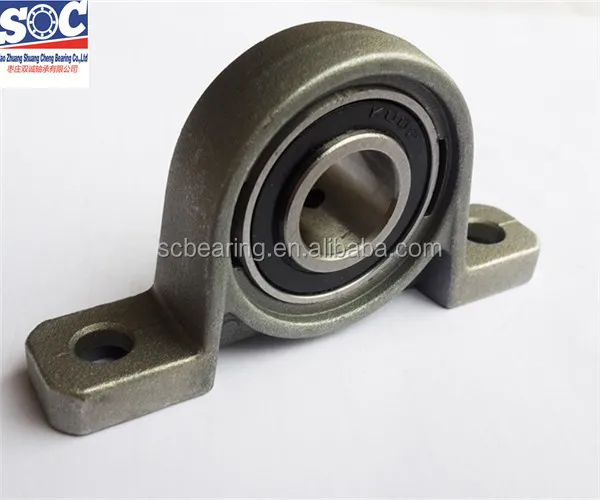

Долгая жизнь наиболее конкурентоспособная цена Подушка блок шаровой

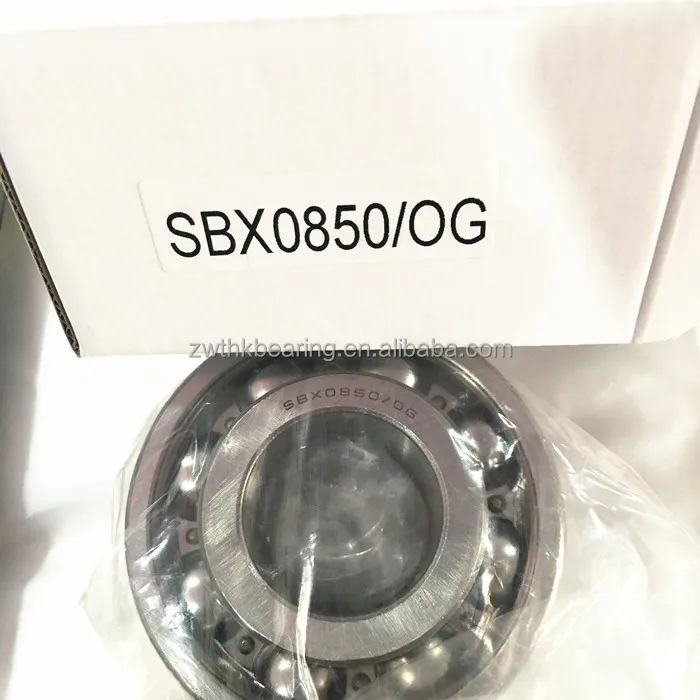

Высококачественный подшипник SBX0850/OG подшипника вставки шариковый подшипник SBX0850/OG японский бренд подшипник SBX0850

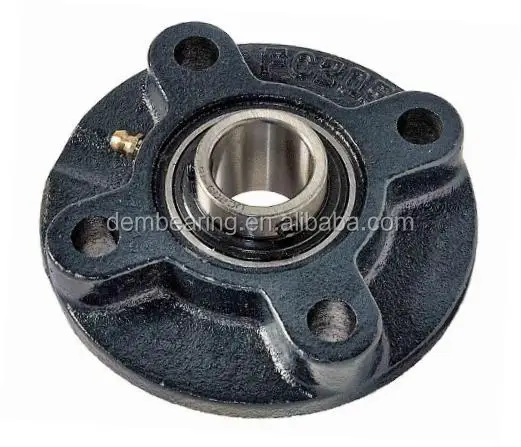

Подшипник подшипника UCFC 204 FC205 FC206 FC207 из
