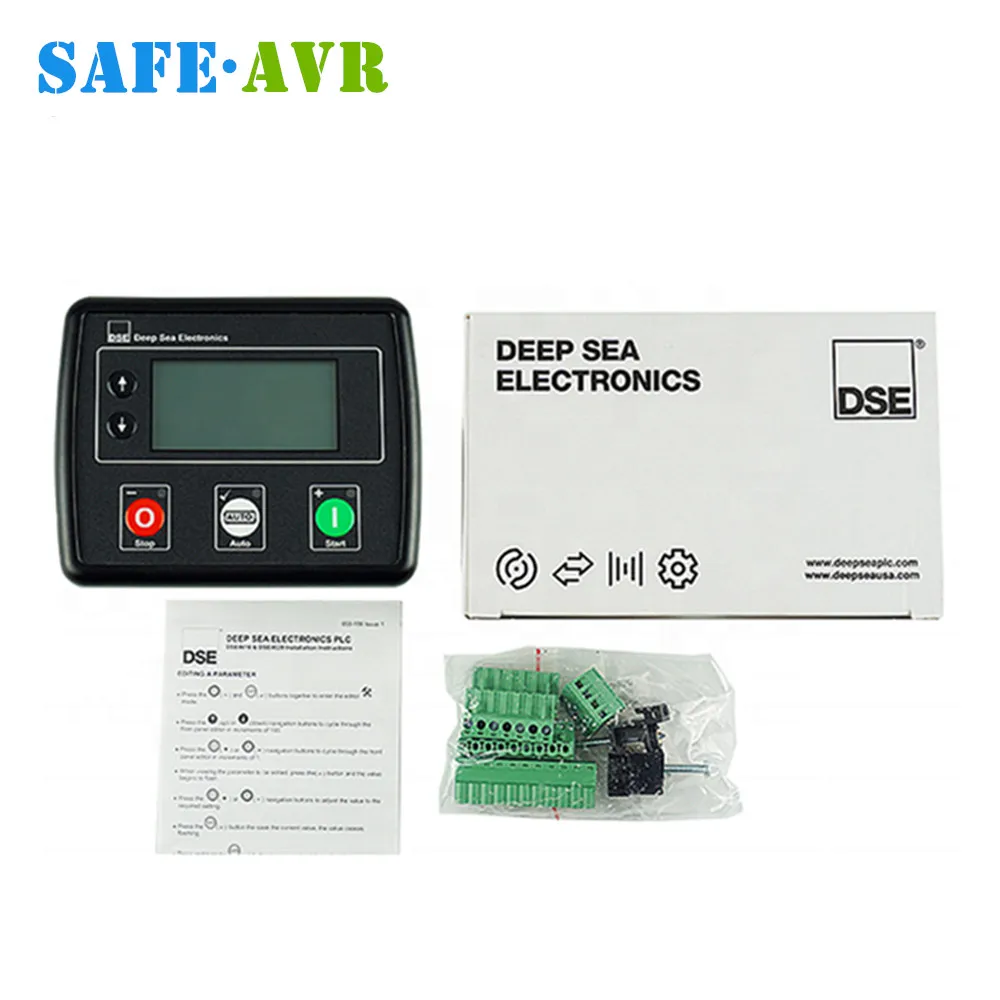

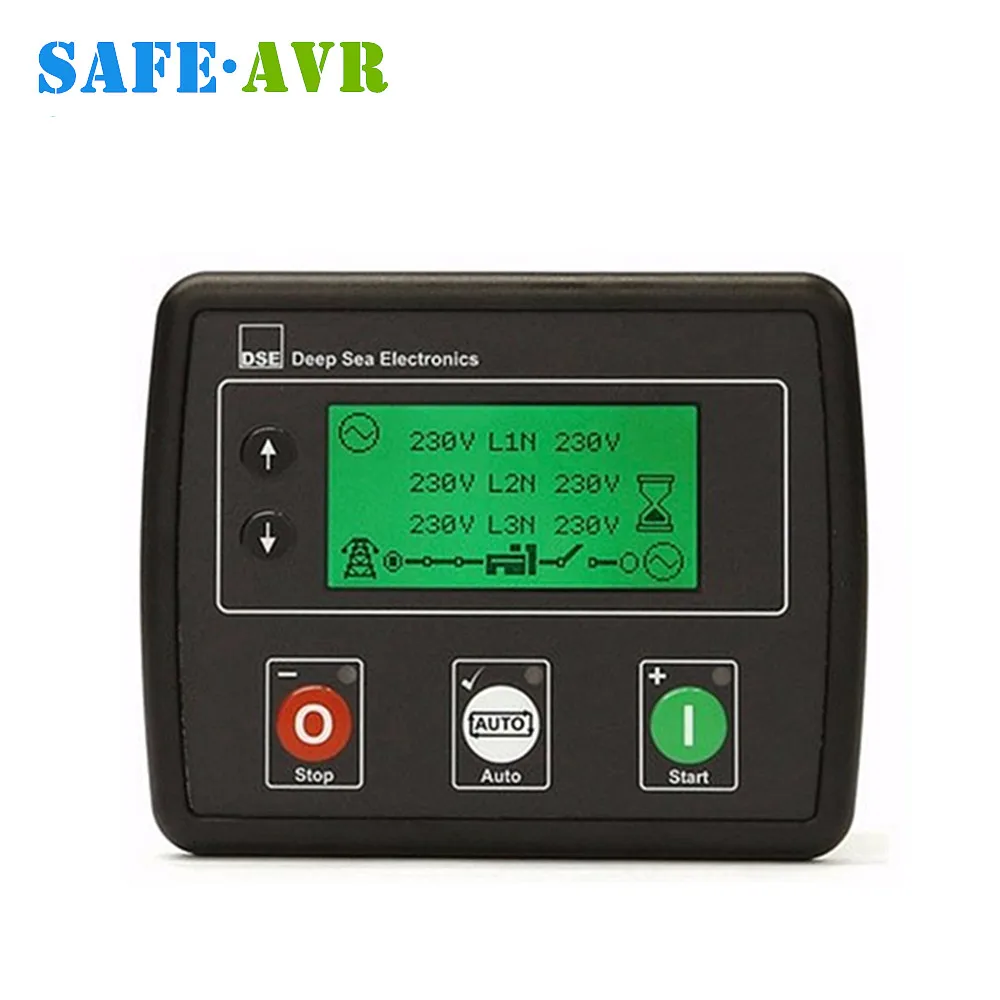

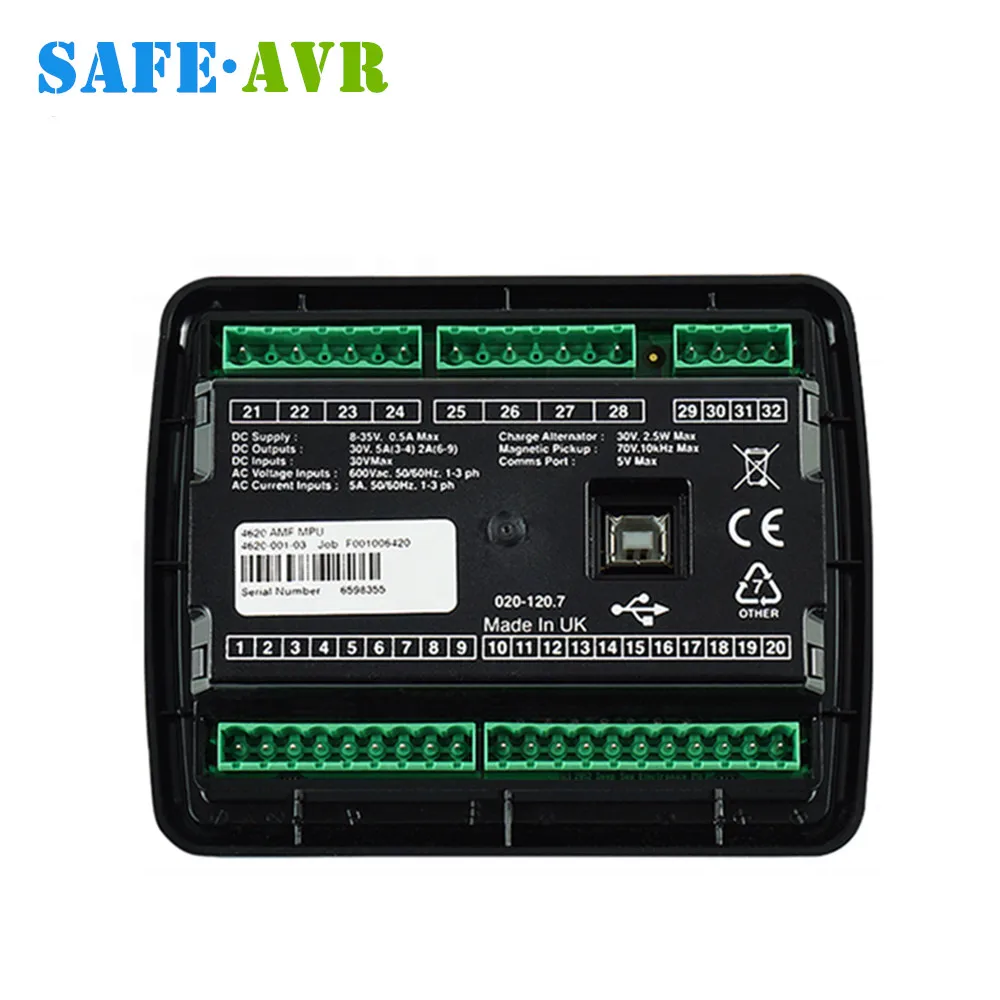

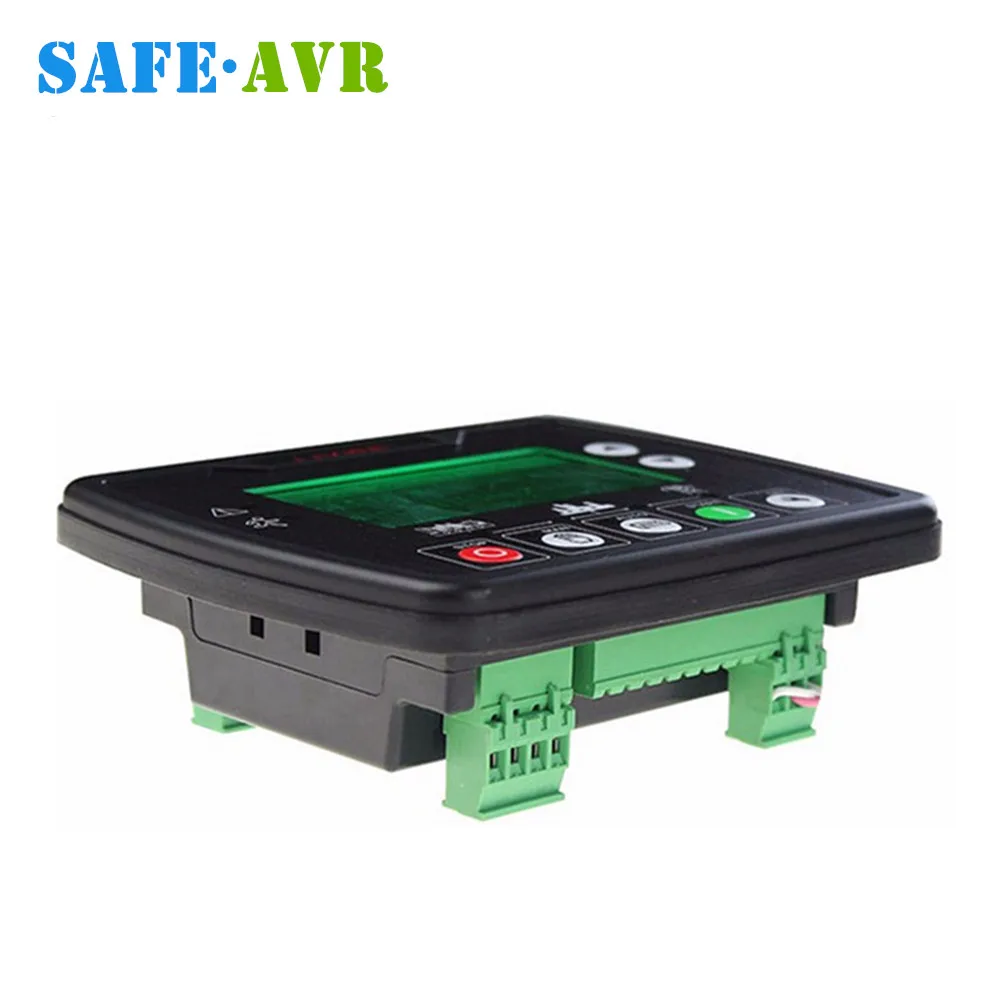

Оригинальный дизельный генератор переменного тока DSE генераторный двигатель модуль управления автоматическим запуском DSE4620 контроллер генератора AMF
- Категория: >>>
- Поставщик: Fuan Safe Electronic Co. Ltd.
Сохранить в закладки 62587687655:
Описание и отзывы
Характеристики
Specification
DC SUPPLY | CONTINUOUS VOLTAGE RATING | 8 V to 35 V Continuous |
Low-Lub Oil | MAXIMUM OPERATING CURRENT | 85 mA at 12 V, 96 mA at 24 V |
Charging Failure | MAXIMUM STANDBY CURRENT | 51 mA at 12 V, 47 mA at 24 V |
Over Voltage,Over Load | MAXIMUM SLEEP CURRENT | 35 mA at 12 V, 32 mA at 24 V |
MAINS (UTILITY) | VOLTAGE RANGE | 15 V to 415 V AC (Ph to N) 26 V to 719 V AC (Ph to Ph) |
Over Frequency | FREQUENCY RANGE | 3.5 Hz to 75 Hz |
OUTPUTS | OUTPUT A (FUEL) | 10 A short term, 5 A continuous,at supply voltage |
Stop Failure | OUTPUT B (START) | 10 A short term, 5 A continuous,at supply voltage |
Start Failure | OUTPUTS C & D | 2 A DC at supply voltage |
AUXILIARY OUTPUTS E,F,G,H | 2 A DC at supply voltage | |
GENERATOR | VOLTAGE RANGE | 15 V to 415 V AC (Ph to N) 26 V to 719 V AC (Ph to Ph) |
FREQUENCY RANGE | 3.5 Hz to 75 Hz | |
MAGNETIC PICK-UP | VOLTAGE RANGE | +/- 0.5 V to 70 V |
FREQUENCY RANGE | 10,000 Hz (max) |
Product Description
ELECTRO-MAGNETIC COMPATIBILITY
BS EN 61000-6-2
EMC Generic Immunity Standard for
the Industrial Environment
BS EN 61000-6-4
EMC Generic Emission Standard for the Industrial Environment
ELECTRICAL SAFETY
BS EN 60950
Safety of Information Technology Equipment,
including Electrical Business Equipment
TEMPERATURE
BS EN 60068-2-1
Ab/Ae Cold Test -30 oC
BS EN 60068-2-2
Bb/Be Dry Heat +70 oC
VIBRATION
BS EN 60068-2-6
Ten sweeps in each of three
major axes
5 Hz to 8 Hz @ +/-7.5 mm,
8 Hz to 500 Hz @ 2 gn
HUMIDITY
BS EN 60068-2-30
Db Damp Heat Cyclic 20/55 oC
@ 95% RH 48 Hours
BS EN 60068-2-78
Cab Damp Heat Static 40 oC
@ 93% RH 48 Hours
SHOCK
BS EN 60068-2-27
Three shocks in each of three major axes
15 gn in 11 mS
DEGREES OF PROTECTION PROVIDED BY ENCLOSURES
BS EN 60529
IP65 - Front of module when installed into the control panel with the supplied sealing gasket.
Package List:
1 x Generator Controller
Company Profie
Fu'an Safe Electronics Co.,Ltd is located in Fu'an, a beautiful coastal city in Fujian province, and also known as the small and medium motor capital of China, which neighbors Fuzhou port and Changle airport, and enjoys convenient water transport. Safe set up on 2010, specializes in producing parts and components for diesel generator set, such as Cummins engine governor rectifiers, chargers ,avrs t,generator controllers and has accumulated years of operational and managerial experiences in this trade. It has also established long-term, stable partnerships with a number of domestic motor manufacturers and agents. We always focused on research, development and innovation. .In order to ensure high quality, we have set up systematic & experienced teams and rigorously enforced rules. Our products have been exported to Middle East,South America,South Asia,Europe and are very popular among consumers. Once you give us the chance, we will provide you with our best quality products with professional design, reasonable price, fast delivery and sincere service.
Packing & Delivery
FAQ
Q1,OEM & ODM
A:According to your requirements,we can supply OEM & ODM service for you if necessary,customized logo,color and packaging are all available..
Q2,How can I get a quotation?
A:Leave us massage with your purchase requirements and we will reply you within one hour on working time.And you may contact us directly by Trade Manager.
Q3,What's your delivery time of bulk order?
A:It depends on your specific order and usually it takes 5 to 20 days.Some small order always has stock in our warehouse.
A:According to your requirements,we can supply OEM & ODM service for you if necessary,customized logo,color and packaging are all available..
Q2,How can I get a quotation?
A:Leave us massage with your purchase requirements and we will reply you within one hour on working time.And you may contact us directly by Trade Manager.
Q3,What's your delivery time of bulk order?
A:It depends on your specific order and usually it takes 5 to 20 days.Some small order always has stock in our warehouse.
Похожие товары
TRIO квадратные и прямоугольные-Колонка в форме стеновые панели опалубки
Высококачественный фирменный Эргономичный игровой стул из искусственной кожи высокого качества, розовый игровой стул с подставкой для ног и массажем
Visx Premix смесь газов 99.999% аргона гелия неоновый Фтор эксимер лазеры смесь газовый премикс
8,00 $ - 20,00 $
PB-19S 68x148 мм Горячая продажа машинок для стрижки металлические стальные Длинный мягкий мяч дождевик собаки штифты щетка домашних
2,20 $ - 2,60 $
Новое поступление, беспроводные наушники TWS с креплением, спортивные наушники LY6
6,00 $ - 6,20 $
Модуль платы усилителя мощности STK IC STK4141 STK4141II

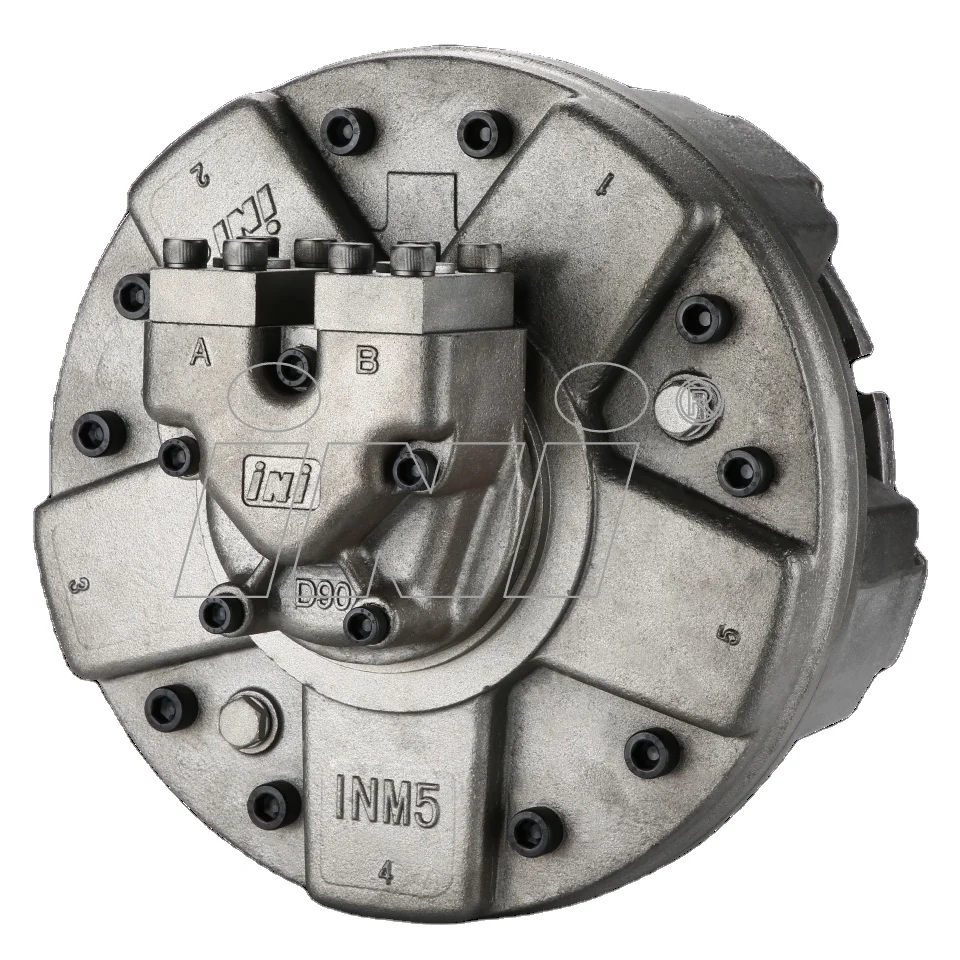

INI INM5-1000 INM5-1200 INM5-1300 INM5-1450 внутренняя пять звезд двигатель Gm серии гидравлические моторы
