Стальная режущая ленточная пила металлическая

Категория: Ленточнопильные станки >>>
Поставщик: Shandong Kasry Intelligent Equipment Co. Ltd.

Цена:5 800,00 $ - 6 500,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

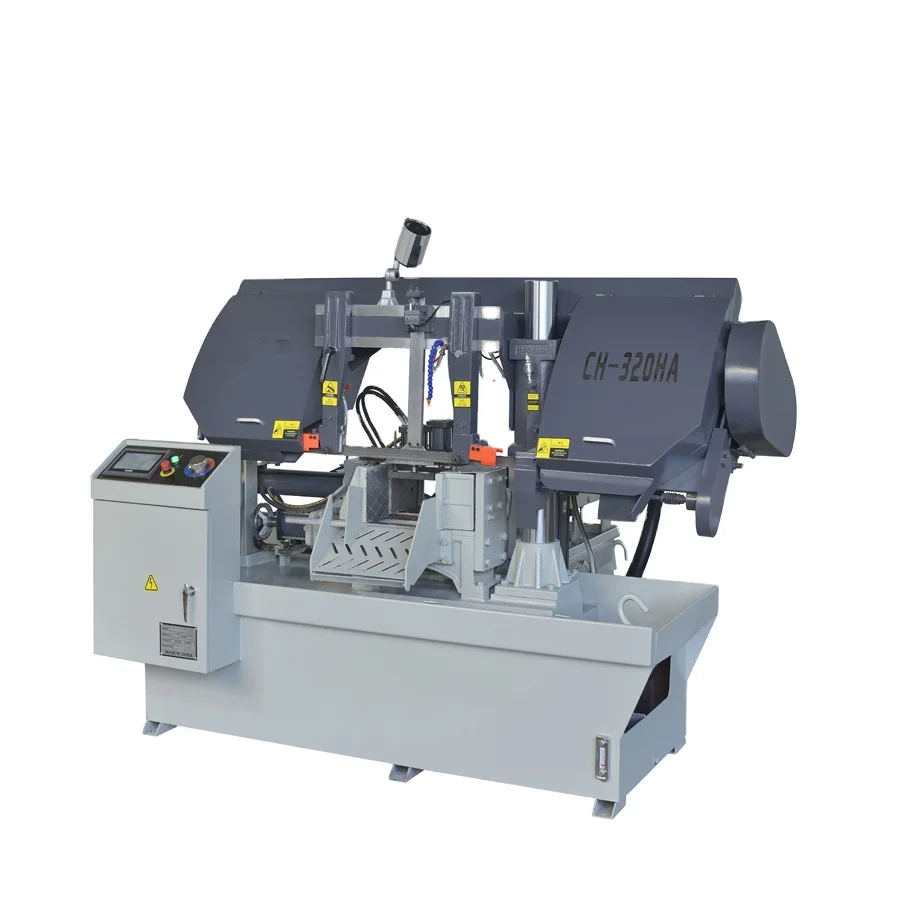

Steel Cutting Bandsaw Machine Metal Band saw blade

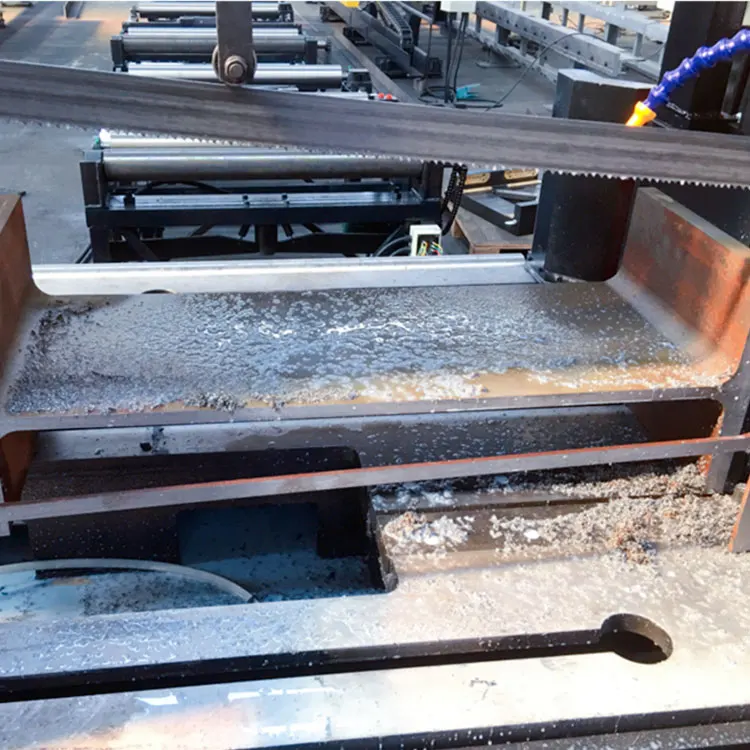

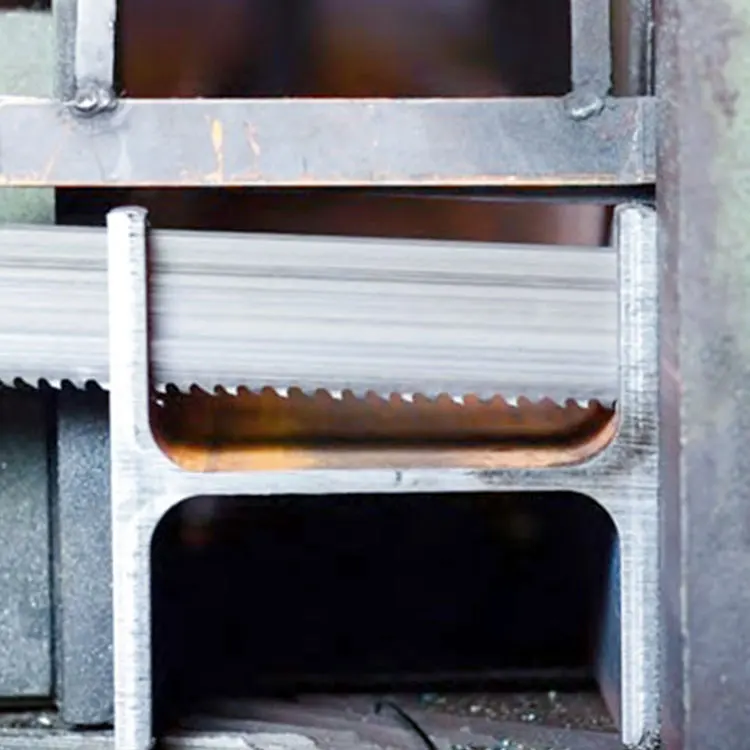

Band Sawing machine adopts a gantry structure, which has good rigidity and stability. The sawing section is flat. The No. 45 linear guide rail is used. The guide rail slider is roller type. The sawing feed is controlled by double cylinders. The hydraulic speed regulating valve is infinitely variable. When cutting H-shaped steel, the order in which the inclined saw blade contacts the workpiece is: single-sided wing plate → double-sided wing plate → web plate → double-sided wing plate → single-sided wing plate, which can be automatically lifted and re-saw. Through the rotary encoder Feedback.

Performance description

2. The band saw blade adopts hydraulic tensioning. The saw blade also maintains a good tension force during rapid movement, which prolongs the life of the saw blade. The user can adjust the pressure according to the size of the profile. There is also a detection device when the saw blade is broken. When the belt is broken, the machine tool automatically senses and stops.

3. The radium ray marking tool setting device realizes rapid workpiece positioning.

Performance description

4, steel brush-type debris removal, while equipped with an electromagnetic automatic chip removal device to achieve automatic collection of sawdust.
5. The main drive uses a high-power gear reducer with strong power and reliable performance. After precise balance correction, it runs smoothly and reliably.
6. Narrow cutting edge, material saving, energy saving, high sawing precision, convenient operation and high production efficiency.

Performance description

7. Reasonable saw band guiding device, effectively prolonging the life of the saw band. The movable saw blade guiding device and the side pressing device move together. The structure is stable and the movement is flexible. The transmission parts are precisely balanced and corrected to reduce vibration. The unique hydraulic system design has a stable descending speed. The saw belt will automatically lift a certain distance during the sawing process and then cut again. This precision system can prevent the saw blade from abnormal damage and achieve ideal sawing. effect.

Performance description

8. In order to avoid tilting of the workpiece when pressing the material, an upper pressure cylinder is arranged on the gantry of the main machine to ensure that the workpiece is compacted with the lower reference surface when the workpiece is compacted.
9, independent operation box, intelligent human-machine interface makes the machine operation extremely simple and efficient, machine messages and troubleshooting are automatically displayed.
10. High-grade water pipe + quick connector, cable connector also uses quick connector.

Performance description

11. Adopt high-efficiency and energy-saving PLC with simple design circuit to realize full automation of feeding, clamping and sawing. The excellent space of the electrical box not only ensures low failure rate of the machine, but also facilitates maintenance and saves time.
12. In order to maintain accuracy for a long time, the main welding parts such as saw frame, gantry, and base are all overheated and aged, and provide heat treatment ageing report.
The machine nameplate and warning signs are complete, but do not reflect the name of the manufacturer. The material is aluminum or stainless steel.

Performance description

13. The machine nameplate and warning signs are complete, but do not reflect the name of the manufacturer. The material is aluminum or stainless steel.
14. Provide mechanical, electrical, and hydraulic instructions for delivery, including mechanical consumables atlas, hydraulic schematic diagrams, electrical wiring diagrams, lubrication diagrams, and hoisting diagrams. Provide electrical program installation disk. When wiring, pay attention to the wiring number to check the wiring according to the wiring diagram and eliminate the fault.
15. The hydraulic components are from Taiwan Weisheng, and the electrical components are from well-known brands at home and abroad.

Details Imagines

Main technical parameters

Main transmission mode: Helical gear reducer
Worktable carrying capacity: 15t
Saw plane perpendicularity: 1200x600mm as an example, the saw plane perpendicularity is 0.2mm / 100mm, and the total length is not more than 0.6mm.

The max. processing range	90º 1250mmX600mm 70º 1100mmX600mm 60º 1000mmX600mm 45º 800mmX600mm 30º 550mmX600mm	Range of activities
The min.processing range	50mmX30mm	360 ° free rotation
Saw blade size (mm)	10800×67×1.6mm	360 ° free rotation
Saw blade linear speed(m/min)	20-100m/minVariable frequency stepless speed regulation.	The maximum stroke 13000mm
Feeding speed	0-100mm/min Hydraulic stepless speed regulation.	The maximum stroke 12000 mm
Tensioning method	Hydraulic	±60°
Host motor power (kW)	15.0KW 380V 50HZ	±55°
Rotation angle	Parameterized control	Travel 320mm
Saw blade inclination	3-5 °	Move back and forth 300mm
Main transmission mode	Helical gear reducer
Saw plane perpendicularity	200x600mm as an example, the saw plane perpendicularity is 0.2mm / 100mm, and the total length is not more than 0.6mm.

Basic configuration :

NO.	Name	Specifications	Quantity（sets）	Note
1	Saw wheel motor reducer	GKF107 match 15.0KW（direct type）	1sets	GUOMAO
2	Linear guide	HG45 linear guide	4sets	HIWIN
3	Hydraulic solenoid valve	Taiwan WILSHEN	All
4	Saw blade	10800×67×1.6mm	1piece	German
5	Low-voltage electrical components	Delixi	1set
6	PLC	Taiwan FATEK	1set
7	Touch screen	10 Taiwan FATEK	1set
8	Inverter	Taiwan FATEK	1set
9	Hydraulic cylinder	China
10	Weldment	Kasry making
11	casting	Kasry making

Advantages
1. The sawing machine adopts a gantry structure, which has good rigidity and stability.
2. The band saw blade adopts hydraulic tensioning. The saw blade also maintains a good tension force during rapid movement, which prolongs the life of the saw blade.
3. The radium ray marking tool setting device realizes rapid workpiece positioning.
4, steel brush-type debris removal, while equipped with an electromagnetic automatic chip removal device to achieve automatic collection of sawdust.
5. The main drive uses a high-power gear reducer with strong power and reliable performance. After precise balance correction,
6. Narrow cutting edge, material saving, energy saving, high sawing precision, convenient operation and high production efficiency.
7. independent operation box, intelligent human-machine interface makes the machine operation extremely simple and efficient,machine messages and troubleshooting are automatically displayed.
8. Adopt high-efficiency and energy-saving PLC with simple design circuit to realize full automation of feeding, clamping and sawing.

Related Products

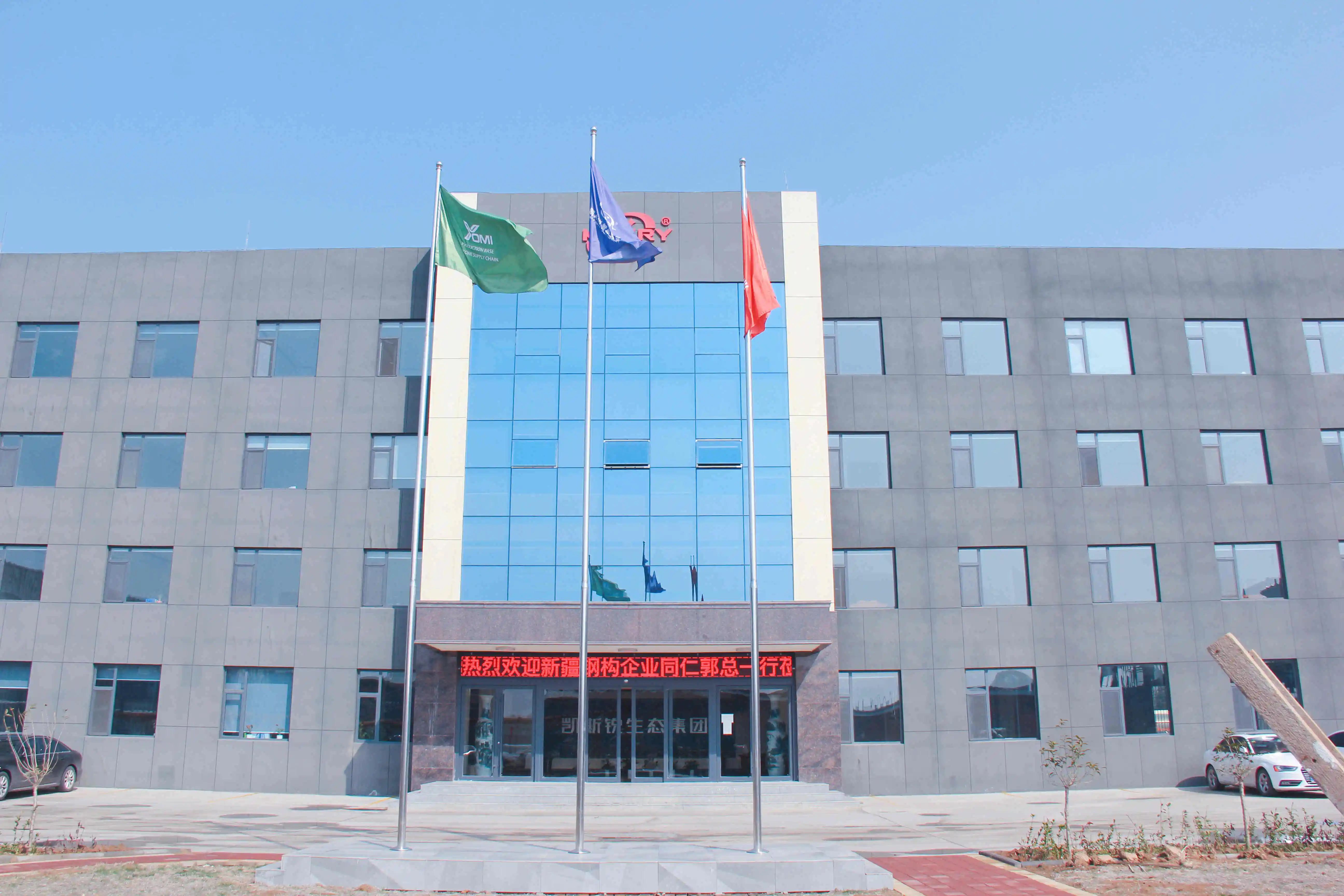

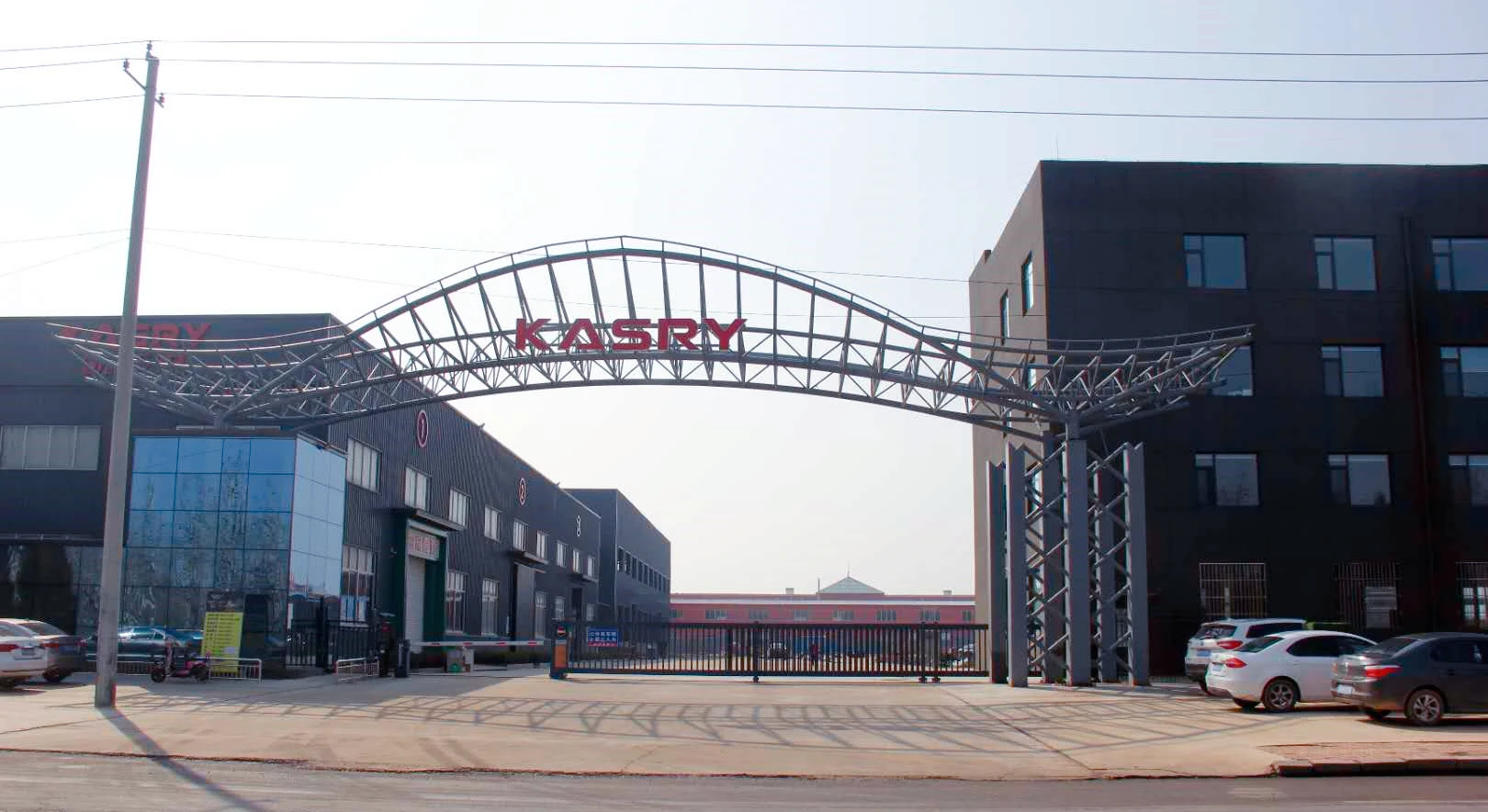

Company Introduction

Shandong Kasry Intelligent Equipment Co., Ltd. is a high-tech enterprise integrating research, production and sales, which consists of two major technology R&D centers in Shanghai and in Jinan, Jinan International Cross-border E-commerce Marketing Center and South African Overseas Warehouse Marketing Service Company. Headquartered in Dezhou city, the company covers more than 60 acres and employs more than 200 people. Kasry has a forward-looking visual subversion of traditional crafts, innovative core technology, more than a dozen utility models and invention patents and has obtained the "double soft enterprise" certification.The company strictly follows the IS09001 international quality management system and provides the world's metal pipe profile manufacturing enterprises with integrated solutions for cutting, welding, drilling, coating and other intelligent solutions. Make products with heart and let the world discover. "Kasry has users in more than 90 countries and regions around the world,its idea of Precision Pipe Prefabricated factory and Steel Structure Smart Factory lead China into the forefront of Industry 4.0. With advanced technology The company's customized development products have become strategic partners in many industries such as petroleum, chemical, engineering machinery, coal mining, shipbuilding, aviation, automobile manufacturing, steel curtain wall, pressure vessel, three-dimensional storage, amusement equipment and other industries.

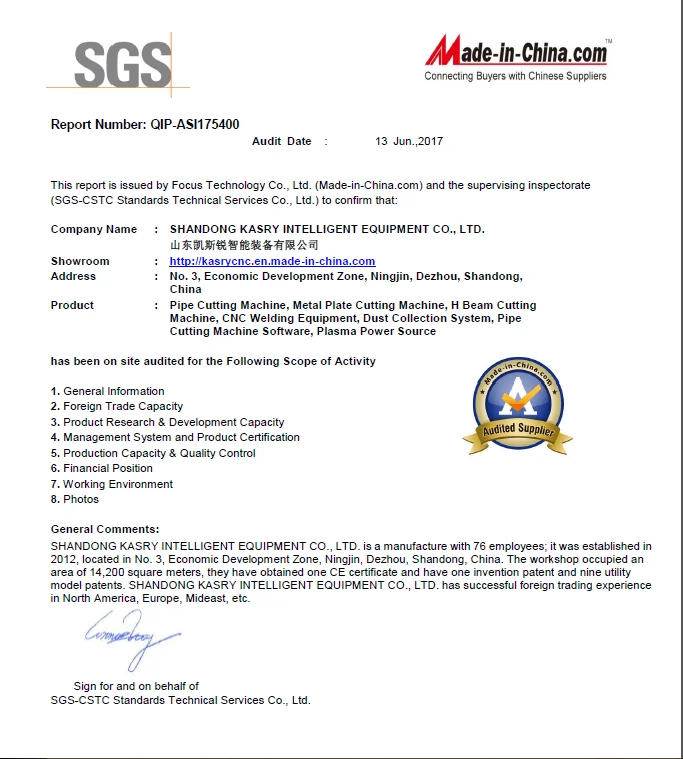

Certifications

Exhibition pictures

Our Services

Our product service warranty period is one year, please feel free to contact us if you have any questions. If you are interested in our products, please feel free to visit our factory and look forward to cooperating with you!

Factory: No.9 of Yangtze river street. Economic Development Zone, Ningjin County,Dezhou City, Shandong Province, China

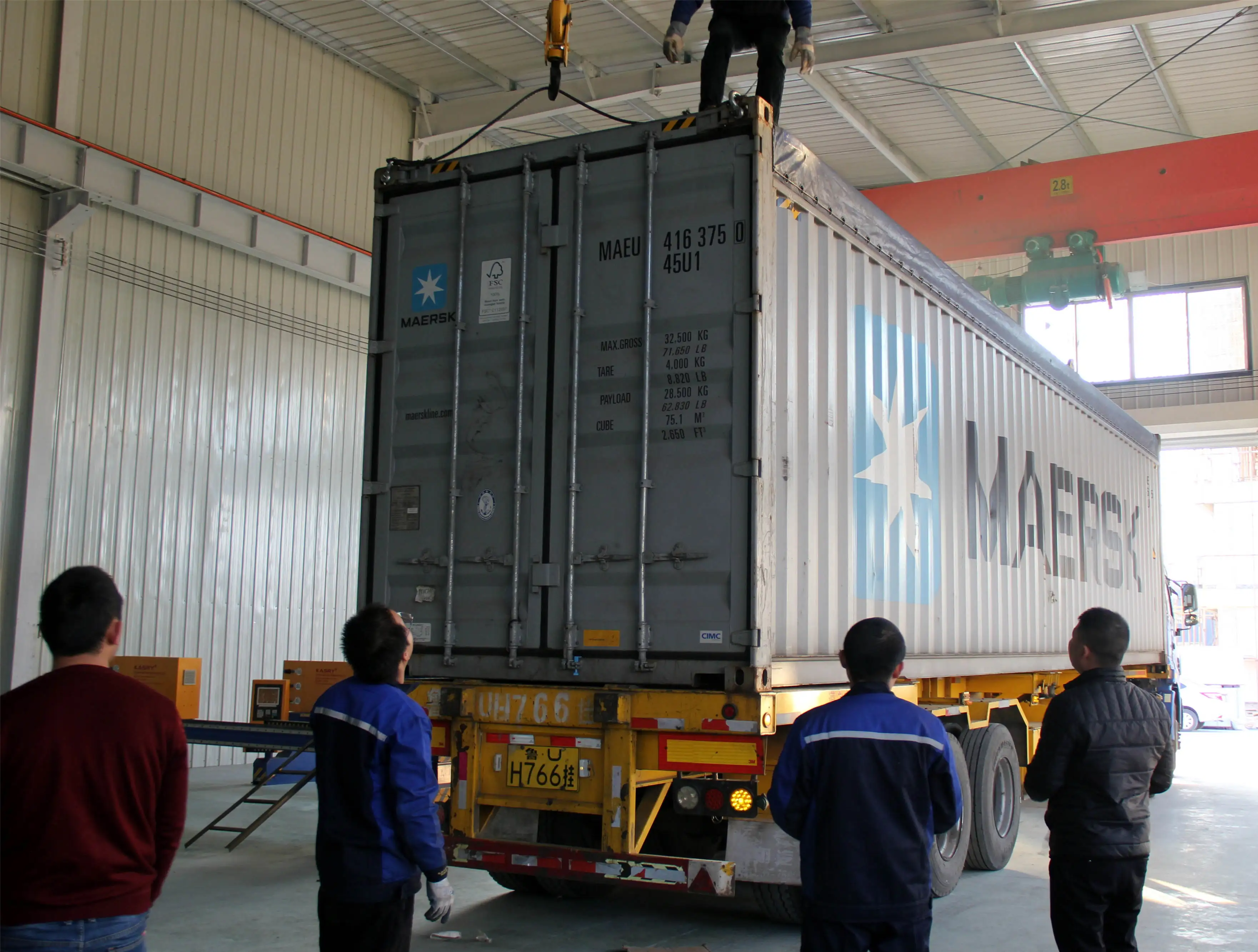

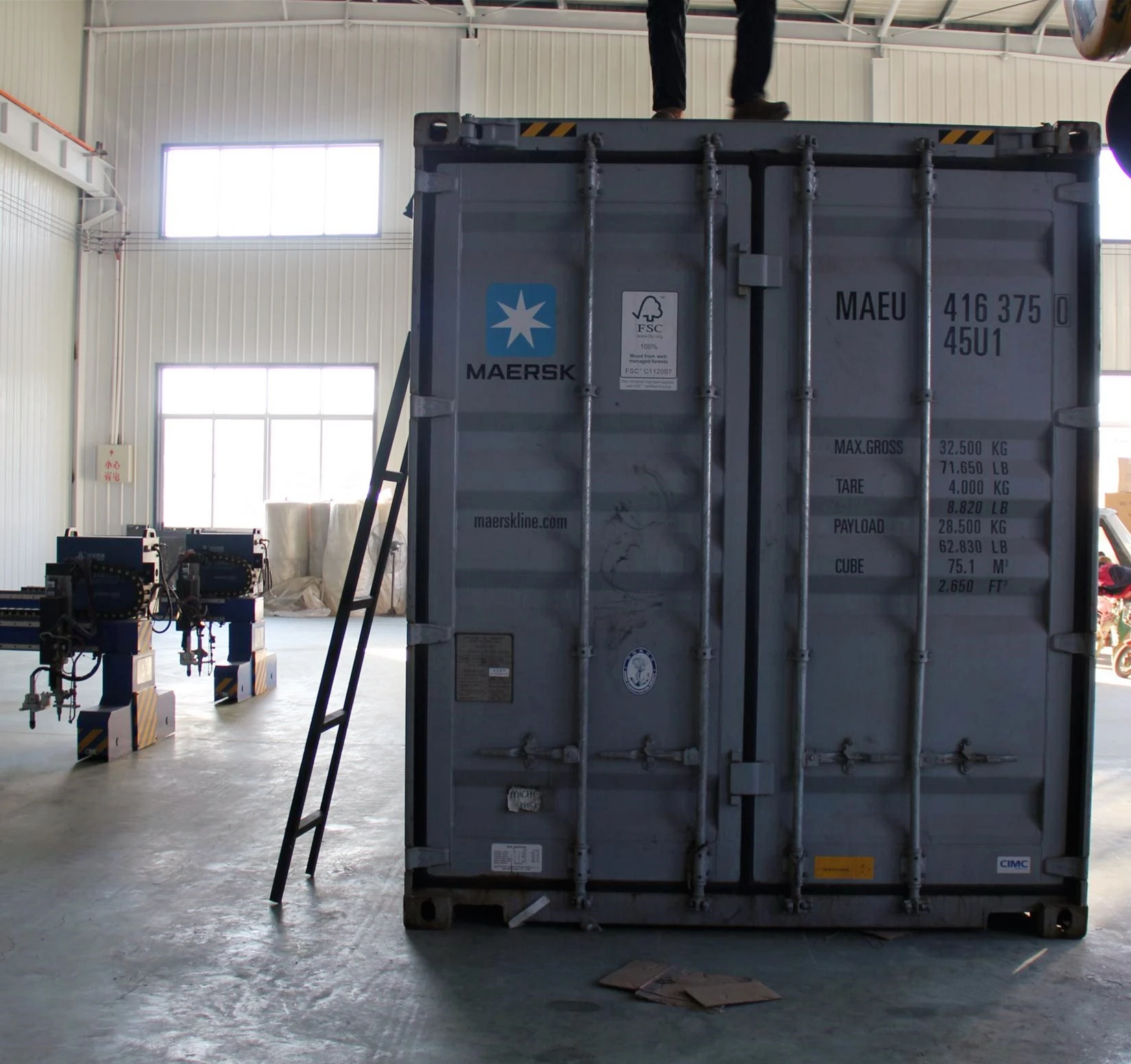

Packing&Shipping
