High quality elm327 usb adapter with switch with PIC18F25K80 FT232RL OBD2 Scanner ECU Scanner Modified for Ford

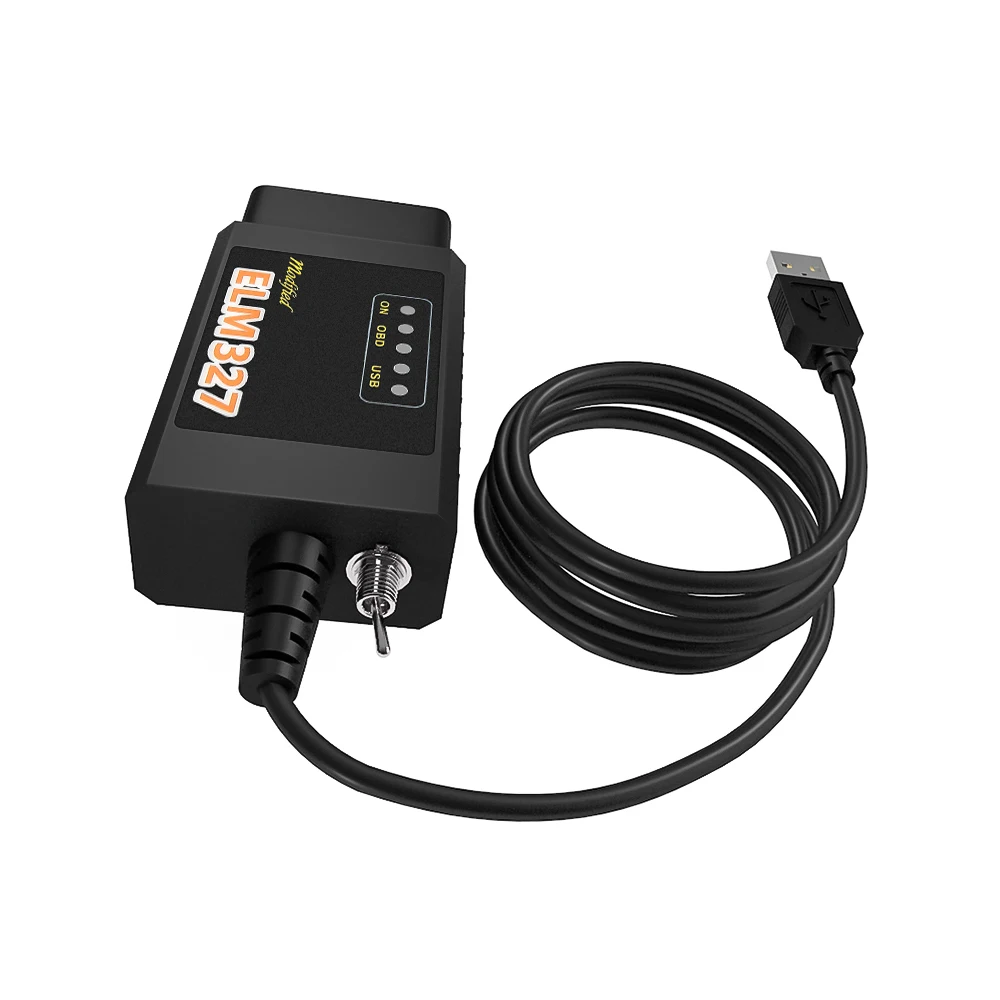

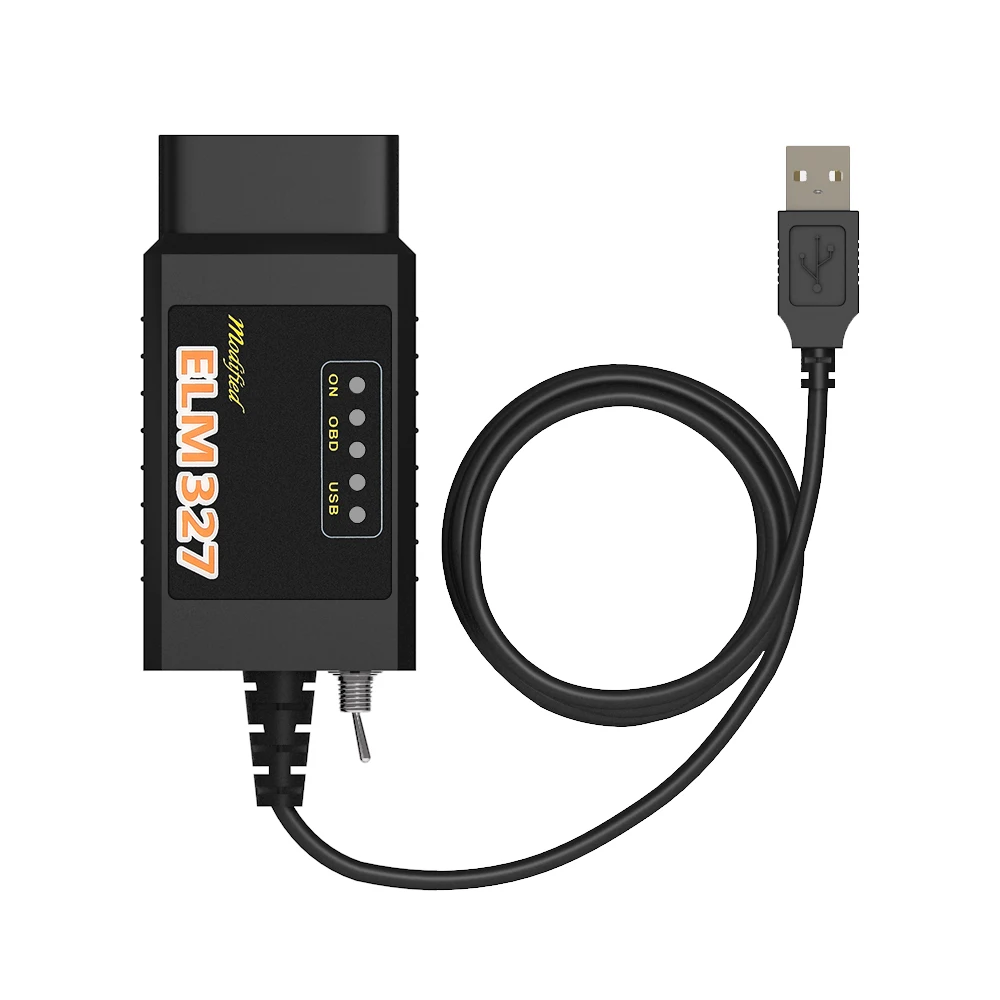

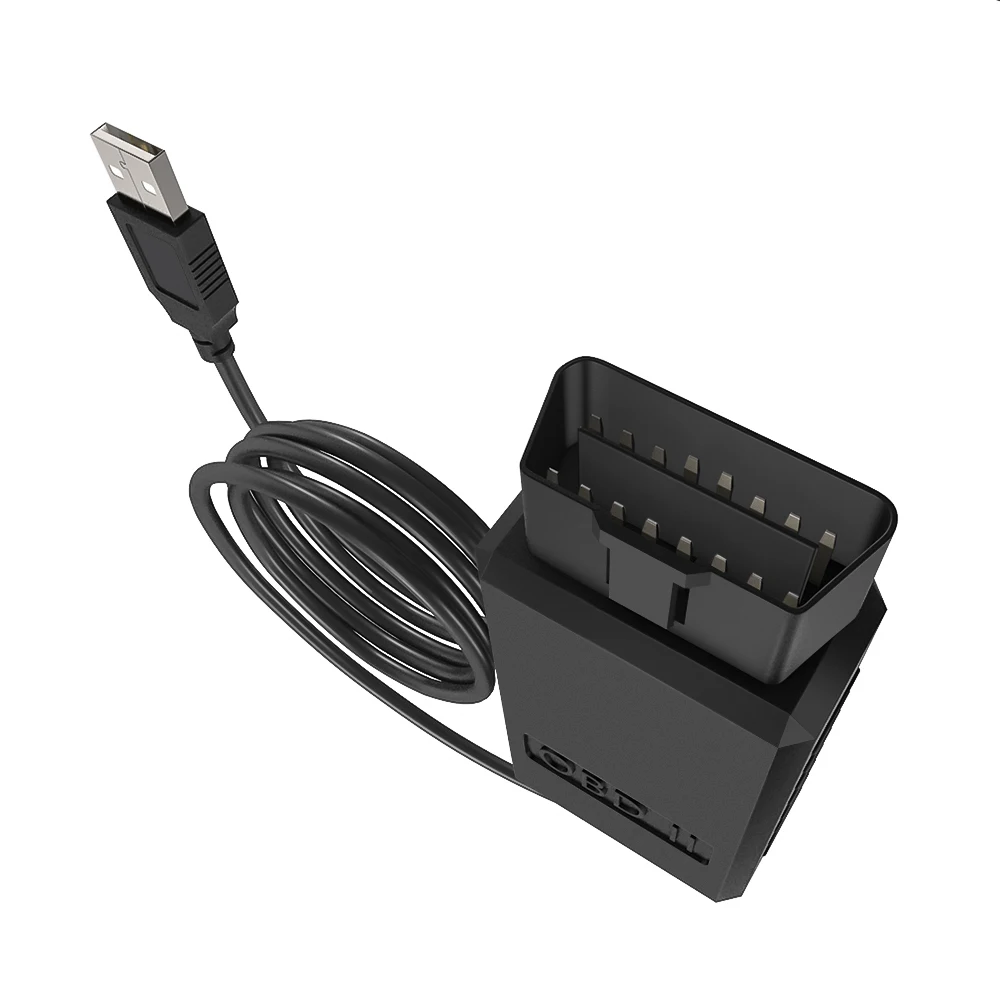

ELM327 USB Diagnostic Cable With Switch HS/MS-CAN Converted

Top 4 Reasons to Get Plastic USB ELM327:

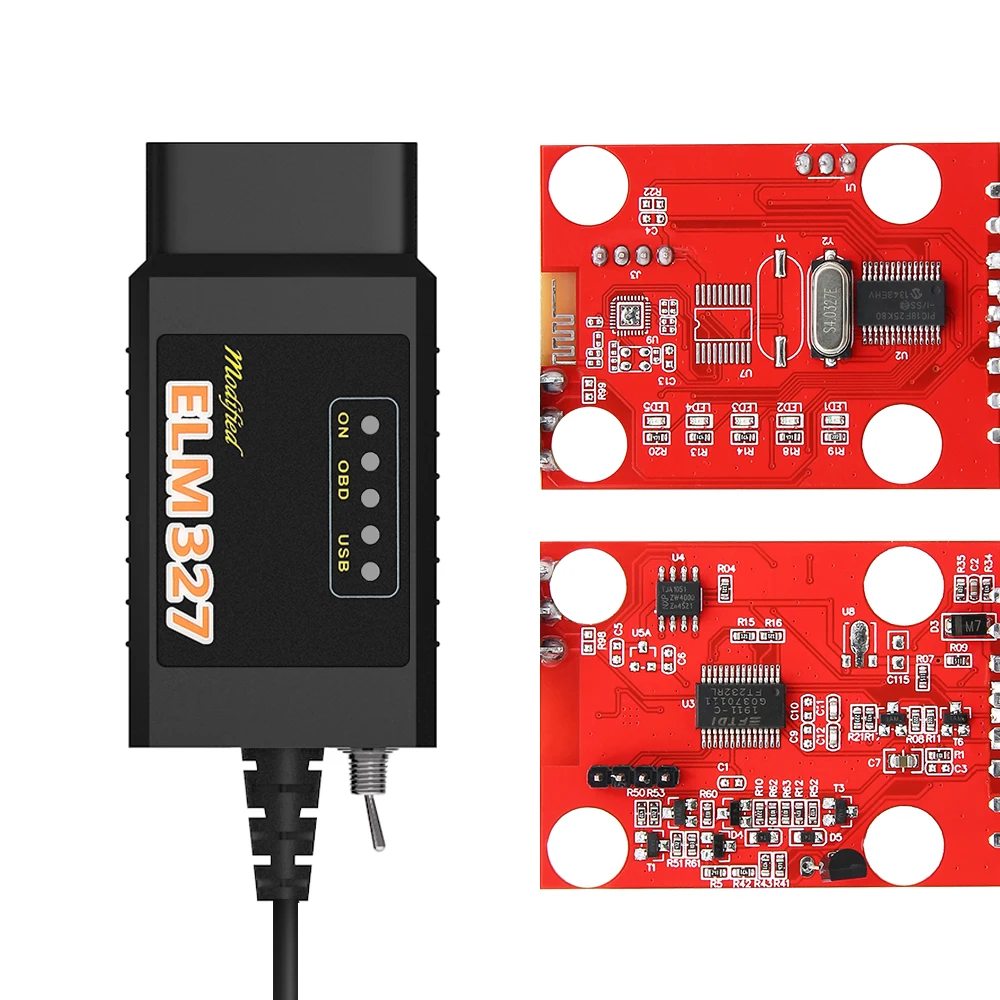

1: Latest ELM327 includes PIC25K80 and FT232RL Chip.

2: Manufactured modification to include a switch to connect to different CAN buses, MS CAN bus and HS CAN bus.

3: Designed for FOR-Scan software, compatible with software venders; for FOR-Scan, for Elmconfig, for FF2 and for FoCCCus, plus more.

4: Support Windows XP and WIN7 32bite.

OBDII Protocols:

SAE J1850 PWM (41.6Kbaud)

SAE J1850 VPW (10.4Kbaud)

ISO9141-2 (5 baud init, 10.4Kbaud)

ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

ISO14230-4 KWP (fast init, 10.4 Kbaud)

ISO15765-4 CAN (11bit ID, 500 Kbaud)

ISO15765-4 CAN (29bit ID, 500 Kbaud)

ISO15765-4 CAN (11bit ID, 250 Kbaud)

ISO15765-4 CAN (29bit ID, 250 Kbaud)

SAE J1939 CAN (29bit ID, 250*Kbaud)

CAN (11*bit ID, 125*Kbaud)

CAN (11*bit ID, 50*Kbaud)

Supported Vehicles:

Many vehicles that can be addressed using an ELM via an OBDII connector.

Product Description

Introduction:

With the cable and the one of the supported software vendors you can detected modules which are not visible for regular

OBD2 scanners. This includes showing you trouble codes, PIDs, running tests and services procedures which are never displayed by other OBD2 scanners and a standard ELM327.

Basic Features:

Reset fault /trouble codes / parameter ids (PIDs)

Change car configuration data

Run tests

Services procedures

Program certain models

Pin Configurations:

Switch position one: HS CAN - Occupies pins 6 and 14

Switch position two: MS CAN - Occupies pins 3 and 11

Supported Software:

For FOR-Scan

For Elmconfig

For FoCCCus

For FF2

Plus more

Please note that many models (approximately since 2003-2004) are equipped with MS CAN bus, in addition to the regular HS CAN bus. In contrast to HS CAN bus, MS CAN bus is not supported by the stock ELM327, because MS CAN is a manufacturer-specific solution and located on non-OBD2 pins. This ELM327 has been modified to allow it to implement the MS CAN bus.

ELM327 supports HS CAN from the stock, because for HS CAN completely matches to the OBD2 standards. It occupies pins 6 and 14. MS CAN bus occupies pins 3 and 11.
