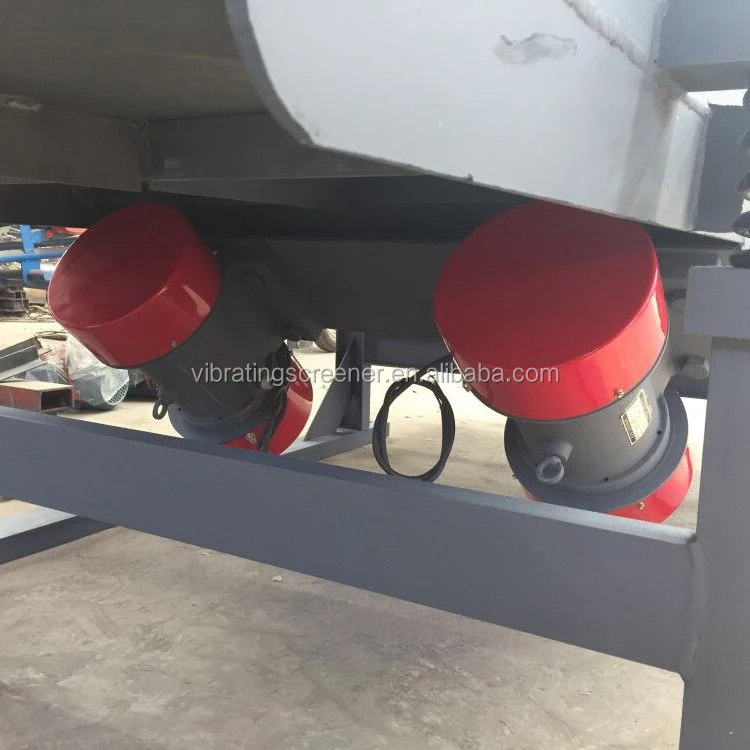

Dazhen SZF series linear vibration screener sieving machine is driven by two counterrotating out-of-balance motors which create a linear motion , the material is thrown up and ahead at the same time in a straight line.
This machine is made of stainless steel or carbon steel, 1-6 layers for powder or granule material classification.
Machine Structure
Technical Parameters
Model
SZF1030
SZF1035
SZF1040
SZF1530
SZF1535
SZF1540
Nominal size(mm)
1000×3000
1000×3500
1000×4000
1500×3000
1500×3500
1500×4000
Material diameter (mm)
0.074-10
0.074-10
0.074-10
0.074-10
0.074-10
0.074-10
Vibration time times/min
960
960
960
960
960
960
Leaning angle of screen
1°_7°
1°_7°
1°_7°
1°_7°
1°_7°
1°_7°
Amplitude
3--4.5
3--4.5
3--4.5
3--4.5
3--4.5
3--4.5
Layer number
1--6
1--6
1--6
1--6
1--6
1--6
Power (Kw)
2×(0.75-1.5)
2×(0.75-1.5)
2×(0.75-1.5)
2×(1.1-2.2)
2×(1.1-2.2)
2×(1.1-2.2)
Size
Length
3740
4240
4740
3740
4240
4740
Width
1370
1400
1400
1900
1900
1900
Height
1440
1440
1440
1440
1440
1440
Main Features
(1) Easy to operate and maintain. (2) Low consumption with high yield and low cost. (3) Fully enclosed structure, automatic layout, more suitable for pipeline operations. (4) Good sealing without dust flying. (5) Can be used for single or multi layer.
(6) Material auto discharge, be able to continuous operation.
Q1. Are you a real factory?
>> A1: Sure, we are a 30 years large factory which TUV certified.
Q2. What information to provide for getting quote?
>> A2: 1. Material name, bulk density, and water content
2. Capacity required___kg/h
3. How many layers?
4. The mesh size for each layer
5. Voltage and frequency
6. Sea port name or address for shipment
Q3. How long for the delivery time?
>> A3: 5-15 working days for general products.
Q4. How long for warranty time?
>> A4: 12 months from the shipping date.
