                                                 newe hoffman kiln for clay brick making factory

   automatic clay brick machine for clay brick making factory  applies to clay, shale, coal gangue, fly ash, slag, mountain mud, silt, etc. to produce provisions cross-section of ordinary solid bricks, hollow bricks, and other products.

   newest hoffman kiln for clay brick factory use the raw materials to make bricks.

  newest hoffman kiln for clay brick factory produce different bricks like clay solid bricks and clay hollow bricks.

Baoshen brick machine company

     Baoshen brick machine series products have more than 40 varieties and over 100 specifications.our brick making machine have been exported to countries such as Kazakhstan,Uzbekistan,Kyrgrzstan,Tajikistan,Russia,Nepal ,Sudan,South Africa,Uganda,Mongolia,Argentina,Libya,Peru,Venezuela,Bangladesh and india,etc.have won great fame and popularity.

Production Strength:

1)Baoshen brick machine company

    Baoshen good quality clay brick machinery company not only provides customer with various fully automatic brick machine for design and build newest hoffman kiln for clay brick factory ,but also provides services like brick making process design of solid brick &hollow brick,brick kiln design and build,brick dryer design and build,brick factory turn key project contract.

Best clay brick production line

  Baoshen brick machine for design and build newest hoffman kiln for clay brick factory,clay brick production line

     clay brick making  factory including fully automatic clay brick machine, brick dryer(small tunnel dryer & chamber dryer) for drying and brick kiln (hoffman kiln&tunnel kiln)for firing.

      Baoshen Brick machine in one build supply design and build newest hoffman kiln clay brick factory including:

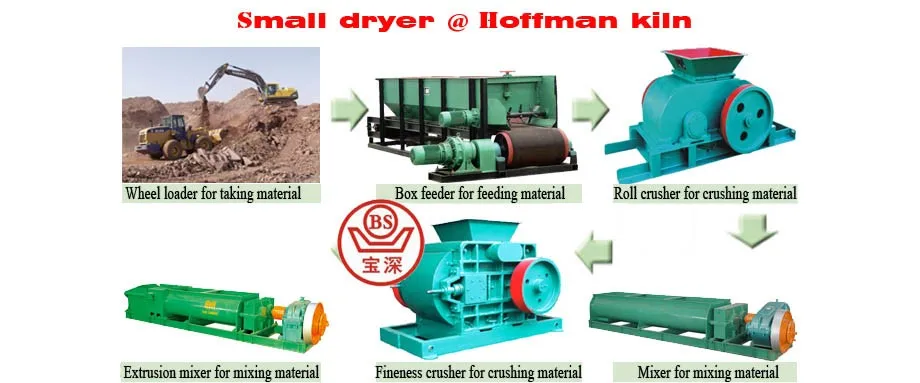

clay brick making process

   Large capacity brick machine for brick making process in supply to build  and design newest hoffman kiln clay brick factory ,including many different clay brick machinery.

1.taking clay with box feeder ,belt conveyor  carry clay to roller crusher to crush under 5 mm.

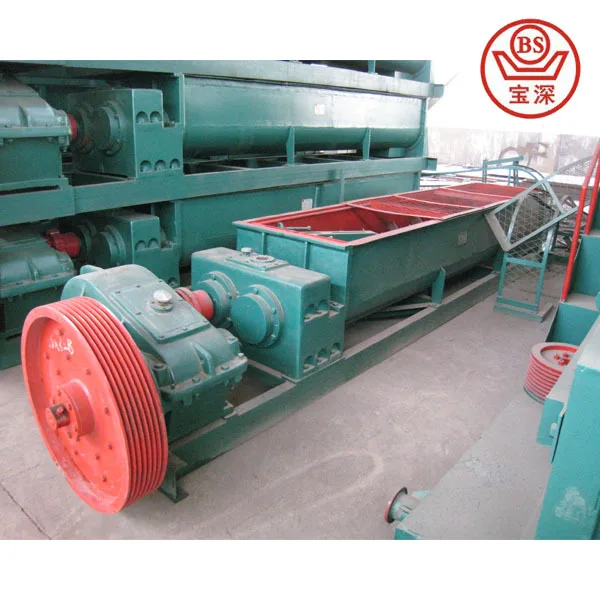

2.crushing clay under 5 mm, belt conveyor carry clay to double shaft mixer to mix clay.and then use fineness roller crusher to crush clay under 3 mm.

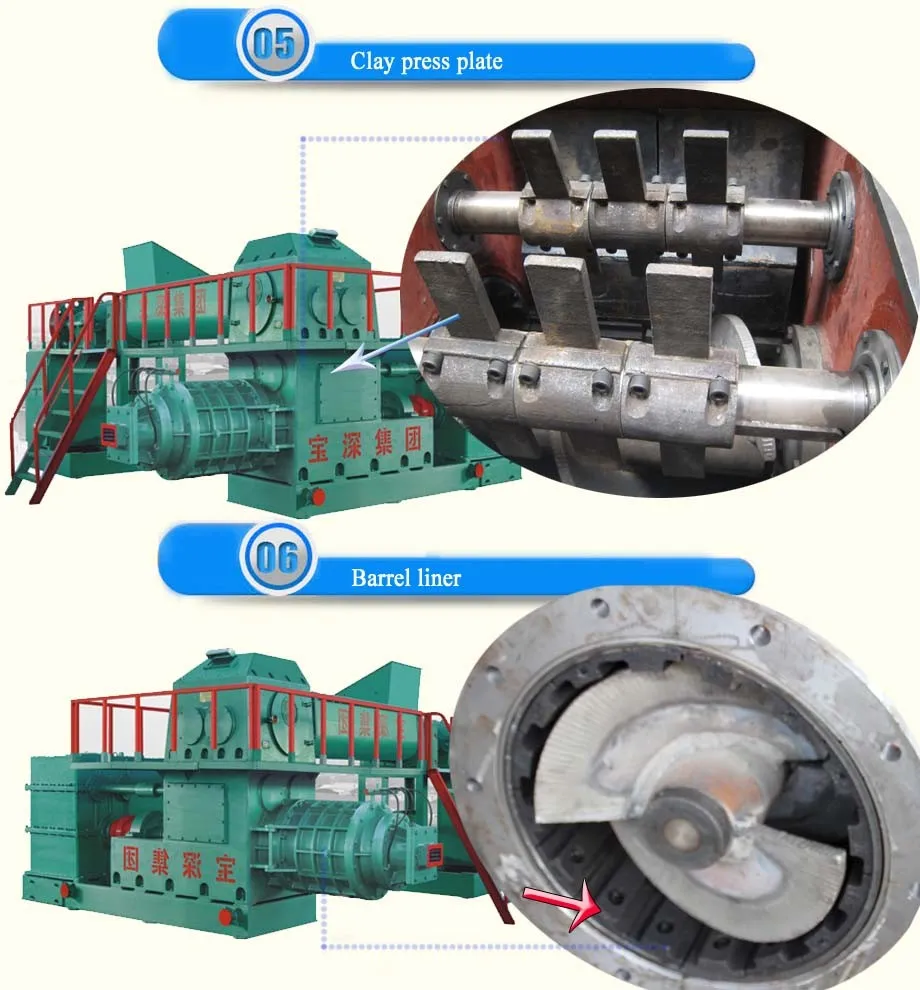

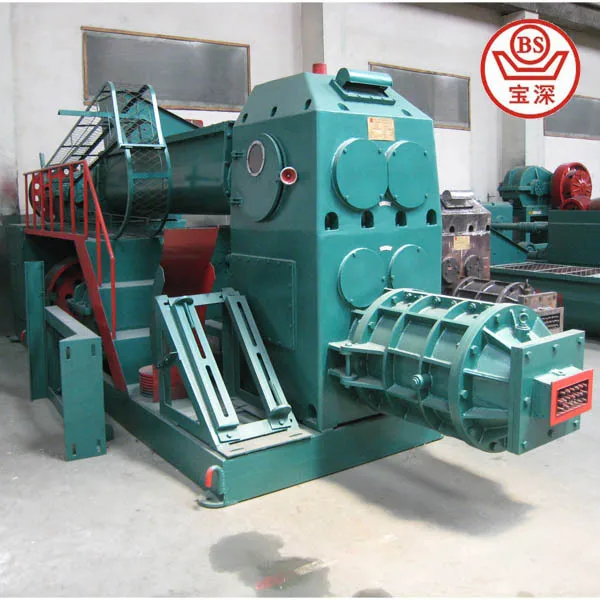

3.after fineness roller crusher,the clay is under 3 mm. belt conveyor  carry clay to extrusion mixer to mix again,which to enhance the plasticity to make good brick.and then extruding wet column brick with High pressure extruder brick machine

4.after extruding wet column brick,cutting column brick under 1.0-1.5 m,use the automatic brick cutter to cut piece brick.with different capacity.

5.after cutting bricks,manual stacking wet bricks on to dryer car, The dryer cart is sent to the inlet of drying chamber by ferry cart.

6. Dry the unfired brick in small tunnel dryer and the heat source comes from the residual heat of hoffman kiln.

7. After drying in small tunnel drying chamber, the unfired bricks are sent onto hoffman kiln by the tractor with Three wheel carts.

8. workers manual stacking dried bricks into the hoffman kiln

9.firing 24-30 hours,the hoffman kiln work circulate ,the fire cycle is one week.getting finished bricks every day due to your capacity. after firing well,manual unloading finished bricks on to the finished bricks cart .

Design and build newest hoffman kiln Clay brick factory

        Adopt nature dry&hoffman kiln and mechanical production process of second setting & burning.

1. Raw material & fuel preparation and handling

2. Molding

3. Drying

1)Dry the unfired brick in small tunnel drying chamber and the heat source comes from the residual heat of hoffman kiln.

4. Burning

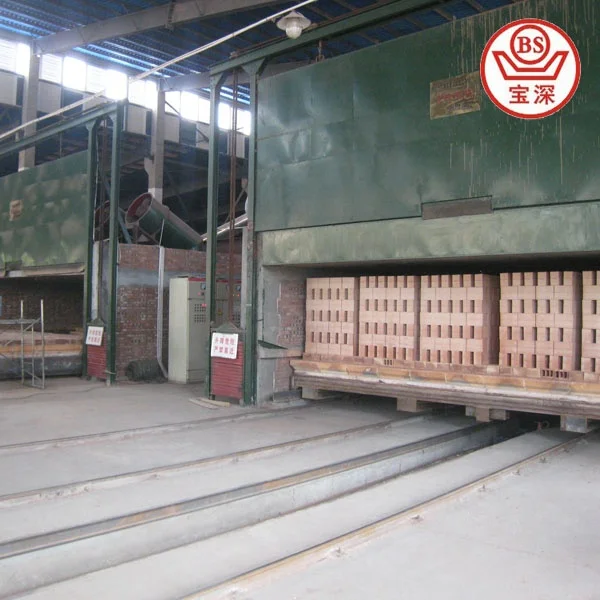

1)The burning adopts hoffman kiln. After drying in small tunnel drying chamber, the unfired bricks are sent onto hoffman kiln by the tractor with Three wheel carts, workers stack the bricks into the hoffman kiln for burning. The burning adopts coal combustion sintering method. The correspondent fume extraction system, residual heat system, cooling system, temperature & pressure measurement system and control regulating system are arranged in hoffman kiln for preheating, burning and cooling to guarantee the work performance of hoffman kiln.

2)The properly burned bricks are sent onto the Finished brick cart by workers and then, the Finished brick cart send them to brick unloading area to unload bricks. When unloading bricks, the spoiled bricks should be picked out and the finished good products of brick should be piled up in tidiness for sale.

design and build newest Hoffman kiln for clay brick factory working system

Design and build newest hoffman kiln for Clay brick factory area

The plant floor area is not less than 16,000m².

The building area is not less than 1,300m².

Design and build newest hoffman kiln for clay brick factory layout

After sale

Before-sale services:

(1) tell customer how to build new brick factory, including clay brick  machine, drying and firing.(Confirm clay,power electricity,water,land area, fund)

(2) Guide customers to choose the best and economic plant, recover the investment within short time.

(3) site inspection

(4) provide the offer, flow chart, and detail specification of each clay brick machine.

In-Sale services:

(1)Quality of clay  brick machine control must be inspected strictly

(2)In accordance with the agreements stipulated in the contract

After-sale services:

(1) We will send the technicians about clay brick  machine to guide with device installation, debugging and training operators until customers are fully satisfied.

(2) Guarantee for brick machine, materials and equipment supplied under this quotation are valid for a period of 12 months after commissioning or 16 months after delivery whichever is earlier. Warranty shall cover manufacturing defect in material and workmanship but exclude:1. Daily wear and tear 2.mishandling or improper operation3. Incoming power supply fluctuation 4. Consumable and spare parts.

(3) Regular visit customer, consult with the customer feedback, come true with the customer's two-way communication Fired Fully Automatic Clay Bricks and Blocks Machinery.
