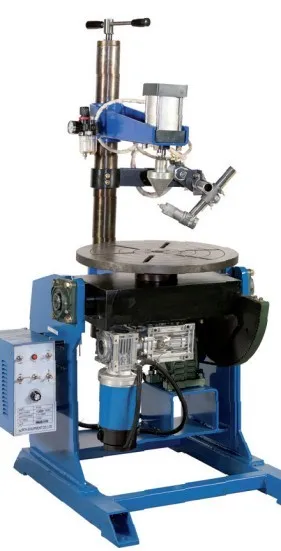

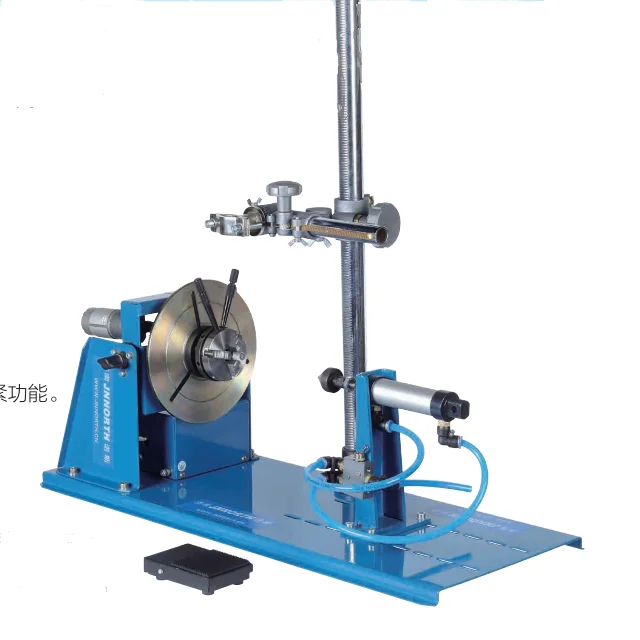

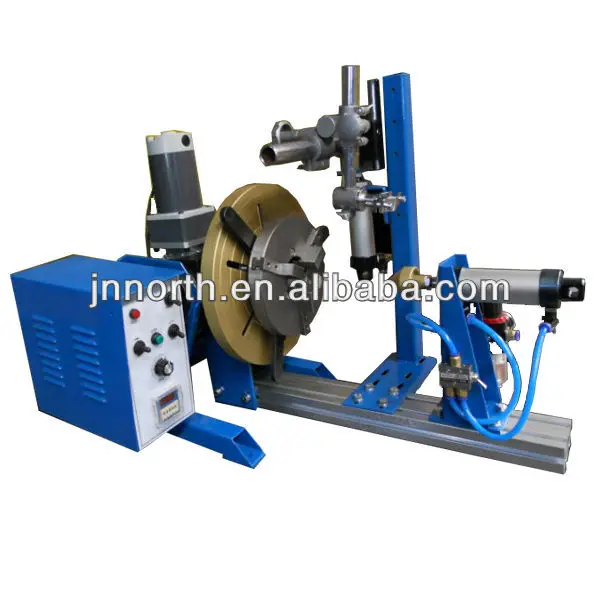

Welding Positioner Rotary Table Turntable (BY 50T20)

Описание и отзывы

Характеристики

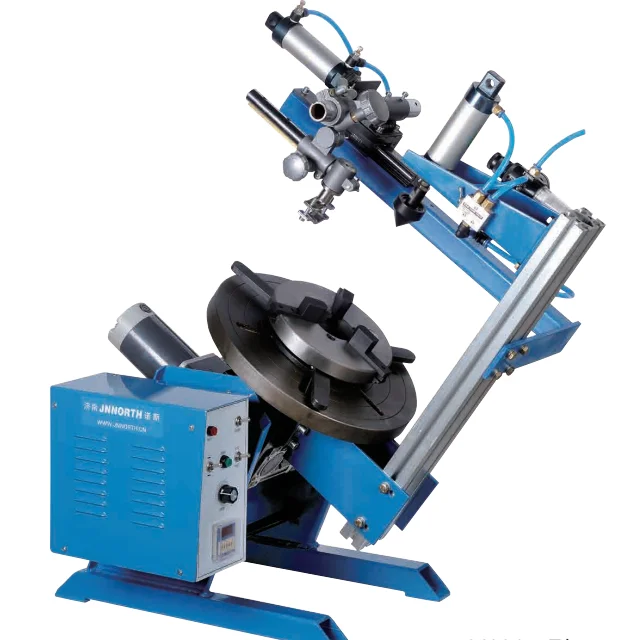

BY-50T20 Welding Positioner

This BY- series welding positioner/ Pipe Welding Turntable is a type of automatic positioner , it can works in MIG/MAG,CO2 and TIG welding process .Making a set of special circumferential automatic welding system ,this welding positioner is suitable for circular and ring workpiece , for example :spare parts for car, pipe , flange ,bellows and other metals parts which need mass of circumferential welding

Main characters :

1.The rotation structure is driven by the DC motor, while stepless speed regulation can be achieved.
2. The turning structure of worm and gear has the function of self-lock, and the worktable can be turned steplessly between 0-90° .
3. Special design of anti-electromagnetic, which reduces the high frequency interference of TIG's welding, and can improve the welding quality effectively.
4. A self-controller can be furnished to control the working condition and working time, which can achieve the linkage of the positioner and welder.
5. The adjustable-welding gun support can be furnished to fix the position of the welding torch.

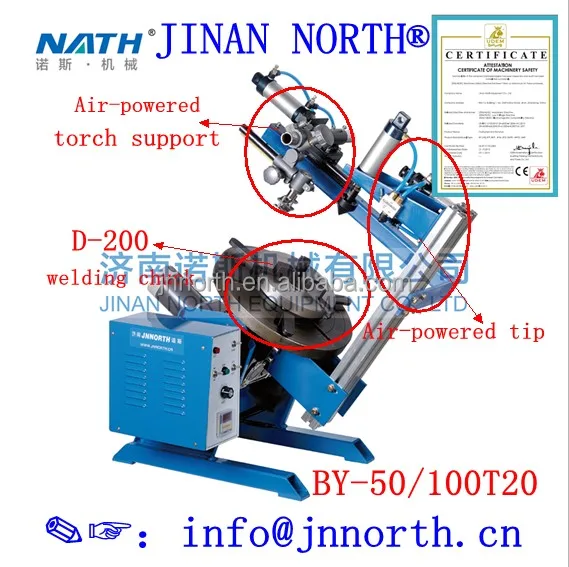

6. The track and air-powered tip can be furnished to achieve the function of self-holding to the workpieces.

Technical Specifications :

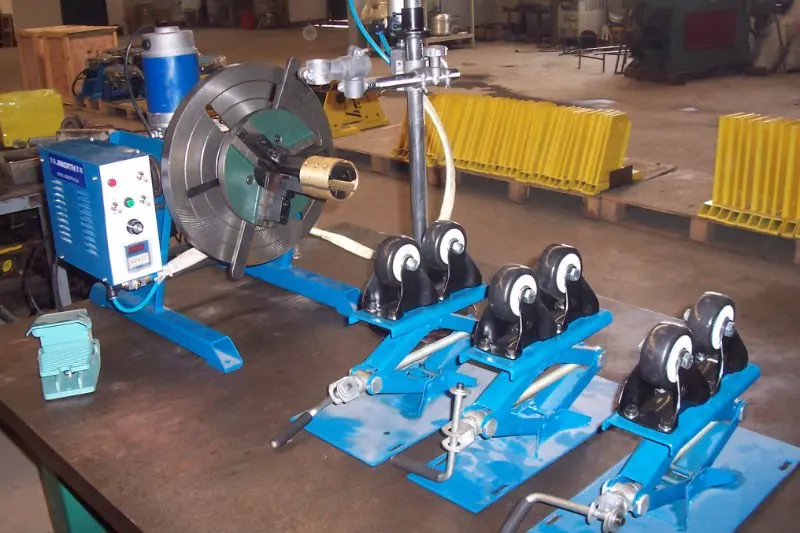

BY-100T Welding Turntable

Jinan North Equipment Co.,Ltd have been specialized in manufaturing welding positioners/ Pipe Welding Turntable for more than 20 years. All of its welding positioner are CE, C-tick, CCC approved and exported all over the world, getting great reputation for it great quality and service.

Welding positioners are the machines be used to change the position of work piece on the welding positioner table and to ensure smooth rotation of the work piece at certain required speed. So welding postitioner normally means a table rotates workpiece at certain rotation speed, and two tilts the work piece at certain degree.

Main characteristics of Jinan North BY-100T welding positioners:
1. The rotation structure of the welding positioners is driven by the DC motor, while stepless speed regulation can be achieved.
2. The turning structure of worm and gear in the welding positioners has the function of self-lock, and the worktable can be turned steplessly between 0-90 degree; .
3. Special design of anti-electromagnetic of the welding positioners, which reduces the high frequency interference of TIG's welding, and can improve the welding quality effectively.
4. A self-controller can be furnished to control the working condition and working time, which can achieve the linkage of the positioner and welder.
5. The adjustable-welding gun support can be furnished to fix the position of the welding torch.
6. The track and air-powered tip can be furnished to achieve the function of self-holding to the workpieces.

Technical Specifications :

Reference Pictures :
