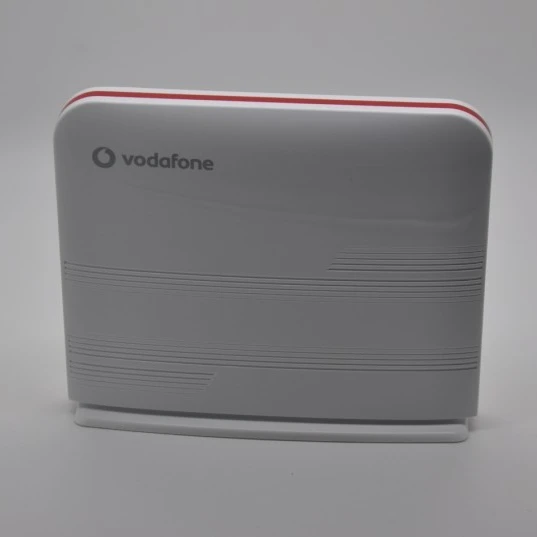

Etross MINI STATION VOCE MT90

is a GSM to Analog Converter(single port,insert 1 sim card only), the device canproduce a FXS line to allow a regular phone to be connected and used just like a local landlin(PSTN) except your calls will go out the GSM network.

This device can both receive and make calls.

Main Application

1. Connecting the RJ-11 FXS line to connect Ordinary telephone set for voice call,

2. Connecting the RJ-11 FXS line to connect PBX for call extentions,

3. Connecting the RJ-11 FXS line to connect billing systems for public phone use,

4. Connecting the RJ-11 FXS line to connect VoIP gateway to realize VoIP call termination,

5. Connecting the RJ-11 FXS line to connect alarm system for security purpose

6. It is not a VOIP gateway, nor a GSM+VOIP gateway, It is a GSM Fixed Wireless Terminal that produces a

analog FXS phone line.

Product Function

1. a GSM modem that allows you to use only the voice service through the use of a sim;

2. compatible with all phones that work mode 'tone (no rotary phone);

3. connected through a standard cable;

4. equipped with two phone ports (Phone 1 or Phone 2), but you can connect one phone.

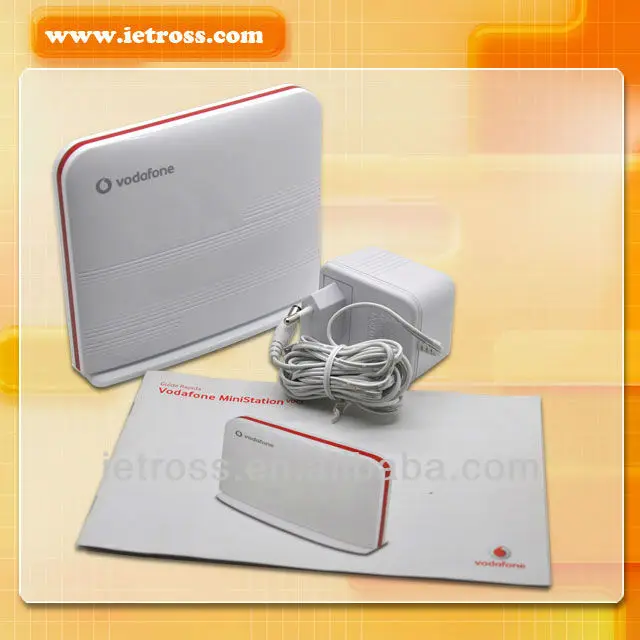

In the box

By signing the offer Etross MiniStation receive a package containing:

1) Connecting to Ordinary Telephone

Draw your attention:Because there are many types of ordinary telephone and their electric parameters are different. In order to avoid mutual disturbance between telephone and terminal and affect voice quality. The distance between telephone and terminal is 1.5m at least.

2) connecting to PBX for call extentions

If users want to connect small PBX to this terminal, connect terminal’s “Phone port” to the PBX.

3) connecting VoIP gateway for Call Termination

Suppose a VoIP call originates from US, which was transferred from US Server to China Server on VoIP, finally the call will be terminated from internet to GSM network and to be sent out to the destination answer side.

4) connecting to alarm system for Security

The GSM FWT can substitute the PSTN for connecting to alarm system for security purpose when PSTN failure or not available.
